TOA D-001R: Line Input Module with DSP
Model D-001R
Request a Quote
Availability: Out of Stock
- Two RCA phone inputs per channel provides stereo summing
- Digital Signal Processing - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
- Max. 4 modules / chassis
Product Overview
Overview

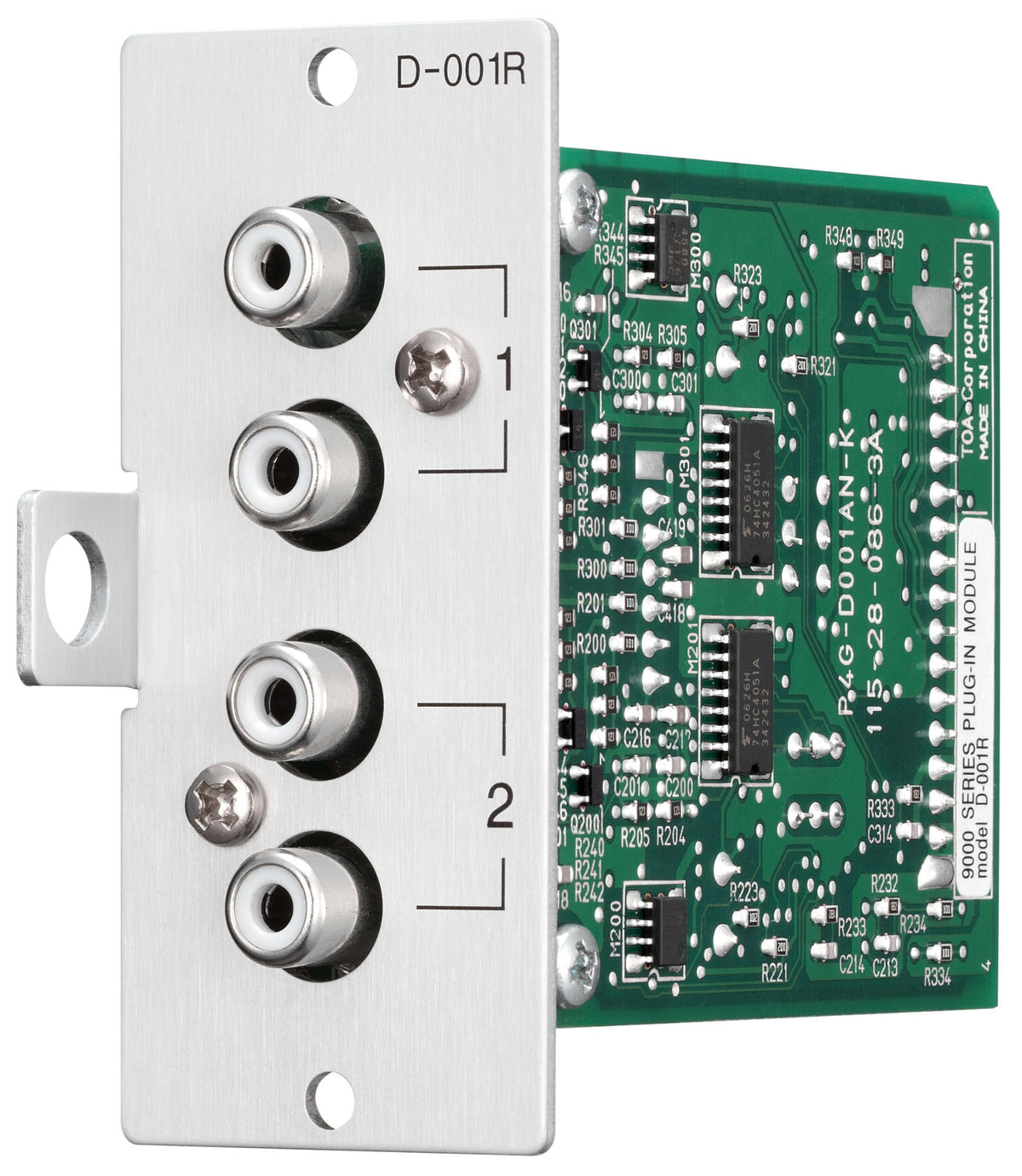

The TOA D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA D-001R with supply, installation and commissioning.
Key features
- Two RCA phone inputs per channel provides stereo summing
- Digital Signal Processing - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
- Max. 4 modules / chassis
Typical applications
- Expanding digital mixer and matrix systems
- Installed multi-room audio systems
- Auditoriums and venues
Why choose the D-001R
it is a line input module with DSP from TOA, supplied with Corporate AV's site survey, installation and support across India, so the D-001R is specified for your project and not just shipped.
Product Highlights
Key Benefits
Two RCA phone inputs per channel provides stereo summing
Digital Signal Processing - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
Max. 4 modules / chassis
Use Cases
Ideal Applications
Expanding digital mixer and matrix systems
Installed multi-room audio systems
Auditoriums and venues
Technical Details
Technical Specifications
Specifications
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input
2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
Input Sensitivity
-60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
Signal to Noise Ratio
Over 70 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Crosstalk
Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
Tone Control
Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Operating Temperature
-10 °C to +40 °C (14 ℉ to 104 ℉)
Included Accessories
Module mounting screw x 2
Dimensions & finish
Finish
Panel: Aluminum, hair-line
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm (1.38"" x 3.07" x 3.6")
Weight
82 g (0.18 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The D-001R From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA D-001R?
The TOA D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks.
What are the main specifications of the TOA D-001R?
TOA lists these figures for the D-001R: Frequency Response: 20 Hz - 20 kHz, +1, -3 dB; Total Harmonic Distortion: 0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB); Input: 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack; Input Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable). The full specification table is on this page.
What are the key features of the TOA D-001R?
TOA highlights: two RCA phone inputs per channel provides stereo summing; digital Signal Processing - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor; max. 4 modules / chassis.
Where is the TOA D-001R used?
It suits: expanding digital mixer and matrix systems; installed multi-room audio systems; auditoriums and venues. Corporate AV can advise whether it fits your project.
Which TOA series is the D-001R part of?
TOA lists the D-001R in its M-9000M2 Digital Matrix Mixer range.
