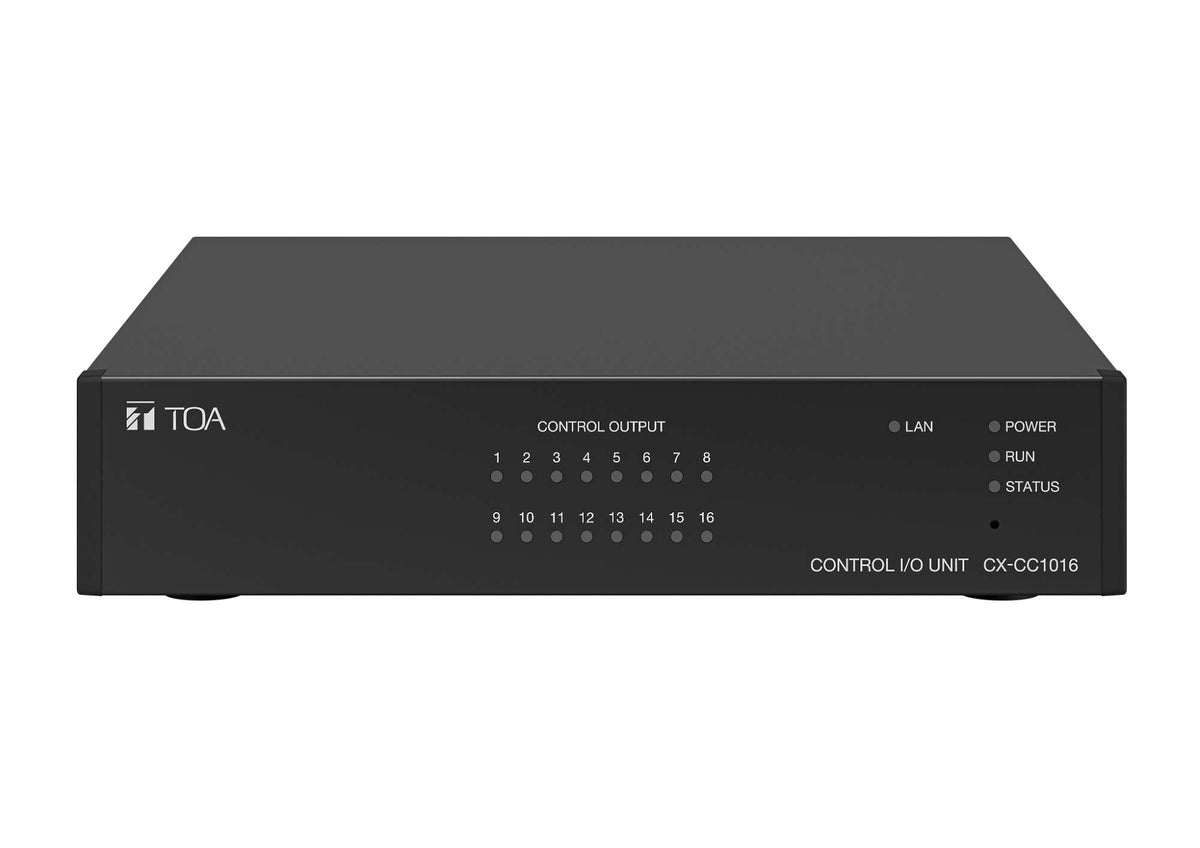

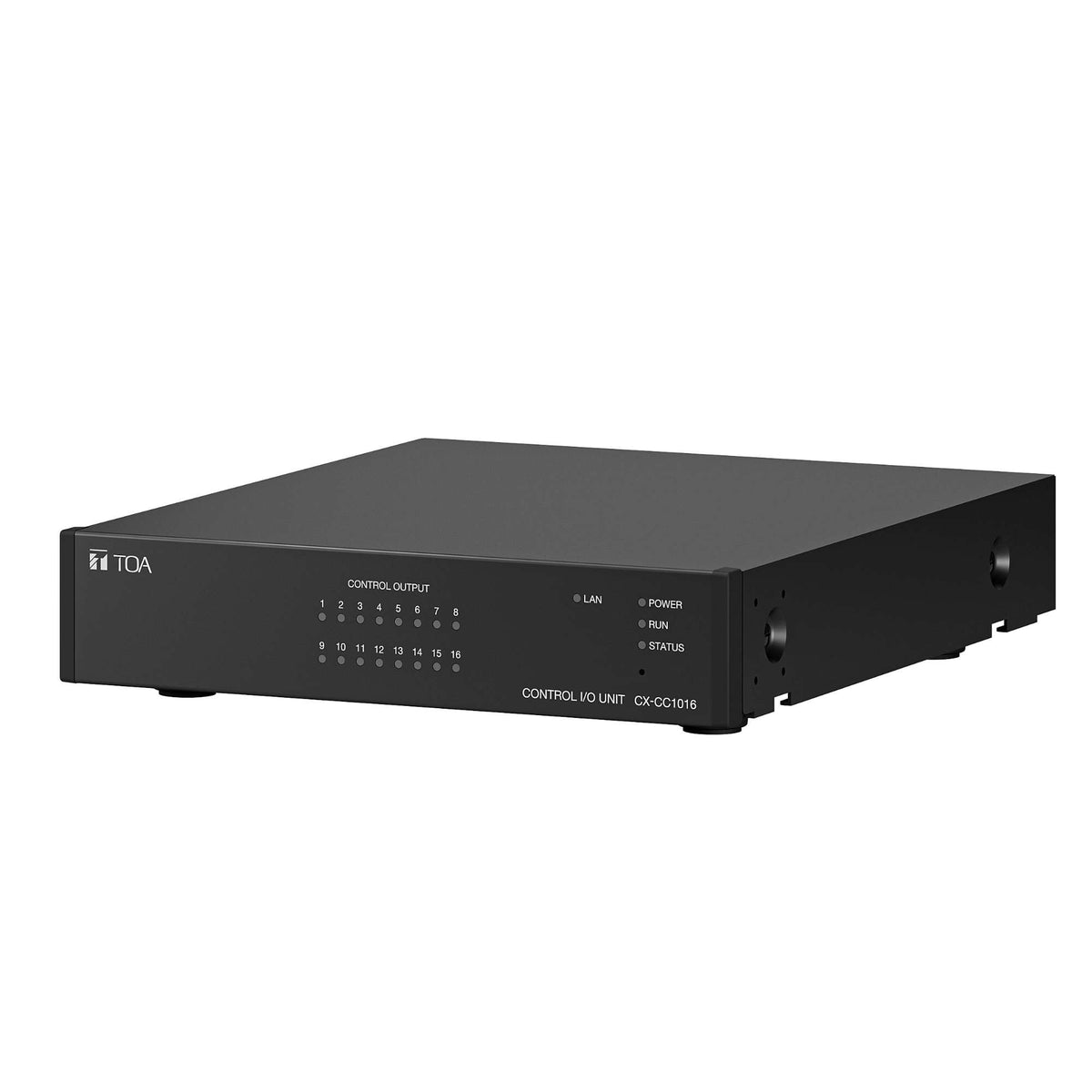

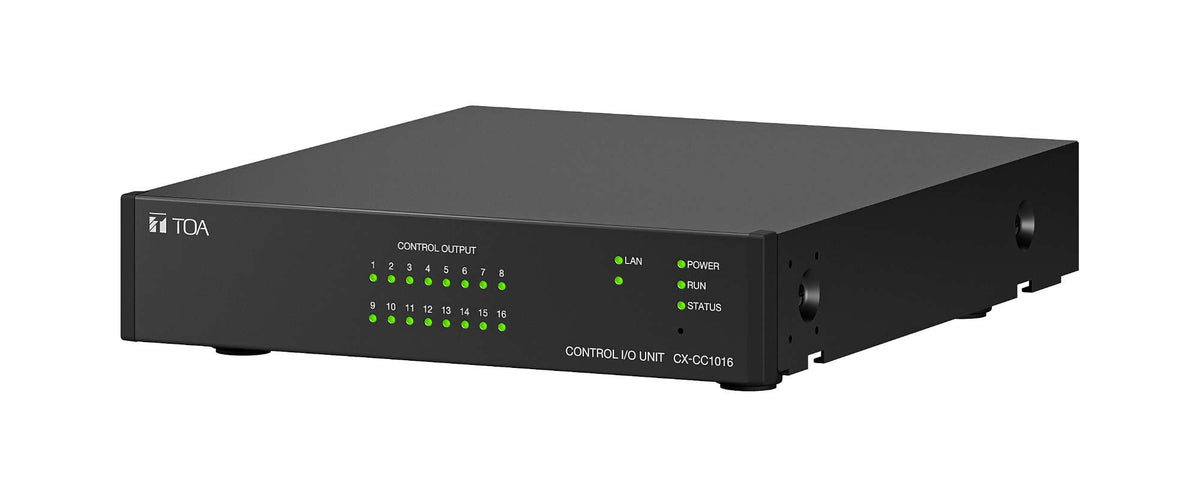

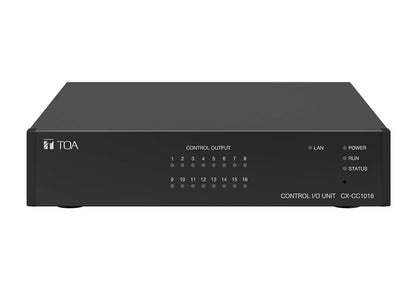

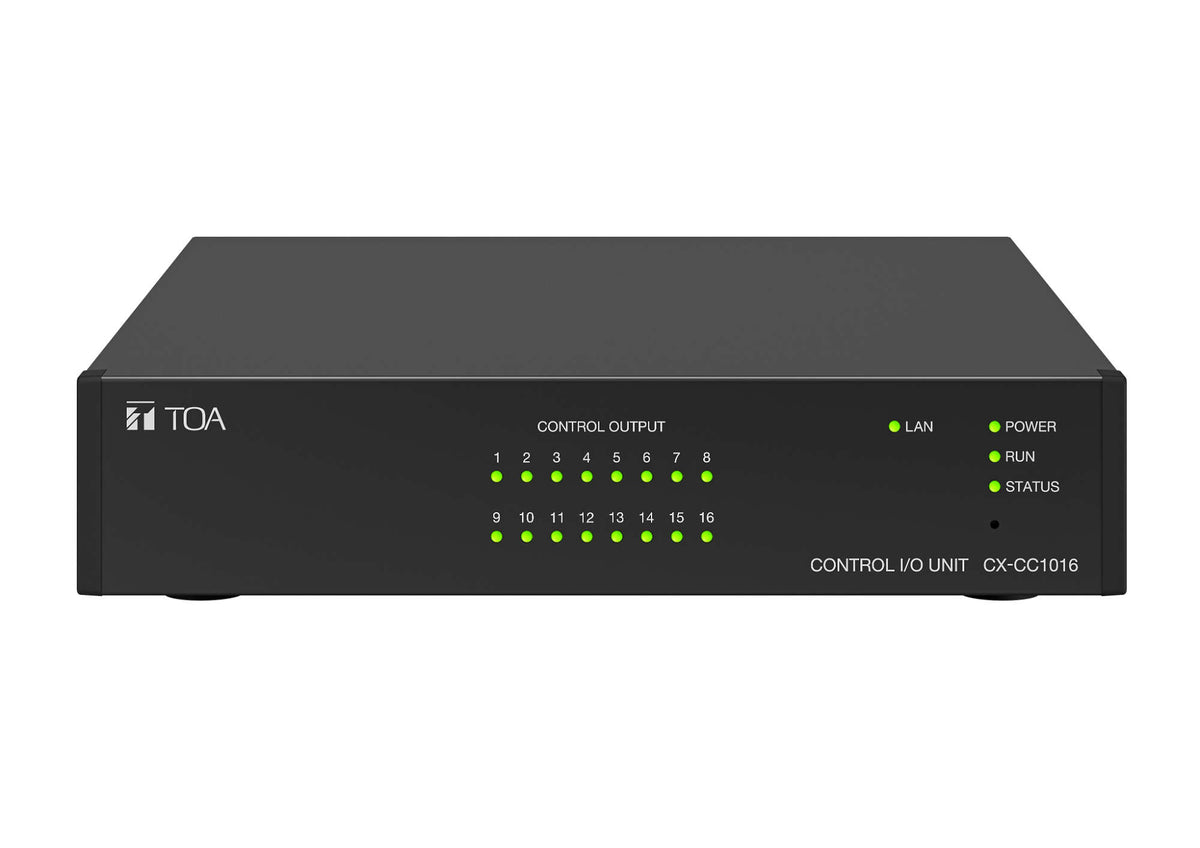

TOA CX-CC1016: Control I/O Unit
Model CX-CC1016
Request a Quote
Availability: Out of Stock
- 16-channel relay inputs and outputs control unit for external device integration
- Single LAN port with 100Base-TX network interface
- Reset key for easy system reboot
- Compact design for desktop, rack, or wall mounting
Product Overview
Overview
The TOA CX-CC1016 is a Control input/output unit having 16 control inputs and 16 control outputs designed for the CX-1000 series IP Communication system. By connecting this unit to a network (LAN or WAN), you can control external devices connected to the units in the configured CX-1000 system, enable various types of calls, activate broadcasts, and set other functions as needed.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA CX-CC1016 with supply, installation and commissioning.
Key features
- 16-channel relay inputs and outputs control unit for external device integration
- Single LAN port with 100Base-TX network interface
- Reset key for easy system reboot
- Compact design for desktop, rack, or wall mounting
- 24 V DC power input with removable terminal block
Typical applications
- Building-wide intercom networks
- Integration with telephone, paging and PA systems
- Offices, campuses and industrial sites
Why choose the CX-CC1016
it is a control I/O unit from TOA, supplied with Corporate AV's site survey, installation and support across India, so the CX-CC1016 is specified for your project and not just shipped.
Product Highlights
Key Benefits
16-channel relay inputs and outputs control unit for external device integration
Single LAN port with 100Base-TX network interface
Reset key for easy system reboot
Compact design for desktop, rack, or wall mounting
24 V DC power input with removable terminal block
Use Cases
Ideal Applications
Building-wide intercom networks
Integration with telephone, paging and PA systems
Offices, campuses and industrial sites
Technical Details
Technical Specifications
Specifications
Power Source
24 V DC (operating range: 21.6 - 26.4 V DC); Removable terminal block (2 pins) or use of the optional AC adapter
Current Consumption
230 mA
Power Consumption
5.5 W
Network Section
Network I/F: 100Base-TX; Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, FTP; Connector: RJ45 connector x 1; Network cable: UTP (Cat5 or greater)
User Control
Reset key x 1
Indicators
LED indicators: LAN (green) x1, POWER (green) x1, RUN (green) x1, STATUS (yellow, red, green) x1; Control output indicators: CONTROL OUTPUT (green) x16
Installation Method
Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH (no condensation)
Included Accessories
Removable terminal plug (2 pins) x 1, Removable terminal plug (10 pins) x 2, Removable terminal plug (16 pins) x 2, Plastic foot x4, Screw for fitting plastic foot x 4
Optional Accessories
AC adaptor: AD-246; Wall mounting bracket: YC-850; Half width blank panel: MB-15B-BK (for rack mounting one CX-CC1016 unit); Rack joint bracket: MB-15B-J (for rack mounting two CX-CC1016 units)
Dimensions & finish
Finish
Panel, Case: Pre-coated steel plate, black, 30 % gloss
Dimensions
210 (W) x44.3 (H) x266.7 (D) mm (8.27" x1.74" x10.5")
Weight
1.5 kg (3.31 lb)
