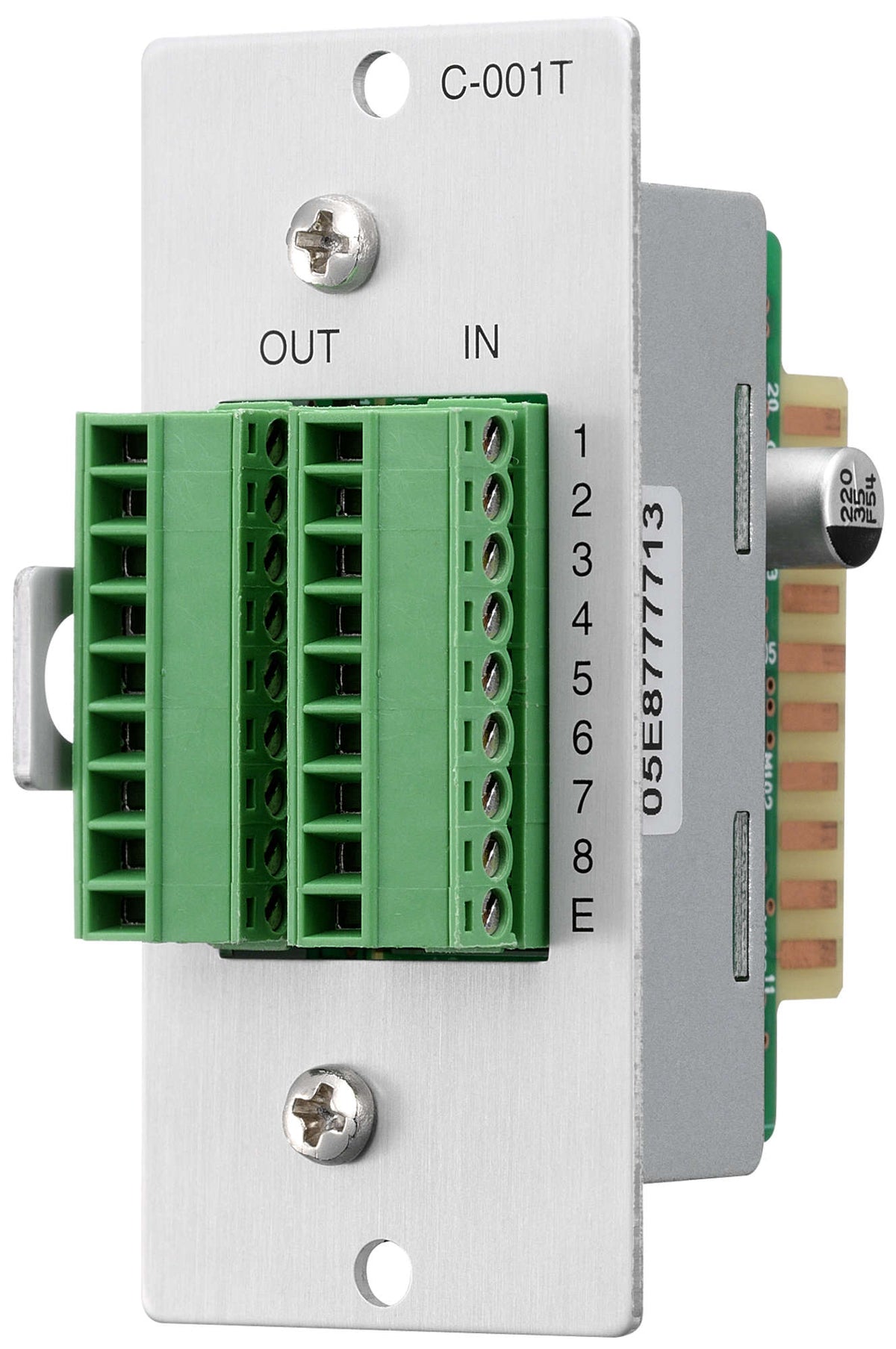

TOA C-001T: Input / Output Control Module

Model C-001T

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized TOA Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 8 assignable control inputs for activation - Event / volume / mute / remote - Power on / off - Emergency mute
  • 8 assignable control outputs for activating external relays
  • Removable screw terminals
  • Max. 1 control module per chassis
Public Address System Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The TOA C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.

Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA C-001T with supply, installation and commissioning.

Key features

  • 8 assignable control inputs for activation - Event / volume / mute / remote - Power on / off - Emergency mute
  • 8 assignable control outputs for activating external relays
  • Removable screw terminals
  • Max. 1 control module per chassis

Typical applications

  • Zone and volume control from wall panels
  • Digital mixer and matrix systems
  • Hotels, venues and commercial buildings
Why choose the C-001T
it is an input / output control module from TOA, supplied with Corporate AV's site survey, installation and support across India, so the C-001T is specified for your project and not just shipped.
Product Highlights

Key Benefits

8 assignable control inputs for activation - Event / volume / mute / remote - Power on / off - Emergency mute

8 assignable control outputs for activating external relays

Removable screw terminals

Max. 1 control module per chassis

Use Cases

Ideal Applications

Zone and volume control from wall panels

Digital mixer and matrix systems

Hotels, venues and commercial buildings

Technical Details

Technical Specifications

Specifications
Power Supply 6 V DC
Current Consumption 15 mA
Control Input 8 channels, open voltage: 3.3 V DC, short-circuit current: under 1 mA, removable terminal block (9 pins)
Control Output 8 channels, open collector output, withstand voltage: 27 V DC, control current: max. 50 mA, removable terminal block (9 pins)
Operating Temperature -10 °C to +40 °C (14 ℉ to 104 ℉)
Included Accessories Removable terminal plug (9 pins) x 2, Module mounting screw x 2
Dimensions & finish
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) x 78 (H) x 91.5 (D) mm
Weight 62 g

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The C-001T From Corporate AV?
  • Genuine TOA stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the TOA C-001T?
The TOA C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
What are the key features of the TOA C-001T?
TOA highlights: 8 assignable control inputs for activation - Event / volume / mute / remote - Power on / off - Emergency mute; 8 assignable control outputs for activating external relays; removable screw terminals; max. 1 control module per chassis.
Where is the TOA C-001T used?
It suits: zone and volume control from wall panels; digital mixer and matrix systems; hotels, venues and commercial buildings. Corporate AV can advise whether it fits your project.
Which TOA series is the C-001T part of?
TOA lists the C-001T in its M-9000M2 Digital Matrix Mixer range.
Can Corporate AV supply and install the TOA C-001T in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA C-001T?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
