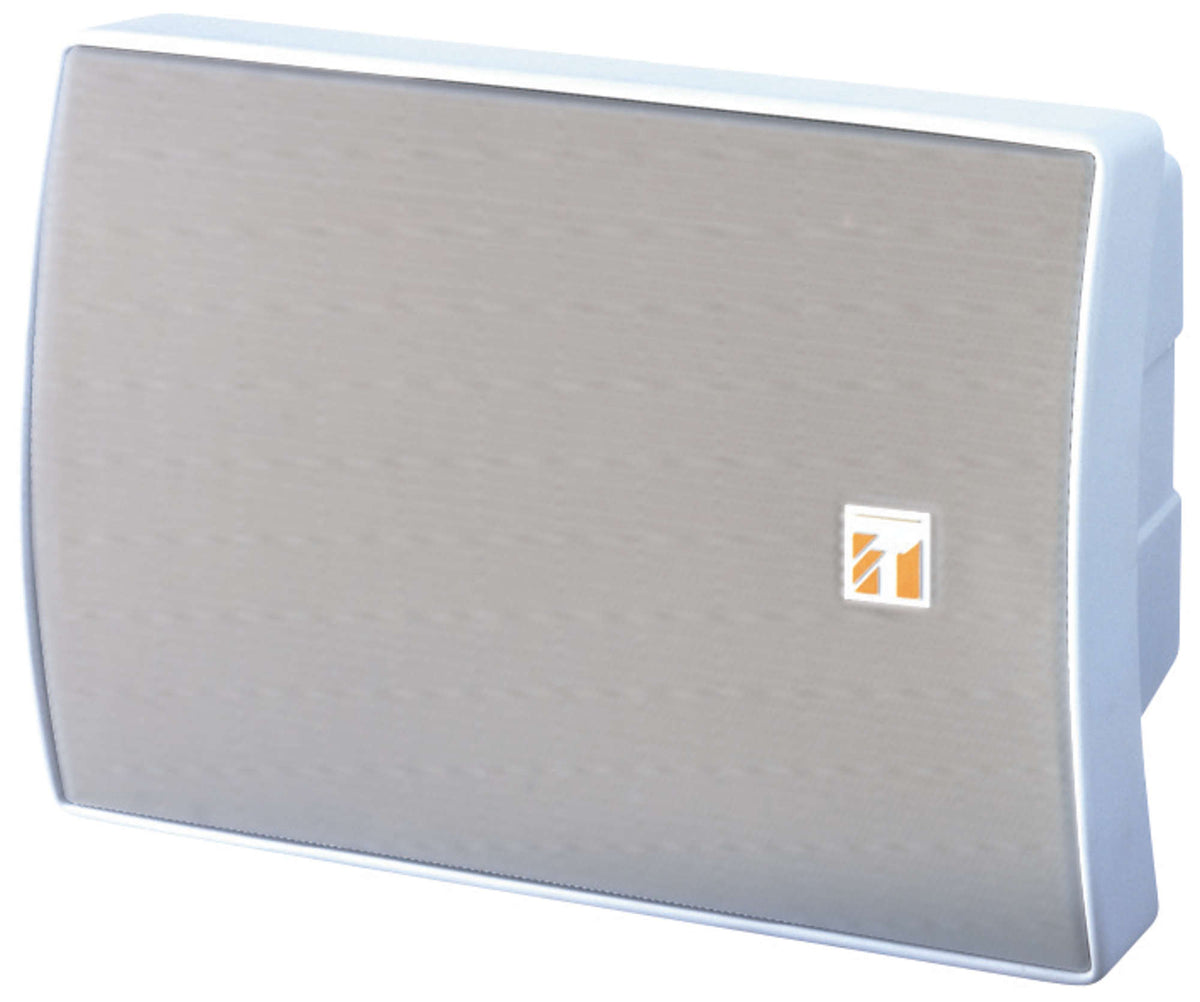

TOA BS-1015BSW: Compact Box Speaker
Model BS-1015BSW
Request a Quote
Availability: Out of Stock
- 2-way hi-fi speaker
- Easy and quick installation
- Fits architecturally sophisticated environments
- Certified according to EN 54-24, ISO 7240-24
Product Overview
Overview
The TOA BS-1015BSW is a voice alarm certification model. 2 way speaker system is suitable for announcement and music use in wide frequency range.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA BS-1015BSW with supply, installation and commissioning.
Key features
- 2-way hi-fi speaker
- Easy and quick installation
- Fits architecturally sophisticated environments
- Certified according to EN 54-24, ISO 7240-24
- Compliant with BS-5839-8
Typical applications
- Paging and background music
- Offices, schools, shops and factories
- Halls, lobbies and public spaces
Why choose the BS-1015BSW
it is a compact box speaker from TOA, supplied with Corporate AV's site survey, installation and support across India, so the BS-1015BSW is specified for your project and not just shipped.
Product Highlights
Key Benefits
2-way hi-fi speaker
Easy and quick installation
Fits architecturally sophisticated environments
Certified according to EN 54-24, ISO 7240-24
Compliant with BS-5839-8
Use Cases
Ideal Applications
Paging and background music
Offices, schools, shops and factories
Halls, lobbies and public spaces
Technical Details
Technical Specifications
Specifications
Enclosure
2-way bass-reflex system
Rated Noise Power
15 W (100 V Line), 7.5 W (70 V Line)
Rated Impedance
100 V line: 670 Ω (15 W), 1 kΩ (10 W), and 2 kΩ (5 W); 70 V line: 670 Ω (7.5W), 1 kΩ (5 W), 2kΩ (2.5W)
Sensitivity
90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise); 87 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise); 75 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise)
Max. SPL
98 dB (15 W, 1 m) (100 Hz - 10 kHz, pink noise); 86 dB (15 W, 4 m) (100 Hz - 10 kHz, pink noise)
Frequency Response
80 Hz - 20 kHz
Coverage Angle
Horizontal: 220° (500 Hz), 150° (1 kHz), 120° (2 kHz), 90° (4 kHz); Vertical: 330° (500 Hz), 160° (1 kHz), 120° (2 kHz), 70° (4 kHz)
Environmental Type
A (indoor applications)
Speaker Component
Low frequency: 12 cm (5) cone-type; High frequency: 2.5 cm (1) balanced dome tweeter
Speaker Mounting Method
Wall-mount
Cable Gland
Size: PG 13.5; One cable gland is factory-installed.; For bridge connection, one supplied cable gland can be added.*
Cable Requirements
Outer diameter: Ø6.6 - Ø12.5 mm; Conductor: Solid wire or 7-core wire; No bridge connection: 0.8 - 10 mm² (AWG18-AWG7) for solid wire,; 0.8 - 8 mm² (AWG18-AWG8) for 7-core wire; Bridge connection: 0.8 - 2.5 mm² (AWG18-AWG13) for solid wire,; 0.8 - 1.5 mm² (AWG18-AWG15) for 7-core wire
Connection
Screw connector (steatite terminal) can be bridge connection
Operating Temperature
-10 ℃ to +50 ℃ (14 ℉ to 122 ℉)
Included Accessories
Bracket x 1, Bracket mounting screw x 2, Rear cover x 1
Dimensions & finish
Finish
Enclosure: ABS resin, white (RAL9010 or equivalent color), paint; Grille: Surface treated steel plate net, white (RAL9010 or equivalent color), powder coating; Bracket: Surface treated steel platet, white (RAL9010 or equivalent color), powder coating
Dimensions
196 (W) x 290 (H) x 186 (D) mm (7.72 x 11.42" x 7.32") (without bracket)
Weight
2.4 kg (5.29 lb) (without bracket)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The BS-1015BSW From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA BS-1015BSW?
The TOA BS-1015BSW is a voice alarm certification model. 2 way speaker system is suitable for announcement and music use in wide frequency range.
What are the main specifications of the TOA BS-1015BSW?
TOA lists these figures for the BS-1015BSW: Frequency Response: 80 Hz - 20 kHz; Weight: 2.4 kg (5.29 lb) (without bracket). The full specification table is on this page.
What are the key features of the TOA BS-1015BSW?
TOA highlights: 2-way hi-fi speaker; easy and quick installation; fits architecturally sophisticated environments; certified according to EN 54-24, ISO 7240-24.
Where is the TOA BS-1015BSW used?
It suits: paging and background music; offices, schools, shops and factories; halls, lobbies and public spaces. Corporate AV can advise whether it fits your project.
Which TOA series is the BS-1015BSW part of?
TOA lists the BS-1015BSW in its Wall-Mount Box Speakers range.
Can Corporate AV supply and install the TOA BS-1015BSW in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA BS-1015BSW?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
