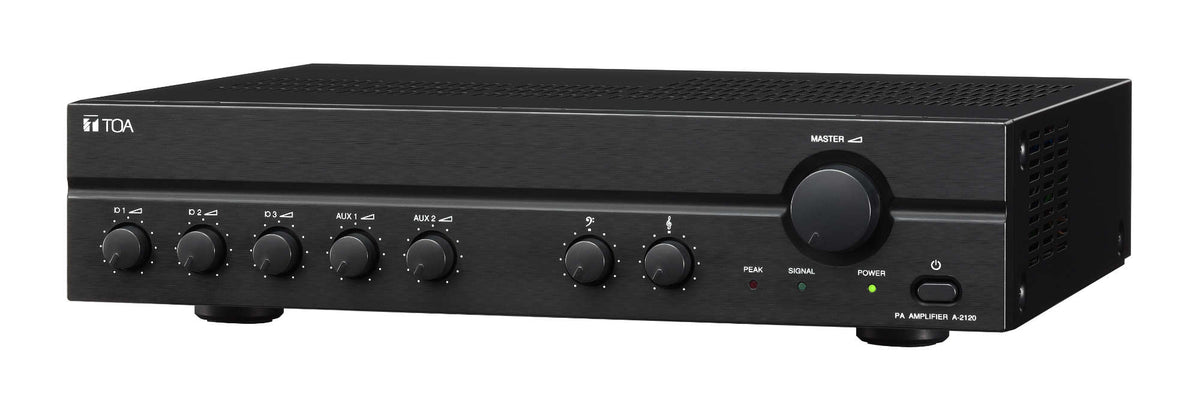

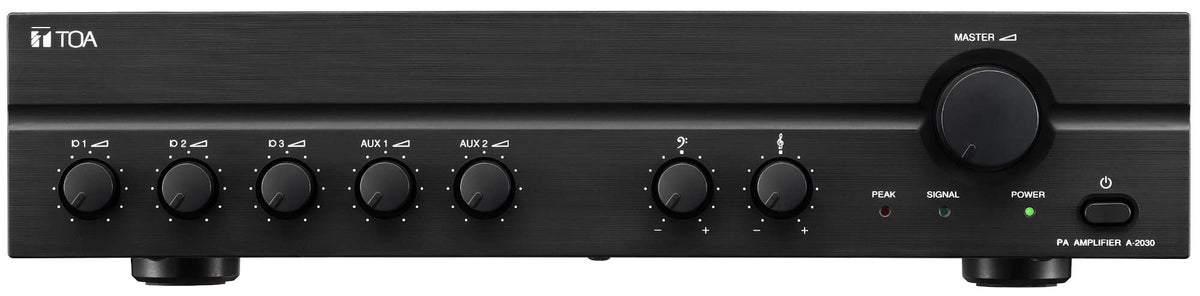

TOA A-2240: Mixer Amplifier
Model A-2240
Request a Quote
Availability: Out of Stock
- 4 versions available: 30 W, 60 W, 120 W or 240 W
- User-friendly front panel allows easy operation
- Excellent frequency response
- 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
Product Overview
Overview
The TOA A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA A-2240 with supply, installation and commissioning.
Key features
- 4 versions available: 30 W, 60 W, 120 W or 240 W
- User-friendly front panel allows easy operation
- Excellent frequency response
- 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
- Phantom power is provided to MIC 1, for supplying power to a condenser microphone
- Wide tone-control adjustment range of ±10dB for both bass and treble
- 100 V / 70 V line or 4 Ω speaker outputs
- 2-unit size
Typical applications
- Paging and background music in offices, shops and factories
- Schools, houses of worship and public buildings
- Constant-voltage (100 V) speaker distribution
Why choose the A-2240
it is a mixer amplifier from TOA, supplied with Corporate AV's site survey, installation and support across India, so the A-2240 is specified for your project and not just shipped.
Product Highlights
Key Benefits
4 versions available: 30 W, 60 W, 120 W or 240 W
User-friendly front panel allows easy operation
Excellent frequency response
3 electronically balanced microphone inputs, 2 AUX inputs and recording output
Phantom power is provided to MIC 1, for supplying power to a condenser microphone
Use Cases
Ideal Applications
Paging and background music in offices, shops and factories
Schools, houses of worship and public buildings
Constant-voltage (100 V) speaker distribution
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, or 24 - 30 V DC
Rated Output
240 W
Power Consumption
238 W (EN60065), 520 W (AC operation at rated output), 15 A (DC operation at rated output)
Frequency Response
50 - 20,000 Hz (±3 dB)
Distortion
Under 1% at 1 kHz, 1/3 rated power
Input
MIC 1 - 3: -60 dB*, 600 Ω, balanced, phone jack AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Output
Speaker out: Balanced (floating) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Tone Control
Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Signal to Noise Ratio
Over 60 dB
Phantom Power
DC +21 V (MIC 1)
Muting
MIC 1: Mutes other input signals by 0 - 30 dB attenuation
Indicator
Power, signal, peak
Dimensions & finish
Finish
Panel: ABS resin, black Case: Steel plate, black
Dimensions
420 (W) x 100.9 (H) x 360.3 (D) mm (16.54 x 3.97" x 14.19")
Weight
13.2 kg (29.1 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The A-2240 From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA A-2240?
The TOA A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
What are the main specifications of the TOA A-2240?
TOA lists these figures for the A-2240: Rated Output: 240 W; Power Source: 220 - 240 V AC, or 24 - 30 V DC; Frequency Response: 50 - 20,000 Hz (±3 dB); Distortion: Under 1% at 1 kHz, 1/3 rated power. The full specification table is on this page.
What are the key features of the TOA A-2240?
TOA highlights: 4 versions available: 30 W, 60 W, 120 W or 240 W; user-friendly front panel allows easy operation; excellent frequency response; 3 electronically balanced microphone inputs, 2 AUX inputs and recording output.
Where is the TOA A-2240 used?
It suits: paging and background music in offices, shops and factories; schools, houses of worship and public buildings; constant-voltage (100 V) speaker distribution. Corporate AV can advise whether it fits your project.
Which TOA series is the A-2240 part of?
TOA lists the A-2240 in its A-2000 Series Mixer Amplifier range.
Can Corporate AV supply and install the TOA A-2240 in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA A-2240?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
