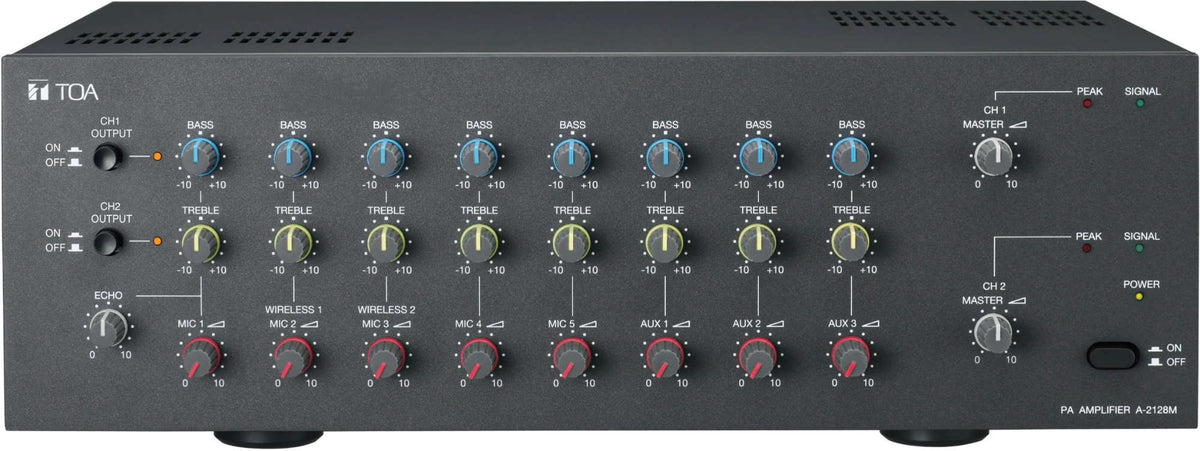

TOA A-2128M-AS: Mixer Power Amplifier
Model A-2128M-AS
Request a Quote
Availability: Out of Stock
- Power Source: 220 V AC, 50/60 Hz or 24 V DC
- Rated Output: 2 x 120W
- Frequency Response: 50 Hz - 20 kHz (±3 dB)
- Distortion: Less than 1% at 1 kHz, 1/3 rated power
Product Overview
Overview
The TOA A-2128M-AS is a mixer power amplifier. The A-2128M is a mixer power amplifier with high capacity for audio requirements in mosque or other places of worship.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA A-2128M-AS with supply, installation and commissioning.
Typical applications
- Paging and background music in offices, shops and factories
- Schools, houses of worship and public buildings
- Constant-voltage (100 V) speaker distribution
Why choose the A-2128M-AS
it is a mixer power amplifier from TOA, supplied with Corporate AV's site survey, installation and support across India, so the A-2128M-AS is specified for your project and not just shipped.
Product Highlights
Key Benefits
Power Source: 220 V AC, 50/60 Hz or 24 V DC
Rated Output: 2 x 120W
Frequency Response: 50 Hz - 20 kHz (±3 dB)
Distortion: Less than 1% at 1 kHz, 1/3 rated power
Output Regulation: Less than 3 dB no load to full load
Use Cases
Ideal Applications
Paging and background music in offices, shops and factories
Schools, houses of worship and public buildings
Constant-voltage (100 V) speaker distribution
Technical Details
Technical Specifications
Specifications
Power Source
220 V AC, 50/60 Hz or 24 V DC
Rated Output
2 x 120W
Power Consumption
AC: 520 W (rated output) AC: 286 W (operation at EN60065) DC: 20 A (rated output)
Frequency Response
50 Hz - 20 kHz (±3 dB)
Distortion
Less than 1% at 1 kHz, 1/3 rated power
Input
MIC 1: -60 dB*, 600Ω, Balanced, Phone jack, Echo MIC 2 - 5: -60 dB*, 600Ω, Balanced, Phone jack AUX 1- 3: -10 dB*, 10kΩ, RCA Pin Jack PWR AMP IN: 0 dB*, 10kΩ, RCA Pin Jack
Output
Speaker Outputs: 100 V x 2, 4Ω x 2 REC OUT: 0 dB*, 600Ω x 2, Unbalanced, RCA Pin Jack PRE AMP OUT: 0 dB*, 600Ω x 2, Unbalanced, RCA Pin Jack
Output Regulation
Less than 3 dB no load to full load
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Signal to Noise Ratio
More than 80 dB at All Volume control full CCW More than 50 dB at All Volume control full CW
Phantom Power
DC +21 V (MIC 1)
Control
(Front) 5 Microphone Gain Controls, 3 Aux Gain Controls, 8 Bass Tone Controls, 8 Treble Tone Controls, 1 Echo Level Control, 2 Master Controls, 2 Output Channel On/Off Switch (CH1, CH2), 1 Power On/Off Switch
Indicator
2 LED Output CH, 2 LED Signal, 2 LED Peak, 1 LED Power On
Dimensions & finish
Finish
Front Panel: Aluminum Painting, Gray Case: Steel plate, Gray
Dimensions
420 (W) x 144 (H) x 361 (D) mm
Weight
19.3 kg
