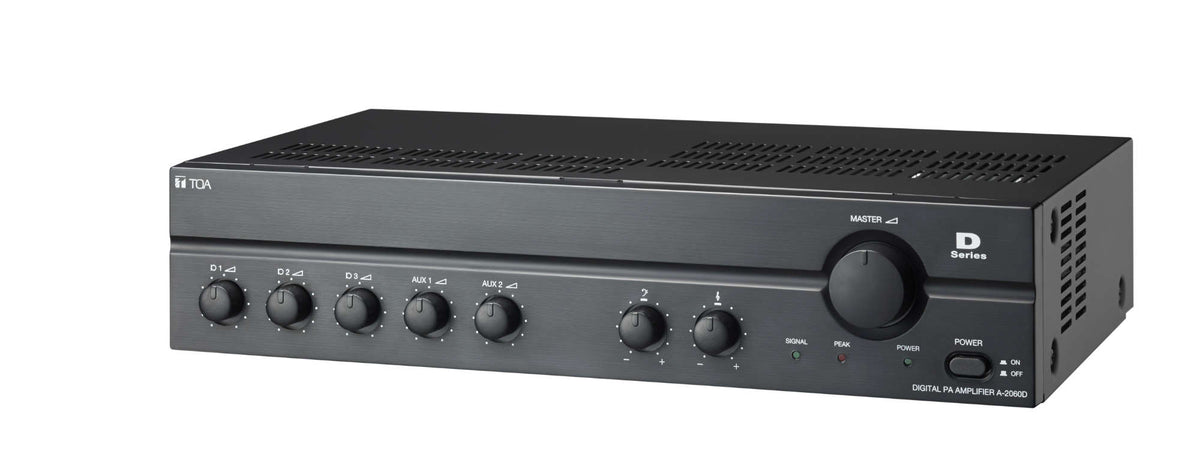

TOA A-2120D-AS: Digital PA Amplifier
Model A-2120D-AS
Request a Quote
Availability: Out of Stock
- 3 microphone inputs, 2 AUX input and 1 recording output
- Speaker output of constant voltage distribution system (100 V)
- Independent tone control of boost and cut type for both high and low frequency
- MIC 1 with phantom power and mute function
Product Overview
Overview
The TOA A-2120D-AS is a digital PA amplifier. The A-2000D Series is a range of high performance mixer power amplifiers suited for broadcasting paging or background music in houses of worship, schools, offices, shops and factories.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA A-2120D-AS with supply, installation and commissioning.
Key features
- 3 microphone inputs, 2 AUX input and 1 recording output
- Speaker output of constant voltage distribution system (100 V)
- Independent tone control of boost and cut type for both high and low frequency
- MIC 1 with phantom power and mute function
- Current limiter to prevent damage due to current overload
- Excess heat limit to protect the transistor and power transformer
- Available in 30 W, 60 W, 120 W and 240 W rated output
Typical applications
- Paging and background music in offices, shops and factories
- Schools, houses of worship and public buildings
- Constant-voltage (100 V) speaker distribution
Why choose the A-2120D-AS
it is a digital PA amplifier from TOA, supplied with Corporate AV's site survey, installation and support across India, so the A-2120D-AS is specified for your project and not just shipped.
Product Highlights
Key Benefits
3 microphone inputs, 2 AUX input and 1 recording output
Speaker output of constant voltage distribution system (100 V)
Independent tone control of boost and cut type for both high and low frequency
MIC 1 with phantom power and mute function
Current limiter to prevent damage due to current overload
Use Cases
Ideal Applications
Paging and background music in offices, shops and factories
Schools, houses of worship and public buildings
Constant-voltage (100 V) speaker distribution
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240V, 50/60 Hz
Rated Output
120 W
Power Consumption
30 W (AC operation at 1/8 maximum output without clip)
Frequency Response
50 - 20 kHz, ±3 dB
Horn Filter Band
230 Hz - 20 kHz, ±3 dB
Distortion
Less than 1% at 1kHz, 1/3 Rated Power
Input
MIC 1-3: -60 dB (0dB=1V), 600Ω, Balanced, XLR3 -31 type AUX 1-2: -20 dB (0dB=1V), 10kΩ, Unbalanced, RCA pin jack
Output
Speaker out: Balanced (Floating) Line 100V: 83Ω Rec Out: 0dB (1V), 600Ω, Unbalanced RCA pin jack
Tone Control
Bass ±10dB at 100Hz Treble ±10dB at 10kHz
Signal to Noise Ratio
Over 60dB
Phantom Power
DC +21V (MIC 1)
Muting
MIC 1: mute other input signal by 0-30dB attenuation
Indicator
POWER, PEAK, SIGNAL
Dimensions & finish
Finish
Panel: ABS Resin, Black Case: Steel Plate, Black
Dimensions
420 (W) x 100.6 (H) x 280.3 (D) mm (16.54" x 3.96" x 11.04")
Weight
4.0 kg (8.88 lbs)
