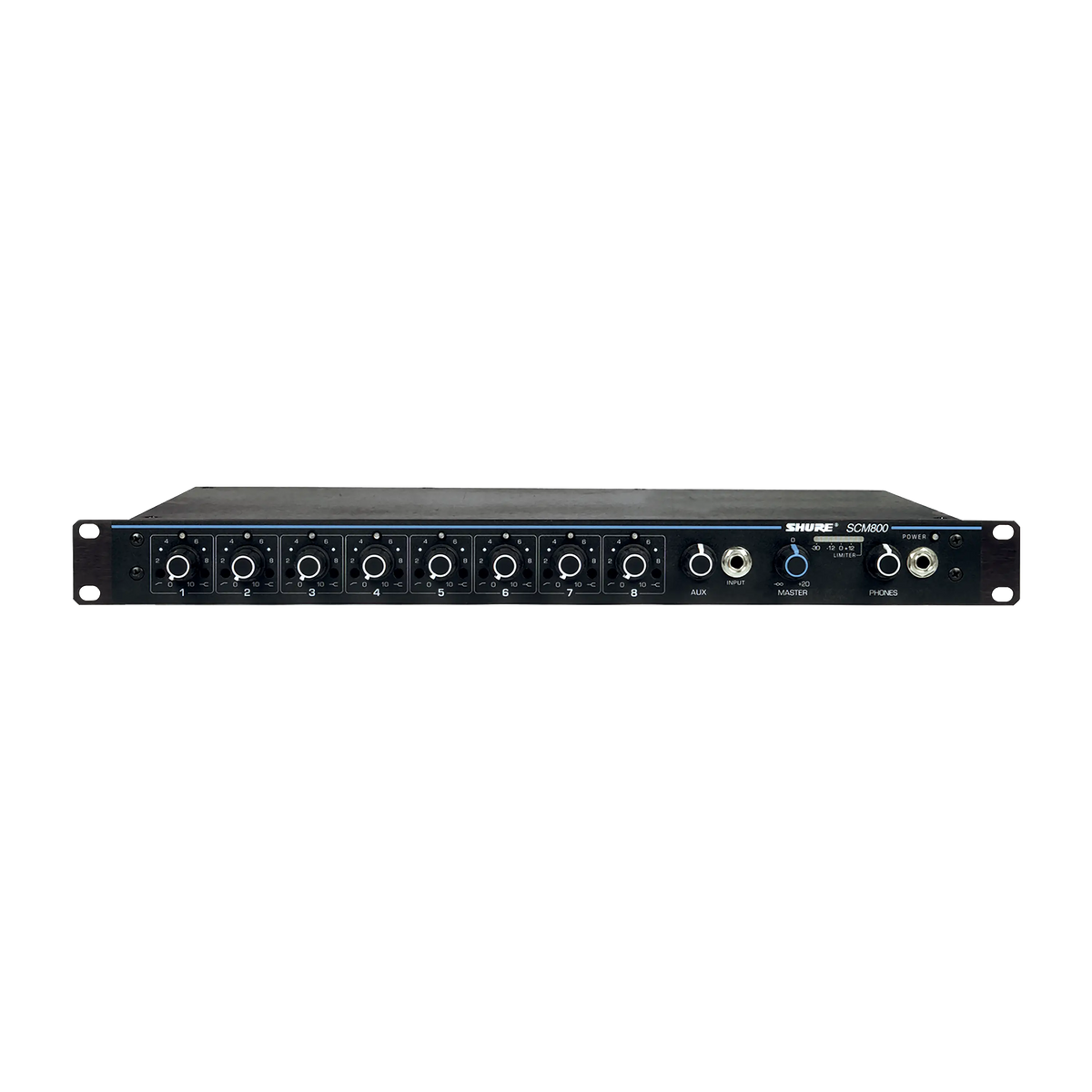

Shure SCM800: Eight Channel Microphone Mixer
Model SCM800
Request a Quote
Availability: Out of Stock
- Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
- Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
- 48 V phantom power selectable for each input
- Active balanced microphone- and line-level inputs and line level output
Product Overview
Overview
The Shure SCM800 is an 8-channel microphone mixer. 8-channel microphone mixer offers compatibility with any low-impedance, balanced microphone, including wireless microphone systems. Includes adjustable EQ, phantom power LED, manual mixing, and peak-responding output limiter.
Corporate AV supplies, installs and supports the Shure SCM800 across India. Request a quote for supply, installation and commissioning.
Key features
- Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
- Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
- 48 V phantom power selectable for each input
- Active balanced microphone- and line-level inputs and line level output
- Highly RF-resistant chassis and circuitry
- LED indication of channel clipping
- Linking capability for systems up to 32 microphones
- Two Aux-level input jacks that feed one channel
Why choose the SCM800
It is an 8-channel microphone mixer, built to combine multiple microphones into one clean feed for rooms and installed sound systems, with the details listed in its specifications. Corporate AV adds a site survey, installation and support across India, so the SCM800 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
48 V phantom power selectable for each input
Active balanced microphone- and line-level inputs and line level output
Highly RF-resistant chassis and circuitry
Use Cases
Ideal Applications
Conference rooms and boardrooms
Houses of worship and halls
Courtrooms and council chambers
Installed sound systems
Technical Details
Technical Specifications
Product
Type
8-Channel Microphone Mixer
Color
Black
Status Indicator
LED
On/Off Switch
Yes
Audio
Weight
4300 g
Hum and Noise: Equivalent Input Noise
-125 dBV (150 Ω source (through 400 Hz -20 kHz filter))
Equivalent Input Hum and Noise
-123 dBV (150 Ω source (through 20 Hz -20 kHz filter))
Hum and Noise: Master full counterclockwise
-90 dBV
Hum and Noise: Master full clockwise
-62 dBV
Equalization: Low-frequency
6 dB/octave cut, adjustable corner from 25 to 320 Hz
Equalization: High-Frequency
± 6 dB/octave at 5 kHz, ± dB at 10 kHz, shelvingat 5
Limiter: Type
Peak
Limiter: Threshold
Switchable: off, +4, +8, +16 (dBm at output)
Limiter: Attack
2 ms
Limiter: Recovery
300 ms
Limiter: Indicator
Lights red when limiting occurs
Input
Impedance Input Clipping Level
Designed for use with
Actual (typical)
Mic
19‒600 Ω 10 kΩ - 12 dBV
Aux
≤2 kΩ 10 kΩ + 22 dBV
Output
Impedance Output Clipping Level
Headphone
8‒200 Ω (60 Ω recommended) 300 Ω + 12 dBV
Direct Output
> 2 kΩ 1 kΩ + 18 dBV
Knob, Channel Gain and Phones (white)
95A8238
Knob, Master (blue)
95B8752
Link Cable
95B8889
Connectivity
Connector
BLOCK
Physical and power
Operating Temperature
0° to 60° C (32° to140° F)
Storage Temperature
-30° to 70° C (-22° to158° F)
Line (Power) Cord (SCM800)
95B8389
230 VAC Power Line Cord
95B8247
Three -Terminal Block Connector
95B8580
Other specifications
Category
Audio Mixer, Shure
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The SCM800 From Corporate AV?
- Genuine Shure stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Shure products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Shure SCM800?
The Shure SCM800 is an 8-channel microphone mixer. 8-channel microphone mixer offers compatibility with any low-impedance, balanced microphone, including wireless microphone systems. Includes adjustable EQ, phantom power LED, manual mixing, and peak-responding output limiter.
Who is the Shure SCM800 best suited for?
The SCM800 suits conference rooms and boardrooms, houses of worship and halls and courtrooms and council chambers. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Shure SCM800 units for a rollout?
Yes. Corporate AV supplies and integrates the Shure SCM800 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Shure SCM800 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Shure SCM800?
Shure lists these key specifications for the SCM800. Type: 8-Channel Microphone Mixer. Connector: BLOCK. Weight: 4300 g. Color: Black. Status Indicator: LED.
