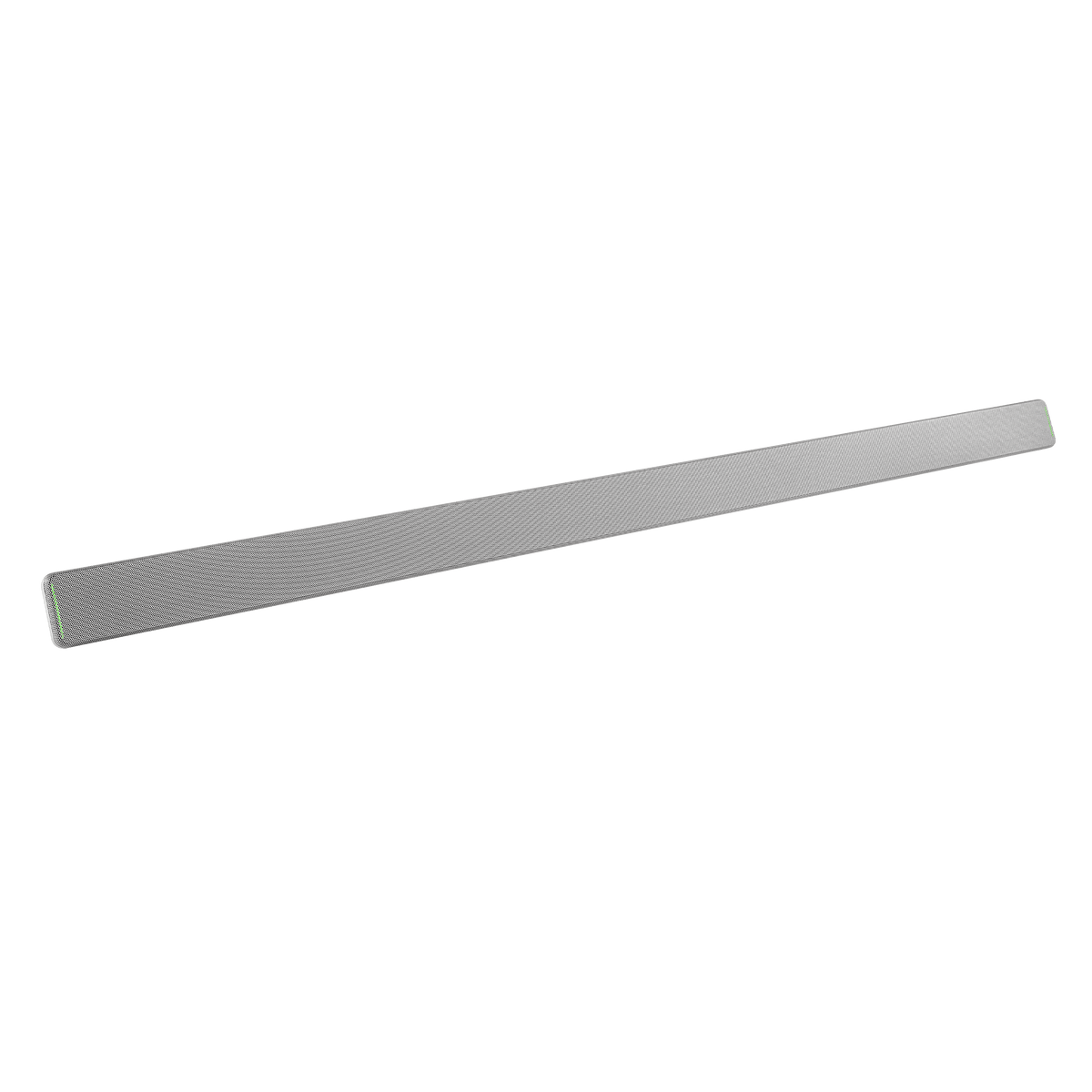

Shure MXA710AL-4FT: 4 Foot Linear Array Microphone, Aluminum
Model MXA710AL-4FT
Request a Quote
Availability: Out of Stock
- Frequency Response: 100 Hz–20 kHz
- Sensitivity: -7.9 dBFS/Pa
- Maximum SPL: 101.9 dB SPL
- Microphone Elements: 100 MEMS
Product Overview
Overview
The Shure MXA710AL-4FT is a linear array microphone (4 foot (120cm), aluminum). The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology. It is designed for high-quality audio capture in premium AV conferencing environments.
Corporate AV supplies, installs and supports the Shure MXA710AL-4FT across India. Request a quote for supply, installation and commissioning.
Key features
- Frequency Response: 100 Hz–20 kHz
- Sensitivity: -7.9 dBFS/Pa
- Maximum SPL: 101.9 dB SPL
- Microphone Elements: 100 MEMS
- Connector: RJ45 (for Ethernet)
- Weight: 910 g
Why choose the MXA710AL-4FT
It is a linear array microphone (4 foot (120cm), aluminum) made for installed conferencing and meeting rooms, with the details listed in its specifications. Corporate AV adds a site survey, installation and support across India, so the MXA710AL-4FT is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Frequency Response: 100 Hz–20 kHz
Sensitivity: -7.9 dBFS/Pa
Maximum SPL: 101.9 dB SPL
Microphone Elements: 100 MEMS
Connector: RJ45 (for Ethernet)
Use Cases
Ideal Applications
Huddle and small meeting rooms
Classrooms and lecture halls
Video conferencing rooms
Wall-mounted and table-mounted installations
Technical Details
Technical Specifications
Product
Type
Linear Array Microphone
Color
Aluminium
Audio
Weight
910 g
Frequency Response
100 Hz–20 kHz
Lobe Width: Adjustable
Narrow 30 degrees
Lobe Width: Medium
40 degrees
Lobe Width: Wide
70 degrees
Microphone Elements
100 MEMS
AES67 or Dante Digital Output: Channel Count
MXA710-2FT 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
AES67 or Dante Digital Output
10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
AES67 or Dante Digital Output: Sampling Rate
48 kHz
AES67 or Dante Digital Output: Bit Depth
24
Sensitivity
-7.9 dBFS/Pa
Maximum SPL
101.9 dB SPL
Latency: Direct Outputs
8.7 ms
Latency: Automix output (Includes IntelliMix processing)
19.3 ms
Self Noise
22.8 dB SPL-A
Dynamic Range
79.1 dB
Connectivity
Connector
RJ45 (for Ethernet)
Physical and power
Product Dimensions
0.87 x 2.36 x 49.12 in. (22.09 x 60 x 1247.76 mm) H x W x L
Other specifications
Category
Linear Array Microphone, Shure
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MXA710AL-4FT From Corporate AV?
- Genuine Shure stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Shure products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Shure MXA710AL-4FT?
The Shure MXA710AL-4FT is a linear array microphone (4 foot (120cm), aluminum). The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology. It is designed for high-quality audio capture in premium AV conferencing environments.
Who is the Shure MXA710AL-4FT best suited for?
The MXA710AL-4FT suits huddle and small meeting rooms, classrooms and lecture halls and video conferencing rooms. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Shure MXA710AL-4FT units for a rollout?
Yes. Corporate AV supplies and integrates the Shure MXA710AL-4FT in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Shure MXA710AL-4FT in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Shure MXA710AL-4FT?
Shure lists these key specifications for the MXA710AL-4FT. Type: Linear Array Microphone. Connector: RJ45 (for Ethernet). Weight: 910 g. Frequency Response: 100 Hz–20 kHz. Microphone Elements: 100 MEMS.
