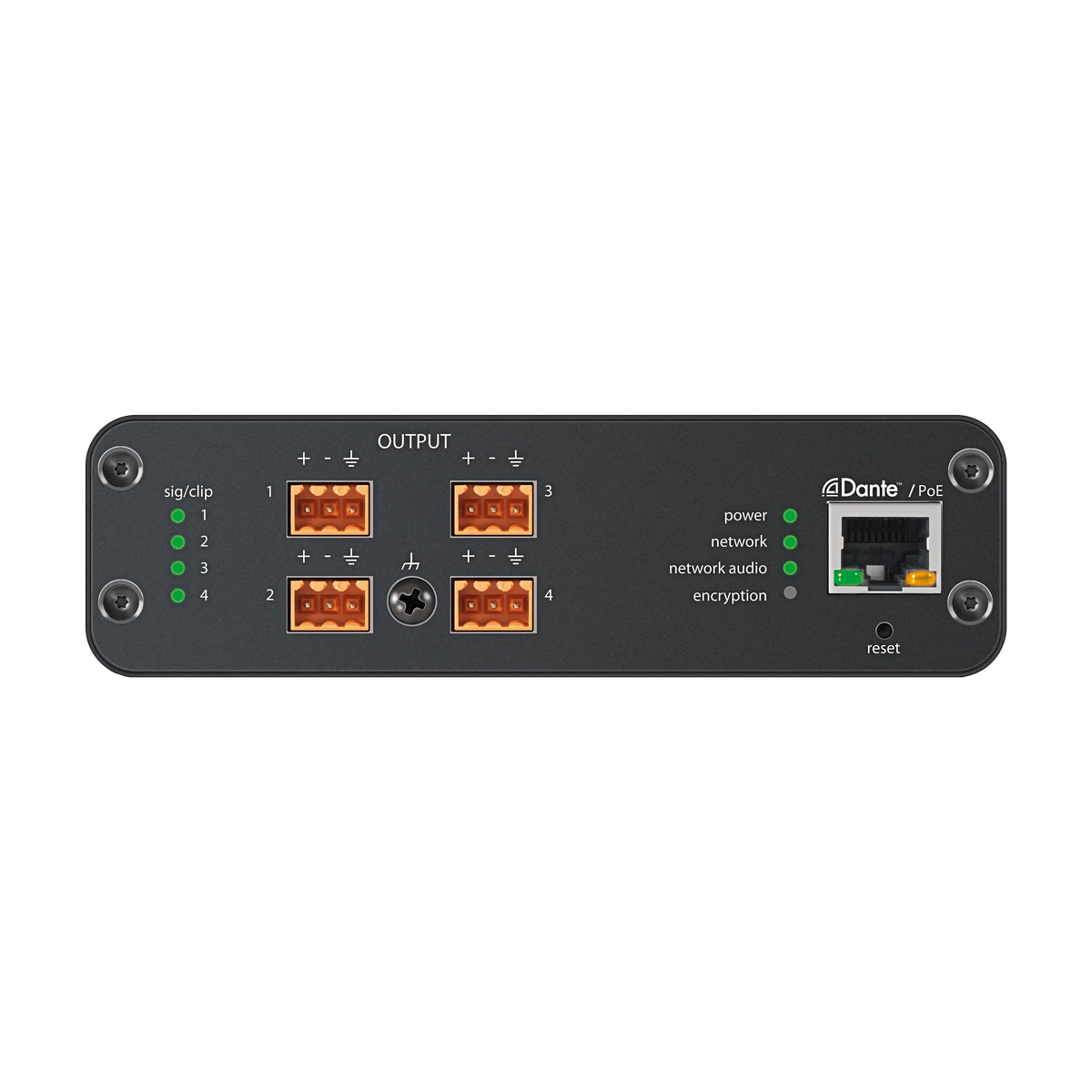

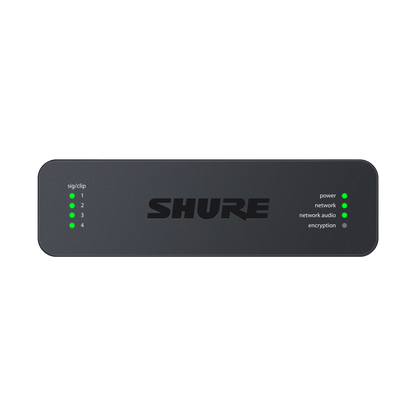

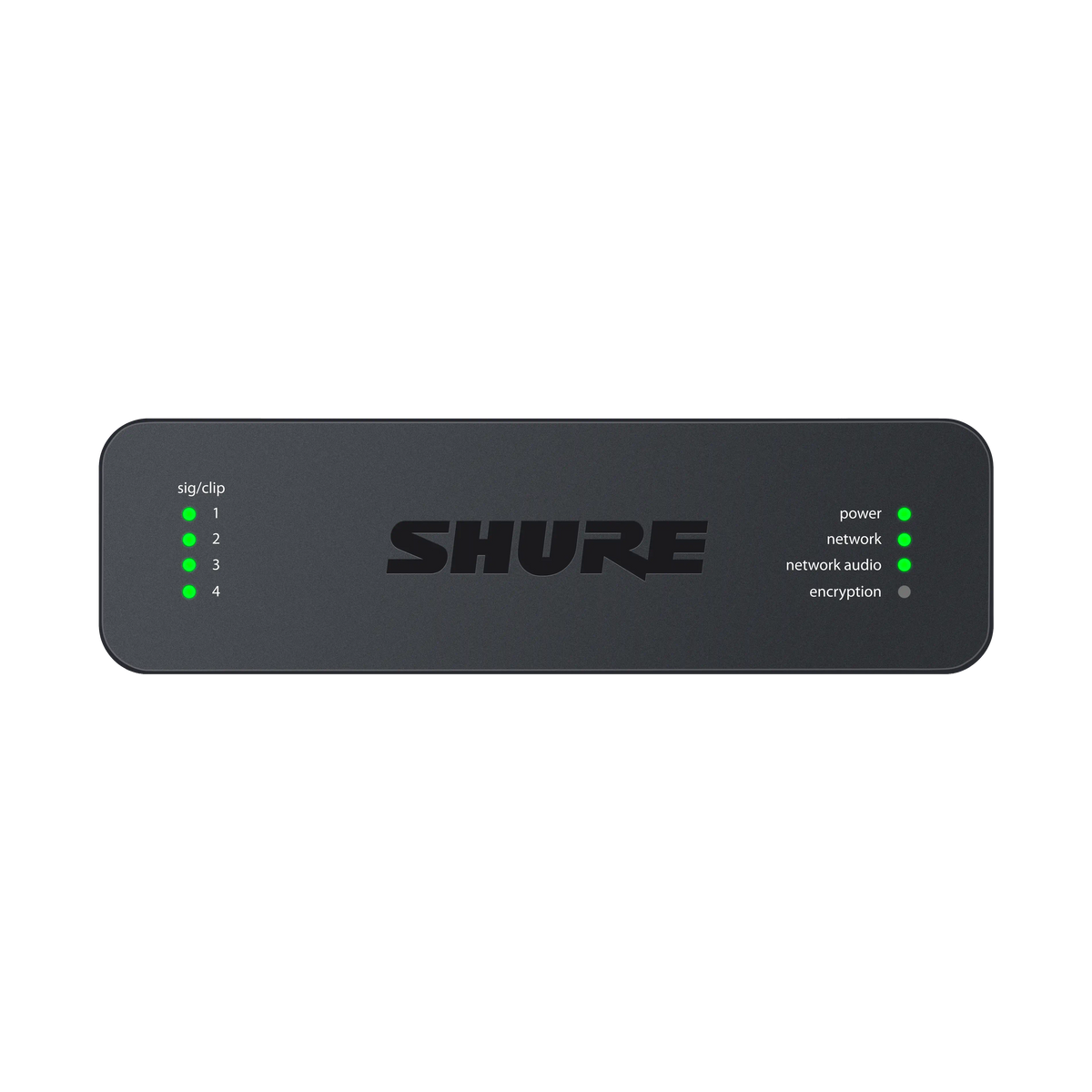

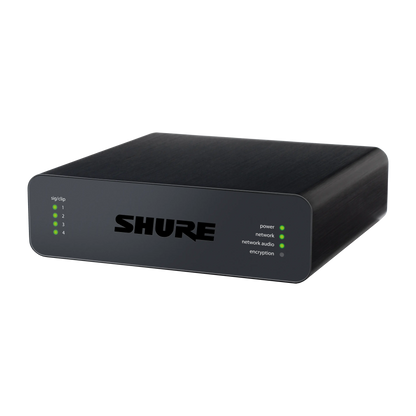

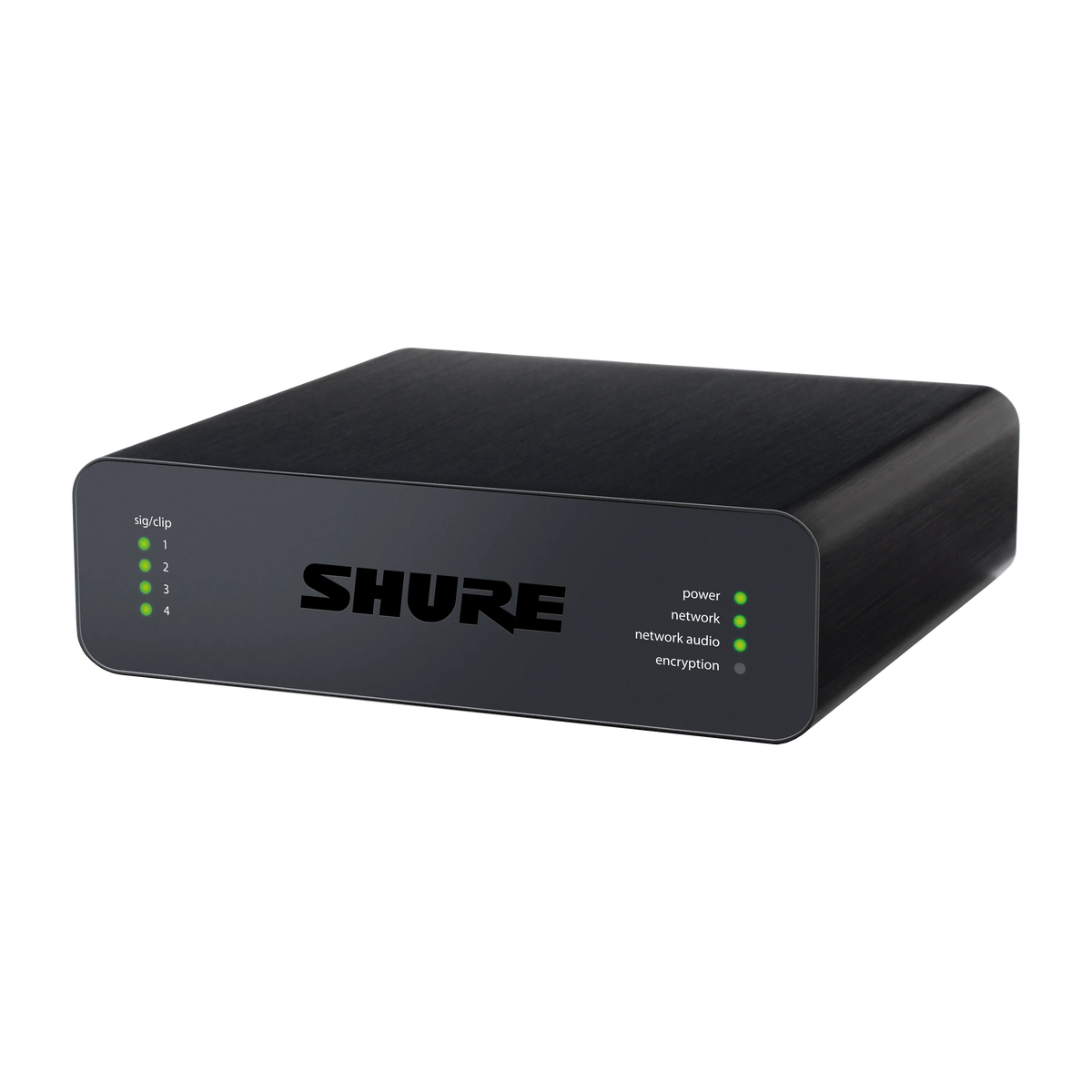

Shure ANI4OUT-BLOCK: 4-Channel Dante to Analog Interface, Block
Model ANI4OUT-BLOCK
Request a Quote
Availability: Out of Stock
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
Product Overview
Overview
The Shure ANI4OUT-BLOCK is an audio network interface (BLOCK connector, no power supply included). Converts Dante digital audio signal to four discrete line / mic analog signals for easy audio routing and convenient browser-based remote control.
Corporate AV supplies, installs and supports the Shure ANI4OUT-BLOCK across India. Request a quote for supply, installation and commissioning.
Key features
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
- Browser-based software control for all device parameters, per output channel: Mute control, Digital gain, Polarity control
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
Why choose the ANI4OUT-BLOCK
It is an audio network interface (BLOCK connector, no power supply included) made for installed conferencing and meeting rooms, with the details listed in its specifications. Corporate AV adds a site survey, installation and support across India, so the ANI4OUT-BLOCK is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Single Ethernet port carries Dante audio, power (PoE – class 0)
LEDs indicate device status and audio signal
Control strings for third-party preset controllers including Crestron® and AMX®
4 Band C/S PEQ on every channel
Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
Use Cases
Ideal Applications
Meeting and conference rooms
Boardrooms and training rooms
Installed Dante audio systems
Technical Details
Technical Specifications
Product
Type
Audio Network Interface
Color
Black
Status Indicator
LED
Audio
Weight
663 g
Outputs
(4) 3-pin block connector
Input (Dante Digital Audio): Channel Count
4
Input (Dante Digital Audio): Sampling Rate
48 kHz
Input (Dante Digital Audio): Bit Depth
24
Output Clipping Level: Line
+20 dBV
Output Clipping Level: Aux
+0 dBV
Output Clipping Level: Mic
-26 dBV
Analog Output Level: Selectable
Line 0 dB
Analog Output Level: Aux
- 20 dB
Analog Output Level: Mic
-46 dB
Built-in Digital Signal Processing: Per Channel
Equalizer (4-band Parametric), Mute, Invert Polarity, Gain ( 140 dB range)
Built-in Digital Signal Processing: System
Audio Summing
Shure Control: Port
TCP/UDP Protocol Description Factory Default
Shure Control: 21
TCP FTP Required for firmware updates (otherwise closed) Closed
Shure Control: 22
TCP SSH Secure Shell Interface Closed
Shure Control: 23
TCP Telnet Not supported Closed
Shure Control: 53
UDP DNS Domain Name System Closed
Shure Control: 67
UDP DHCP Dynamic Host Configuration Protocol Open
Shure Control: 68
UDP DHCP Dynamic Host Configuration Protocol Open
Shure Control: 80*
TCP HTTP Required to launch embedded web server Open
Shure Control: 443
TCP HTTPS Not supported Closed
Shure Control: 2202
TCP ASCII Required for 3rd party control strings Open
Shure Control: 5353
UDP mDNS† Required for device discovery Open
Shure Control: 5568
UDP SDT (multicast)† Required for inter-device communication Open
Shure Control: 57383
UDP SDT (unicast) Required for inter-device communication Open
Shure Control: 8023
TCP Telnet Debug console interface Closed
Shure Control: 8180
TCP HTML Required for web application (legacy firmware only) Open
Shure Control: 8427
UDP SLP (multicast)† Required for inter-device communication Open
Shure Control: 64000
TCP Telnet Required for Shure firmware update Open
Connectivity
Connector
BLOCK
Other specifications
Category
Audio Processor, Shure
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ANI4OUT-BLOCK From Corporate AV?
- Genuine Shure stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Shure products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Shure ANI4OUT-BLOCK?
The Shure ANI4OUT-BLOCK is an audio network interface (BLOCK connector, no power supply included). Converts Dante digital audio signal to four discrete line / mic analog signals for easy audio routing and convenient browser-based remote control.
Who is the Shure ANI4OUT-BLOCK best suited for?
The ANI4OUT-BLOCK suits meeting and conference rooms, boardrooms and training rooms and installed dante audio systems. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Shure ANI4OUT-BLOCK units for a rollout?
Yes. Corporate AV supplies and integrates the Shure ANI4OUT-BLOCK in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Shure ANI4OUT-BLOCK in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Shure ANI4OUT-BLOCK?
Shure lists these key specifications for the ANI4OUT-BLOCK. Type: Audio Network Interface. Connector: BLOCK. Weight: 663 g. Color: Black. Status Indicator: LED.
