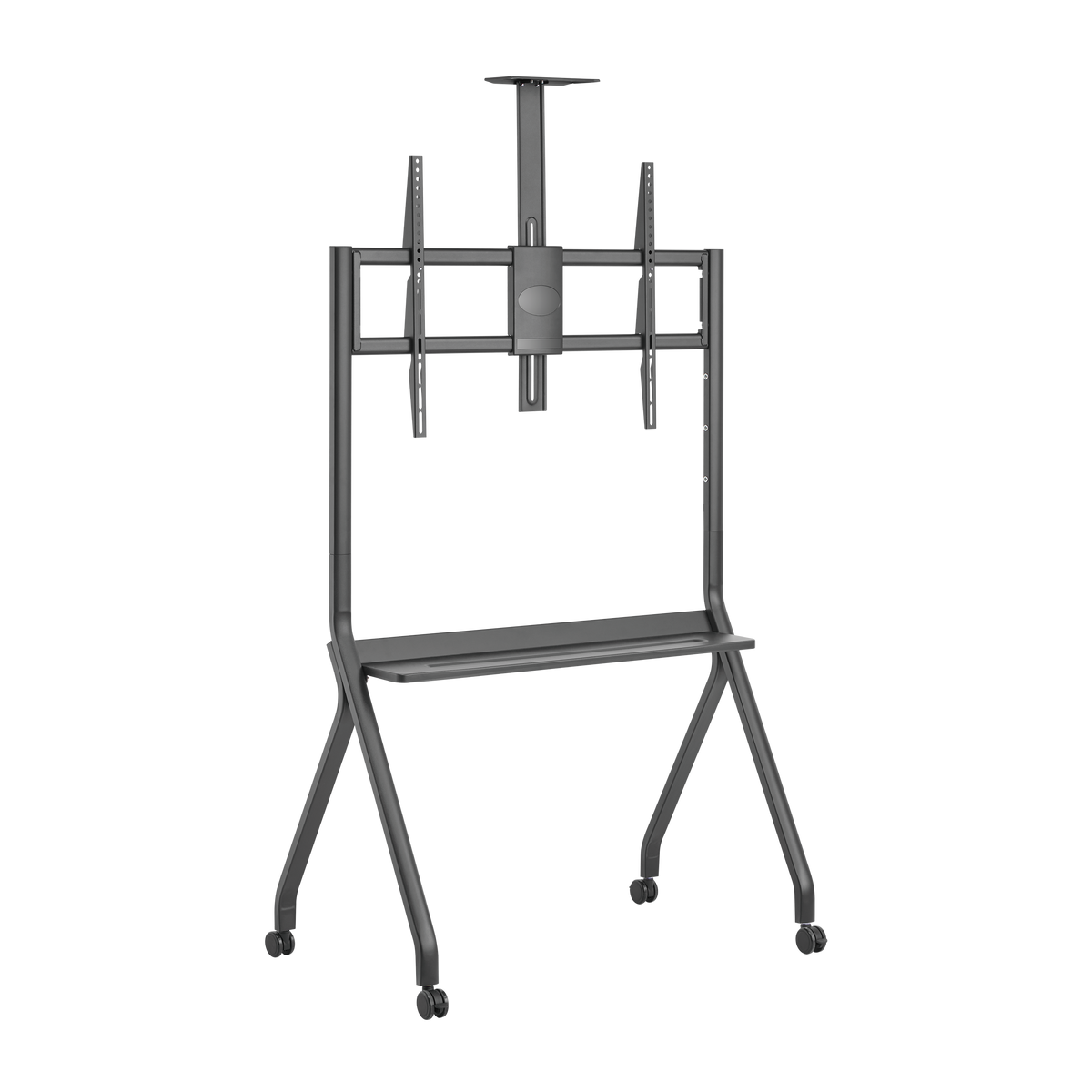

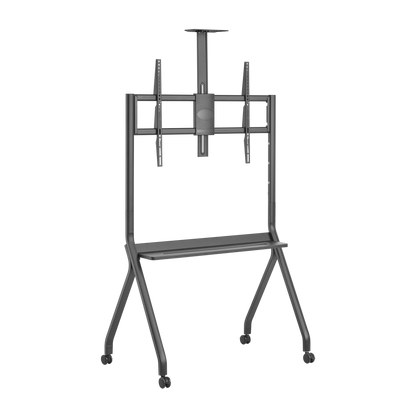

  • Lumi TTL16-69FW TV cart, product view, supplied in India by Corporate AV

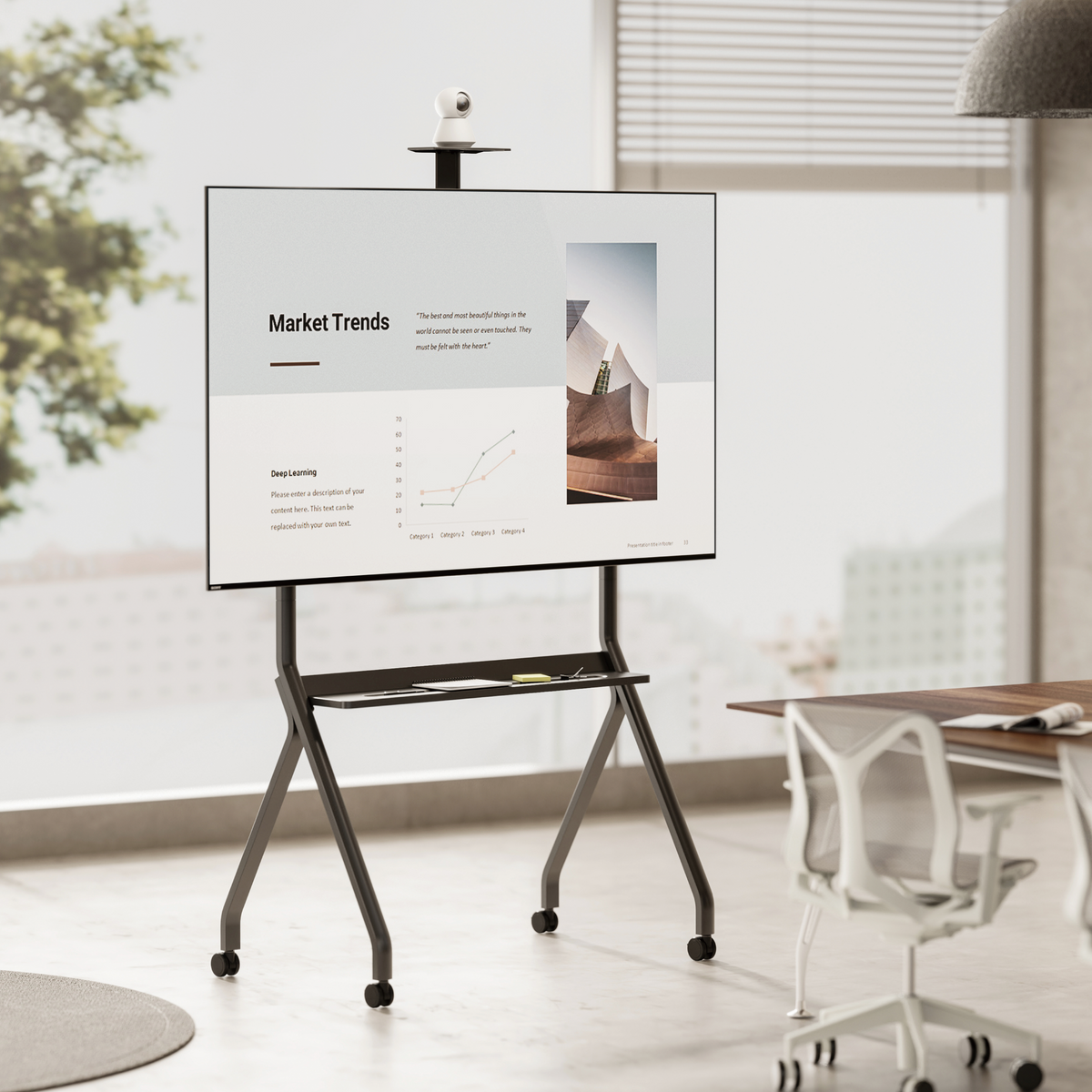

  • Lumi TTL16-69FW TV cart installed with a TV in a meeting or classroom setting

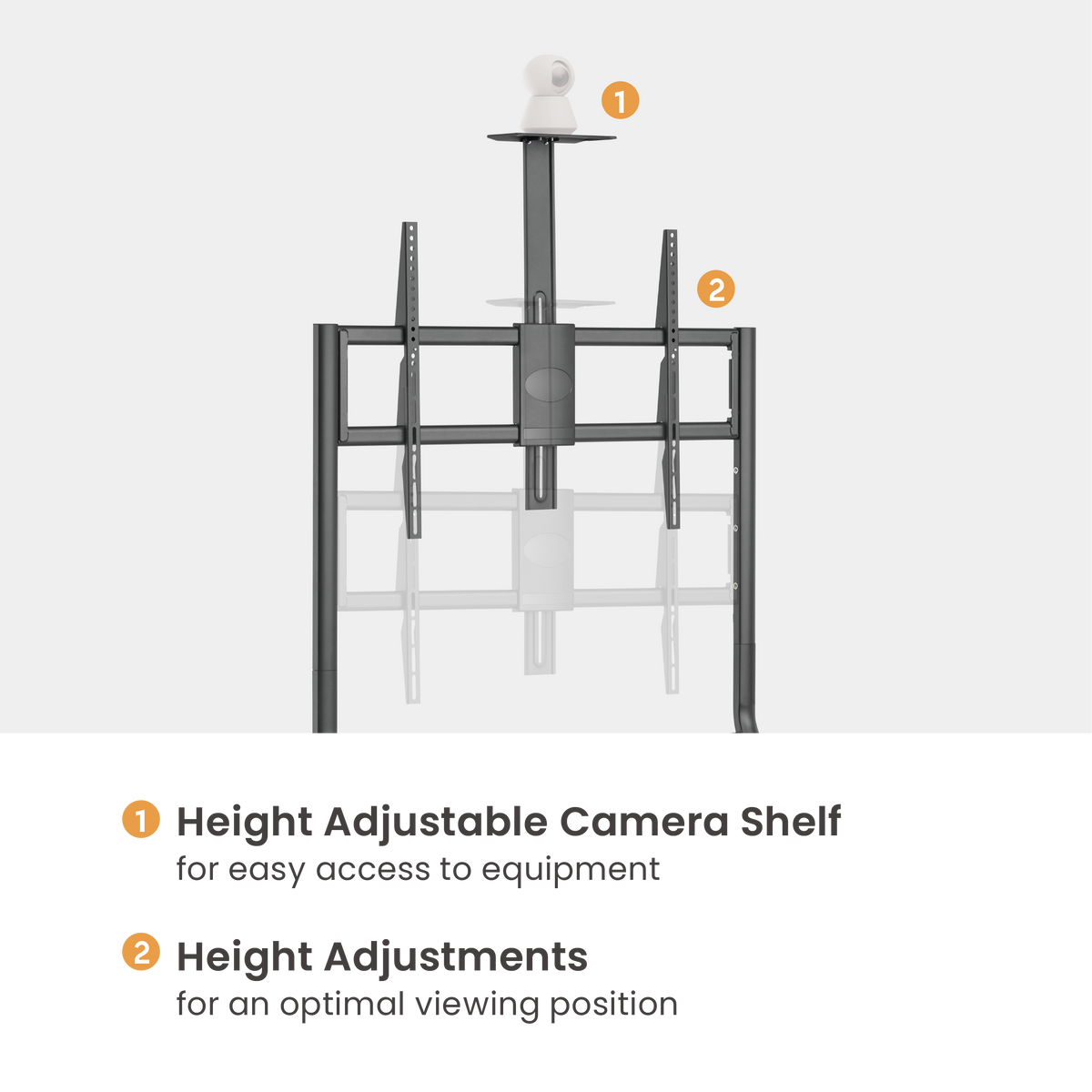

  • Lumi TTL16-69FW TV cart showing the height adjustment

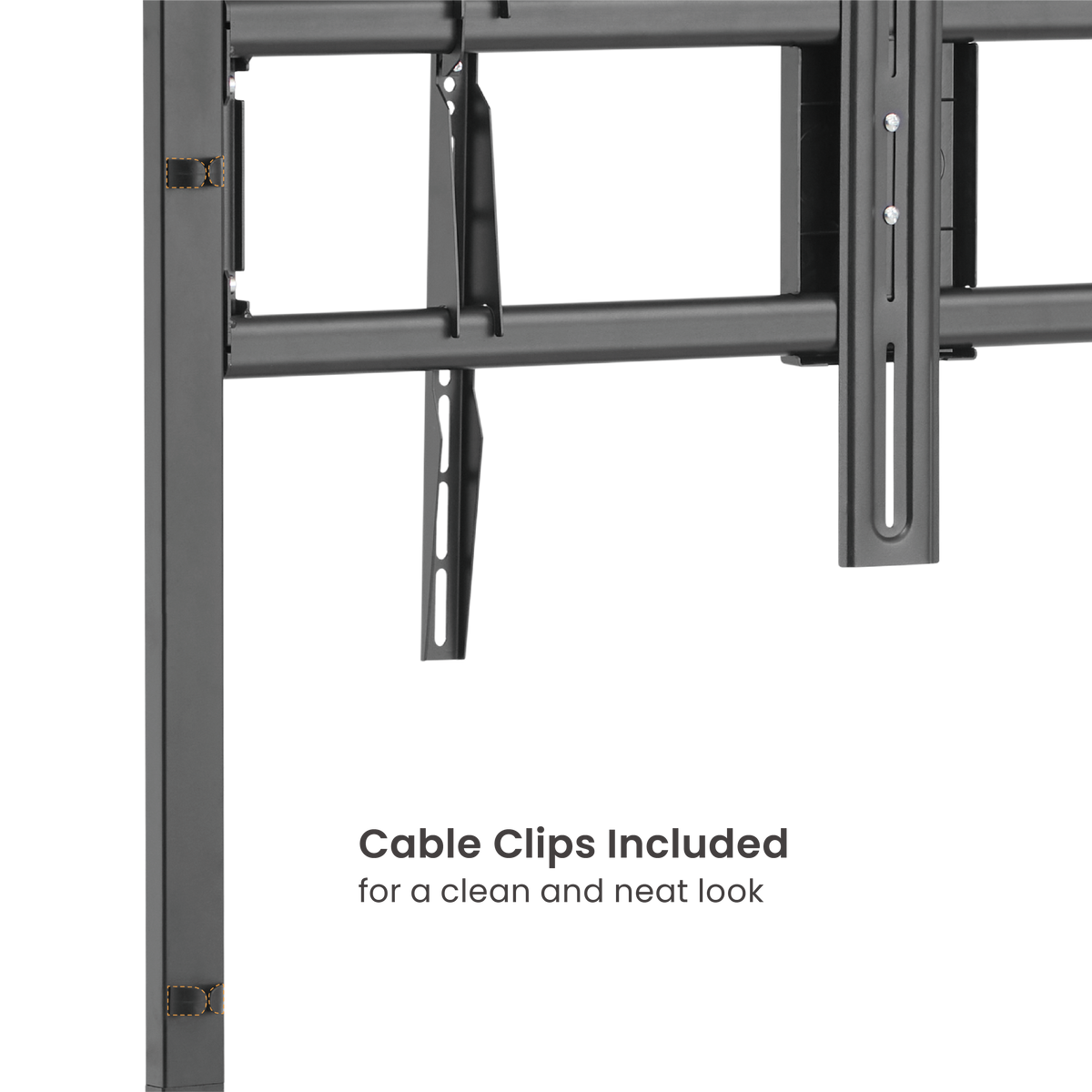

  • Lumi TTL16-69FW TV cart cable management detail for routing cables neatly
1 4

Lumi TTL16-69FW: Heavy Duty TV Cart for 55-100 Inch Screens

Model TTL16-69FW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 120 kg (264 lbs)
  • Fits screens from 55 to 100 inches
  • Height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch)
  • VESA 900 x 600 mm compatible
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTL16-69FW is a TV cart for flat-panel displays from 55 to 100 inches, with a TV weight capacity of 120 kg (264 lbs). It offers a height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch). It supports VESA patterns from 200 x 200 to 900 x 600 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTL16-69FW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 120 kg (264 lbs)
  • Fits screens from 55 to 100 inches
  • Height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch)
  • VESA 900 x 600 mm compatible
  • Equipment shelf rated for 10 kg (22 lbs)
Why choose the TTL16-69FW
Choose the TTL16-69FW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 120 kg (264 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTL16-69FW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 120 kg (264 lbs)

Fits screens from 55 to 100 inches

Height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch)

VESA 900 x 600 mm compatible

Equipment shelf rated for 10 kg (22 lbs)

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 55 to 100 inch
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400, 600 x 600, 800 x 600, 900 x 600 mm
TV Weight Capacity 120 kg (264 lbs)
Shelf Weight Capacity 10 kg (22 lbs)
Camera Rack Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Height Range 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch)
TV Height Adjustable Yes
Design & Installation
Product Type TV Cart
Dimensions (D x W x H) 1120 x 711 x 2220 mm (44.1 x 28 x 87.4 inch)
Base Type Caster
Cable Management Yes
Materials & Finish
Material Steel, Plastic
Surface Finish Powder Coating
Colour Fine Texture Black, Matte White
Strength Tested 3 times approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTL16-69FW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTL16-69FW support?
Lumi lists the TTL16-69FW for screens from 55 to 100 inches with a weight capacity of 120 kg (264 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTL16-69FW fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400, 600 x 600, 800 x 600, 900 x 600 mm.
How much can the Lumi TTL16-69FW be adjusted?
Lumi lists a height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch) for the TTL16-69FW.
How high can the TV be positioned on the Lumi TTL16-69FW?
Lumi lists a height range of 1150 mm/1275 mm/1400 mm/1525 mm (45.3 inch/50.2 inch/55.1 inch/60 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi TTL16-69FW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTL16-69FW in India?
Yes. Corporate AV can supply the TTL16-69FW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
