Lumi PLB-M06H: Manual Swing TV Mount for 32 to 75 Inch Screens
Model PLB-M06H
Request a Quote
Availability: Out of Stock
- Weight capacity of 50 kg (110 lbs)
- Fits screens from 32 to 75 inches
- Profile of Min.56 mm (Min.2.2 inch)
- Swivel range of 0° to +180°
Product Overview
Overview

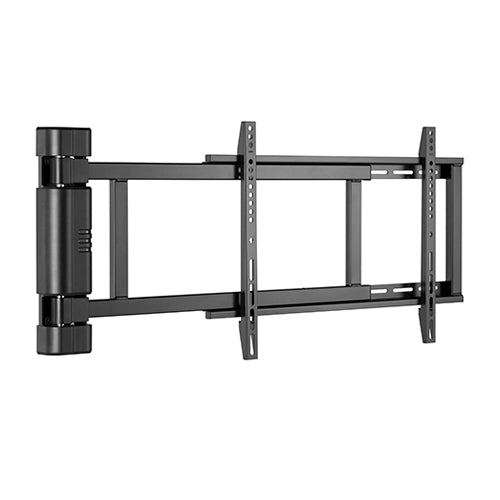

The Lumi PLB-M06H is a full-motion TV wall mount for flat-panel TVs from 32 to 75 inches, with a weight capacity of 50 kg (110 lbs). It has a profile of Min.56 mm (Min.2.2 inch). It offers swivel of 0° to +180°. It supports VESA patterns up to 600 x 400.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-M06H on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 50 kg (110 lbs)
- Fits screens from 32 to 75 inches
- Profile of Min.56 mm (Min.2.2 inch)
- Swivel range of 0° to +180°
- VESA compatible up to 600 x 400
Why choose the PLB-M06H

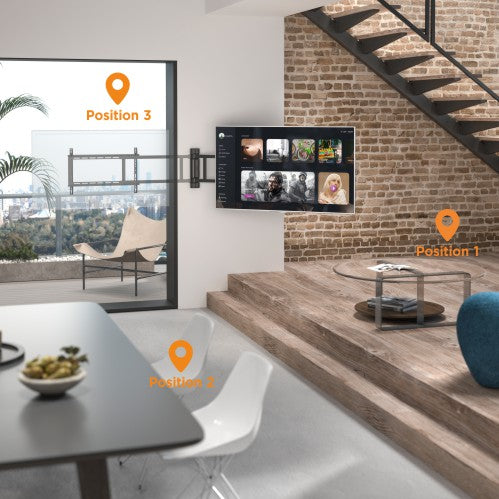

Choose the PLB-M06H when the screen needs to move: it gives you swivel of 0° to +180° so the display can face the room from different seats. It is rated for 50 kg (110 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-M06H is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 50 kg (110 lbs)
Fits screens from 32 to 75 inches
Profile of Min.56 mm (Min.2.2 inch)
Swivel range of 0° to +180°
VESA compatible up to 600 x 400
Use Cases
Ideal Applications
Meeting rooms and training rooms that need an adjustable viewing angle
Offices and reception areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
32 to 75 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400 mm
Max. Mounting Hole
600 x 400 mm
Weight Capacity
50 kg (110 lbs)
Movement & Adjustment
Swivel Range
0° to +180°
Design & Installation
Product Type
Full-Motion TV Wall Mount

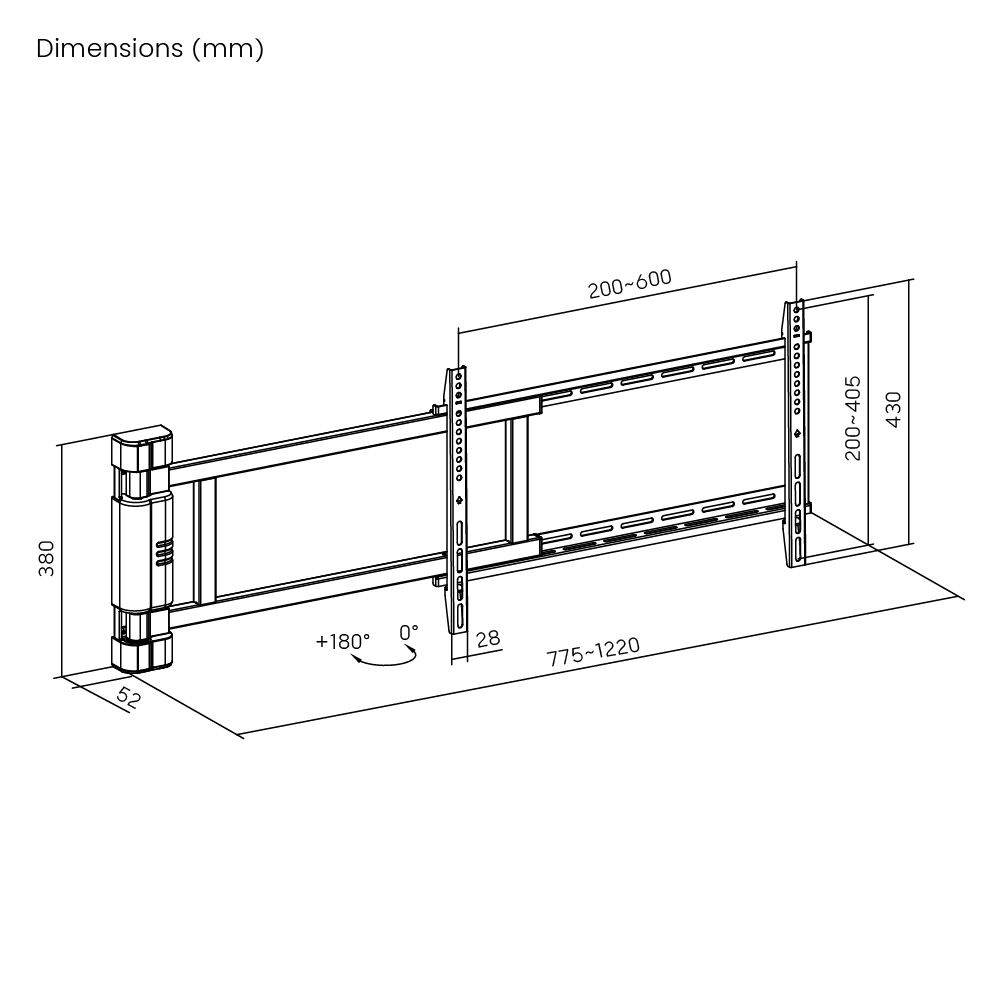

Dimensions (D x W x H)
56 x 1220 x 430 mm (2.2 x 48 x 16.9 inch)
Profile
Min.56 mm (Min.2.2 inch)
Installation
Solid Wall, Single Stud
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate

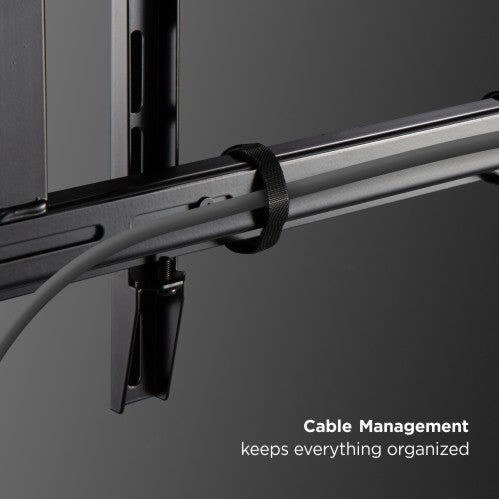

Cable Management
Yes
Bubble Level
Hook-on Bubble Level (Included in Components Package)
Materials & Finish
Material
Aluminum, Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=1.5 mm cold-rolled sheet, Wall Plate THK=4.0 mm pickling sheet (Bracket Arm THK=0.059 inch cold-rolled sheet, Wall Plate THK=0.16 inch pickling sheet)
Surface Finish
Powder Coating
Colour
Matte Black, Matte White
Accessory Colour
Matte Black, Matte White
Strength Tested
3 Times Approved
Certification
RoHS
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PLB-M06H From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi PLB-M06H support?
Lumi lists the PLB-M06H for screens from 32 to 75 inches with a weight capacity of 50 kg (110 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-M06H fit?
It fits VESA 200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How much can the Lumi PLB-M06H tilt, swivel or extend?
Lumi lists swivel of 0° to +180° for the PLB-M06H.
How far does the screen sit from the wall on the PLB-M06H?
Lumi lists a profile of Min.56 mm (Min.2.2 inch) for the PLB-M06H.
What surfaces can the Lumi PLB-M06H be installed on?
Lumi lists the following installation options for the PLB-M06H: solid wall, single stud. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-M06H work with curved TVs?
Yes. Lumi lists the PLB-M06H as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi PLB-M06H in India?
Yes. Corporate AV can supply the PLB-M06H on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
