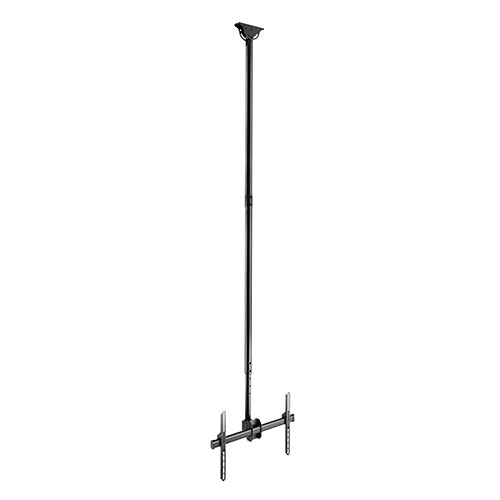

  • Lumi PLB-CE946-01XL TV ceiling mount, product view, supplied in India by Corporate AV

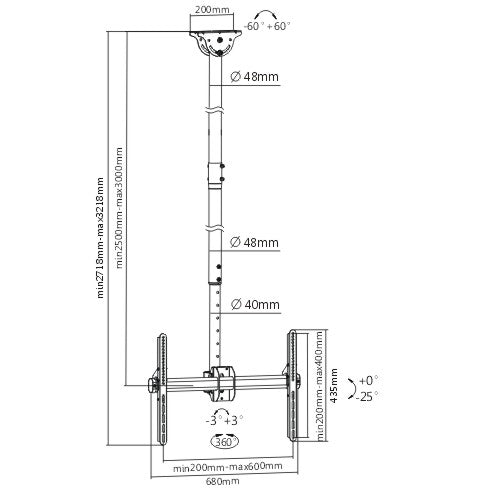

  • Dimension drawing of the Lumi PLB-CE946-01XL TV ceiling mount showing overall size and mounting dimensions
1 2

Lumi PLB-CE946-01XL: Telescopic TV Ceiling Mount, 37-86 Inch

Model PLB-CE946-01XL

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 50 kg (110 lbs)
  • Fits screens from 37 to 86 inches
  • Profile of 2500 to 3000 mm (98.4 to 118.1 inch)
  • Tilt range of +0° to -25°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi PLB-CE946-01XL is a TV ceiling mount for flat-panel TVs from 37 to 86 inches, with a weight capacity of 50 kg (110 lbs). It has a profile of 2500 to 3000 mm (98.4 to 118.1 inch). It offers tilt of +0° to -25° and swivel of +180° to -180°. It supports VESA patterns up to 600 x 400.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-CE946-01XL on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 50 kg (110 lbs)
  • Fits screens from 37 to 86 inches
  • Profile of 2500 to 3000 mm (98.4 to 118.1 inch)
  • Tilt range of +0° to -25°
  • Swivel range of +180° to -180°
Why choose the PLB-CE946-01XL
Choose the PLB-CE946-01XL when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 50 kg (110 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-CE946-01XL is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 50 kg (110 lbs)

Fits screens from 37 to 86 inches

Profile of 2500 to 3000 mm (98.4 to 118.1 inch)

Tilt range of +0° to -25°

Swivel range of +180° to -180°

Use Cases

Ideal Applications

Ceiling-hung TVs in meeting rooms, waiting areas and lobbies

Retail and showroom screens

Hospitality and restaurant displays

Training rooms where wall space is limited

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 86 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA & Universal
VESA Compatible 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 600 x 400 mm
Weight Capacity 50 kg (110 lbs)
Movement & Adjustment
Tilt Range +0° to -25°
Swivel Range +180° to -180°
Screen Level +3° to -3°
Screen Freely Tilting No
Design & Installation
Product Type TV Ceiling Mount
Dimensions (D x W x H) 680 x 435 x 3218 mm (26.8 x 17.1 x 126.7 inch)
Profile 2500 to 3000 mm (98.4 to 118.1 inch)
Installation Ceiling Mounted
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Materials & Finish
Material Steel
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 4 Times Approved
Certification RoHS

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The PLB-CE946-01XL From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi PLB-CE946-01XL support?
Lumi lists the PLB-CE946-01XL for screens from 37 to 86 inches with a weight capacity of 50 kg (110 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-CE946-01XL fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How much can the Lumi PLB-CE946-01XL tilt, swivel or extend?
Lumi lists tilt of +0° to -25° and swivel of +180° to -180° for the PLB-CE946-01XL.
How far does the screen sit from the wall on the PLB-CE946-01XL?
Lumi lists a profile of 2500 to 3000 mm (98.4 to 118.1 inch) for the PLB-CE946-01XL.
What surfaces can the Lumi PLB-CE946-01XL be installed on?
Lumi lists the following installation options for the PLB-CE946-01XL: ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-CE946-01XL work with curved TVs?
Yes. Lumi lists the PLB-CE946-01XL as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi PLB-CE946-01XL in India?
Yes. Corporate AV can supply the PLB-CE946-01XL on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
