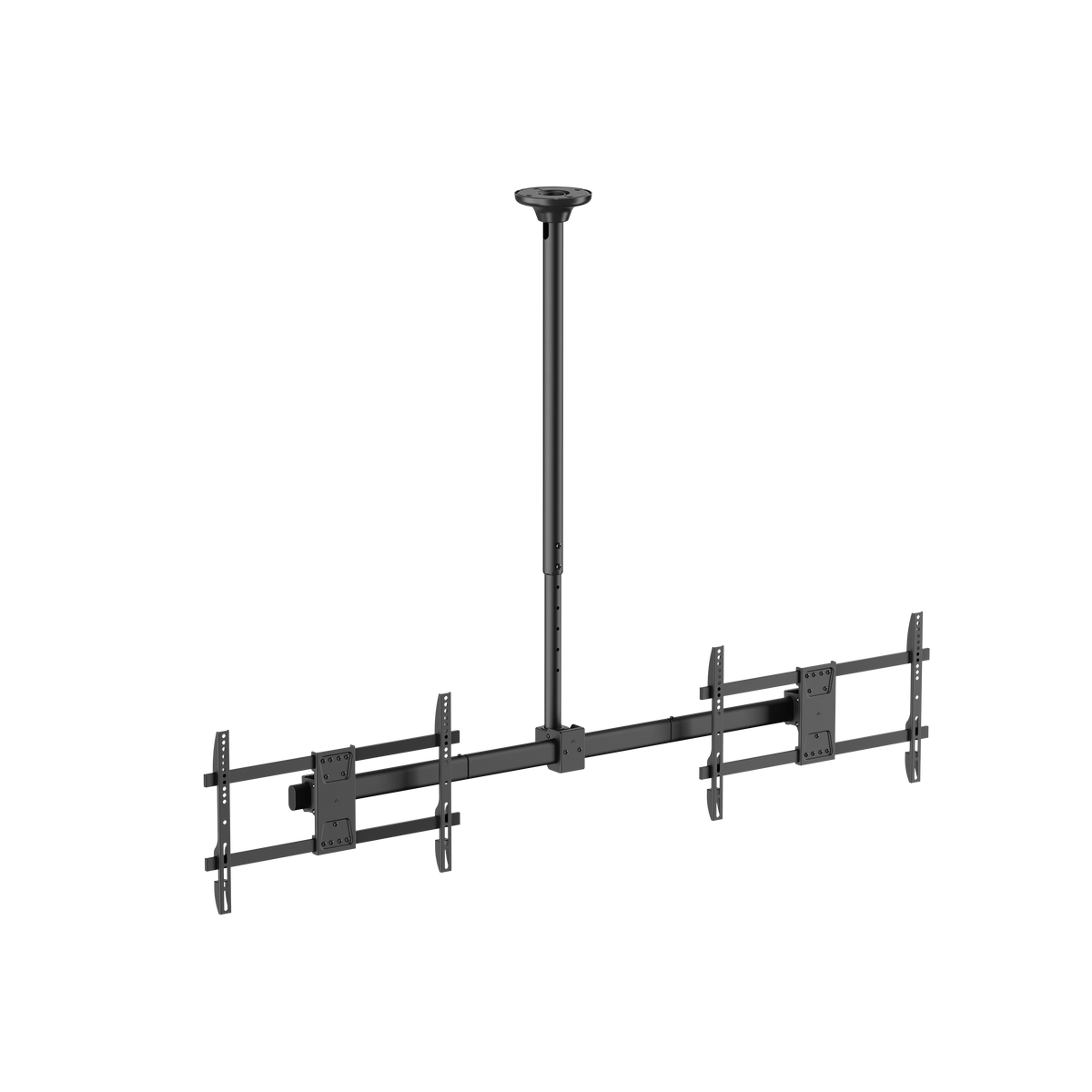

  • Lumi PLB-CE1546SL TV ceiling mount, product view, supplied in India by Corporate AV

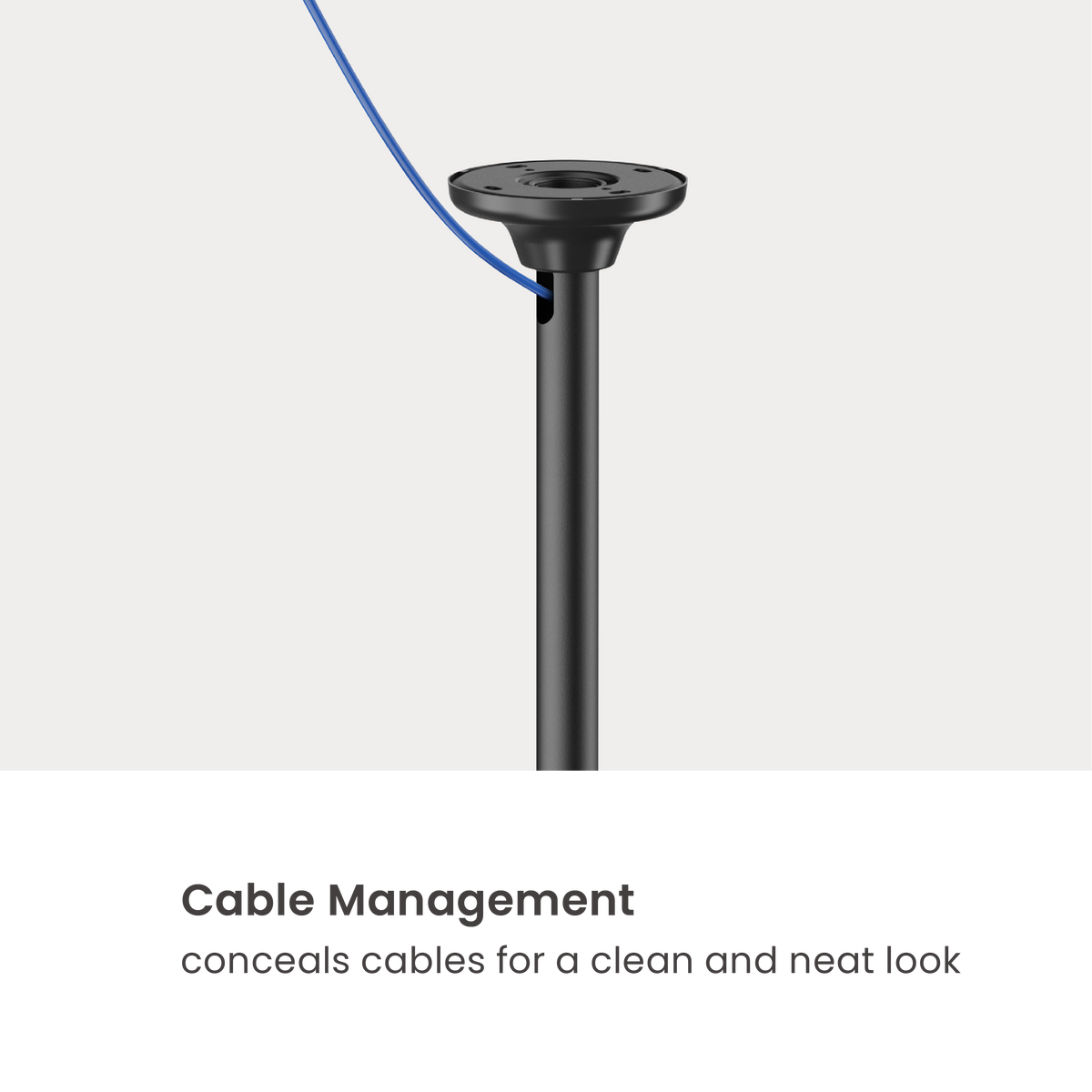

  • Lumi PLB-CE1546SL TV ceiling mount cable management detail for routing cables neatly

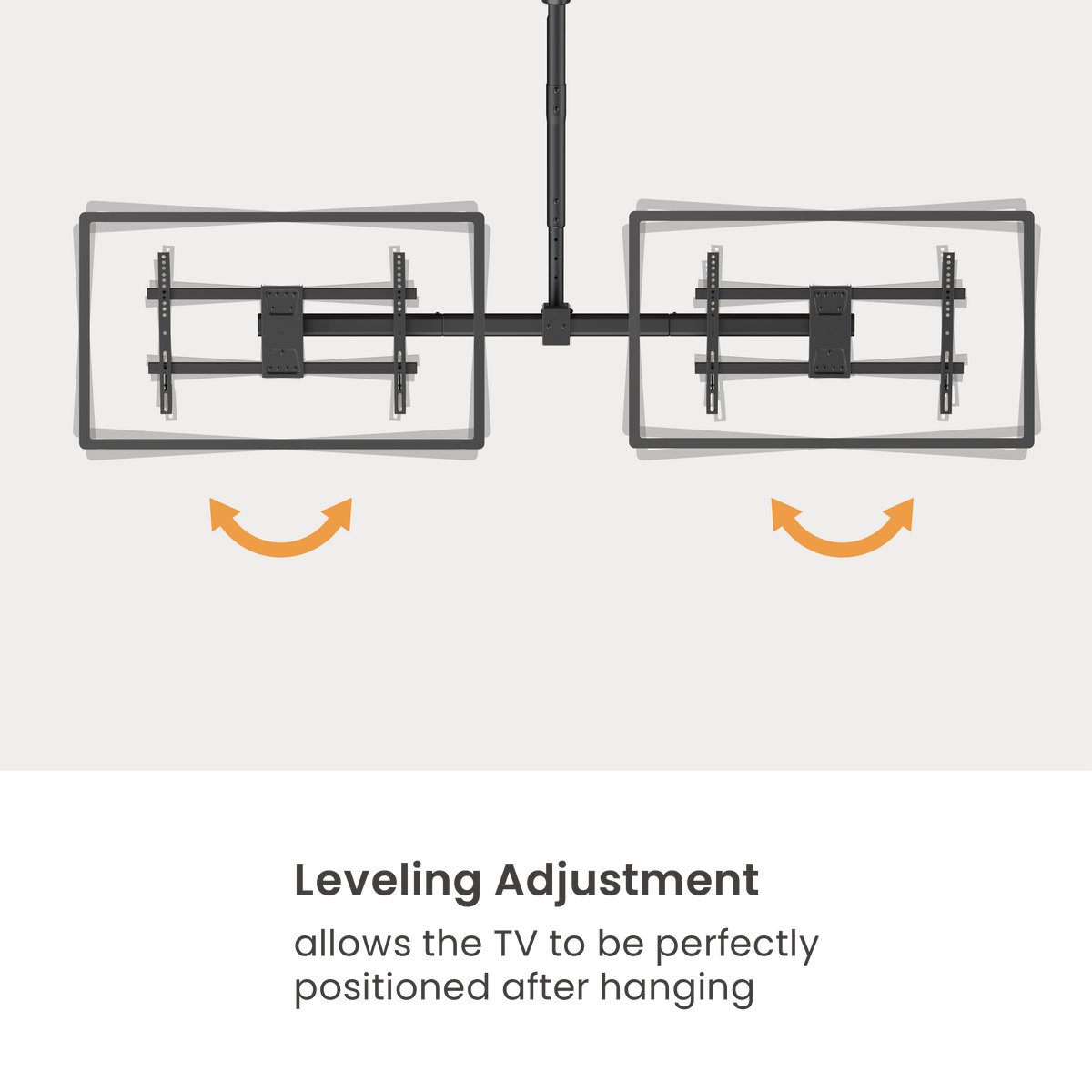

  • Lumi PLB-CE1546SL TV ceiling mount level adjustment detail

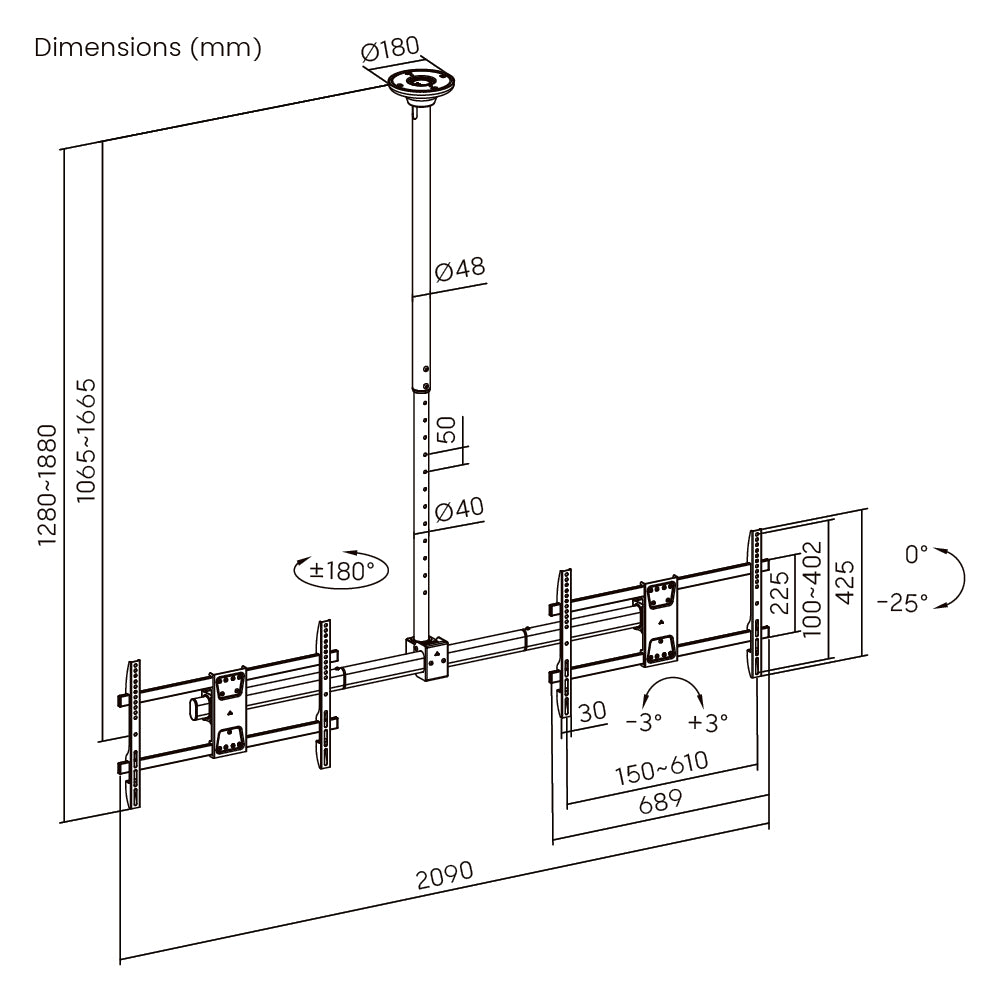

  • Dimension drawing of the Lumi PLB-CE1546SL TV ceiling mount showing overall size and mounting dimensions
1 4

Lumi PLB-CE1546SL: Side-by-Side Dual Screen Ceiling Mount, 34-60 Inch

Model PLB-CE1546SL

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 40 kg x2 (88 lbs x2)
  • Fits screens from 34 to 60 inches
  • Profile of 1065 to 1665 mm (41.9 to 65.6 inch)
  • Tilt range of 0° to -25°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi PLB-CE1546SL is a TV ceiling mount for flat-panel TVs from 34 to 60 inches, with a weight capacity of 40 kg x2 (88 lbs x2). It has a profile of 1065 to 1665 mm (41.9 to 65.6 inch). It offers tilt of 0° to -25° and swivel of +180° to -180°. It supports VESA patterns up to 610 x 402.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-CE1546SL on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 40 kg x2 (88 lbs x2)
  • Fits screens from 34 to 60 inches
  • Profile of 1065 to 1665 mm (41.9 to 65.6 inch)
  • Tilt range of 0° to -25°
  • Swivel range of +180° to -180°
Why choose the PLB-CE1546SL
Choose the PLB-CE1546SL when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 40 kg x2 (88 lbs x2). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-CE1546SL is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 40 kg x2 (88 lbs x2)

Fits screens from 34 to 60 inches

Profile of 1065 to 1665 mm (41.9 to 65.6 inch)

Tilt range of 0° to -25°

Swivel range of +180° to -180°

Use Cases

Ideal Applications

Ceiling-hung TVs in meeting rooms, waiting areas and lobbies

Retail and showroom screens

Hospitality and restaurant displays

Training rooms where wall space is limited

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 34 to 60 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA & Universal
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 610 x 402 mm
Weight Capacity 40 kg x2 (88 lbs x2)
Movement & Adjustment
Tilt Range 0° to -25°
Swivel Range +180° to -180°
Screen Level +3° to -3°
Screen Freely Tilting Yes
Design & Installation
Product Type TV Ceiling Mount
Dimensions (D x W x H) 1880 x 2090 x 180 mm (74 x 82.3 x 7.1 inch)
Profile 1065 to 1665 mm (41.9 to 65.6 inch)
Installation Ceiling Mounted
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Materials & Finish
Material Steel
Metal Sheet Thickness Bracket Arm THK=1.5 mm cold-rolled sheet, VESA Panel THK=1.8 mm cold-rolled sheet, Wall Plate THK=2.5 mm pickling sheet (Bracket Arm THK=0.059 inch cold-rolled sheet, VESA Panel THK=0.071 inch cold-rolled sheet, Wall Plate THK=0.098 inch pickling sheet)
Surface Finish Powder Coating
Colour Fine Texture Black
Strength Tested 4 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The PLB-CE1546SL From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi PLB-CE1546SL support?
Lumi lists the PLB-CE1546SL for screens from 34 to 60 inches with a weight capacity of 40 kg x2 (88 lbs x2). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-CE1546SL fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 610 x 402 as the maximum mounting hole pattern.
How much can the Lumi PLB-CE1546SL tilt, swivel or extend?
Lumi lists tilt of 0° to -25° and swivel of +180° to -180° for the PLB-CE1546SL.
How far does the screen sit from the wall on the PLB-CE1546SL?
Lumi lists a profile of 1065 to 1665 mm (41.9 to 65.6 inch) for the PLB-CE1546SL.
What surfaces can the Lumi PLB-CE1546SL be installed on?
Lumi lists the following installation options for the PLB-CE1546SL: ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-CE1546SL work with curved TVs?
Yes. Lumi lists the PLB-CE1546SL as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi PLB-CE1546SL in India?
Yes. Corporate AV can supply the PLB-CE1546SL on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
