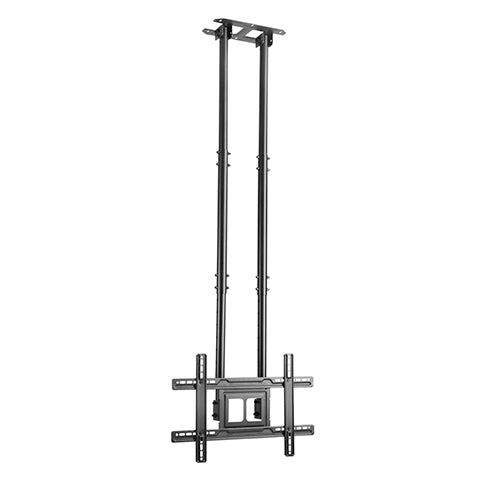

  • Lumi PLB-CE1046D-02 TV ceiling mount, product view, supplied in India by Corporate AV

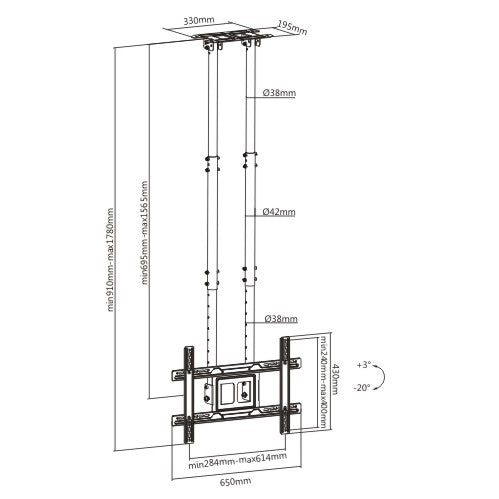

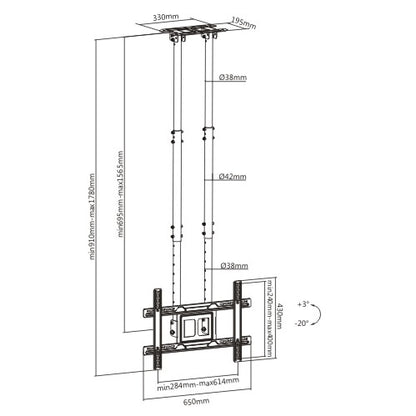

  • Dimension drawing of the Lumi PLB-CE1046D-02 TV ceiling mount showing overall size and mounting dimensions
1 2

Lumi PLB-CE1046D-02: TV Ceiling Mount for 37-80 Inch Screens

Model PLB-CE1046D-02

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 80 inches
  • Profile of 695 to 1565 mm (27.4 to 61.6 inch)
  • Tilt range of +3° to -20°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi PLB-CE1046D-02 is a TV ceiling mount for flat-panel TVs from 37 to 80 inches, with a weight capacity of 70 kg (154 lbs). It has a profile of 695 to 1565 mm (27.4 to 61.6 inch). It offers tilt of +3° to -20°. It supports VESA patterns up to 600 x 400.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-CE1046D-02 on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 80 inches
  • Profile of 695 to 1565 mm (27.4 to 61.6 inch)
  • Tilt range of +3° to -20°
  • VESA compatible up to 600 x 400
Why choose the PLB-CE1046D-02
Choose the PLB-CE1046D-02 when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 70 kg (154 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-CE1046D-02 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 70 kg (154 lbs)

Fits screens from 37 to 80 inches

Profile of 695 to 1565 mm (27.4 to 61.6 inch)

Tilt range of +3° to -20°

VESA compatible up to 600 x 400

Use Cases

Ideal Applications

Ceiling-hung TVs in meeting rooms, waiting areas and lobbies

Retail and showroom screens

Hospitality and restaurant displays

Training rooms where wall space is limited

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 80 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA & Universal
VESA Compatible 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 600 x 400 mm
Weight Capacity 70 kg (154 lbs)
Movement & Adjustment
Tilt Range +3° to -20°
Screen Freely Tilting No
Design & Installation
Product Type TV Ceiling Mount
Dimensions (D x W x H) 1780 x 650 x 195 mm (70.1 x 25.6 x 7.7 inch)
Profile 695 to 1565 mm (27.4 to 61.6 inch)
Installation Ceiling Mounted
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Anti-theft No
AV Component Shelf No
Power Supply No
Materials & Finish
Material Steel, Plastic
Surface Finish Powder Coating
Colour Fine Texture Black
Strength Tested 3 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The PLB-CE1046D-02 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi PLB-CE1046D-02 support?
Lumi lists the PLB-CE1046D-02 for screens from 37 to 80 inches with a weight capacity of 70 kg (154 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-CE1046D-02 fit?
It fits VESA 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How much can the Lumi PLB-CE1046D-02 tilt, swivel or extend?
Lumi lists tilt of +3° to -20° for the PLB-CE1046D-02.
How far does the screen sit from the wall on the PLB-CE1046D-02?
Lumi lists a profile of 695 to 1565 mm (27.4 to 61.6 inch) for the PLB-CE1046D-02.
What surfaces can the Lumi PLB-CE1046D-02 be installed on?
Lumi lists the following installation options for the PLB-CE1046D-02: ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-CE1046D-02 work with curved TVs?
Yes. Lumi lists the PLB-CE1046D-02 as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
