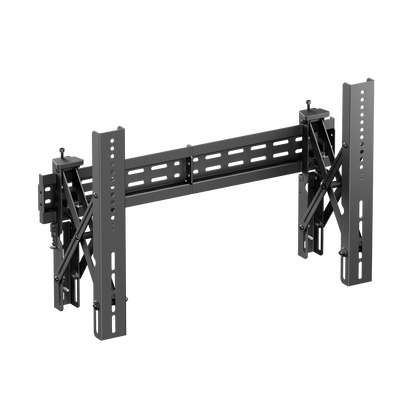

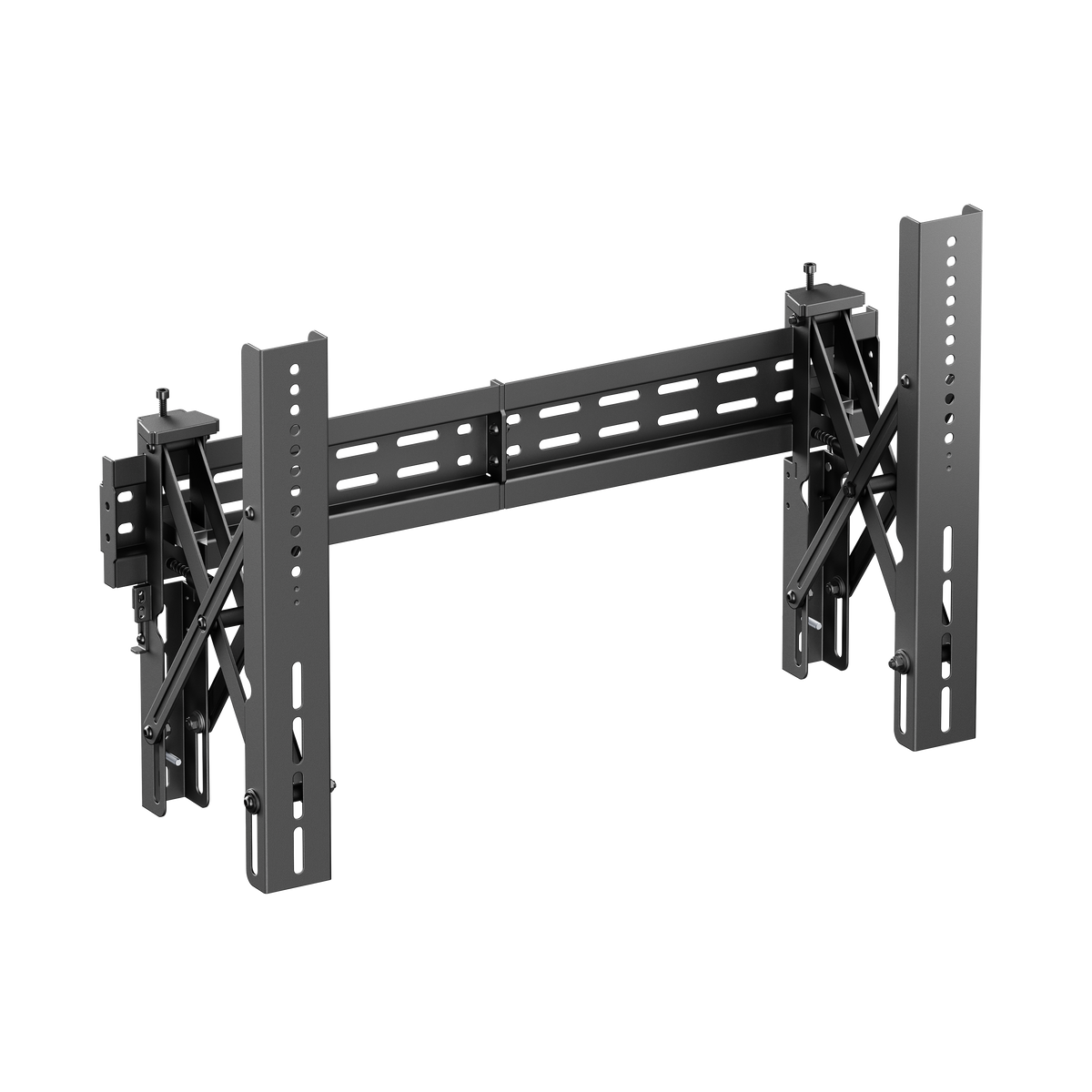

  • Lumi LVW02E-46T video wall mount, product view, supplied in India by Corporate AV

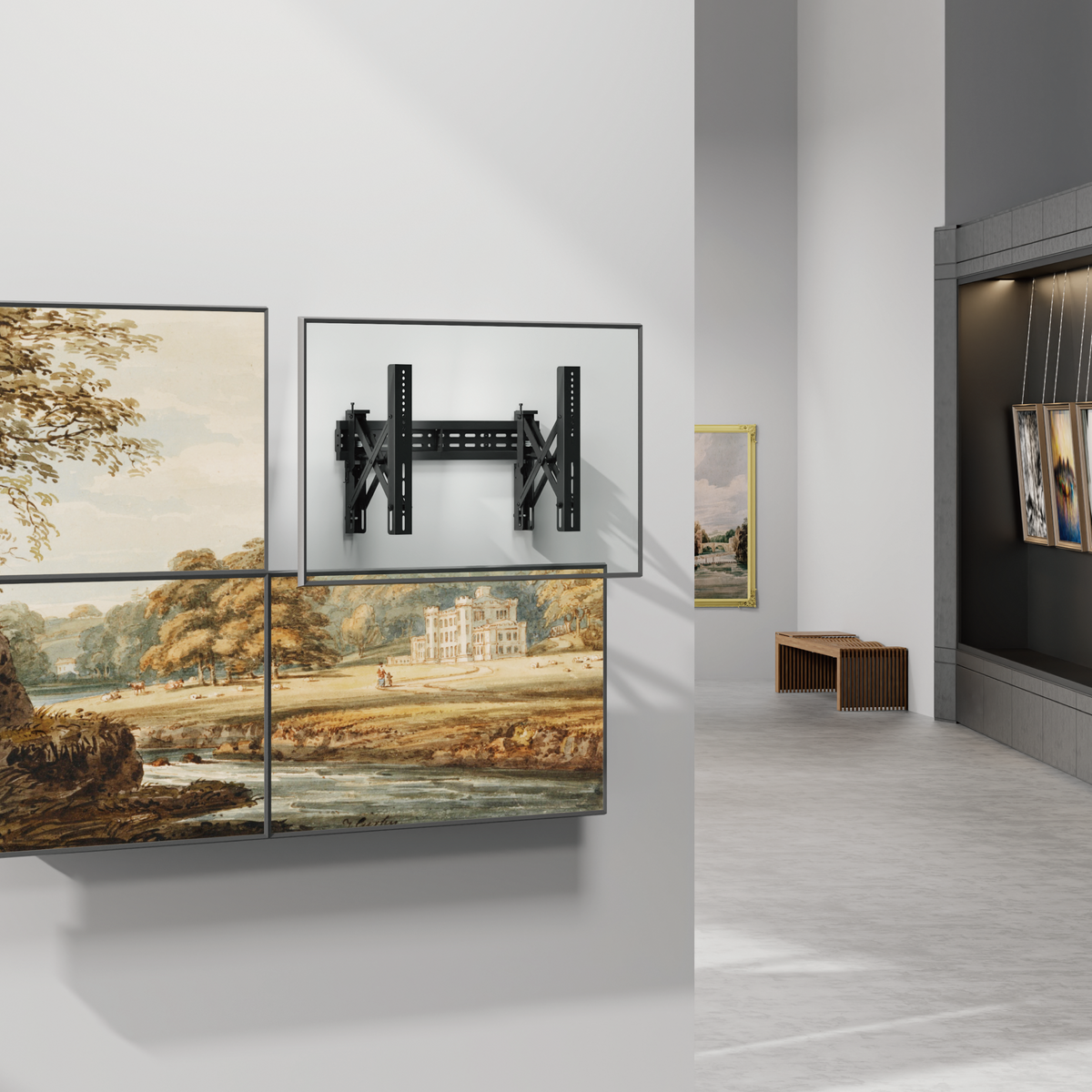

  • Lumi LVW02E-46T video wall mount installed in a video wall installation

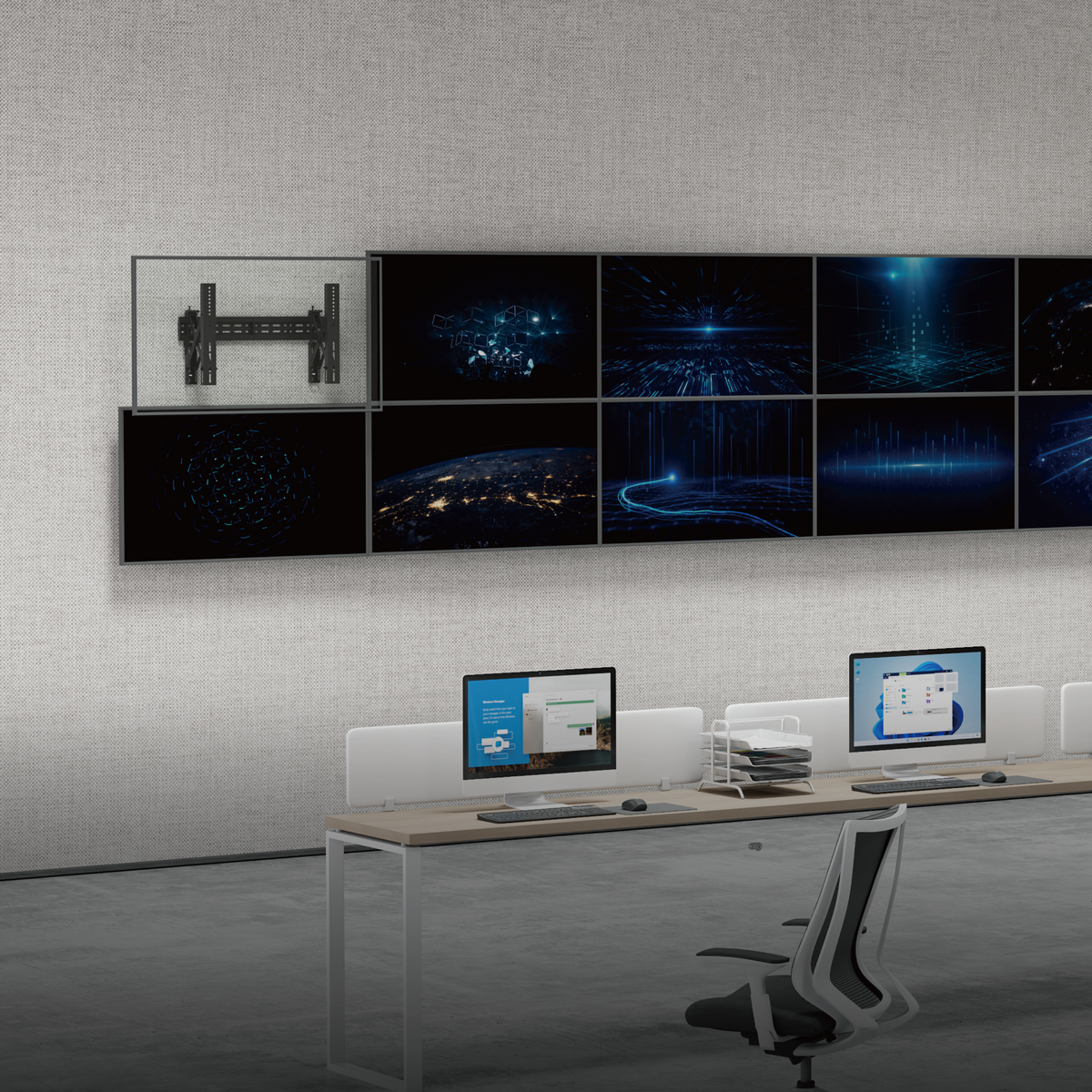

  • Lumi LVW02E-46T video wall mount installed in a video wall installation (additional view)

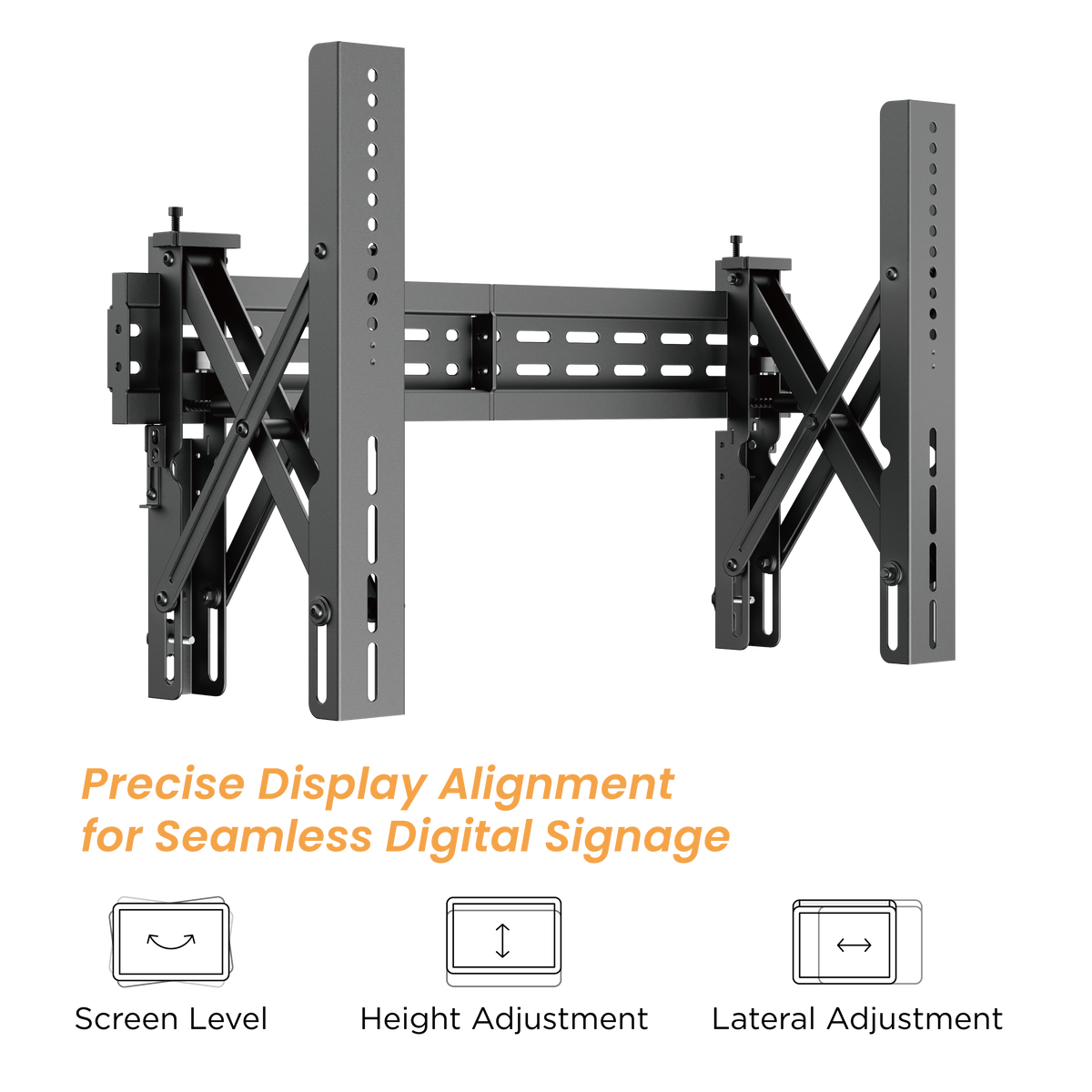

  • Lumi LVW02E-46T video wall mount adjustment feature detail
1 4

Lumi LVW02E-46T: Full Service Video Wall Mount for 37-70 Inch Displays

Model LVW02E-46T

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 70 kg (154 lbs) per screen
  • Fits screens from 37 to 70 inches
  • Profile of 78 to 220 mm (3.1 to 8.7 inch)
  • VESA compatible up to 600 x 400
Corporate Video Wall Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LVW02E-46T is a video wall mount for displays from 37 to 70 inches, with a weight capacity of 70 kg (154 lbs) per screen. It has a profile of 78 to 220 mm (3.1 to 8.7 inch). It supports VESA patterns up to 600 x 400. It installs on solid wall.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LVW02E-46T on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 70 kg (154 lbs) per screen
  • Fits screens from 37 to 70 inches
  • Profile of 78 to 220 mm (3.1 to 8.7 inch)
  • VESA compatible up to 600 x 400
  • Anti-theft design
Why choose the LVW02E-46T
Choose the LVW02E-46T for multi-screen and signage walls where displays must be aligned, serviced and accessed behind the screen. It is rated for 70 kg (154 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LVW02E-46T is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 70 kg (154 lbs) per screen

Fits screens from 37 to 70 inches

Profile of 78 to 220 mm (3.1 to 8.7 inch)

VESA compatible up to 600 x 400

Anti-theft design

Use Cases

Ideal Applications

Video walls in lobbies, showrooms and retail spaces

Digital signage displays in corporate buildings

Control and command room displays

Exhibition and event displays

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 70 inch
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 600 x 400 mm
Weight Capacity (per screen) 70 kg (154 lbs)
Screen Quantity 1
Movement & Adjustment
Screen Level +3° to -3°
Fine Adjustment (depth / height) 0/9 mm (0 inch/0.35 inch)
Design & Installation
Product Type Video Wall Mount
Dimensions (D x W x H) 700 x 440 x 220 mm (27.6 x 17.3 x 8.7 inch)
Profile 78 to 220 mm (3.1 to 8.7 inch)
Installation Solid Wall
Cable Management No
Anti-theft Yes
Materials & Finish
Material Steel
Metal Sheet Thickness Wall Plate THK=2 mm cold-rolled sheet, Bracket Arm THK=2 mm cold-rolled sheet, VESA Panel THK=1.5 mm cold-rolled sheet
Surface Finish Powder Coating
Colour Fine Texture Black
Strength Tested 4 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LVW02E-46T From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LVW02E-46T support?
Lumi lists the LVW02E-46T for screens from 37 to 70 inches with a weight capacity of 70 kg (154 lbs) per screen. Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LVW02E-46T fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How far does the screen sit from the wall on the LVW02E-46T?
Lumi lists a profile of 78 to 220 mm (3.1 to 8.7 inch) for the LVW02E-46T.
What surfaces can the Lumi LVW02E-46T be installed on?
Lumi lists the following installation options for the LVW02E-46T: solid wall. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LVW02E-46T include cable management and anti-theft?
Cable management: No. Anti-theft: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi LVW02E-46T in India?
Yes. Corporate AV can supply the LVW02E-46T on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
