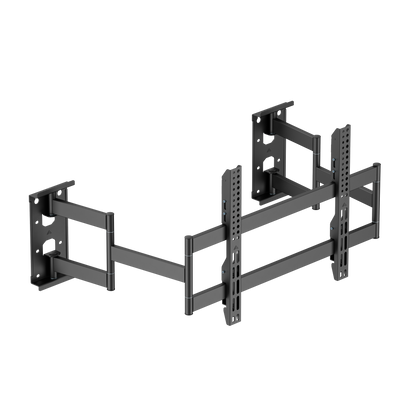

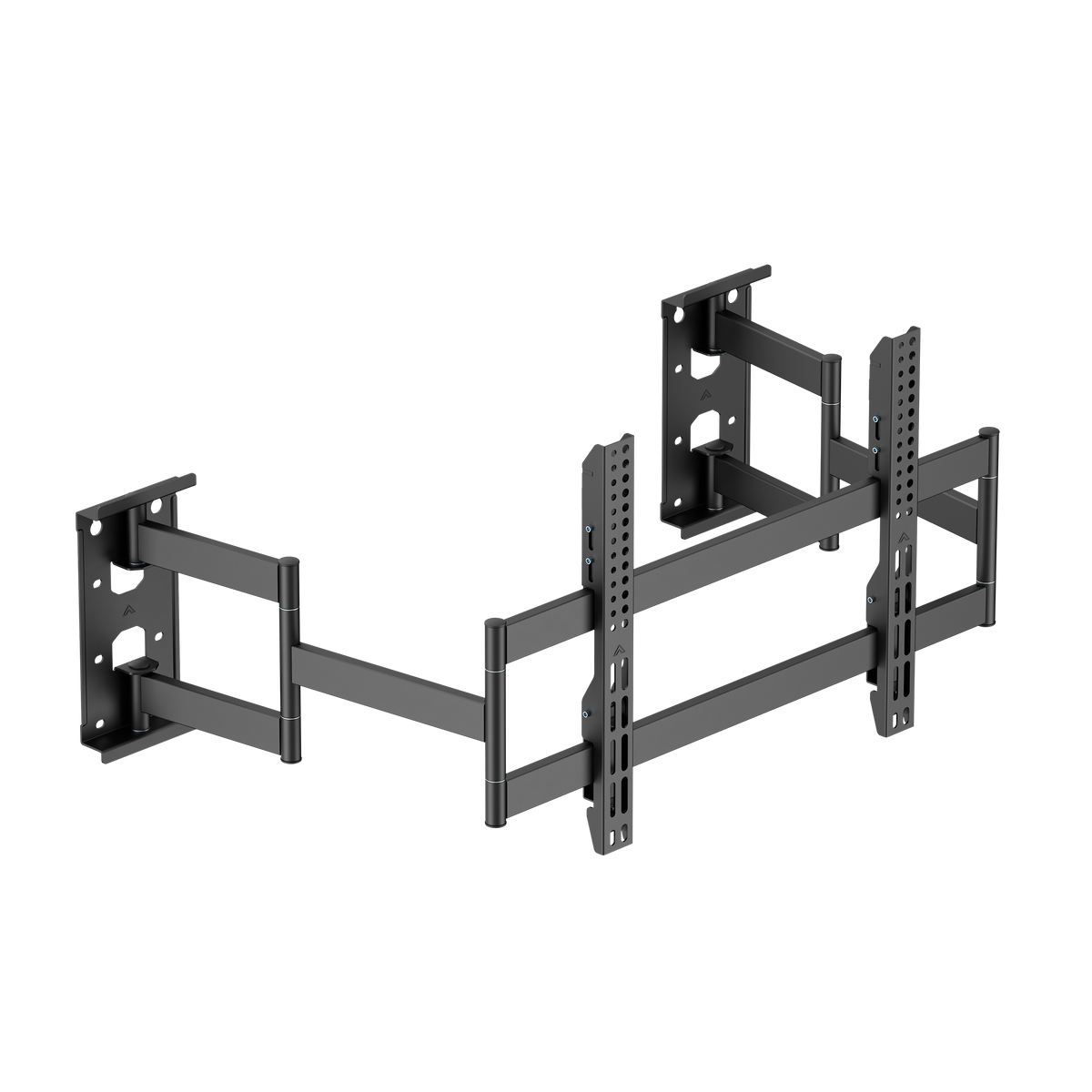

  • Lumi LPA93-466 full-motion TV wall mount, product view, supplied in India by Corporate AV

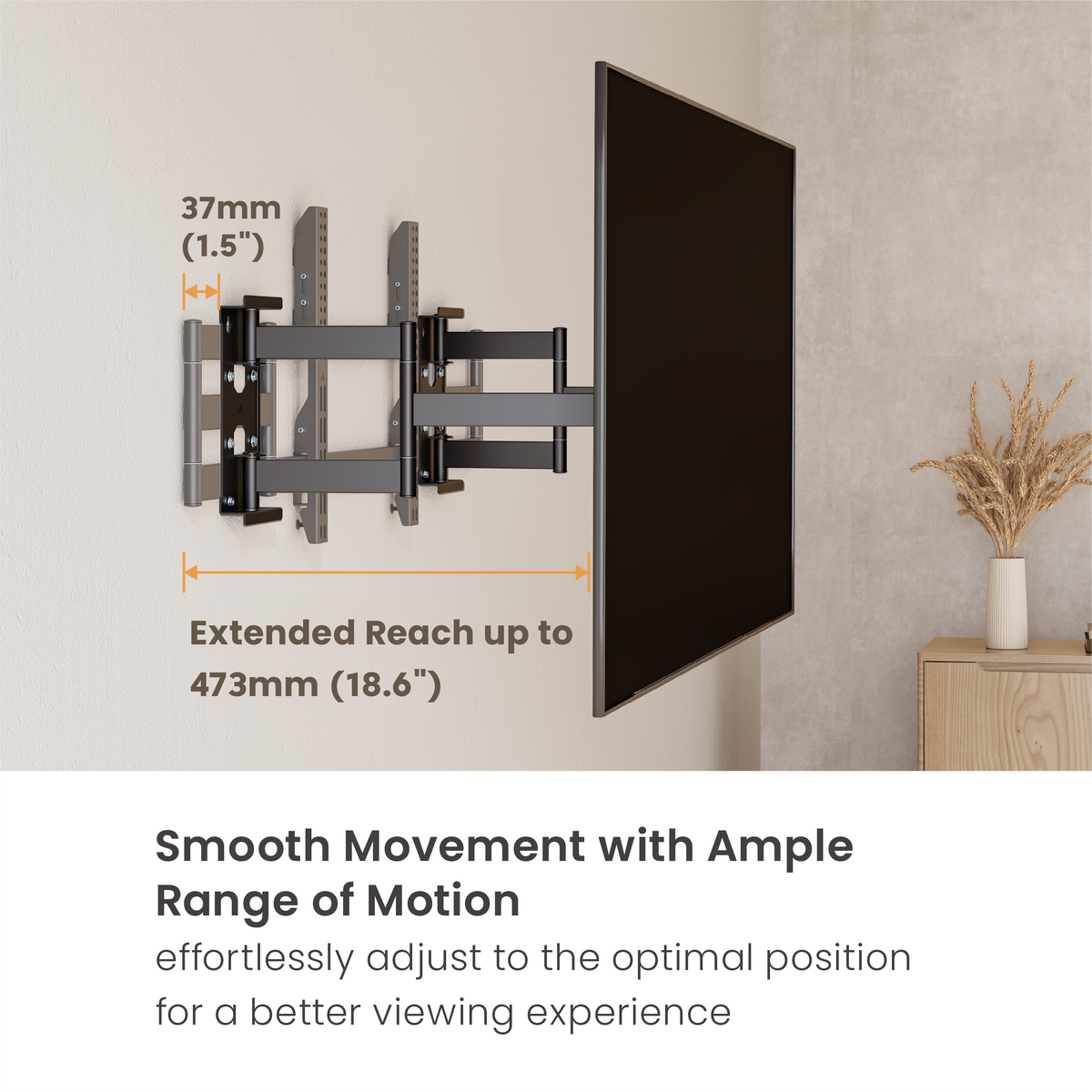

  • Lumi LPA93-466 full-motion TV wall mount extended away from its mounting point to reposition the screen

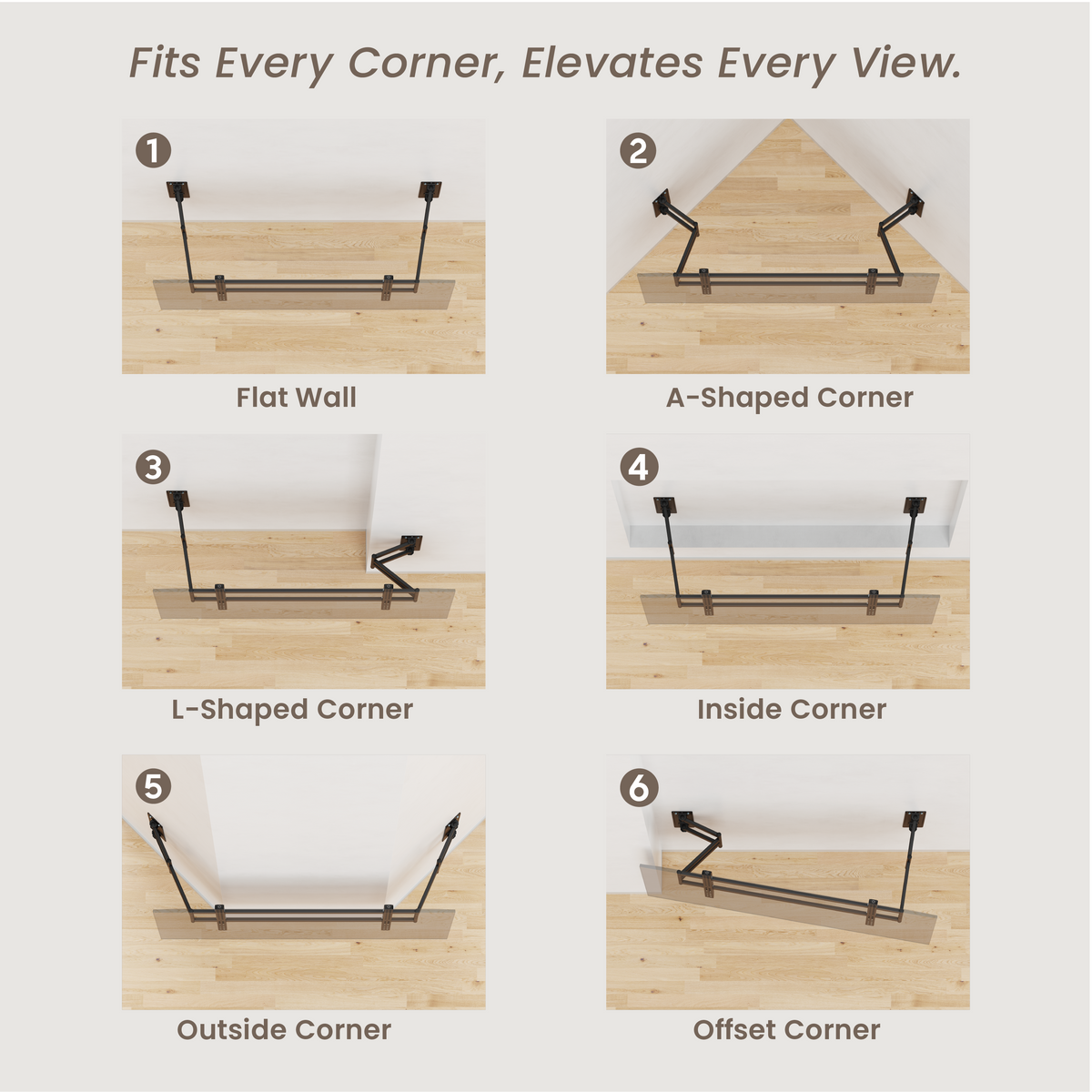

  • Lumi LPA93-466 full-motion TV wall mount mounting options for different wall corners

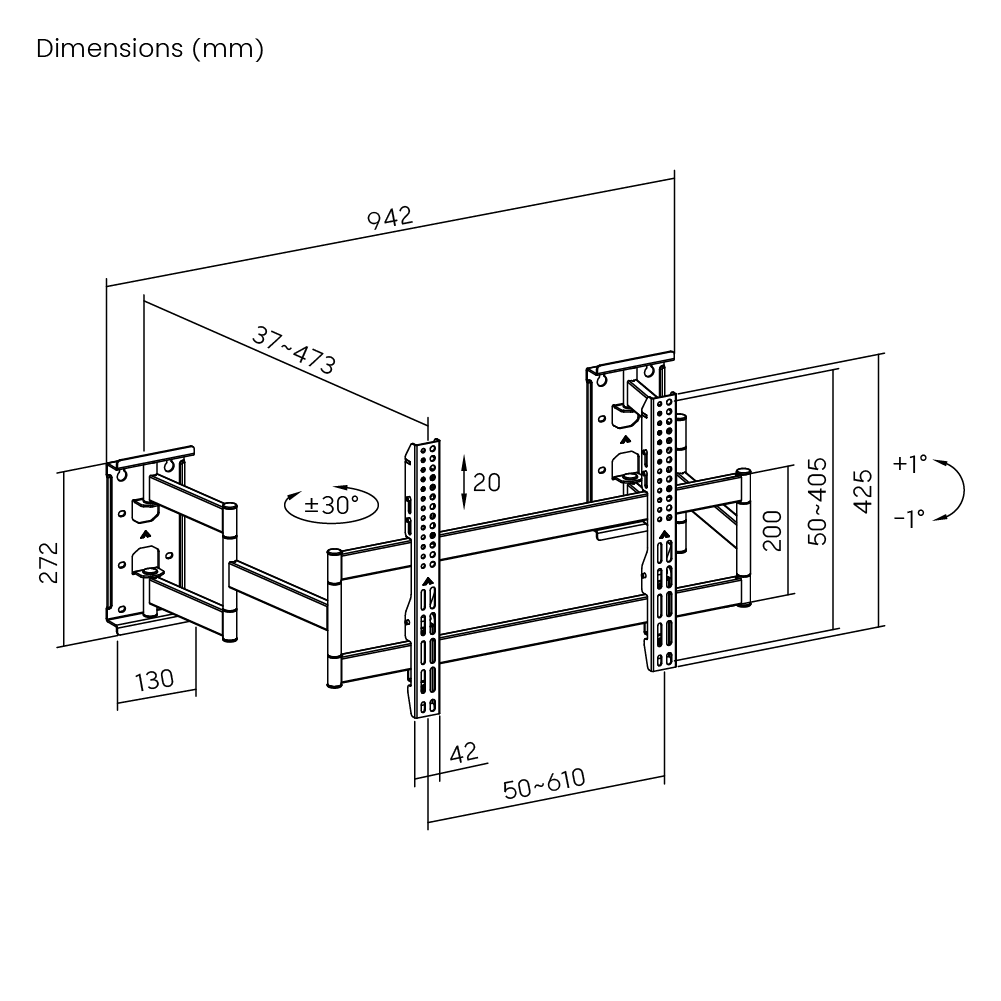

  • Dimension drawing of the Lumi LPA93-466 full-motion TV wall mount showing overall size and mounting dimensions
1 4

Lumi LPA93-466: Slim-Profile Full Motion TV Mount, 55-90 Inch

Model LPA93-466

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 80 kg (176 lbs)
  • Fits screens from 55 to 90 inches
  • Profile of 37 to 473 mm (1.5 to 18.6 inch)
  • Tilt range of +1° to -1°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LPA93-466 is a full-motion TV wall mount for flat-panel TVs from 55 to 90 inches, with a weight capacity of 80 kg (176 lbs). It has a profile of 37 to 473 mm (1.5 to 18.6 inch). It offers tilt of +1° to -1° and swivel of +30° to -30°. It supports VESA patterns up to 610 x 405.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LPA93-466 on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 80 kg (176 lbs)
  • Fits screens from 55 to 90 inches
  • Profile of 37 to 473 mm (1.5 to 18.6 inch)
  • Tilt range of +1° to -1°
  • Swivel range of +30° to -30°
Why choose the LPA93-466
Choose the LPA93-466 when the screen needs to move: it gives you tilt of +1° to -1° and swivel of +30° to -30° so the display can face the room from different seats. It is rated for 80 kg (176 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LPA93-466 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 80 kg (176 lbs)

Fits screens from 55 to 90 inches

Profile of 37 to 473 mm (1.5 to 18.6 inch)

Tilt range of +1° to -1°

Swivel range of +30° to -30°

Use Cases

Ideal Applications

Meeting rooms and training rooms that need an adjustable viewing angle

Offices and reception areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 55 to 90 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA Only
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 610 x 405 mm
Weight Capacity 80 kg (176 lbs)
Movement & Adjustment
Tilt Range +1° to -1°
Swivel Range +30° to -30°
Screen Level 20 mm (0.79 inch)
Design & Installation
Product Type Full-Motion TV Wall Mount
Dimensions (D x W x H) 473 x 942 x 425 mm (18.6 x 37.1 x 16.7 inch)
Profile 37 to 473 mm (1.5 to 18.6 inch)
Installation Solid Wall
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level Hook-on Bubble Level (Included in Components Package)
Materials & Finish
Material Steel
Metal Sheet Thickness Bracket Arm THK=2 mm cold-rolled sheet, Wall Plate THK=2.5 mm pickling sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, Wall Plate THK=0.098 inch pickling sheet)
Surface Finish Powder Coating
Colour Fine Texture Black
Strength Tested 3 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LPA93-466 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LPA93-466 support?
Lumi lists the LPA93-466 for screens from 55 to 90 inches with a weight capacity of 80 kg (176 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LPA93-466 fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 610 x 405 as the maximum mounting hole pattern.
How much can the Lumi LPA93-466 tilt, swivel or extend?
Lumi lists tilt of +1° to -1° and swivel of +30° to -30° for the LPA93-466.
How far does the screen sit from the wall on the LPA93-466?
Lumi lists a profile of 37 to 473 mm (1.5 to 18.6 inch) for the LPA93-466.
What surfaces can the Lumi LPA93-466 be installed on?
Lumi lists the following installation options for the LPA93-466: solid wall. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LPA93-466 work with curved TVs?
Yes. Lumi lists the LPA93-466 as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi LPA93-466 in India?
Yes. Corporate AV can supply the LPA93-466 on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
