Lumi LPA86-696A: Full-Motion TV Wall Mount for 50-100 Inch Screens
Model LPA86-696A
Request a Quote
Availability: Out of Stock

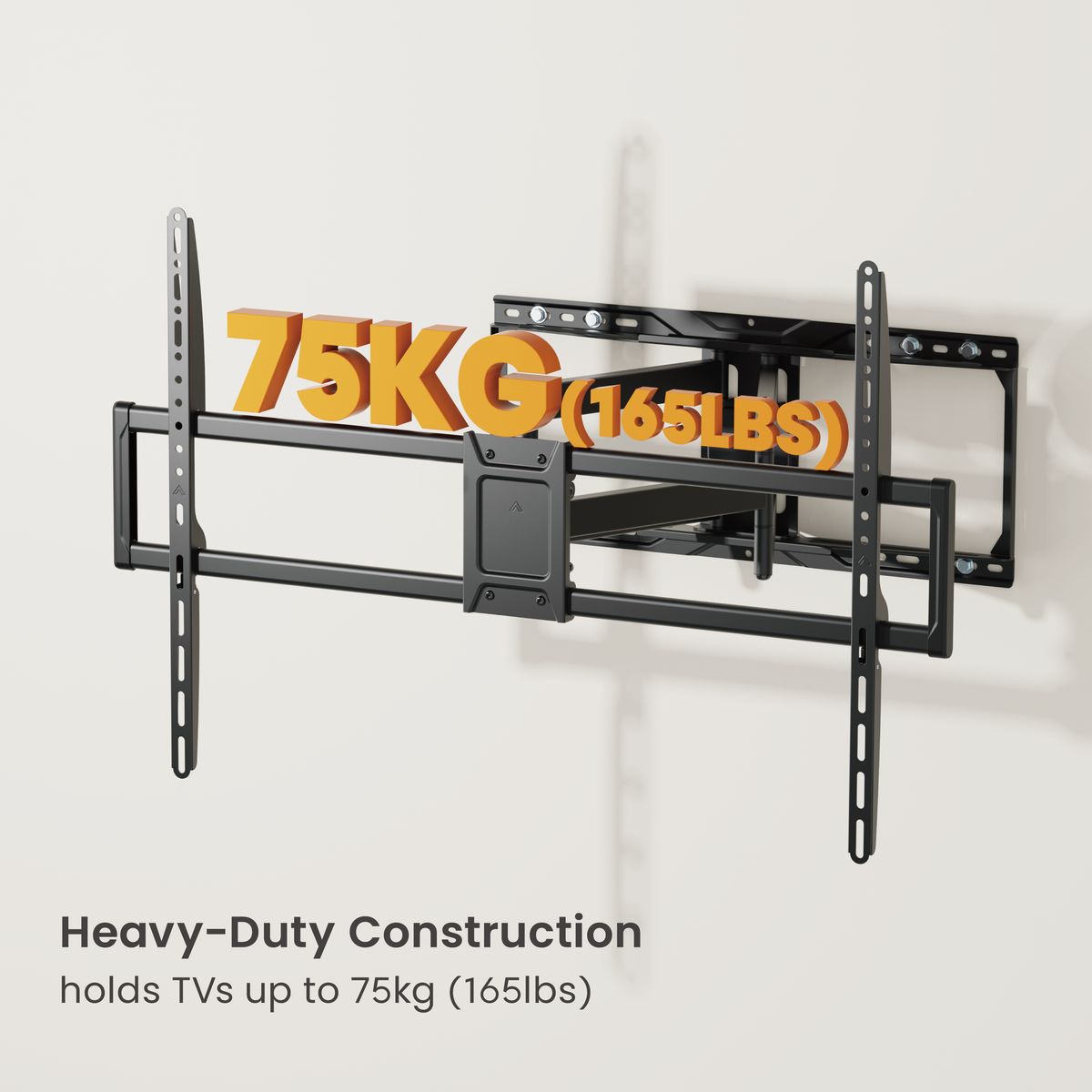

- Weight capacity of 75 kg (165 lbs)
- Fits screens from 50 to 100 inches
- Profile of 78 to 644 mm (3.1 to 25.4 inch)
- Tilt range of +5° to -15°
Product Overview
Overview

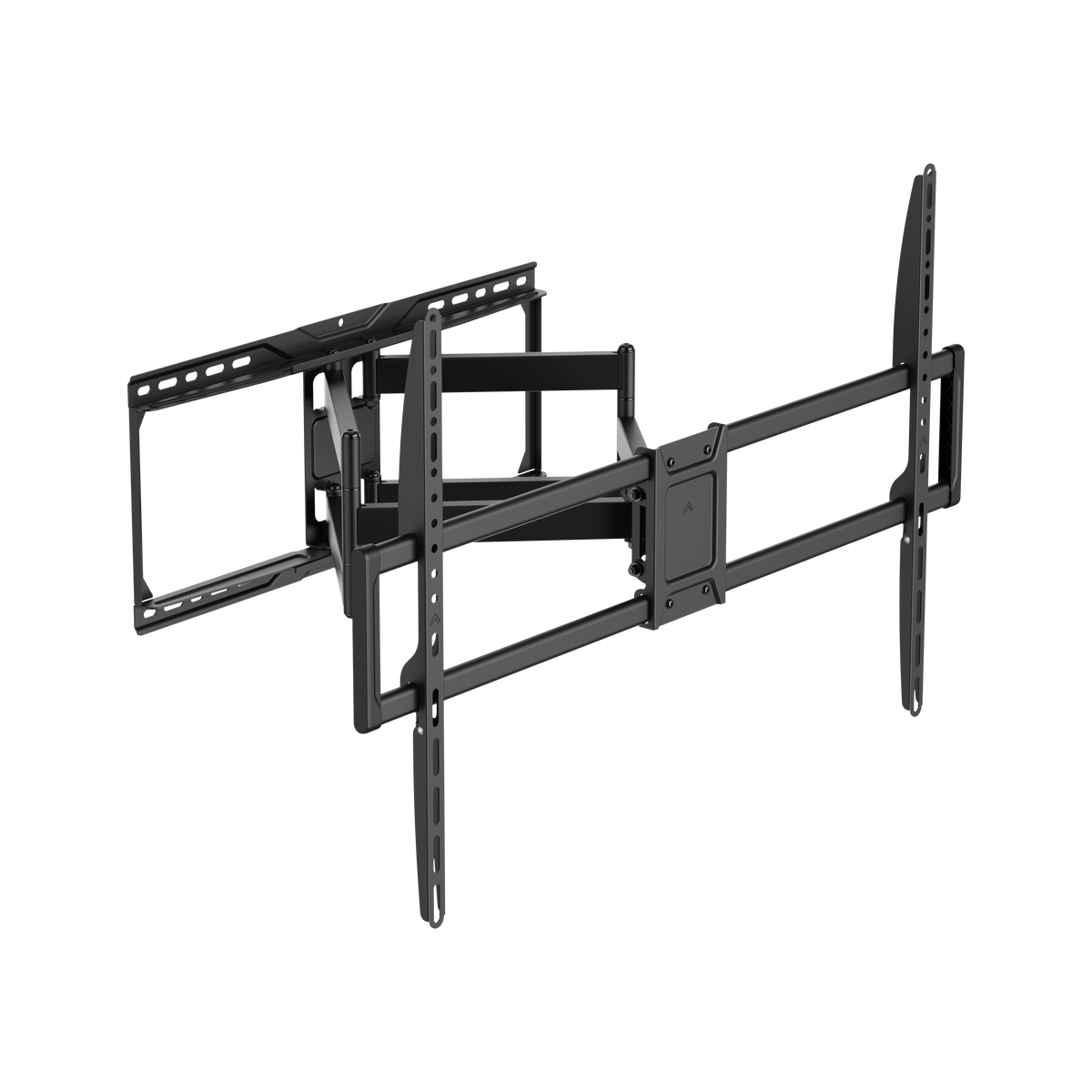

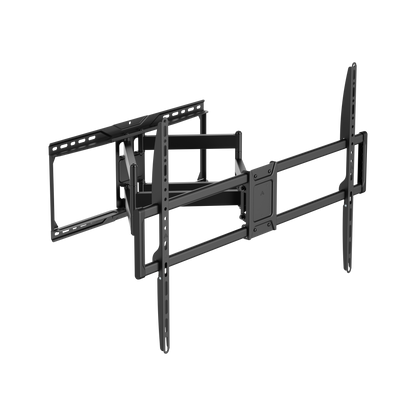

The Lumi LPA86-696A is a full-motion TV wall mount for flat-panel TVs from 50 to 100 inches, with a weight capacity of 75 kg (165 lbs). It has a profile of 78 to 644 mm (3.1 to 25.4 inch). It offers tilt of +5° to -15° and swivel of +60° to -60°. It supports VESA patterns up to 909 x 602.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LPA86-696A on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 75 kg (165 lbs)
- Fits screens from 50 to 100 inches
- Profile of 78 to 644 mm (3.1 to 25.4 inch)
- Tilt range of +5° to -15°
- Swivel range of +60° to -60°
Why choose the LPA86-696A
Choose the LPA86-696A when the screen needs to move: it gives you tilt of +5° to -15° and swivel of +60° to -60° so the display can face the room from different seats. It is rated for 75 kg (165 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LPA86-696A is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 75 kg (165 lbs)
Fits screens from 50 to 100 inches
Profile of 78 to 644 mm (3.1 to 25.4 inch)
Tilt range of +5° to -15°
Swivel range of +60° to -60°
Use Cases
Ideal Applications
Meeting rooms and training rooms that need an adjustable viewing angle
Offices and reception areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
50 to 100 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 100, 200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 500 x 300, 400 x 400, 600 x 300, 500 x 400, 400 x 600, 600 x 400, 700 x 400, 800 x 400, 600 x 600, 800 x 500, 800 x 600, 900 x 600 mm
Max. Mounting Hole
909 x 602 mm
Weight Capacity
75 kg (165 lbs)
Movement & Adjustment
Tilt Range
+5° to -15°
Swivel Range
+60° to -60°
Screen Level
+3° to -3°
Screen Freely Tilting
No
Design & Installation
Product Type
Full-Motion TV Wall Mount

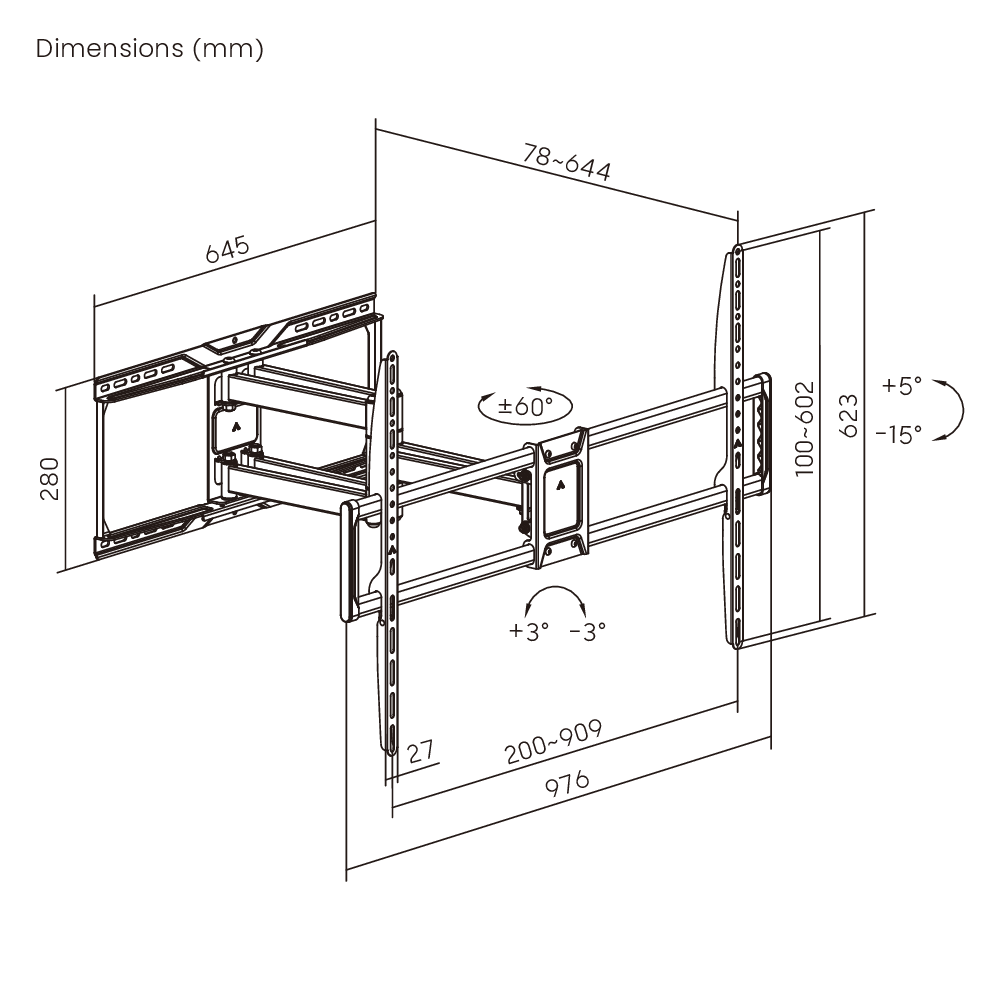

Dimensions (D x W x H)
644 x 976 x 623 mm (25.4 x 38.4 x 24.5 inch)
Profile
78 to 644 mm (3.1 to 25.4 inch)
Installation
Solid Wall, Dual Stud (406 mm/450 mm/600 mm)
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
Yes
Bubble Level
Hook-on Bubble Level (Included in Components Package)
Anti-theft
No
AV Component Shelf
No
Materials & Finish
Material
Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=1.5 mm cold-rolled sheet, VESA Panel THK=1.8 mm cold-rolled sheet, Wall Plate THK=2.5 mm pickling sheet (Bracket Arm THK=0.059 inch cold-rolled sheet, VESA Panel THK=0.071 inch cold-rolled sheet, Wall Plate THK=0.098 inch pickling sheet)
Surface Finish
Powder Coating
Colour
Fine Texture Black
Strength Tested
3 Times Approved
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LPA86-696A From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LPA86-696A support?
Lumi lists the LPA86-696A for screens from 50 to 100 inches with a weight capacity of 75 kg (165 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LPA86-696A fit?
It fits VESA 200 x 100, 200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 500 x 300, 400 x 400, 600 x 300, 500 x 400, 400 x 600, 600 x 400, 700 x 400, 800 x 400, 600 x 600, 800 x 500, 800 x 600, 900 x 600 mm, with 909 x 602 as the maximum mounting hole pattern.
How much can the Lumi LPA86-696A tilt, swivel or extend?
Lumi lists tilt of +5° to -15° and swivel of +60° to -60° for the LPA86-696A.
How far does the screen sit from the wall on the LPA86-696A?

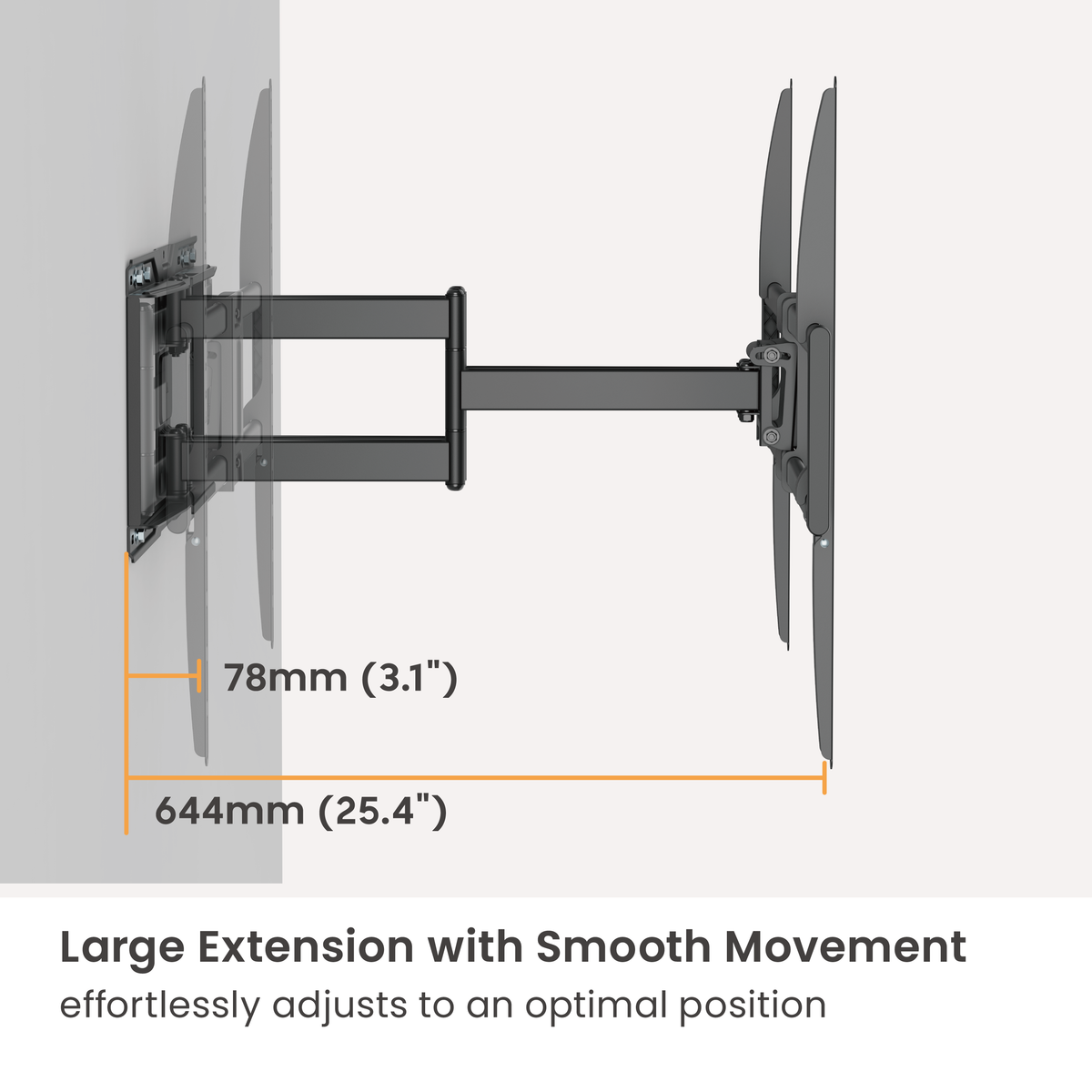

Lumi lists a profile of 78 to 644 mm (3.1 to 25.4 inch) for the LPA86-696A.
What surfaces can the Lumi LPA86-696A be installed on?
Lumi lists the following installation options for the LPA86-696A: solid wall, dual stud (406 mm/450 mm/600 mm). Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LPA86-696A work with curved TVs?
Yes. Lumi lists the LPA86-696A as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi LPA86-696A in India?
Yes. Corporate AV can supply the LPA86-696A on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
