Lumi LP69-46F: Landscape/Portrait Wall Mount for Interactive Displays
Model LP69-46F
Request a Quote
Availability: Out of Stock
- Weight capacity of 50 kg (110 lbs)
- Fits screens from 37 to 86 inches
- Low-profile fixed design, 45 mm (1.8 inch) from the wall

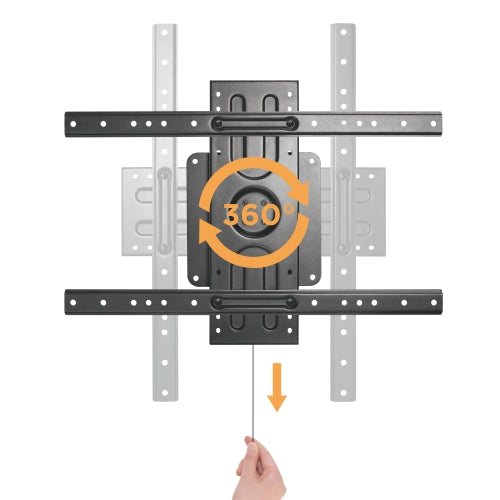

- Rotation of +180° to -180°
Product Overview
Overview

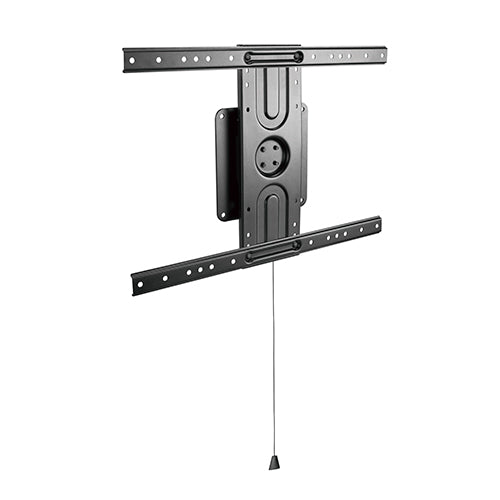

The Lumi LP69-46F is a fixed TV wall mount for flat-panel TVs from 37 to 86 inches, with a weight capacity of 50 kg (110 lbs). It holds the screen 45 mm (1.8 inch) from the wall. It offers rotation of +180° to -180°. It supports VESA patterns up to 600 x 400.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP69-46F on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 50 kg (110 lbs)
- Fits screens from 37 to 86 inches
- Low-profile fixed design, 45 mm (1.8 inch) from the wall
- Rotation of +180° to -180°
- VESA compatible up to 600 x 400
Why choose the LP69-46F
Choose the LP69-46F when the screen stays in one position and a clean, low-profile result matters more than angle adjustment. It is rated for 50 kg (110 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP69-46F is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 50 kg (110 lbs)
Fits screens from 37 to 86 inches
Low-profile fixed design, 45 mm (1.8 inch) from the wall
Rotation of +180° to -180°
VESA compatible up to 600 x 400
Use Cases
Ideal Applications

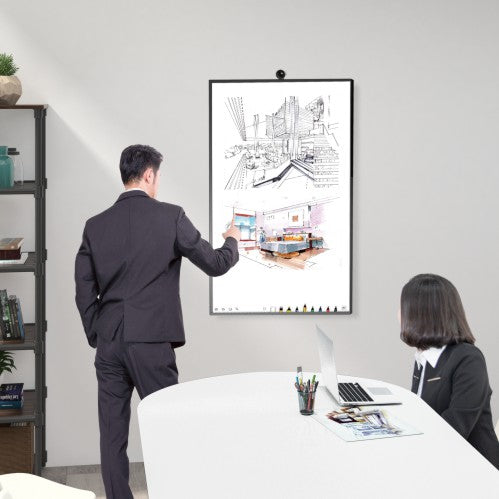

Wall-mounted TVs in meeting rooms and huddle rooms
Reception, lobby and waiting areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
37 to 86 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 350 x 350, 400 x 400, 400 x 600, 600 x 400 mm
Max. Mounting Hole
600 x 400 mm
Weight Capacity
50 kg (110 lbs)
Movement & Adjustment
Screen Rotation
+180° to -180°
Screen Level
+3° to -3°
Design & Installation
Product Type
Fixed TV Wall Mount

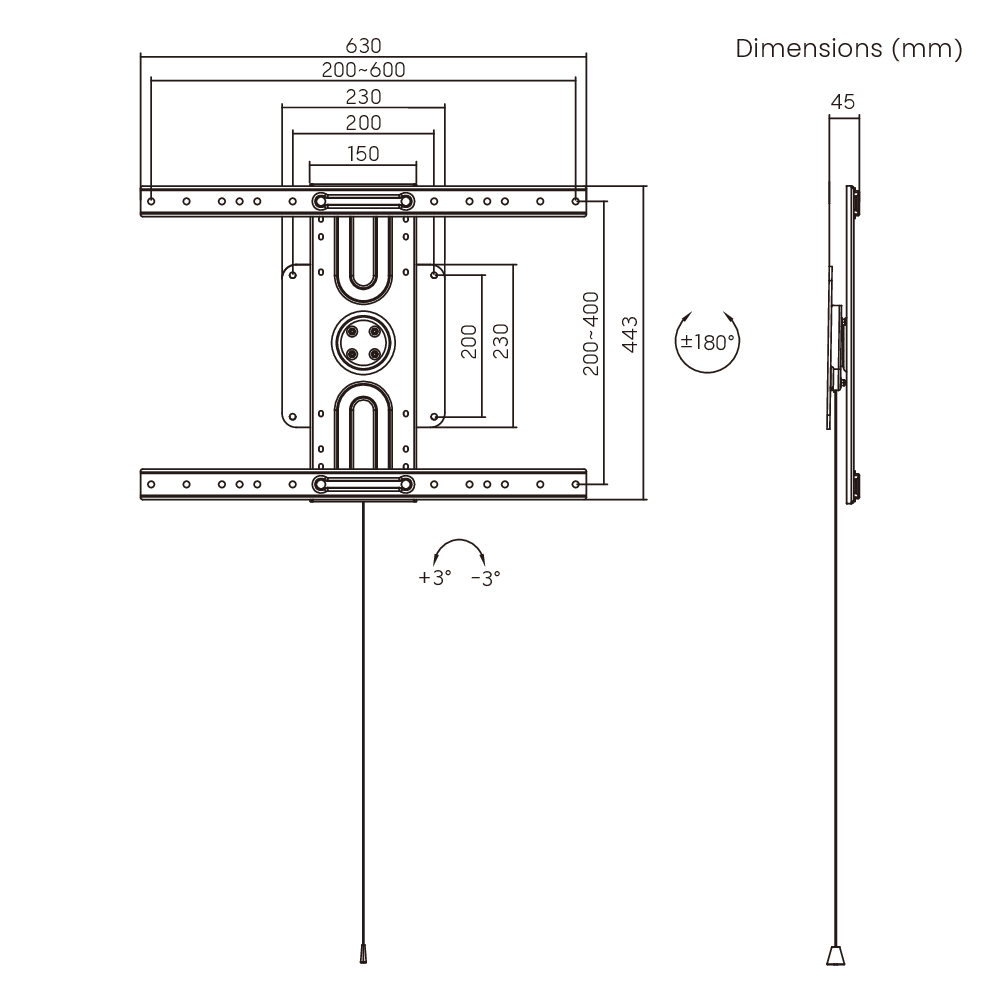

Dimensions (D x W x H)
45 x 630 x 450 mm (1.8 x 24.8 x 17.7 inch)
Profile
45 mm (1.8 inch)
Installation
Solid Wall, Single Stud
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
No
Bubble Level
No
Anti-theft
No
Materials & Finish
Material
Aluminum, Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=2 mm cold-rolled sheet, VESA Panel THK=2 mm cold-rolled sheet, Wall Plate THK=4.0 mm pickling sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, VESA Panel THK=0.079 inch cold-rolled sheet, Wall Plate THK=0.16 inch pickling sheet)
Surface Finish
Powder Coating
Colour
Fine Texture Black
Strength Tested
4 Times Approved
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LP69-46F From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LP69-46F support?
Lumi lists the LP69-46F for screens from 37 to 86 inches with a weight capacity of 50 kg (110 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP69-46F fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 350 x 350, 400 x 400, 400 x 600, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How much can the Lumi LP69-46F tilt, swivel or extend?
Lumi lists rotation of +180° to -180° for the LP69-46F.
How far does the screen sit from the wall on the LP69-46F?
Lumi lists a profile of 45 mm (1.8 inch) for the LP69-46F. It is a fixed mount, so the screen does not tilt or swivel; choose a tilt or full-motion mount if you need angle adjustment.
What surfaces can the Lumi LP69-46F be installed on?
Lumi lists the following installation options for the LP69-46F: solid wall, single stud. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP69-46F work with curved TVs?
Yes. Lumi lists the LP69-46F as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
