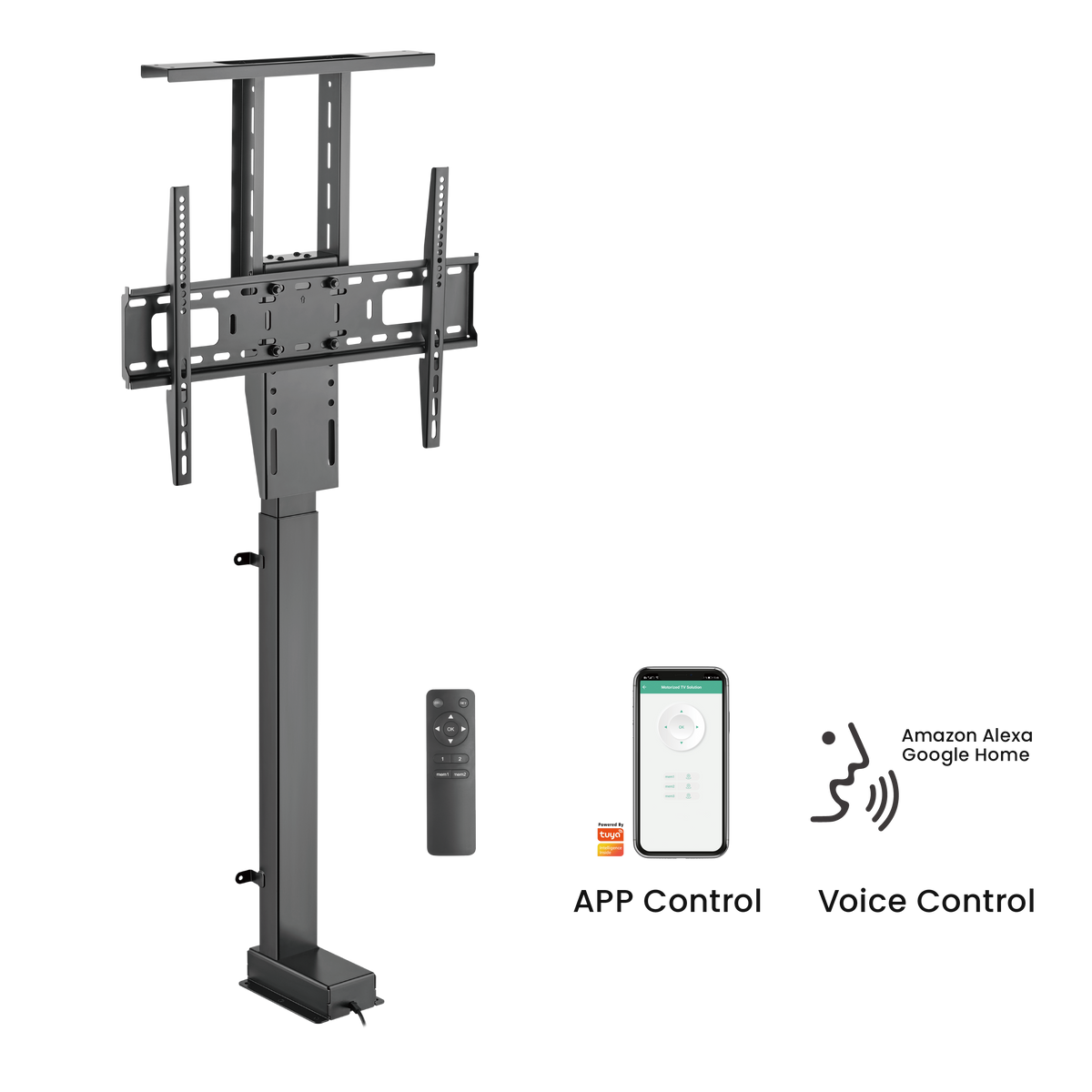

Lumi LP66E-46ML: Motorized TV Lift Stand, 37-80 Inch
Model LP66E-46ML
Request a Quote
Availability: Out of Stock
- Weight capacity of 60 kg (132 lbs)
- Fits screens from 37 to 80 inches
- Profile of 120 mm (4.7 inch)
- VESA compatible up to 600 x 400
Product Overview
Overview
The Lumi LP66E-46ML is a motorized TV lift stand for flat-panel TVs from 37 to 80 inches, with a weight capacity of 60 kg (132 lbs). It has a profile of 120 mm (4.7 inch). It supports VESA patterns up to 600 x 400. It installs on inside the cabinet.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP66E-46ML on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 60 kg (132 lbs)
- Fits screens from 37 to 80 inches
- Profile of 120 mm (4.7 inch)
- VESA compatible up to 600 x 400
- Installs on inside the cabinet
Why choose the LP66E-46ML
Choose the LP66E-46ML when the screen needs to move: it gives you an adjustable viewing angle so the display can face the room from different seats. It is rated for 60 kg (132 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP66E-46ML is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 60 kg (132 lbs)
Fits screens from 37 to 80 inches
Profile of 120 mm (4.7 inch)
VESA compatible up to 600 x 400
Installs on inside the cabinet
Use Cases
Ideal Applications
Meeting rooms and training rooms that need an adjustable viewing angle
Offices and reception areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
37 to 80 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 350 x 350, 400 x 400, 600 x 300, 600 x 400 mm
Max. Mounting Hole
600 x 400 mm
Weight Capacity
60 kg (132 lbs)
Design & Installation
Product Type
Motorized TV Lift Stand

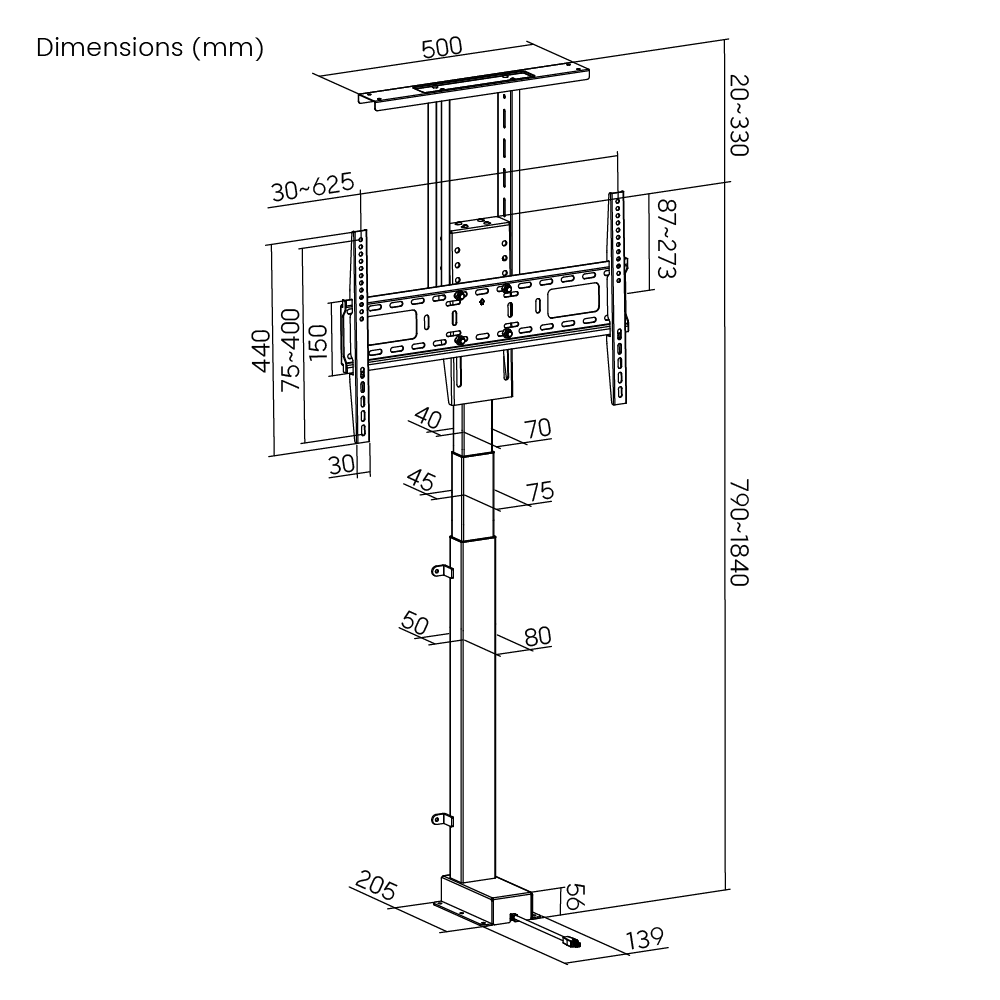

Dimensions (D x W x H)
205 x 660 x 810 to 2170 mm (8.1 x 26 x 31.9 to 85.4 inch)
Profile
120 mm (4.7 inch)
Installation
Inside the Cabinet
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
No
Bubble Level
No
Anti-theft
No
AV Component Shelf
No
Power Supply
Input:AC 100 to 240V, 50/60Hz;Output:DC 29V, 1.8A
Power Cord Length
1.5 m (4.9 ft)
Controller Type
Radio Frequency (RF) Remote
Materials & Finish
Material
Steel, Aluminum, Plastic
Metal Sheet Thickness
Bracket Arm THK=2 mm cold-rolled sheet, VESA Panel THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, VESA Panel THK=0.079 inch cold-rolled sheet)
Surface Finish
Powder Coating
Colour
Matte Black
Accessory Colour
Matte Black
Strength Tested
4 Times Approved
Certification
CE, ErP, EU Cybersecurity , FCC, RoHS, UKCA
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LP66E-46ML From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LP66E-46ML support?
Lumi lists the LP66E-46ML for screens from 37 to 80 inches with a weight capacity of 60 kg (132 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP66E-46ML fit?
It fits VESA 200 x 200, 200 x 300, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 300 x 400, 400 x 300, 600 x 200, 350 x 350, 400 x 400, 600 x 300, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
What surfaces can the Lumi LP66E-46ML be installed on?
Lumi lists the following installation options for the LP66E-46ML: inside the cabinet. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP66E-46ML work with curved TVs?
Yes. Lumi lists the LP66E-46ML as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does the Lumi LP66E-46ML include cable management, anti-theft and bubble level?
Cable management: No. Anti-theft: No. Bubble level: No. (Per the Lumi specification.)
Does Corporate AV install the Lumi LP66E-46ML in India?
Yes. Corporate AV can supply the LP66E-46ML on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
