Lumi LP42-69T: Heavy-Duty Tilt TV Wall Mount for 50-100 Inch Screens
Model LP42-69T
Request a Quote
Availability: Out of Stock
- Weight capacity of 75 kg (165 lbs)
- Fits screens from 50 to 100 inches
- Profile of 85 mm (3.3 inch)
- Tilt range of +5° to -10°
Product Overview
Overview
The Lumi LP42-69T is a tilt TV wall mount for flat-panel TVs from 50 to 100 inches, with a weight capacity of 75 kg (165 lbs). It has a profile of 85 mm (3.3 inch). It offers tilt of +5° to -10°. It supports VESA patterns up to 900 x 600.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP42-69T on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 75 kg (165 lbs)
- Fits screens from 50 to 100 inches
- Profile of 85 mm (3.3 inch)
- Tilt range of +5° to -10°
- VESA compatible up to 900 x 600
Why choose the LP42-69T
Choose the LP42-69T when the screen stays on one wall position but needs a tilt adjustment (+5° to -10°) to cut glare or aim the display at viewers. It is rated for 75 kg (165 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP42-69T is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 75 kg (165 lbs)
Fits screens from 50 to 100 inches
Profile of 85 mm (3.3 inch)
Tilt range of +5° to -10°
VESA compatible up to 900 x 600
Use Cases
Ideal Applications
Wall-mounted TVs in meeting rooms and huddle rooms
Reception, lobby and waiting areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
50 to 100 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400, 600 x 600, 800 x 600, 900 x 600 mm
Max. Mounting Hole
900 x 600 mm
Weight Capacity
75 kg (165 lbs)
Movement & Adjustment
Tilt Range
+5° to -10°
Screen Freely Tilting
No
Design & Installation
Product Type
Tilt TV Wall Mount

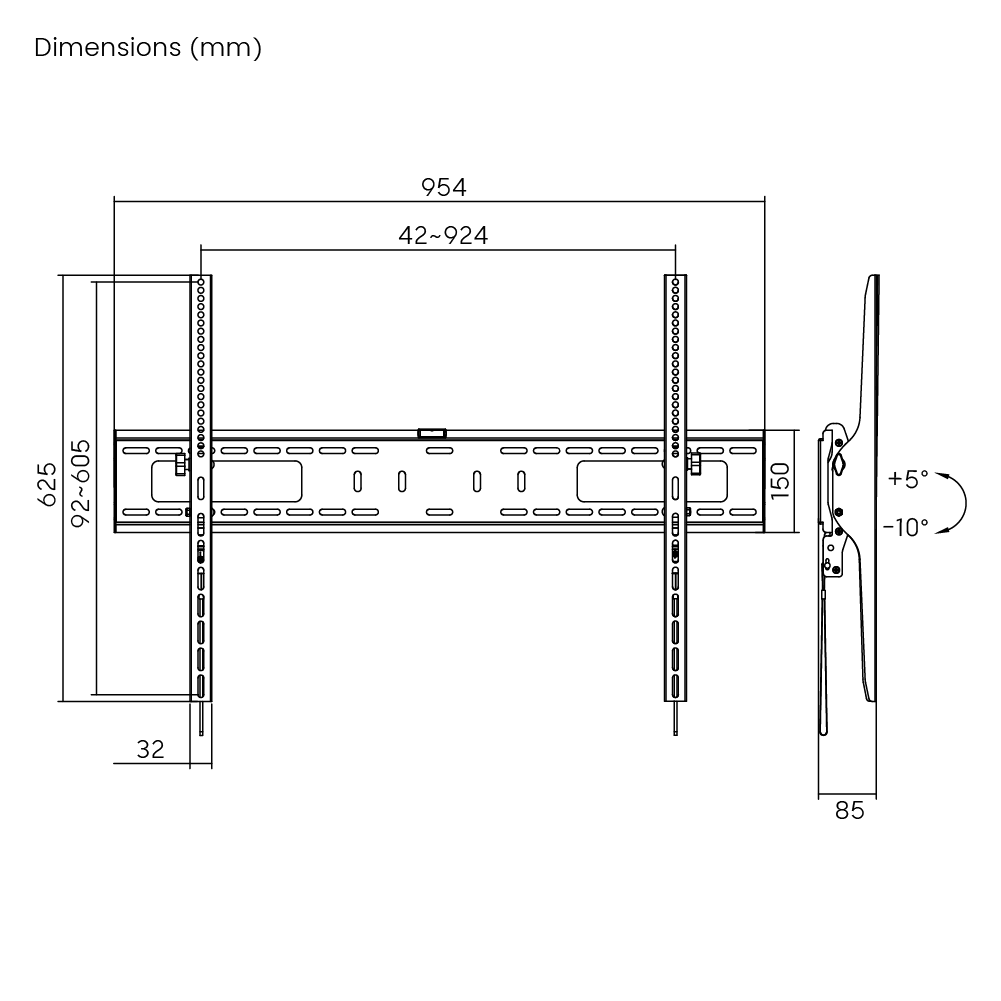

Dimensions (D x W x H)
954 x 625 x 85 mm (37.6 x 24.6 x 3.3 inch)
Profile
85 mm (3.3 inch)
Installation
Solid Wall, Dual Stud (406 mm/450 mm/600 mm)
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
No
Bubble Level
Hook-on Bubble Level (Included in Components Package)
Anti-theft
No
Materials & Finish
Material
Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=2 mm cold-rolled sheet, Wall Plate THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, Wall Plate THK=0.079 inch cold-rolled sheet)
Surface Finish
Powder Coating
Colour
Matte Black
Strength Tested
3 Times Approved
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LP42-69T From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LP42-69T support?
Lumi lists the LP42-69T for screens from 50 to 100 inches with a weight capacity of 75 kg (165 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP42-69T fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400, 600 x 600, 800 x 600, 900 x 600 mm, with 900 x 600 as the maximum mounting hole pattern.
How much can the Lumi LP42-69T tilt, swivel or extend?
Lumi lists tilt of +5° to -10° for the LP42-69T.
How far does the screen sit from the wall on the LP42-69T?
Lumi lists a profile of 85 mm (3.3 inch) for the LP42-69T.
What surfaces can the Lumi LP42-69T be installed on?
Lumi lists the following installation options for the LP42-69T: solid wall, dual stud (406 mm/450 mm/600 mm). Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP42-69T work with curved TVs?
Yes. Lumi lists the LP42-69T as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi LP42-69T in India?
Yes. Corporate AV can supply the LP42-69T on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
