Lumi LP42-64AF: Fixed Portrait Lockable TV Mount, 37-75 Inch
Model LP42-64AF
Request a Quote
Availability: Out of Stock
- Weight capacity of 75 kg (165 lbs)
- Fits screens from 37 to 75 inches
- Low-profile fixed design, 27 mm (1.1 inch) from the wall
- VESA compatible up to 400 x 600
Product Overview
Overview

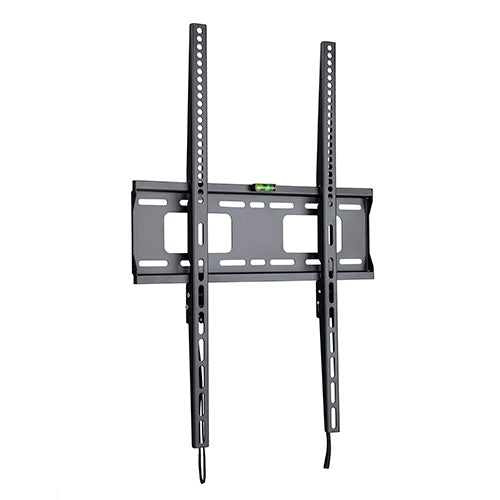

The Lumi LP42-64AF is a fixed TV wall mount for flat-panel TVs from 37 to 75 inches, with a weight capacity of 75 kg (165 lbs). It holds the screen 27 mm (1.1 inch) from the wall. It supports VESA patterns up to 400 x 600. It installs on solid wall.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP42-64AF on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 75 kg (165 lbs)
- Fits screens from 37 to 75 inches
- Low-profile fixed design, 27 mm (1.1 inch) from the wall
- VESA compatible up to 400 x 600

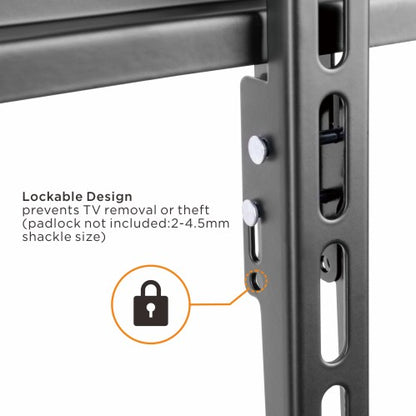

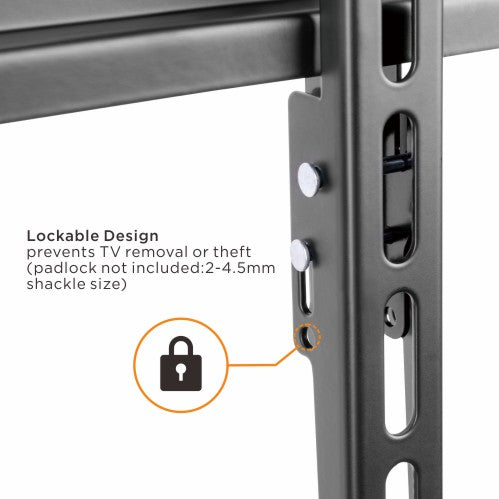

- Anti-theft design
Why choose the LP42-64AF
Choose the LP42-64AF when the screen stays in one position and a clean, low-profile result matters more than angle adjustment. It is rated for 75 kg (165 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP42-64AF is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 75 kg (165 lbs)
Fits screens from 37 to 75 inches
Low-profile fixed design, 27 mm (1.1 inch) from the wall
VESA compatible up to 400 x 600
Anti-theft design
Use Cases
Ideal Applications
Wall-mounted TVs in meeting rooms and huddle rooms
Reception, lobby and waiting areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
37 to 75 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 400 x 600 mm
Max. Mounting Hole
400 x 600 mm
Weight Capacity
75 kg (165 lbs)
Design & Installation
Product Type
Fixed TV Wall Mount

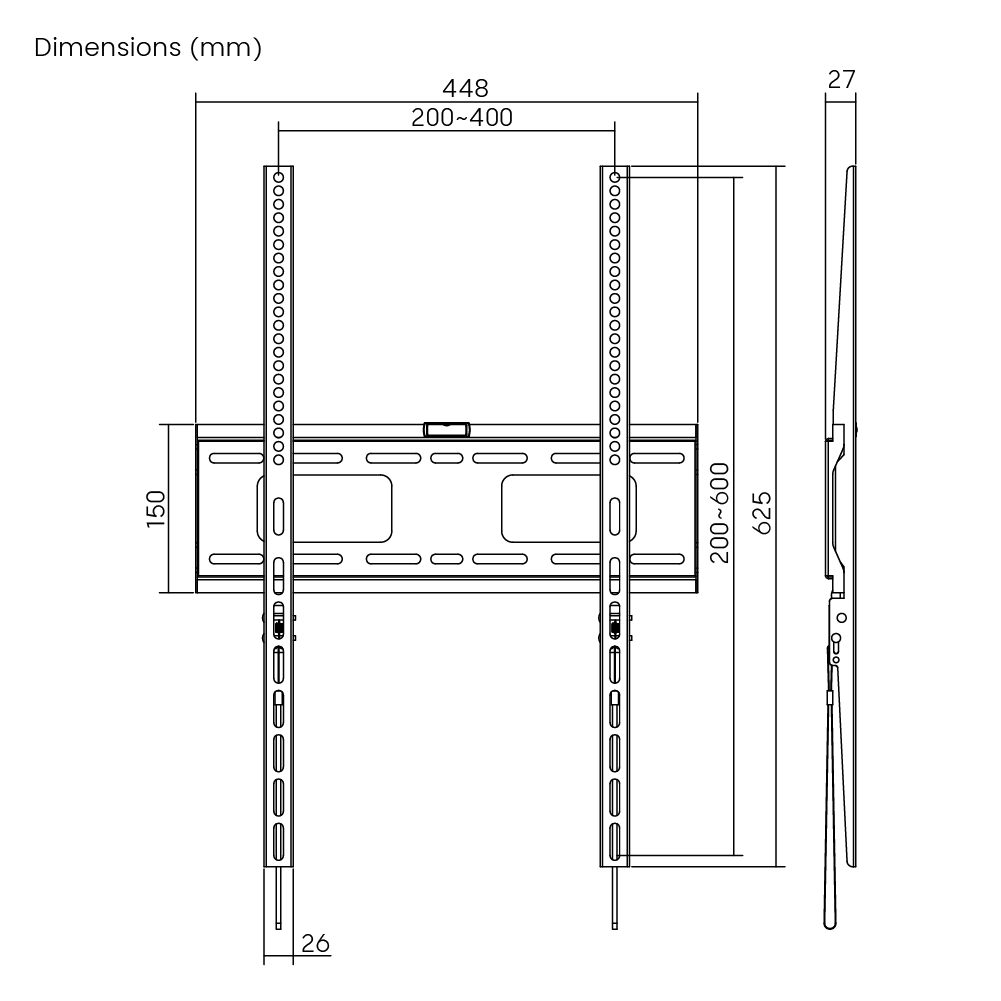

Dimensions (D x W x H)
448 x 625 x 27 mm (17.6 x 24.6 x 1.1 inch)
Profile
27 mm (1.1 inch)
Installation
Solid Wall
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
No
Bubble Level
Hook-on Bubble Level (Included in Components Package)
Anti-theft
Yes
Materials & Finish
Material
Steel
Metal Sheet Thickness
Bracket Arm THK=2 mm cold-rolled sheet, Wall Plate THK=1.5 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, Wall Plate THK=0.059 inch cold-rolled sheet)
Surface Finish
Powder Coating
Colour
Matte Black
Accessory Colour
Matte Black
Strength Tested
3 Times Approved
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LP42-64AF From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LP42-64AF support?
Lumi lists the LP42-64AF for screens from 37 to 75 inches with a weight capacity of 75 kg (165 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP42-64AF fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 400 x 600 mm, with 400 x 600 as the maximum mounting hole pattern.
How far does the screen sit from the wall on the LP42-64AF?
Lumi lists a profile of 27 mm (1.1 inch) for the LP42-64AF. It is a fixed mount, so the screen does not tilt or swivel; choose a tilt or full-motion mount if you need angle adjustment.
What surfaces can the Lumi LP42-64AF be installed on?
Lumi lists the following installation options for the LP42-64AF: solid wall. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP42-64AF work with curved TVs?
Yes. Lumi lists the LP42-64AF as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does the Lumi LP42-64AF include cable management and anti-theft?
Cable management: No. Anti-theft: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi LP42-64AF in India?
Yes. Corporate AV can supply the LP42-64AF on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
