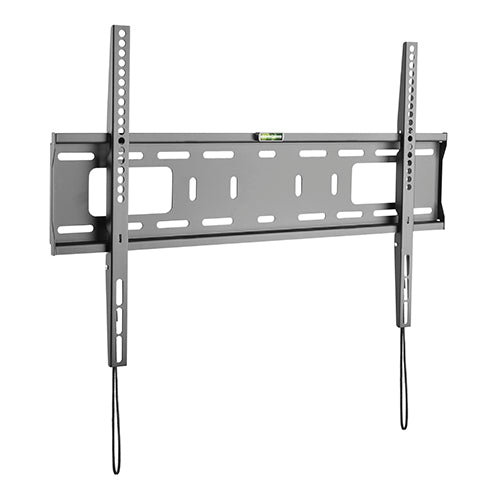

  • Lumi LP42-46F fixed TV wall mount, product view, supplied in India by Corporate AV

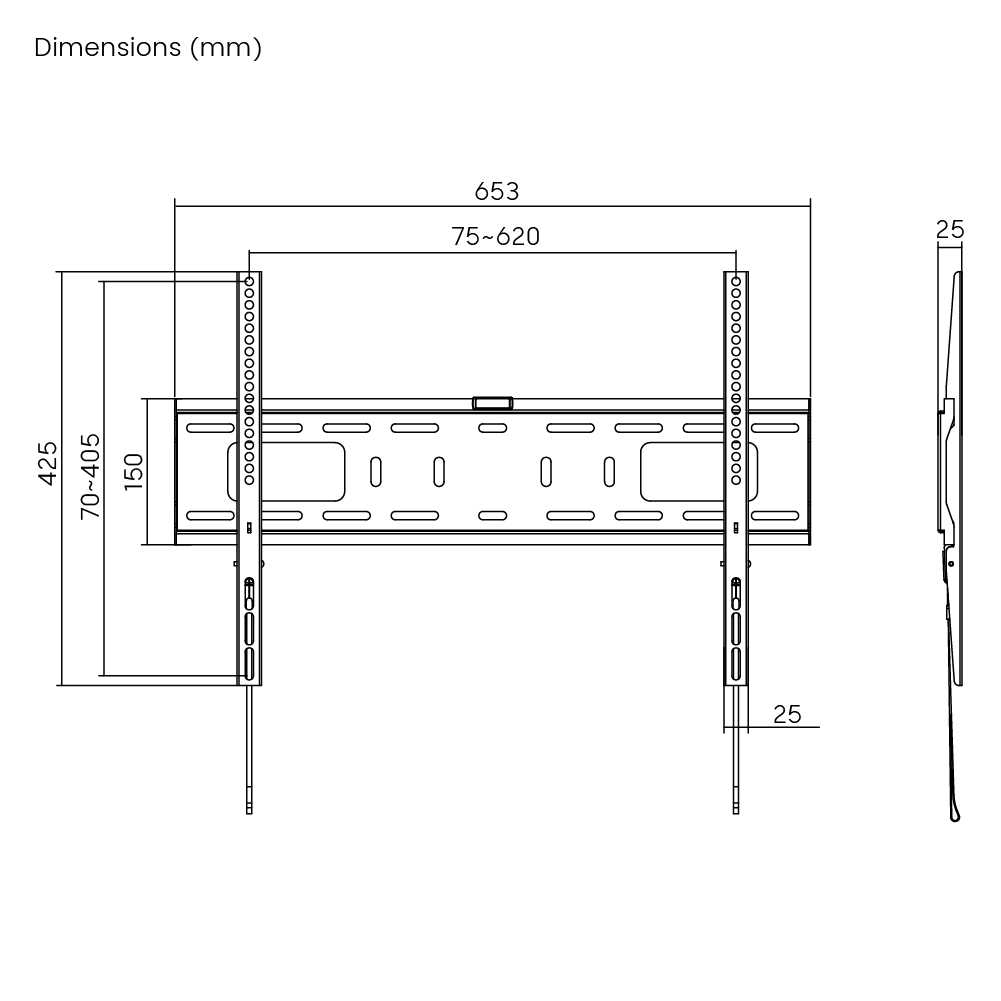

  • Dimension drawing of the Lumi LP42-46F fixed TV wall mount showing overall size and mounting dimensions
1 2

Lumi LP42-46F: Heavy-Duty Fixed TV Wall Mount for 37-86 Inch Screens

Model LP42-46F

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 50 kg (110 lbs)
  • Fits screens from 37 to 86 inches
  • Low-profile fixed design, 25 mm (0.98 inch) from the wall
  • VESA compatible up to 600 x 400
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LP42-46F is a fixed TV wall mount for flat-panel TVs from 37 to 86 inches, with a weight capacity of 50 kg (110 lbs). It holds the screen 25 mm (0.98 inch) from the wall. It supports VESA patterns up to 600 x 400. It installs on solid wall, dual stud (406 mm/450 mm/600 mm).

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP42-46F on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 50 kg (110 lbs)
  • Fits screens from 37 to 86 inches
  • Low-profile fixed design, 25 mm (0.98 inch) from the wall
  • VESA compatible up to 600 x 400
  • Installs on solid wall, dual stud (406 mm/450 mm/600 mm)
Why choose the LP42-46F
Choose the LP42-46F when the screen stays in one position and a clean, low-profile result matters more than angle adjustment. It is rated for 50 kg (110 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP42-46F is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 50 kg (110 lbs)

Fits screens from 37 to 86 inches

Low-profile fixed design, 25 mm (0.98 inch) from the wall

VESA compatible up to 600 x 400

Installs on solid wall, dual stud (406 mm/450 mm/600 mm)

Use Cases

Ideal Applications

Wall-mounted TVs in meeting rooms and huddle rooms

Reception, lobby and waiting areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 86 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA & Universal
VESA Compatible 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 600 x 400 mm
Weight Capacity 50 kg (110 lbs)
Design & Installation
Product Type Fixed TV Wall Mount
Dimensions (D x W x H) 653 x 425 x 25 mm (25.7 x 16.7 x 0.98 inch)
Profile 25 mm (0.98 inch)
Installation Solid Wall, Dual Stud (406 mm/450 mm/600 mm)
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management No
Bubble Level Hook-on Bubble Level (Included in Components Package)
Anti-theft No
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=1.5 mm cold-rolled sheet, Wall Plate THK=1.5 mm cold-rolled sheet (Bracket Arm THK=0.059 inch cold-rolled sheet, Wall Plate THK=0.059 inch cold-rolled sheet)
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 3 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LP42-46F From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LP42-46F support?
Lumi lists the LP42-46F for screens from 37 to 86 inches with a weight capacity of 50 kg (110 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP42-46F fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How far does the screen sit from the wall on the LP42-46F?
Lumi lists a profile of 25 mm (0.98 inch) for the LP42-46F. It is a fixed mount, so the screen does not tilt or swivel; choose a tilt or full-motion mount if you need angle adjustment.
What surfaces can the Lumi LP42-46F be installed on?
Lumi lists the following installation options for the LP42-46F: solid wall, dual stud (406 mm/450 mm/600 mm). Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP42-46F work with curved TVs?
Yes. Lumi lists the LP42-46F as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does the Lumi LP42-46F include cable management and anti-theft?
Cable management: No. Anti-theft: No. (Per the Lumi specification.)
Does Corporate AV install the Lumi LP42-46F in India?
Yes. Corporate AV can supply the LP42-46F on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
