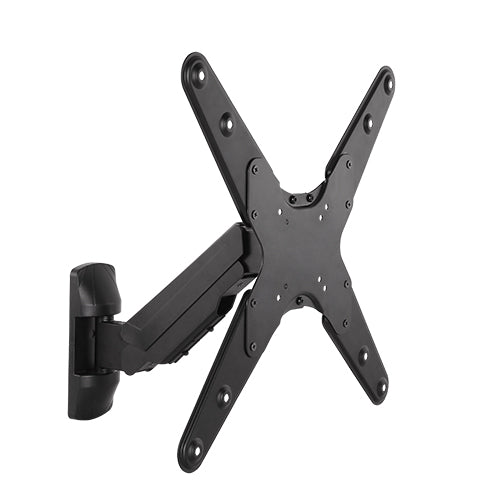

  • Lumi LDA24-441 gas spring TV mount, product view, supplied in India by Corporate AV

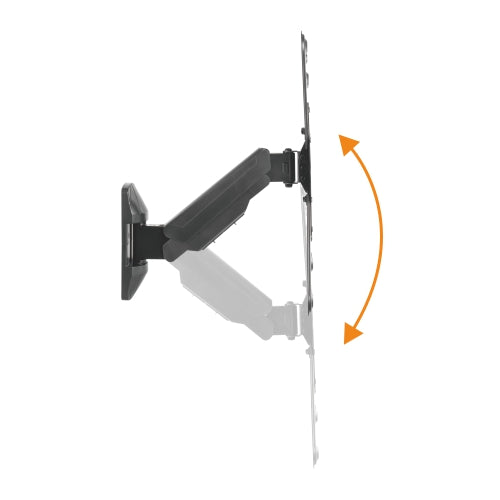

  • Lumi LDA24-441 gas spring TV mount showing its range of movement

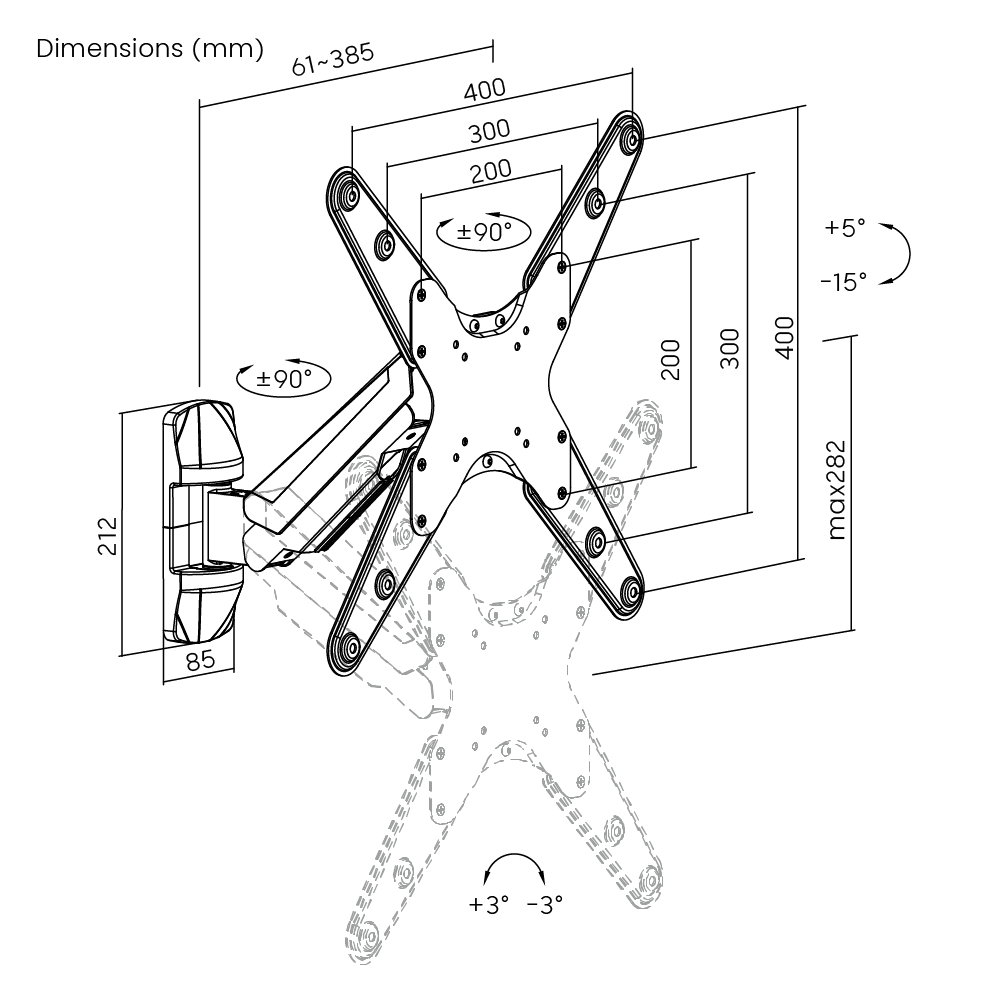

  • Dimension drawing of the Lumi LDA24-441 gas spring TV mount showing overall size and mounting dimensions
1 3

Lumi LDA24-441: Counterbalance Height Adjustable TV Mount, 23-65 Inch

Model LDA24-441

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 5 to 30 kg (11 to 66 lbs)
  • Fits screens from 23 to 65 inches
  • Profile of 61 to 385 mm (2.4 to 15.2 inch)
  • Tilt range of +5° to -15°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LDA24-441 is a gas spring TV mount for flat-panel TVs from 23 to 65 inches, with a weight capacity of 5 to 30 kg (11 to 66 lbs). It has a profile of 61 to 385 mm (2.4 to 15.2 inch). It offers tilt of +5° to -15° and swivel of +90° to -90°. It supports VESA patterns up to 400X400.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LDA24-441 on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 5 to 30 kg (11 to 66 lbs)
  • Fits screens from 23 to 65 inches
  • Profile of 61 to 385 mm (2.4 to 15.2 inch)
  • Tilt range of +5° to -15°
  • Swivel range of +90° to -90°
Why choose the LDA24-441
Choose the LDA24-441 when the screen needs to be repositioned smoothly and easily by hand. It is rated for 5 to 30 kg (11 to 66 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LDA24-441 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 5 to 30 kg (11 to 66 lbs)

Fits screens from 23 to 65 inches

Profile of 61 to 385 mm (2.4 to 15.2 inch)

Tilt range of +5° to -15°

Swivel range of +90° to -90°

Use Cases

Ideal Applications

Wall-mounted TVs in meeting rooms and huddle rooms

Reception, lobby and waiting areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 23 to 65 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA Only
VESA Compatible 75 x 75, 100 x 100, 200 x 100, 200 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm
Max. Mounting Hole 400X400
Weight Capacity 5 to 30 kg (11 to 66 lbs)
Movement & Adjustment
Tilt Range +5° to -15°
Swivel Range +90° to -90°
Screen Level +3° to -3°
Screen Freely Tilting No
Design & Installation
Product Type Gas Spring TV Mount
Dimensions (D x W x H) 385 x 450 x 450 mm (15.2 x 17.7 x 17.7 inch)
Profile 61 to 385 mm (2.4 to 15.2 inch)
Installation Solid Wall, Single Stud
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Anti-theft No
Materials & Finish
Material Aluminum, Steel, Plastic
Metal Sheet Thickness VESA Panel THK=1.8 mm cold-rolled sheet, Wall Plate THK=2.5 mm pickling sheet (VESA Panel THK=0.071 inch cold-rolled sheet, Wall Plate THK=0.098 inch pickling sheet)
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 4 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LDA24-441 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LDA24-441 support?
Lumi lists the LDA24-441 for screens from 23 to 65 inches with a weight capacity of 5 to 30 kg (11 to 66 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LDA24-441 fit?
It fits VESA 75 x 75, 100 x 100, 200 x 100, 200 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm, with 400X400 as the maximum mounting hole pattern.
How much can the Lumi LDA24-441 tilt, swivel or extend?
Lumi lists tilt of +5° to -15° and swivel of +90° to -90° for the LDA24-441.
How far does the screen sit from the wall on the LDA24-441?
Lumi lists a profile of 61 to 385 mm (2.4 to 15.2 inch) for the LDA24-441.
What surfaces can the Lumi LDA24-441 be installed on?
Lumi lists the following installation options for the LDA24-441: solid wall, single stud. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LDA24-441 work with curved TVs?
Yes. Lumi lists the LDA24-441 as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi LDA24-441 in India?
Yes. Corporate AV can supply the LDA24-441 on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
