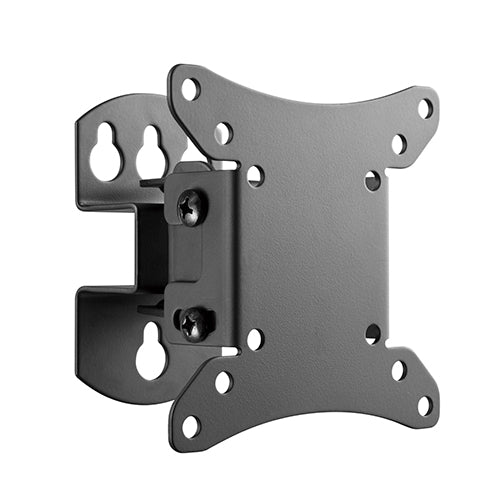

  • Lumi LCD-501N full-motion TV wall mount, product view, supplied in India by Corporate AV

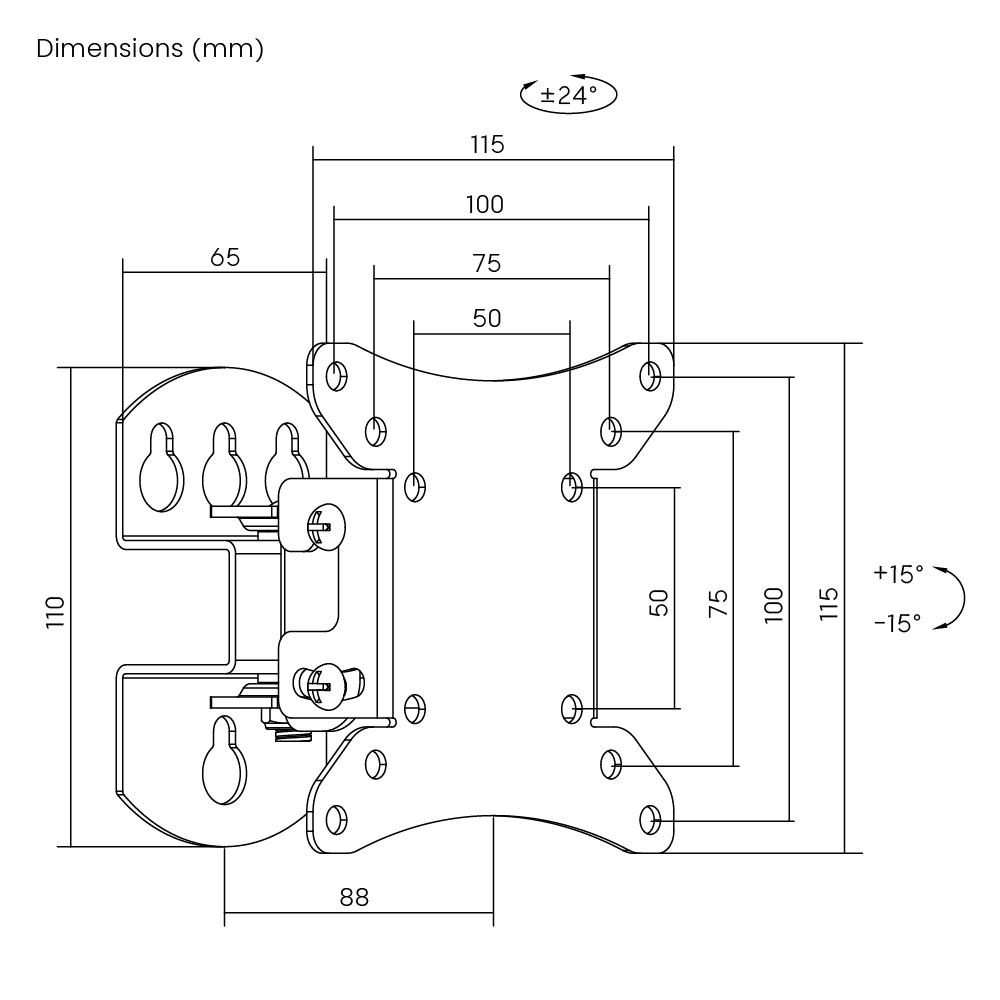

  • Dimension drawing of the Lumi LCD-501N full-motion TV wall mount showing overall size and mounting dimensions
1 2

Lumi LCD-501N: Cable Invisible Full-Motion TV Mount, 13-32 Inch

Model LCD-501N

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 30 kg (66 lbs)
  • Fits screens from 13 to 32 inches
  • Profile of 88 mm (3.5 inch)
  • Tilt range of +15° to -15°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LCD-501N is a full-motion TV wall mount for flat-panel TVs from 13 to 32 inches, with a weight capacity of 30 kg (66 lbs). It has a profile of 88 mm (3.5 inch). It offers tilt of +15° to -15° and swivel of +24° to -24°. It supports VESA patterns up to 100 x 100.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LCD-501N on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 30 kg (66 lbs)
  • Fits screens from 13 to 32 inches
  • Profile of 88 mm (3.5 inch)
  • Tilt range of +15° to -15°
  • Swivel range of +24° to -24°
Why choose the LCD-501N
Choose the LCD-501N when the screen needs to move: it gives you tilt of +15° to -15° and swivel of +24° to -24° so the display can face the room from different seats. It is rated for 30 kg (66 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LCD-501N is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 30 kg (66 lbs)

Fits screens from 13 to 32 inches

Profile of 88 mm (3.5 inch)

Tilt range of +15° to -15°

Swivel range of +24° to -24°

Use Cases

Ideal Applications

Meeting rooms and training rooms that need an adjustable viewing angle

Offices and reception areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 13 to 32 inch
Curved TV Compatible No
Mounting Hole Pattern VESA Only
VESA Compatible 50 x 50, 75 x 75, 100 x 100 mm
Max. Mounting Hole 100 x 100 mm
Weight Capacity 30 kg (66 lbs)
Movement & Adjustment
Tilt Range +15° to -15°
Swivel Range +24° to -24°
Screen Freely Tilting No
Design & Installation
Product Type Full-Motion TV Wall Mount
Dimensions (D x W x H) 88 x 115 x 162 mm (3.5 x 4.5 x 6.4 inch)
Profile 88 mm (3.5 inch)
Installation Solid Wall, Single Stud
Panel Type Detachable Panel
Wall Plate Type Slide-in Wall Plate
Cable Management No
Bubble Level No
Anti-theft No
Materials & Finish
Material Steel, Plastic
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 2 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LCD-501N From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LCD-501N support?
Lumi lists the LCD-501N for screens from 13 to 32 inches with a weight capacity of 30 kg (66 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LCD-501N fit?
It fits VESA 50 x 50, 75 x 75, 100 x 100 mm, with 100 x 100 as the maximum mounting hole pattern.
How much can the Lumi LCD-501N tilt, swivel or extend?
Lumi lists tilt of +15° to -15° and swivel of +24° to -24° for the LCD-501N.
How far does the screen sit from the wall on the LCD-501N?
Lumi lists a profile of 88 mm (3.5 inch) for the LCD-501N.
What surfaces can the Lumi LCD-501N be installed on?
Lumi lists the following installation options for the LCD-501N: solid wall, single stud. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LCD-501N work with curved TVs?
No. Lumi lists the LCD-501N as not suitable for curved TVs; it is designed for flat screens.
Does Corporate AV install the Lumi LCD-501N in India?
Yes. Corporate AV can supply the LCD-501N on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
