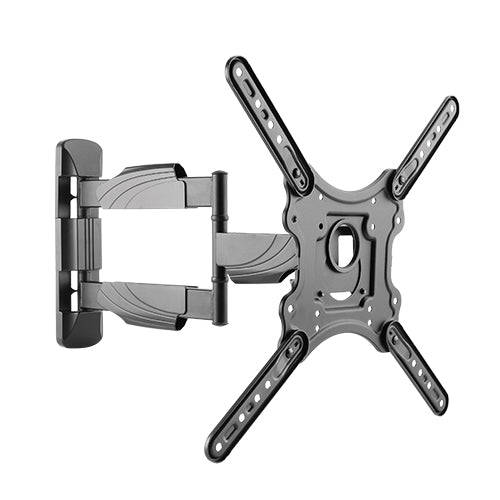

  • Lumi KMA28-443 full-motion TV wall mount, product view, supplied in India by Corporate AV

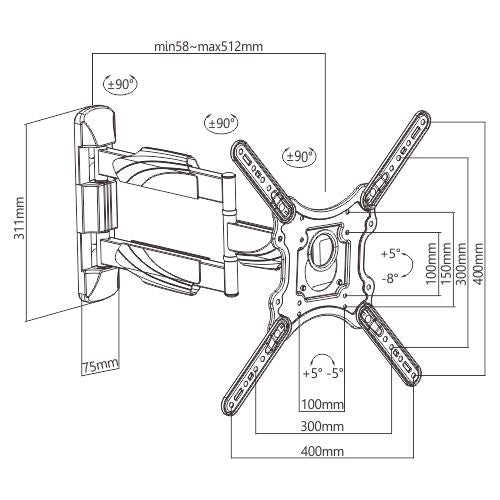

  • Dimension drawing of the Lumi KMA28-443 full-motion TV wall mount showing overall size and mounting dimensions
1 2

Lumi KMA28-443: Full-Motion TV Wall Mount, 23-65 Inch

Model KMA28-443

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 35 kg (77 lbs)
  • Fits screens from 23 to 65 inches
  • Profile of 58 to 512 mm (2.3 to 20.2 inch)
  • Tilt range of +5° to -8°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi KMA28-443 is a full-motion TV wall mount for flat-panel TVs from 23 to 65 inches, with a weight capacity of 35 kg (77 lbs). It has a profile of 58 to 512 mm (2.3 to 20.2 inch). It offers tilt of +5° to -8° and swivel of +90° to -90°. It supports VESA patterns up to 400 x 400.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the KMA28-443 on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 35 kg (77 lbs)
  • Fits screens from 23 to 65 inches
  • Profile of 58 to 512 mm (2.3 to 20.2 inch)
  • Tilt range of +5° to -8°
  • Swivel range of +90° to -90°
Why choose the KMA28-443
Choose the KMA28-443 when the screen needs to move: it gives you tilt of +5° to -8° and swivel of +90° to -90° so the display can face the room from different seats. It is rated for 35 kg (77 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the KMA28-443 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 35 kg (77 lbs)

Fits screens from 23 to 65 inches

Profile of 58 to 512 mm (2.3 to 20.2 inch)

Tilt range of +5° to -8°

Swivel range of +90° to -90°

Use Cases

Ideal Applications

Meeting rooms and training rooms that need an adjustable viewing angle

Offices and reception areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 23 to 65 inch
Curved TV Compatible Yes
Mounting Hole Pattern VESA Only
VESA Compatible 100 x 100, 100 x 150, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm
Max. Mounting Hole 400 x 400 mm
Weight Capacity 35 kg (77 lbs)
Movement & Adjustment
Tilt Range +5° to -8°
Swivel Range +90° to -90°
Screen Level +5° to -5°
Screen Freely Tilting No
Design & Installation
Product Type Full-Motion TV Wall Mount
Dimensions (D x W x H) 512 x 435 x 435 mm (20.2 x 17.1 x 17.1 inch)
Profile 58 to 512 mm (2.3 to 20.2 inch)
Installation Solid Wall, Single Stud
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Anti-theft No
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness Wall panel 2.5 mm, Panel 1.5 mm, Pipe 1.2 mm (Wall panel 0.098 inch, Panel 0.059 inch, Pipe 0.047 inch)
Surface Finish Powder Coating
Colour Fine Texture Black
Strength Tested 3 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The KMA28-443 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi KMA28-443 support?
Lumi lists the KMA28-443 for screens from 23 to 65 inches with a weight capacity of 35 kg (77 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi KMA28-443 fit?
It fits VESA 100 x 100, 100 x 150, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm, with 400 x 400 as the maximum mounting hole pattern.
How much can the Lumi KMA28-443 tilt, swivel or extend?
Lumi lists tilt of +5° to -8° and swivel of +90° to -90° for the KMA28-443.
How far does the screen sit from the wall on the KMA28-443?
Lumi lists a profile of 58 to 512 mm (2.3 to 20.2 inch) for the KMA28-443.
What surfaces can the Lumi KMA28-443 be installed on?
Lumi lists the following installation options for the KMA28-443: solid wall, single stud. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi KMA28-443 work with curved TVs?
Yes. Lumi lists the KMA28-443 as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
