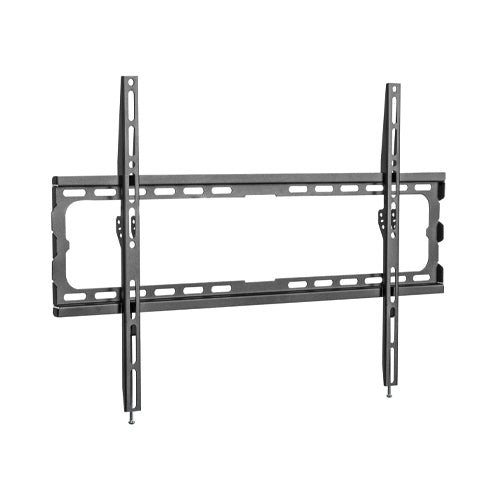

  • Lumi KL32-46F fixed TV wall mount, product view, supplied in India by Corporate AV

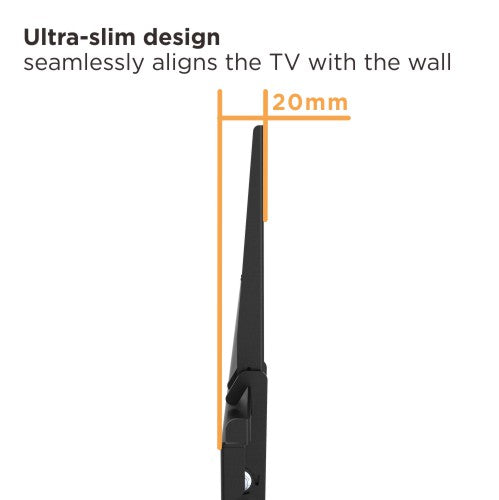

  • Side profile of the Lumi KL32-46F fixed TV wall mount showing its slim depth from the wall

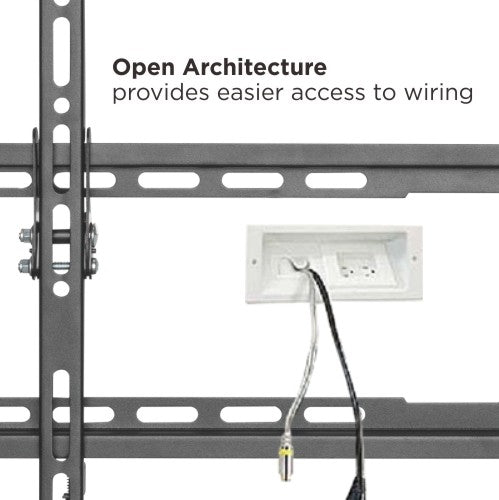

  • Lumi KL32-46F fixed TV wall mount cable management detail for routing cables neatly

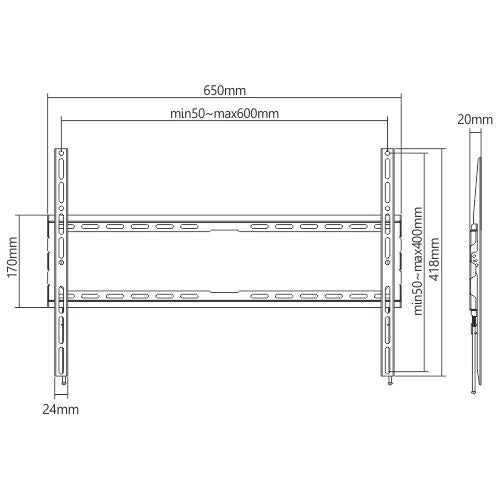

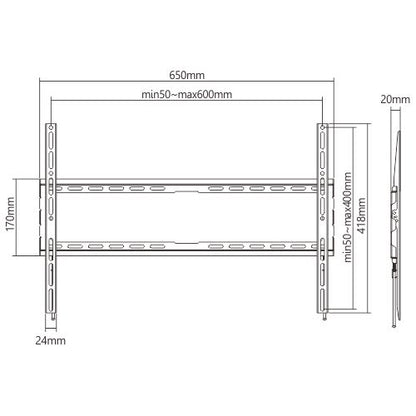

  • Dimension drawing of the Lumi KL32-46F fixed TV wall mount showing overall size and mounting dimensions
1 4

Lumi KL32-46F: Low-Profile Fixed TV Wall Mount for 37-86 Inch Screens

Model KL32-46F

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 45 kg (99 lbs)
  • Fits screens from 37 to 86 inches
  • Low-profile fixed design, 20 mm (0.79 inch) from the wall
  • VESA compatible up to 600 x 400
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi KL32-46F is a fixed TV wall mount for flat-panel TVs from 37 to 86 inches, with a weight capacity of 45 kg (99 lbs). It holds the screen 20 mm (0.79 inch) from the wall. It supports VESA patterns up to 600 x 400. It installs on solid wall, dual stud (406 mm/450 mm/600 mm).

Corporate AV is an authorised Lumi importer and distributor in India. We supply the KL32-46F on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 45 kg (99 lbs)
  • Fits screens from 37 to 86 inches
  • Low-profile fixed design, 20 mm (0.79 inch) from the wall
  • VESA compatible up to 600 x 400
  • Installs on solid wall, dual stud (406 mm/450 mm/600 mm)
Why choose the KL32-46F
Choose the KL32-46F when the screen stays in one position and a clean, low-profile result matters more than angle adjustment. It is rated for 45 kg (99 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the KL32-46F is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 45 kg (99 lbs)

Fits screens from 37 to 86 inches

Low-profile fixed design, 20 mm (0.79 inch) from the wall

VESA compatible up to 600 x 400

Installs on solid wall, dual stud (406 mm/450 mm/600 mm)

Use Cases

Ideal Applications

Wall-mounted TVs in meeting rooms and huddle rooms

Reception, lobby and waiting areas

Hotel rooms and hospitality spaces

Retail and showroom screens

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 86 inch
Curved TV Compatible No
Mounting Hole Pattern VESA & Universal
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole 600 x 400 mm
Weight Capacity 45 kg (99 lbs)
Design & Installation
Product Type Fixed TV Wall Mount
Dimensions (D x W x H) 20 x 650 x 418 mm (0.79 x 25.6 x 16.5 inch)
Profile 20 mm (0.79 inch)
Installation Solid Wall, Dual Stud (406 mm/450 mm/600 mm)
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Cable Management No
Bubble Level No
Anti-theft No
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=1.4 mm cold-rolled sheet, Wall Plate THK=1.4 mm cold-rolled sheet (Bracket Arm THK=0.055 inch cold-rolled sheet, Wall Plate THK=0.055 inch cold-rolled sheet)
Surface Finish Powder Coating
Colour Fine Texture Black
Accessory Colour Fine Texture Black
Strength Tested 4 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The KL32-46F From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi KL32-46F support?
Lumi lists the KL32-46F for screens from 37 to 86 inches with a weight capacity of 45 kg (99 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi KL32-46F fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How far does the screen sit from the wall on the KL32-46F?
Lumi lists a profile of 20 mm (0.79 inch) for the KL32-46F. It is a fixed mount, so the screen does not tilt or swivel; choose a tilt or full-motion mount if you need angle adjustment.
What surfaces can the Lumi KL32-46F be installed on?
Lumi lists the following installation options for the KL32-46F: solid wall, dual stud (406 mm/450 mm/600 mm). Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi KL32-46F work with curved TVs?
No. Lumi lists the KL32-46F as not suitable for curved TVs; it is designed for flat screens.
Does the Lumi KL32-46F include cable management, anti-theft and bubble level?
Cable management: No. Anti-theft: No. Bubble level: No. (Per the Lumi specification.)
Does Corporate AV install the Lumi KL32-46F in India?
Yes. Corporate AV can supply the KL32-46F on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
