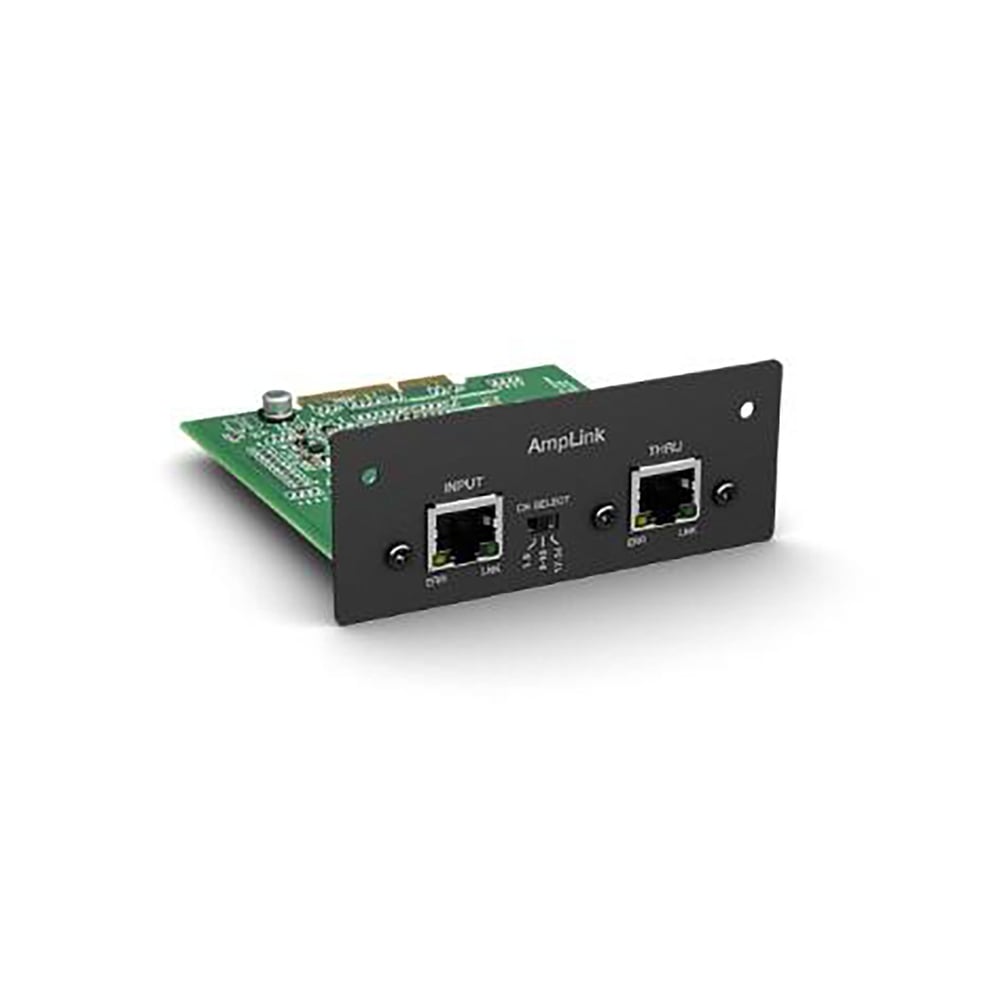

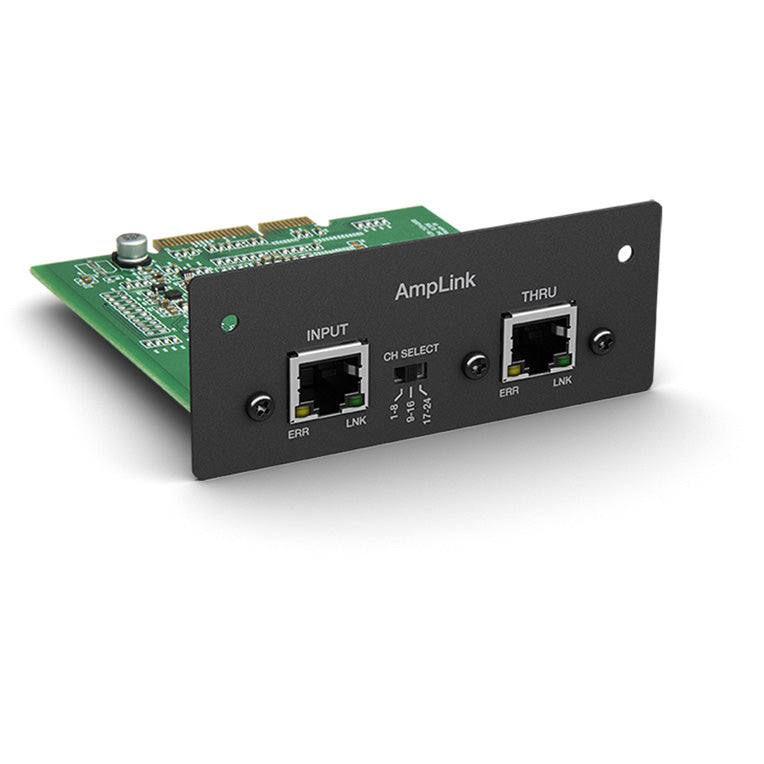

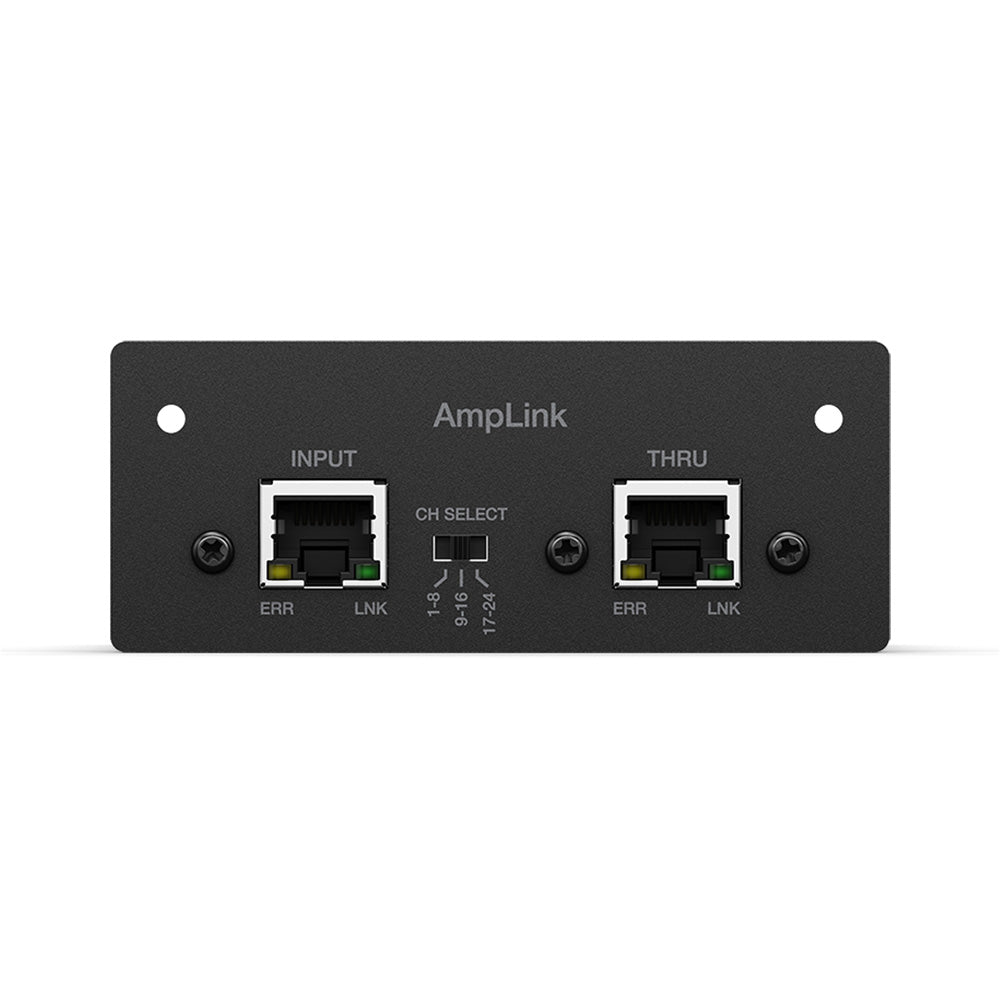

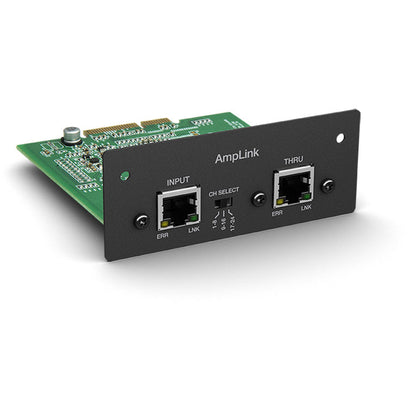

Bose PowerMatch AmpLink 24-Channel Input Card: Digital Expansion Card
Model PowerMatch AmpLink 24-Channel Input Card
Request a Quote
Availability: Out of Stock
- Receives 24 digital audio channels from a Bose Professional DSP via AmpLink
- Installs directly into the PowerMatch amplifier digital expansion slot
- Through connection allows daisy-chaining up to 8 AmpLink amplifiers
- 48kHz/24-bit digital audio with 24 nanosecond thru latency
Product Overview
Overview
The Bose Professional AmpLink 24-channel input card installs into the digital expansion slot of a PowerMatch configurable amplifier, receiving 24 digital audio channels from a Bose Professional DSP over a single shielded Cat5 cable. Bose Professional hardware.
Corporate AV supplies the PowerMatch AmpLink 24-Channel Input Card across India for Bose PowerMatch amplifier systems, alongside the Bose loudspeakers and AV systems it is used with.
Key features
- Receives 24 digital audio channels from a Bose Professional DSP via AmpLink
- Installs directly into the PowerMatch amplifier digital expansion slot
- Through connection allows daisy-chaining up to 8 AmpLink amplifiers
- 48kHz/24-bit digital audio with 24 nanosecond thru latency
Why choose the PowerMatch AmpLink 24-Channel Input Card
It extends a Bose PowerMatch amplifier with the digital input it needs, so the amplifier joins the rest of the audio network. Corporate AV supplies the PowerMatch AmpLink 24-Channel Input Card with the Bose systems it is used alongside, so it is specified as part of a complete setup.
Product Highlights
Key Benefits
Receives 24 digital audio channels from a Bose Professional DSP via AmpLink
Installs directly into the PowerMatch amplifier digital expansion slot
Through connection allows daisy-chaining up to 8 AmpLink amplifiers
48kHz/24-bit digital audio with 24 nanosecond thru latency
Use Cases
Ideal Applications
Retail Stores & Malls
Offices & Corporate Spaces
Technical Details
Technical Specifications
Acoustic performance
Channels
24 digital audio channels, 8-channel banks selectable per amplifier
General
Sample Rate / Bit Depth
48kHz / 24-bit
Thru Audio Latency
24 nanoseconds
Connectors
1x RJ-45 AmpLink in, 1x RJ-45 AmpLink thru
Cable Requirement
Shielded Cat5 TIA/EIA 568B straight cable, up to 10 meters between units
Daisy-Chain Capacity
Up to 8 AmpLink-equipped PowerMatch amplifiers
Status Indicators
2 network speed LEDs, 2 Link/Activity LEDs
Part Number
772238-0110
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PowerMatch AmpLink 24-Channel Input Card From Corporate AV?
- Genuine Bose stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What inputs and outputs does the Bose PowerMatch AmpLink 24-Channel Input Card have?
Bose lists the connections of the PowerMatch AmpLink 24-Channel Input Card as: 24 digital audio channels, 8-channel banks selectable per amplifier.
What is the part number of the Bose PowerMatch AmpLink 24-Channel Input Card?
The part number is 772238-0110. Part numbers carry regional suffixes, so Corporate AV confirms the exact India order code when preparing your quote.
What are the main features of the Bose PowerMatch AmpLink 24-Channel Input Card?
Bose lists these main features for the PowerMatch AmpLink 24-Channel Input Card: Receives 24 digital audio channels from a Bose Professional DSP via AmpLink; Installs directly into the PowerMatch amplifier digital expansion slot; Through connection allows daisy-chaining up to 8 AmpLink amplifiers; 48kHz/24-bit digital audio with 24 nanosecond thru latency.
Can Corporate AV supply the Bose PowerMatch AmpLink 24-Channel Input Card for multi-site or volume projects?
Yes. Corporate AV quotes the PowerMatch AmpLink 24-Channel Input Card by quantity and delivery location, and can supply it alongside the other Bose and AV equipment a multi-room or multi-site project needs.
Does Corporate AV support the Bose PowerMatch AmpLink 24-Channel Input Card after supply?
Corporate AV offers AV support and maintenance services for the equipment it supplies. Contact the team with the model code PowerMatch AmpLink 24-Channel Input Card and the site details so the right support can be arranged.
How do I get a quote for the Bose PowerMatch AmpLink 24-Channel Input Card in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
