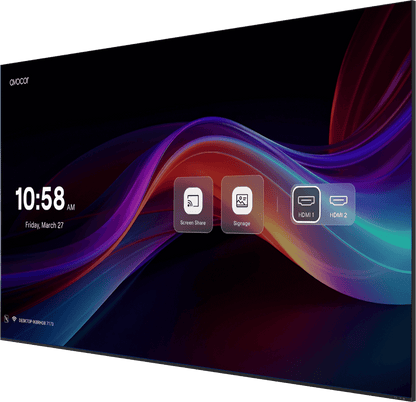

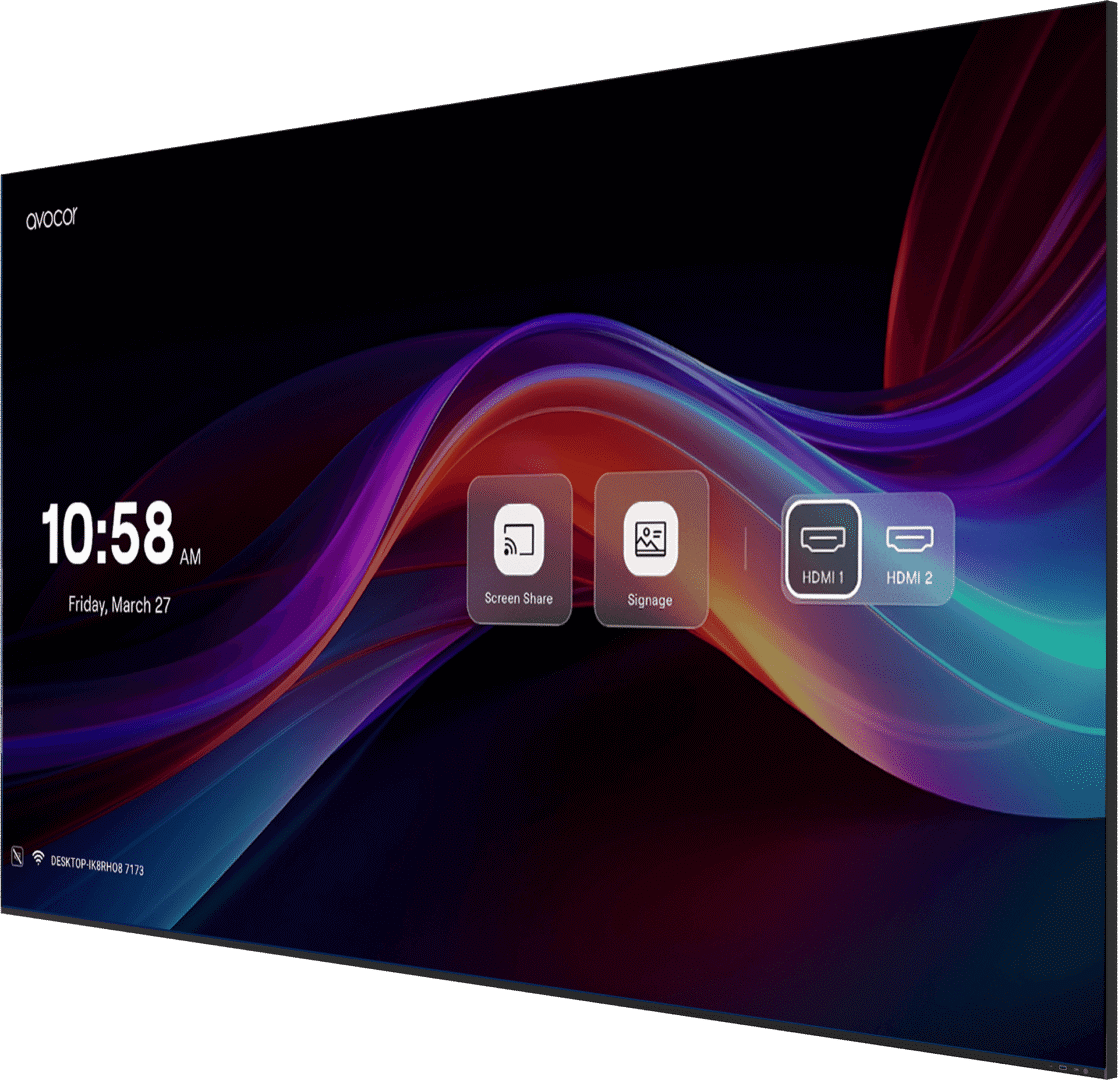

  • Avocor AVX-1621-4K 162-inch 4K all-in-one direct-view LED display - angled view

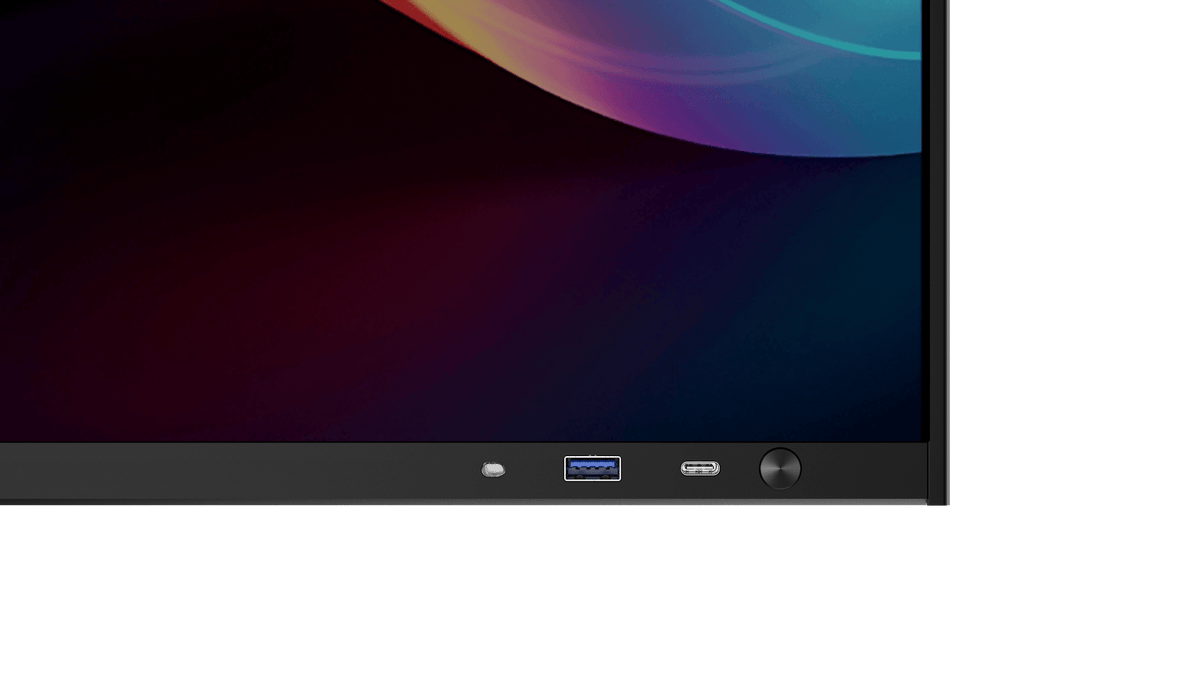

  • Avocor AVX-1621-4K 162-inch 4K all-in-one direct-view LED display - view 2

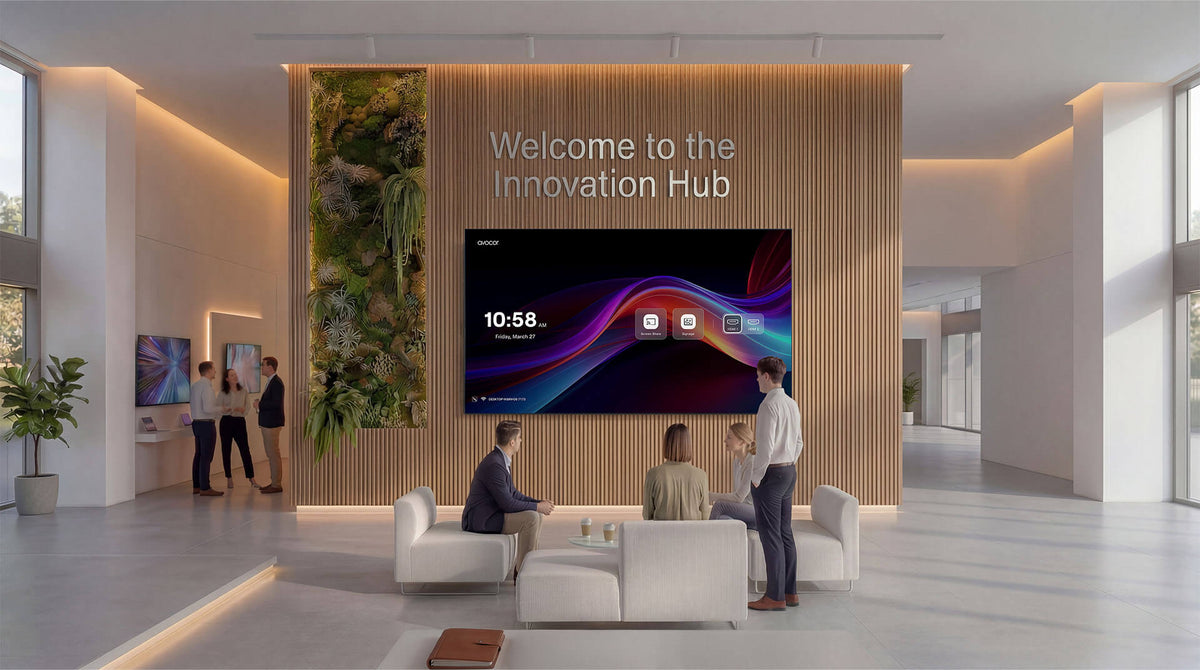

  • Avocor AVX-1621-4K 162-inch 4K all-in-one direct-view LED display - in use

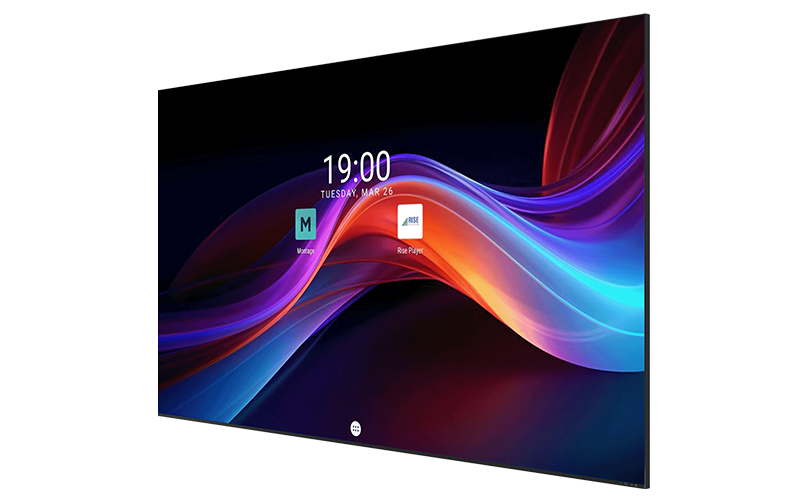

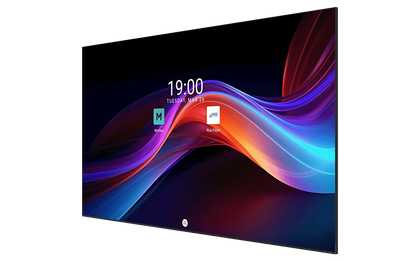

  • Avocor AVX-1621-4K 162-inch 4K all-in-one direct-view LED display - angled view 4
1 4

Avocor AVX-1621-4K: 162 Inch 4K All-in-One Direct-View LED Display

Model AVX-1621-4K

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Avocor Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 162-inch screen, 4K (3840 x 2160), 0.93 mm pixel pitch
  • 600 cd/m² brightness and 15000:1 contrast ratio
  • 170 degree viewing angles and a 3840 Hz refresh rate
  • Chip-on-board (COB) LED protection
Large-Format LED Display Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Avocor AVX-1621-4K is a 162-inch 4K all-in-one direct-view LED display. The X Series COB is an all-in-one direct-view LED (dvLED) display that integrates screen, audio and an Android compute system in one unit. Chip-on-board (COB) construction helps protect the LEDs from pixel damage, and lightweight, front-serviceable modules simplify installation and maintenance. Product dimensions are 3612 x 51 x 2046.4 mm (142.2 x 2 x 80.6").

Corporate AV supplies, installs and supports Avocor solutions across India. Request a quote for the Avocor AVX-1621-4K with supply, installation and commissioning.

Key features

  • 162-inch screen, 4K (3840 x 2160), 0.93 mm pixel pitch
  • 600 cd/m² brightness and 15000:1 contrast ratio
  • 170 degree viewing angles and a 3840 Hz refresh rate
  • Chip-on-board (COB) LED protection
  • Integrated Android 13 compute system and 2 x 15 W speakers
  • Rated for 24/7 operation and 100,000 hours to half brightness
  • 144 modules, front-serviceable

Typical applications

  • Boardrooms, auditoriums and training spaces
  • Lobbies, reception areas and corporate showcases
  • Education and commercial large-format displays
Why choose the AVX-1621-4K
it is a 162-inch 4K all-in-one direct-view LED display from Avocor, supplied with Corporate AV's site survey, installation and support across India, so the AVX-1621-4K is specified for your project and not just shipped.
Product Highlights

Key Benefits

162-inch screen, 4K (3840 x 2160), 0.93 mm pixel pitch

600 cd/m² brightness and 15000:1 contrast ratio

170 degree viewing angles and a 3840 Hz refresh rate

Chip-on-board (COB) LED protection

Integrated Android 13 compute system and 2 x 15 W speakers

Use Cases

Ideal Applications

Boardrooms, auditoriums and training spaces

Lobbies, reception areas and corporate showcases

Education and commercial large-format displays

Technical Details

Technical Specifications

Display
Screen Size 162"
Backlight Direct-view LED
Aspect Ratio 16:9
Resolution 4K (3840 x 2160)
Brightness 600 cd/m²
Contrast Ratio 15000:1
Viewing Angle 170° / 170°
Color Temperature 2300 - 9300 (Adjustable)
Display Orientation Landscape
Classification Chip-on-Board
Pixel Pitch 0.93 mm
Module Quantity 144
Refresh Rate 3840 Hz
Rated Operation 24/7
Touch System
Interface Non-Touch
CPU
CPU 8 Core CPU
GPU 4 Core GPU
RAM / ROM 4 GB / 64 GB
Android Version Android 13
Connectivity
Front Inputs 1 x HDMI 2.0 In, 1 x HDMI 1.4 In, 2 x USB-A 3.0
Audio Output 1 x 3.5 mm Line Out
Control 1 x RS-232, 1 x LAN Ethernet (RJ-45 1/100/1000Mbps)
WiFi WiFi 6
Audio
Built-in Speakers 2 x 15 W
Physical Specifications
Product Dimensions (L x W x H) 3612 x 51 x 2046.4 mm (142.2 x 2 x 80.6")
Screen Dimensions (L x H) 3600 x 2026 mm (141.8 x 79.8")
Cabinet Thickness 51.6 mm (2.1")
Screen Thickness 31 mm (1.3")
Environmental
Operating Temperature -10°C - 40°C
Storage Temperature -10°C - 60°C
Humidity 10% - 80% No condensation
Lifetime (Half Brightness) 100,000 Hours
In The Box

What's Included

Remote control
Removal tool
Wall mount
Power cords (North America, UK, Europe)
Spare LED modules

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The AVX-1621-4K From Corporate AV?
  • Genuine Avocor stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Avocor products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Avocor AVX-1621-4K?
The Avocor AVX-1621-4K is a 162-inch 4K all-in-one direct-view LED display. The X Series COB is an all-in-one direct-view LED (dvLED) display that integrates screen, audio and an Android compute system in one unit.
What are the main specifications of the Avocor AVX-1621-4K?
Avocor lists these figures for the AVX-1621-4K: resolution: 4K (3840 x 2160); brightness: 600 cd/m²; contrast ratio: 15000:1; pixel pitch: 0.93 mm; CPU: 8 Core CPU. The full specification table is on this page.
What connections does the Avocor AVX-1621-4K have?
Avocor lists these inputs and ports. Front Inputs: 1 x HDMI 2.0 In, 1 x HDMI 1.4 In, 2 x USB-A 3.0.
What are the dimensions and weight of the Avocor AVX-1621-4K?
Product dimensions are 3612 x 51 x 2046.4 mm (142.2 x 2 x 80.6").
What does COB mean on the Avocor AVX-1621-4K?
COB stands for chip-on-board. Avocor says this construction protects the LEDs, which improves reliability and reduces the risk of pixel damage.
Where is the Avocor AVX-1621-4K used?
It suits: boardrooms, auditoriums and training spaces; lobbies, reception areas and corporate showcases; education and commercial large-format displays. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the Avocor AVX-1621-4K in India, and how do I get a quote?
Yes. Corporate AV supplies, installs and supports Avocor solutions across India, with a site survey, commissioning and after-sales support. Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity.
