Avocor AVX-1620: 162 Inch 2304 x 1296 Direct-View LED Display
Model AVX-1620
Request a Quote
Availability: Out of Stock
- 162-inch screen, 2304 x 1296, 1.56 mm pixel pitch
- 520 cd/m² brightness and 15000:1 contrast ratio
- 170 degree viewing angles and a 3840 Hz refresh rate
- Chip-on-board (COB) LED protection
Product Overview
Overview
The Avocor AVX-1620 is a 162-inch all-in-one direct-view LED display. The X Series COB is an all-in-one direct-view LED (dvLED) display that integrates screen, audio and an Android compute system in one unit. Chip-on-board (COB) construction helps protect the LEDs from pixel damage, and lightweight, front-serviceable modules simplify installation and maintenance. Product dimensions are 3612 x 62 x 2046 mm (142.2 x 2.5 x 80.6") and the net weight is 151 kg (332.9 lbs).
Corporate AV supplies, installs and supports Avocor solutions across India. Request a quote for the Avocor AVX-1620 with supply, installation and commissioning.
Key features
- 162-inch screen, 2304 x 1296, 1.56 mm pixel pitch
- 520 cd/m² brightness and 15000:1 contrast ratio
- 170 degree viewing angles and a 3840 Hz refresh rate
- Chip-on-board (COB) LED protection
- Integrated Android 13 compute system and 2 x 15 W speakers
- Rated for 24/7 operation and 100,000 hours to half brightness
- 288 modules, front-serviceable
Typical applications

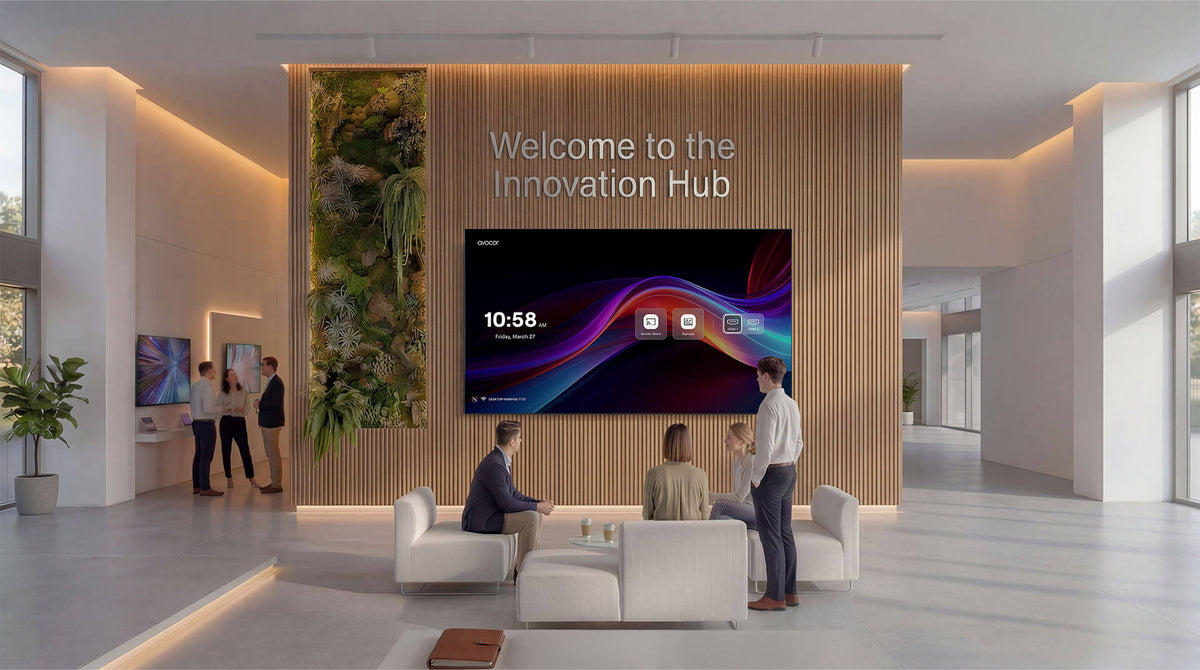

- Boardrooms, auditoriums and training spaces
- Lobbies, reception areas and corporate showcases
- Education and commercial large-format displays
Why choose the AVX-1620
it is a 162-inch all-in-one direct-view LED display from Avocor, supplied with Corporate AV's site survey, installation and support across India, so the AVX-1620 is specified for your project and not just shipped.
Product Highlights
Key Benefits
162-inch screen, 2304 x 1296, 1.56 mm pixel pitch
520 cd/m² brightness and 15000:1 contrast ratio
170 degree viewing angles and a 3840 Hz refresh rate
Chip-on-board (COB) LED protection
Integrated Android 13 compute system and 2 x 15 W speakers
Use Cases
Ideal Applications
Boardrooms, auditoriums and training spaces
Lobbies, reception areas and corporate showcases
Education and commercial large-format displays
Technical Details
Technical Specifications
Display
Screen Size
162"
Backlight
Direct-view LED
Aspect Ratio
16:9
Resolution
2304 x 1296
Brightness
520 cd/m²
Contrast Ratio
15000:1
Viewing Angle
170° / 170°
Color Temperature
2300 - 9300 (Adjustable)
Display Orientation
Landscape
Classification
Chip-on-Board
Pixel Pitch
1.56 mm
Module Quantity
288
Refresh Rate
3840 Hz
Rated Operation
24/7
Touch System
Interface
Non-Touch
CPU
CPU
8 Core CPU
GPU
4 Core GPU
RAM / ROM
8 GB / 64 GB
Android Version
Android 13
Connectivity
Front Inputs

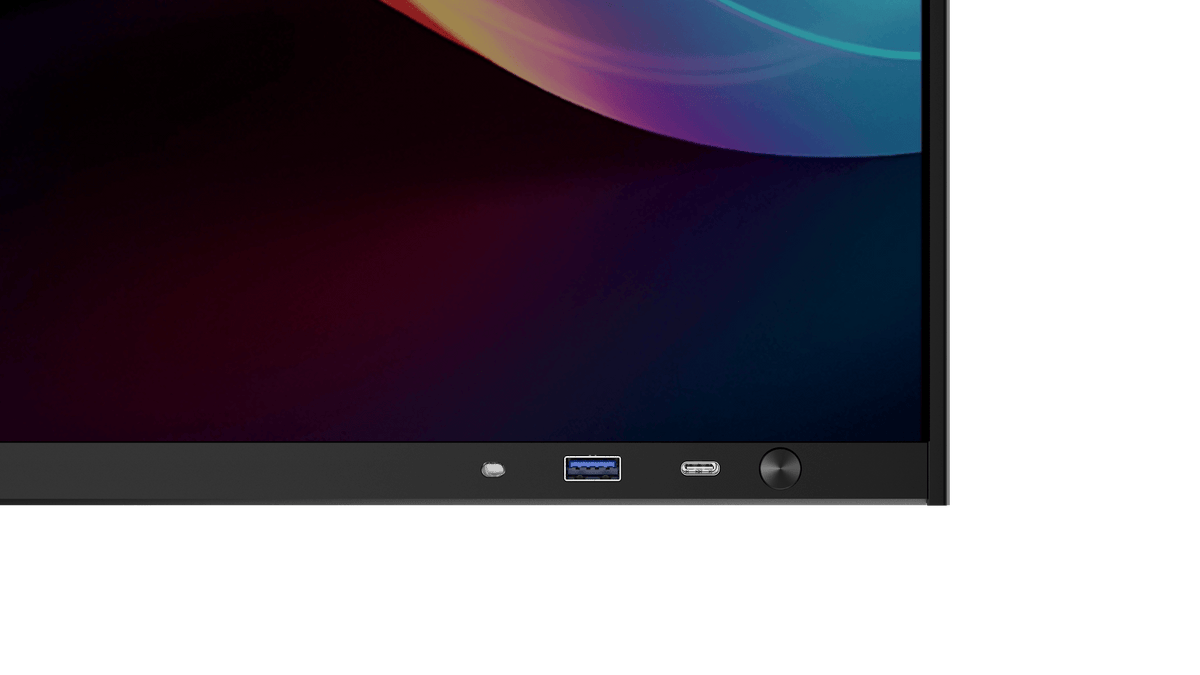

2 x HDMI 2.0 In, 1 x Type-C, 1 x USB-A 2.0, 1 x USB-A 3.0
Outputs
1 x HDMI 2.0 Out
Audio Output
1 x 3.5 mm Line Out
Control
1 x RS-232, 1 x LAN Ethernet (RJ-45 1/100/1000Mbps)
WiFi
WiFi 6
Audio
Built-in Speakers
2 x 15 W
Physical Specifications
Product Dimensions (L x W x H)
3612 x 62 x 2046 mm (142.2 x 2.5 x 80.6")
Screen Dimensions (L x H)
3600 x 2025 mm (141.8 x 79.7")
Cabinet Thickness
62 mm (2.5")
Screen Thickness
31 mm (1.3")
Weight (Net)
151 kg (332.9 lbs)
Power
Maximum Power Consumption
1782 W
Average Power Consumption
890 W
Environmental
Operating Temperature
-10°C - 40°C
Storage Temperature
-10°C - 60°C
Humidity
10% - 80% No condensation
Lifetime (Half Brightness)
100,000 Hours
In The Box
What's Included
Remote control
Removal tool
Wall mount
Power cords (North America, UK, Europe)
Spare LED modules
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AVX-1620 From Corporate AV?
- Genuine Avocor stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Avocor products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Avocor AVX-1620?
The Avocor AVX-1620 is a 162-inch all-in-one direct-view LED display. The X Series COB is an all-in-one direct-view LED (dvLED) display that integrates screen, audio and an Android compute system in one unit.
What are the main specifications of the Avocor AVX-1620?
Avocor lists these figures for the AVX-1620: resolution: 2304 x 1296; brightness: 520 cd/m²; contrast ratio: 15000:1; pixel pitch: 1.56 mm; CPU: 8 Core CPU. The full specification table is on this page.
What connections does the Avocor AVX-1620 have?
Avocor lists these inputs and ports. Front Inputs: 2 x HDMI 2.0 In, 1 x Type-C, 1 x USB-A 2.0, 1 x USB-A 3.0. Outputs: 1 x HDMI 2.0 Out.
What are the dimensions and weight of the Avocor AVX-1620?
Product dimensions are 3612 x 62 x 2046 mm (142.2 x 2.5 x 80.6") and the net weight is 151 kg (332.9 lbs).
What does COB mean on the Avocor AVX-1620?
COB stands for chip-on-board. Avocor says this construction protects the LEDs, which improves reliability and reduces the risk of pixel damage.
Where is the Avocor AVX-1620 used?
It suits: boardrooms, auditoriums and training spaces; lobbies, reception areas and corporate showcases; education and commercial large-format displays. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the Avocor AVX-1620 in India, and how do I get a quote?
Yes. Corporate AV supplies, installs and supports Avocor solutions across India, with a site survey, commissioning and after-sales support. Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity.
