Avocor AVX-1380: 138 Inch 16:9 Modular Direct-View LED Display
Model AVX-1380
Request a Quote
Availability: Out of Stock
- 138-inch screen, 1920 x 1080 resolution, 1.58 mm pixel pitch
- 5 x 5 (25) cabinets
- Up to 500 cd/m² brightness after calibration, 6500:1 contrast, 98% brightness uniformity
- Die-cast magnesium cabinets with front service access
Product Overview
Overview
The Avocor AVX-1380 is a 138-inch 16:9 modular direct-view LED display. The X Series is a tiled direct-view LED display with an ultra-slim profile and a modular, quick-to-install design, so large screens can be built without the complexity of a traditional video wall. Wireless screen sharing, digital signage and multiple inputs are built in, which reduces the need for external devices. Product dimensions are 3064 x 1832 x 31 mm (120.6 x 72 x 1.2") and the net weight is 135 kg (297.6 lbs).
Corporate AV supplies, installs and supports Avocor solutions across India. Request a quote for the Avocor AVX-1380 with supply, installation and commissioning.
Key features
- 138-inch screen, 1920 x 1080 resolution, 1.58 mm pixel pitch
- 5 x 5 (25) cabinets
- Up to 500 cd/m² brightness after calibration, 6500:1 contrast, 98% brightness uniformity
- Die-cast magnesium cabinets with front service access

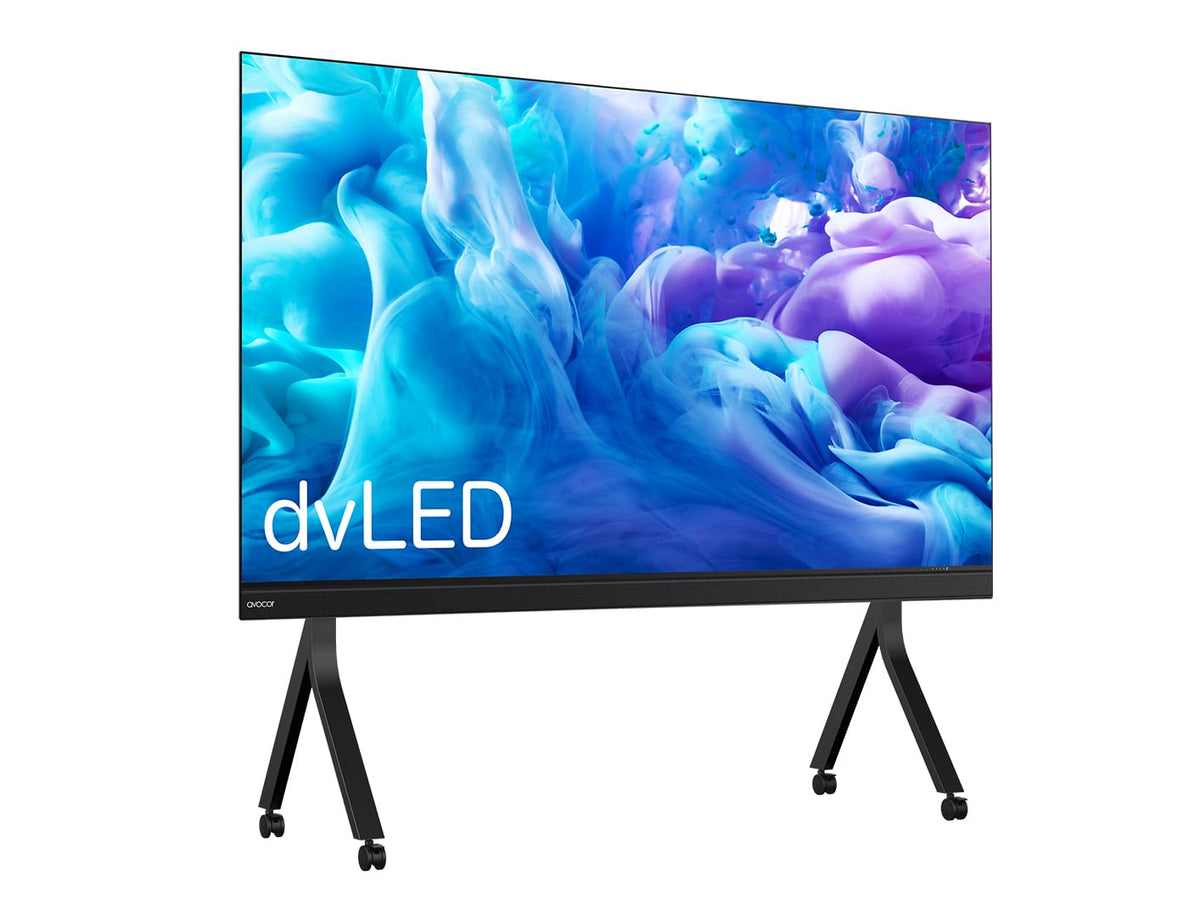

- Stand or wall installation
- Recommended viewing distance >3.8 m
- 2 x 30 W forward-facing speakers, WiFi and built-in screen sharing
- Rated lifetime of 100,000 hours or more to half brightness
Typical applications
- Boardrooms, lobbies and presentation spaces
- Corporate and education showpiece displays
- Large-format content walls without an LCD video wall frame
Why choose the AVX-1380
it is a 138-inch 16:9 modular direct-view LED display from Avocor, supplied with Corporate AV's site survey, installation and support across India, so the AVX-1380 is specified for your project and not just shipped.
Product Highlights
Key Benefits
138-inch screen, 1920 x 1080 resolution, 1.58 mm pixel pitch
5 x 5 (25) cabinets
Up to 500 cd/m² brightness after calibration, 6500:1 contrast, 98% brightness uniformity
Die-cast magnesium cabinets with front service access
Stand or wall installation
Use Cases
Ideal Applications
Boardrooms, lobbies and presentation spaces
Corporate and education showpiece displays
Large-format content walls without an LCD video wall frame
Technical Details
Technical Specifications
Display
Screen Size
138"
Pixel Configuration
Single SMD
Pixel Pitch
1.58 mm
Resolution
1920 x 1080
No. of Cabinets per Screen
5 x 5 (25)
Product Dimensions (L x W x H)
3064 x 1832 x 31 mm (120.6 x 72 x 1.2")
Screen Surface Area (L × H × W)
3050 x 1715 x 31 mm (120 x 67.5 x 1.2")
Weight (Net)
135 kg (297.6 lbs)
Recommended Viewing Distance
>3.8 m
Cabinet Material
Die-cast Magnesium
Service Access
Front
Installation
Stand, Wall
Optical Specifications
Max Brightness After Calibration
Up to 500 cd/m²
Color Temperature
2300 - 9300K adjustable
Visual Viewing Angle (Horizontal)
170°
Visual Viewing Angle (Vertical)
170°
Brightness Uniformity
98%
Color Uniformity
+/-0.15 Cx, Cy
Contrast Ratio
6500:1
Processing Depth
16 bit
Connectivity
Front Inputs
1 x USB-C (no PD), 1 x USB-A 3.0, 1 x USB-A 2.0
Bottom Inputs
1 x HDMI 2.0, HDCP 2.2, 1 x 3.5 mm Aux
Internal Inputs
2 x HDMI 2.0, HDCP 2.2
Audio
1 x Optical (SPDIF)
Control
1 x RS-232, 1 x LAN (RJ45)
WiFi
Yes
Audio
Built-in Speakers
2 x 30 W forward facing
Power
Max Power Consumption
1.87 kW
Average Power Consumption
0.64 kW
Power Supply
AC 100 V ~ 240 V, 50/60 Hz
Standby
<=0.5 W
Refresh Rate
3,840 Hz
Environmental
Operating Temperature
10°C ~ 40°C
Operating Humidity
10% ~ 80%RH (Non-condensing)
Lifetime (Half Brightness)
>=100,000 hrs
In The Box
What's Included
Remote control
Removal tool
Wall mount
Power cords (North America, UK, Europe, Australia)
Spare LED modules
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AVX-1380 From Corporate AV?
- Genuine Avocor stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Avocor products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Avocor AVX-1380?
The Avocor AVX-1380 is a 138-inch 16:9 modular direct-view LED display. The X Series is a tiled direct-view LED display with an ultra-slim profile and a modular, quick-to-install design, so large screens can be built without the complexity of a traditional video wall.
What are the main specifications of the Avocor AVX-1380?
Avocor lists these figures for the AVX-1380: resolution: 1920 x 1080; max brightness after calibration: Up to 500 cd/m²; contrast ratio: 6500:1; pixel pitch: 1.58 mm. The full specification table is on this page.
What connections does the Avocor AVX-1380 have?
Avocor lists these inputs and ports. Front Inputs: 1 x USB-C (no PD), 1 x USB-A 3.0, 1 x USB-A 2.0. Bottom Inputs: 1 x HDMI 2.0, HDCP 2.2, 1 x 3.5 mm Aux. Internal Inputs: 2 x HDMI 2.0, HDCP 2.2.
What are the dimensions and weight of the Avocor AVX-1380?
Product dimensions are 3064 x 1832 x 31 mm (120.6 x 72 x 1.2") and the net weight is 135 kg (297.6 lbs).
What is the recommended viewing distance for the Avocor AVX-1380?
Avocor recommends a viewing distance of >3.8 m for the AVX-1380 at a 1.58 mm pixel pitch.
Where is the Avocor AVX-1380 used?
It suits: boardrooms, lobbies and presentation spaces; corporate and education showpiece displays; large-format content walls without an LCD video wall frame. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the Avocor AVX-1380 in India, and how do I get a quote?
Yes. Corporate AV supplies, installs and supports Avocor solutions across India, with a site survey, commissioning and after-sales support. Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity.
