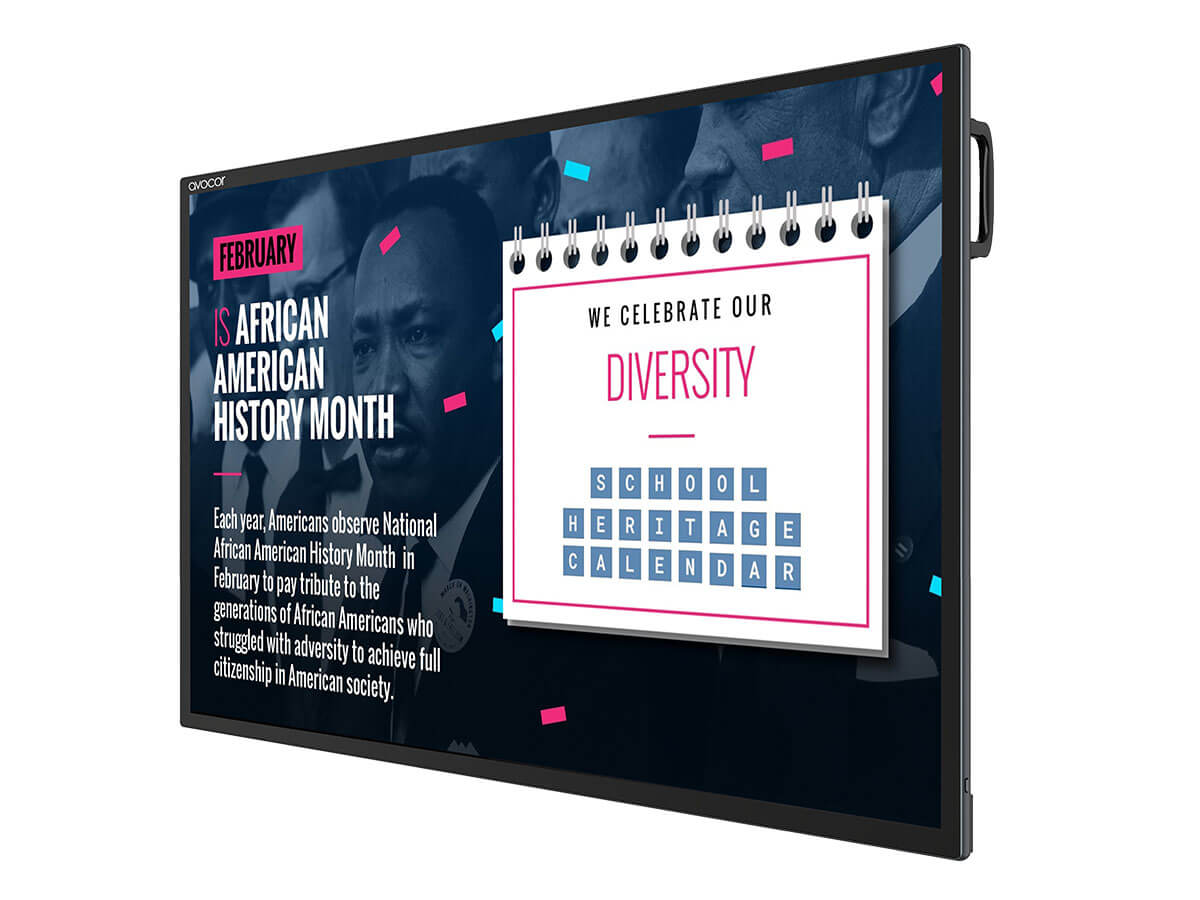

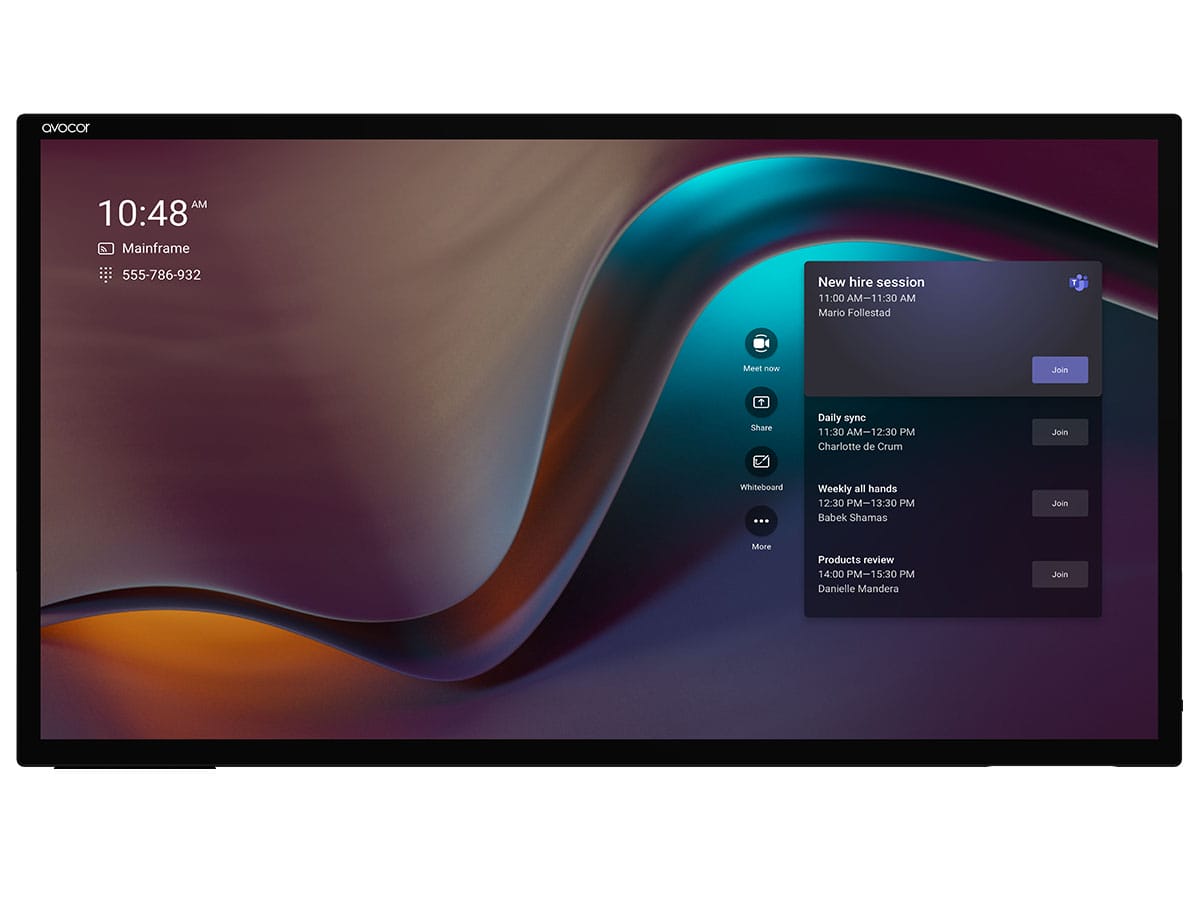

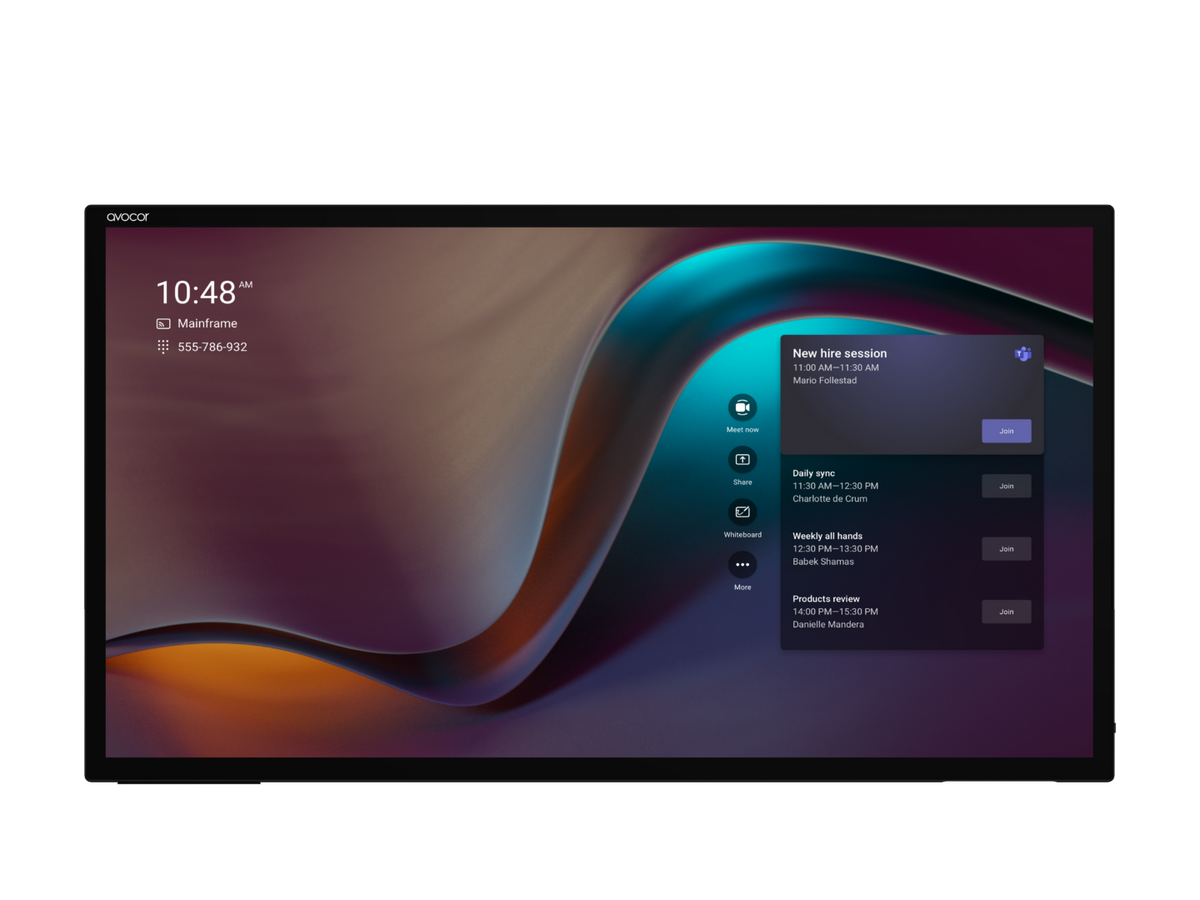

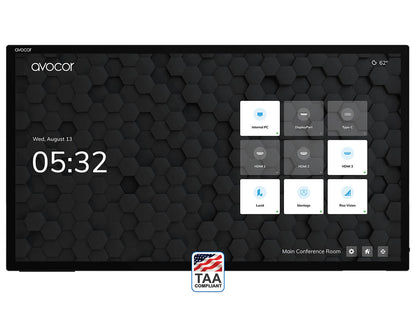

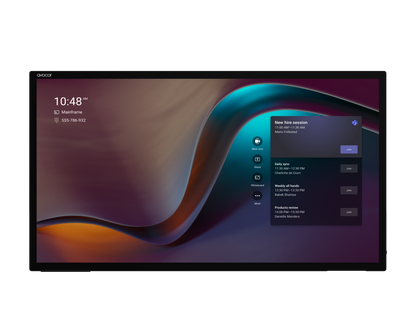

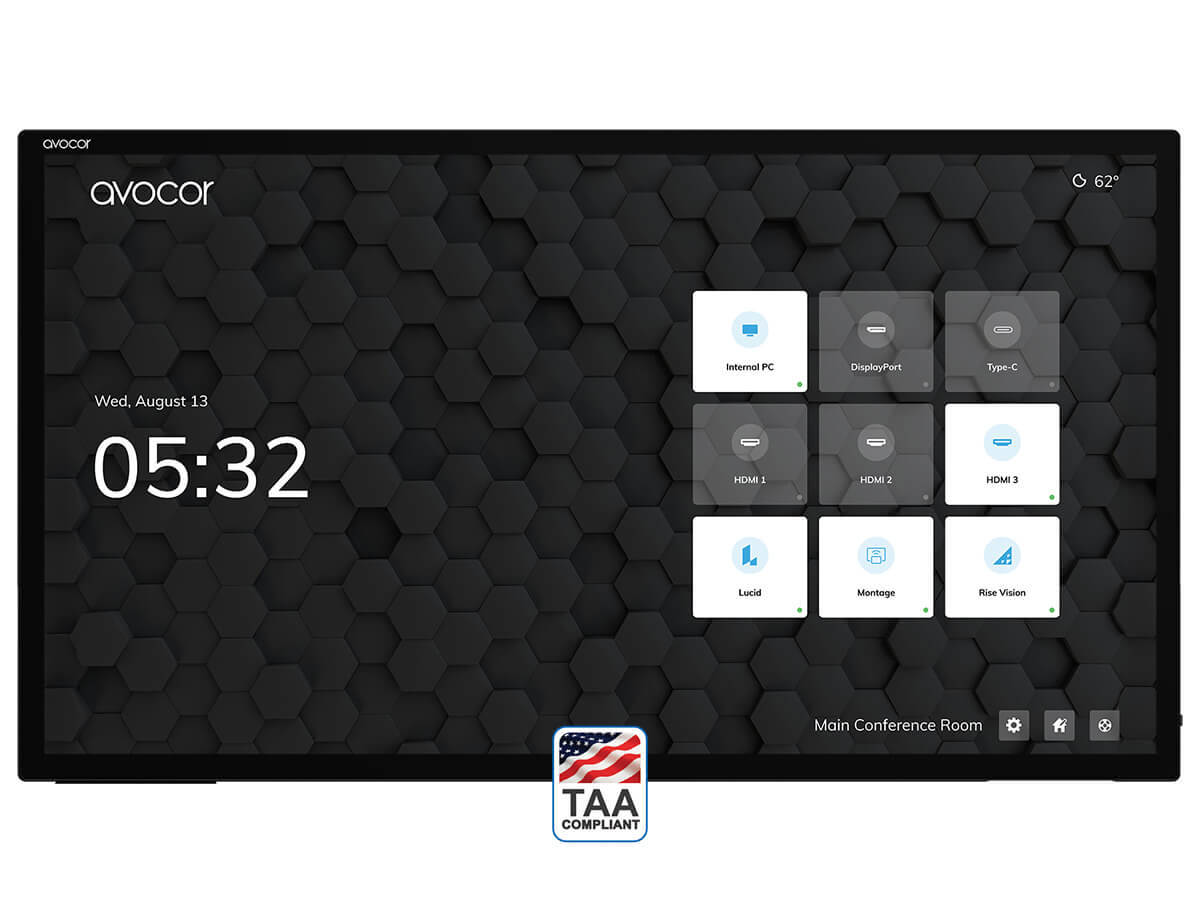

Avocor AVH-6520: 65 Inch 4K Interactive Display with PCAP Touch
Model AVH-6520
Request a Quote
Availability: Out of Stock
- PCAP touch with up to 40 points plus one stylus
- 3 mm bezel on all sides
- 3840 x 2160 (4K UHD) panel, 400 cd/m² w/bonded glass, 5000:1 contrast
- 2 mm optically bonded, anti-glare, anti-fingerprint zero-parallax glass
Product Overview
Overview
The Avocor AVH-6520 is a 65-inch 4K interactive display with PCAP touch. It combines an ultra-thin 3 mm bezel with optically bonded glass and rapid-response PCAP touch, and ships preloaded with wireless screen-sharing and whiteboard software for instant brainstorming. Avocor also lists easy compatibility with Lenovo ThinkSmart. Product dimensions are 1493 x 80 x 877 mm (58.78 x 3.15 x 35.53") and the net weight is 37 kg (81.6 lbs), with a 600 x 400 mm VESA wall-mount pattern.
Corporate AV supplies, installs and supports Avocor solutions across India. Request a quote for the Avocor AVH-6520 with supply, installation and commissioning.
Key features
- PCAP touch with up to 40 points plus one stylus
- 3 mm bezel on all sides
- 3840 x 2160 (4K UHD) panel, 400 cd/m² w/bonded glass, 5000:1 contrast
- 2 mm optically bonded, anti-glare, anti-fingerprint zero-parallax glass
- 2 x 16 W spatial-stereo downward-facing speakers
- 24 GHz radar presence detector and ambient light sensor
- Pluggable WiFi 6 module and OPS slot
Typical applications
- Hybrid meeting rooms and boardrooms
- Collaboration spaces that need a premium touch display
- Rooms built around Lenovo ThinkSmart
Why choose the AVH-6520
it is a 65-inch 4K interactive display with PCAP touch from Avocor, supplied with Corporate AV's site survey, installation and support across India, so the AVH-6520 is specified for your project and not just shipped.
Product Highlights
Key Benefits
PCAP touch with up to 40 points plus one stylus
3 mm bezel on all sides
3840 x 2160 (4K UHD) panel, 400 cd/m² w/bonded glass, 5000:1 contrast
2 mm optically bonded, anti-glare, anti-fingerprint zero-parallax glass
2 x 16 W spatial-stereo downward-facing speakers
Use Cases
Ideal Applications
Hybrid meeting rooms and boardrooms
Collaboration spaces that need a premium touch display
Rooms built around Lenovo ThinkSmart
Technical Details
Technical Specifications
Display
Screen Size
65"
Backlight
Direct-lit LED
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60 Hz
Response Time
6.5 ms
Brightness
400 cd/m² w/bonded glass
Contrast Ratio
5000:1
Viewing Angle
178° / 178°
Supported Colors
10 Bit 1.07 Billion Color
Display Orientation
Landscape
Touch System
Interface
2 x USB-B 2.0, 1 x Type C
Touch
Up to 40 points Touch + 1 stylus
Glass
Zero parallax, 2 mm optically bonded, anti-glare, anti-fingerprint
Supported Operating System
Windows 8 +, Mac OSX, Linux
Connectivity
Top Inputs
1 x USB-A 3.0 hub
Side IO
1 x Type-C (100 W PD w/o OPS), 4 x HDMI 2.0, HDCP 2.3, HDCP 2.3, 3 x USB-B 2.0, 1 x DisplayPort 1.4, 2 x USB-A 3.0 Hub, 1 x USB-A Service Port, HDMI 2.0 Out
Audio
1 x 3.5 mm Audio Out, 1 x Optical (SPDIF)
Control
1 x RS-232, 2 x LAN Ethernet (RJ-45)
OPS Slot
Yes
WiFi
Pluggable Module: WiFi 6 802.11ac/b/g/n/a/ax
Audio
Built-in Speakers
2 x 16 W - spatial-stereo downward facing
Display & Remote Functions
Auto-Source Detection
Yes
Source Preview
Yes, UiQ
Image Settings
Yes, UiQ & FUSE
Physical Specifications
Product Dimensions (L x W x H)
1493 x 80 x 877 mm (58.78 x 3.15 x 35.53")
Bezel Dimensions
3 mm all sides
Shipping Dimensions (L x W x H)
1612 x 220 x 1034 mm (63.46 x 8.66 x 40.71")
Weight (Net)
37 kg (81.6 lbs)
Weight (Gross)
49 kg (108 lbs)
Wall Mount (VESA)
600 x 400 mm Included
IPC Mount
100 x 100 mm + 80 x 80 mm
Handles
2
Sensors
Type
Presence, Ambient Light
Presence Sensor
24 Ghz Radar Presence Detector
Power
Max Power Consumption
227 W
Environmental
Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Humidity
20% ~ 85%
In The Box
What's Included
1 x Remote control & batteries
2 x soft-tip passive styluses
Wall Mount
AC power cords
1 x USB-B 3.0 cable (3 m)
1 x Type-C cable (1.8 m)
1 x HDMI cable (3 m)
1 x quick start guide. WiFi module included Please note up to 40 point touch in PC mode with Windows 8/10. Linux only supports single touch
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AVH-6520 From Corporate AV?
- Genuine Avocor stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Avocor products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Avocor AVH-6520?
The Avocor AVH-6520 is a 65-inch 4K interactive display with PCAP touch. It combines an ultra-thin 3 mm bezel with optically bonded glass and rapid-response PCAP touch, and ships preloaded with wireless screen-sharing and whiteboard software for instant brainstorming.
What are the main specifications of the Avocor AVH-6520?
Avocor lists these figures for the AVH-6520: resolution: 3840 x 2160 @ 60 Hz; brightness: 400 cd/m² w/bonded glass; touch: Up to 40 points Touch + 1 stylus; contrast ratio: 5000:1; backlight: Direct-lit LED. The full specification table is on this page.
What connections does the Avocor AVH-6520 have?
Avocor lists these inputs and ports. Top Inputs: 1 x USB-A 3.0 hub. Side IO: 1 x Type-C (100 W PD w/o OPS), 4 x HDMI 2.0, HDCP 2.3, HDCP 2.3, 3 x USB-B 2.0, 1 x DisplayPort 1.4, 2 x USB-A 3.0 Hub, 1 x USB-A Service Port, HDMI 2.0 Out.
What are the dimensions and weight of the Avocor AVH-6520?
Product dimensions are 1493 x 80 x 877 mm (58.78 x 3.15 x 35.53") and the net weight is 37 kg (81.6 lbs), with a 600 x 400 mm VESA wall-mount pattern.
Does the Avocor AVH-6520 have a built-in presence sensor?
Yes. Avocor lists a 24 GHz radar presence detector and an ambient light sensor for the H Series.
Where is the Avocor AVH-6520 used?
It suits: hybrid meeting rooms and boardrooms; collaboration spaces that need a premium touch display; rooms built around Lenovo ThinkSmart. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the Avocor AVH-6520 in India, and how do I get a quote?
Yes. Corporate AV supplies, installs and supports Avocor solutions across India, with a site survey, commissioning and after-sales support. Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity.
