Avocor AVG-8560: 85 Inch 4K Interactive Display with InGlass Touch
Model AVG-8560
Request a Quote
Availability: Out of Stock
- Avocor InGlass M5 touch with up to 20 touch points, four fine-tip styluses and palm rejection
- 3840 x 2160 (4K UHD) panel, 500 nits (md/m2), 5000:1 contrast
- Zero-parallax bonded, anti-glare, anti-fingerprint glass
- 4 x 10 W spatial-stereo speakers and a 4-element far-field beam-forming microphone array
Product Overview
Overview

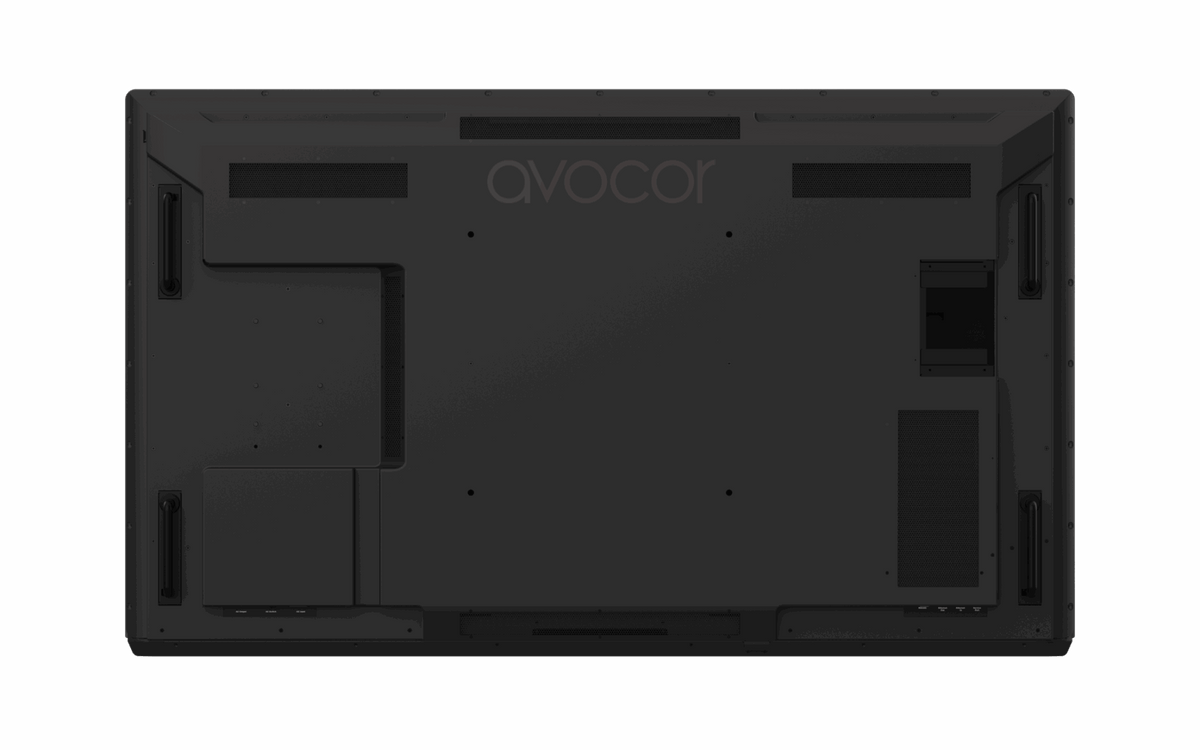

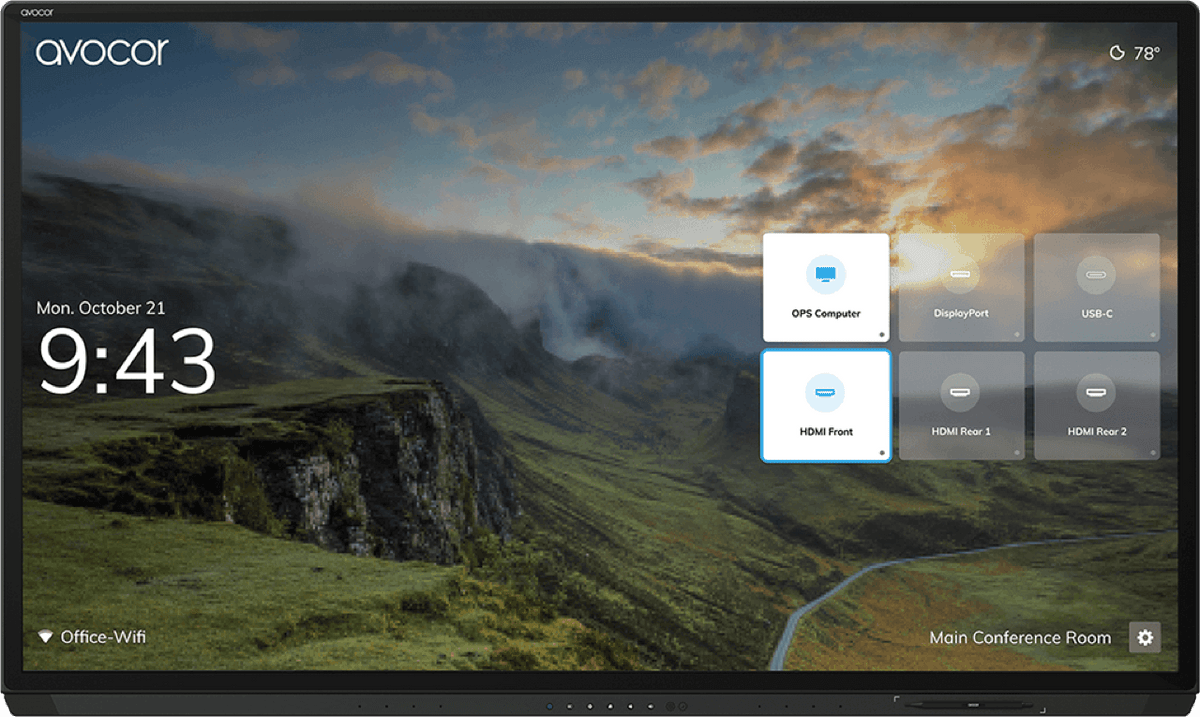

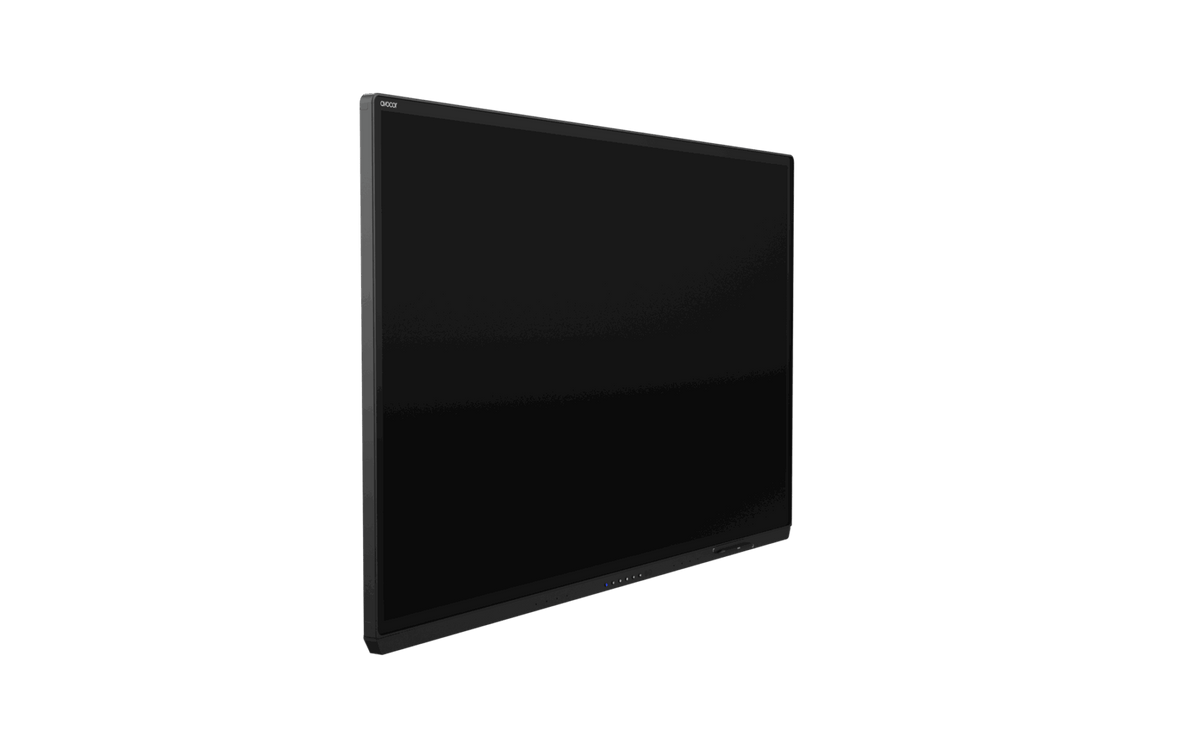

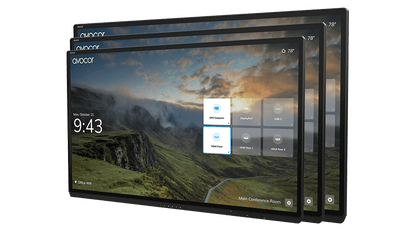

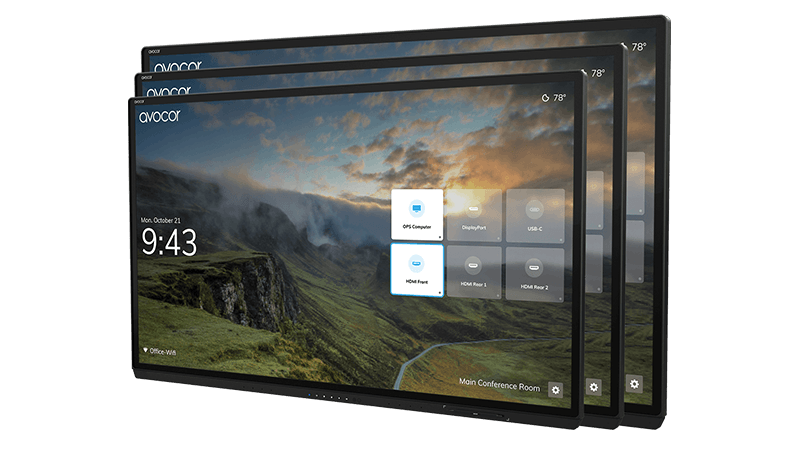

The Avocor AVG-8560 is an 85-inch 4K interactive display with InGlass touch. Its sleek, bezel-less design uses Avocor InGlass M5 touch with palm rejection, up to 20 touch points and four fine-tip styluses on zero-parallax bonded glass. A single Type-C connection carries audio, video, touch, Ethernet and power, and the display adds beam-forming microphones, wake-on-presence sensing, the UiQ touch interface and FUSE cloud management. Product dimensions are 1929.5 x 117.2 x 1138.5 mm (75.96 x 4.61 x 44.82") and the net weight is 91.3 kg (201.28 lbs), with a 600 x 400 mm VESA wall-mount pattern.
Corporate AV supplies, installs and supports Avocor solutions across India. Request a quote for the Avocor AVG-8560 with supply, installation and commissioning.
Key features
- Avocor InGlass M5 touch with up to 20 touch points, four fine-tip styluses and palm rejection
- 3840 x 2160 (4K UHD) panel, 500 nits (md/m2), 5000:1 contrast
- Zero-parallax bonded, anti-glare, anti-fingerprint glass
- 4 x 10 W spatial-stereo speakers and a 4-element far-field beam-forming microphone array
- Presence sensor with a range of up to 3.5 m
- Single Type-C (60 W PD) connection for audio, video, touch, Ethernet and power
- Avocor UiQ interface, FUSE cloud management and an OPS slot
Typical applications
- Boardrooms and executive meeting rooms
- Collaboration spaces that need precise inking
- Hybrid meetings with built-in audio pickup
Why choose the AVG-8560
it is an 85-inch 4K interactive display with InGlass touch from Avocor, supplied with Corporate AV's site survey, installation and support across India, so the AVG-8560 is specified for your project and not just shipped.
Product Highlights
Key Benefits
Avocor InGlass M5 touch with up to 20 touch points, four fine-tip styluses and palm rejection
3840 x 2160 (4K UHD) panel, 500 nits (md/m2), 5000:1 contrast
Zero-parallax bonded, anti-glare, anti-fingerprint glass
4 x 10 W spatial-stereo speakers and a 4-element far-field beam-forming microphone array
Presence sensor with a range of up to 3.5 m
Use Cases
Ideal Applications
Boardrooms and executive meeting rooms
Collaboration spaces that need precise inking
Hybrid meetings with built-in audio pickup
Technical Details
Technical Specifications
Display
Screen Size
85"
Backlight
Direct-lit LED
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60 Hz
Response Time
9.5 ms
Brightness
500 nits (md/m2)
Contrast Ratio
5000:1
Viewing Angle
178° / 178°
Supported Colors
30-bit deep color
Display Orientation
Landscape
Touch System
Interface
3 x USB-B 3.0
Touch
Up to 20 point Avocor InGlassTM M5 Intelligent Touch - supports 4 x fine tip styluses - palm rest and palm rejection
Glass
Zero parallax, bonded, anti-glare, anti-fingerprint
Supported Operating System
Windows 8 / 10, Mac OSX, Linux
Connectivity
Side Inputs
1 x Type-C (60 W PD), 2 x HDMI 2.0, 2 x USB-B 3.0 Touch, 1 x DisplayPort 1.2, 1 x USB-B 3.0 Touch, 4 x USB-A Hub 3.0, 1 x USB-A Service Port, HDMI Out
Top Inputs
1 x USB-A Hub 3.0
Audio
1 x 3.5 mm Audio Out, 1 x Optical (SPDIF)
Control
1 x IR Input, 1 x RS-232, 1 x LAN Ethernet (RJ-45) In, 1 x LAN Ethernet (RJ-45) Out
OPS Slot
Yes
Audio
Built-in Speakers
4 x 10 W - spatial-stereo rear facing
Microphone Array
4 x far-field, beam-forming
Display & Remote Functions
Auto-Source Detection
Yes
Source Preview
Yes
Presence Sensor
Yes, max 3.5 range
Image Settings
5 x user / vivid / cinema / game / sports
Physical Specifications
Product Dimensions (L x W x H)
1929.5 x 117.2 x 1138.5 mm (75.96 x 4.61 x 44.82")
Shipping Dimensions (L x W x H)
2160 x 286 x 1440 mm (85.04 x 11.26 x 56.69")
Weight (Net)
91.3 kg (201.28 lbs)
Weight (Gross)
124 kg (273.37 lbs)
Wall Mount (VESA)
600 x 400 mm
IPC Mount
100 x 100 mm
Handles
4 x removable
Power
Power Supply
AC100-240V (worldwide), 50 / 60 Hz
AC Power Out
C14 to region-specific
Max Power Consumption
<480 W
Standby
≤0.5 W
Environmental
Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Humidity
20% ~ 85%
In The Box
What's Included
1 x Remote control & batteries
2 x 3mm fine-tip passive touch styluses
AC power cords
1 x USB-B 3.0 cable (3 m)
1 x Type-C cable (1.8 m)
1 x HDMI cable (3 m)
1 x quick start guide Please note up to 20-point touch in PC mode with Windows 7/8/10
MacOSX and Linux only supports single touch
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AVG-8560 From Corporate AV?
- Genuine Avocor stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Avocor products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Avocor AVG-8560?
The Avocor AVG-8560 is an 85-inch 4K interactive display with InGlass touch. Its sleek, bezel-less design uses Avocor InGlass M5 touch with palm rejection, up to 20 touch points and four fine-tip styluses on zero-parallax bonded glass.
What are the main specifications of the Avocor AVG-8560?
Avocor lists these figures for the AVG-8560: resolution: 3840 x 2160 @ 60 Hz; brightness: 500 nits (md/m2); touch: Up to 20 point Avocor InGlassTM M5 Intelligent Touch - supports 4 x fine tip styluses - palm rest and palm rejection; contrast ratio: 5000:1; backlight: Direct-lit LED. The full specification table is on this page.
What connections does the Avocor AVG-8560 have?
Avocor lists these inputs and ports. Top Inputs: 1 x USB-A Hub 3.0. Side Inputs: 1 x Type-C (60 W PD), 2 x HDMI 2.0, 2 x USB-B 3.0 Touch, 1 x DisplayPort 1.2, 1 x USB-B 3.0 Touch, 4 x USB-A Hub 3.0, 1 x USB-A Service Port, HDMI Out.
What are the dimensions and weight of the Avocor AVG-8560?
Product dimensions are 1929.5 x 117.2 x 1138.5 mm (75.96 x 4.61 x 44.82") and the net weight is 91.3 kg (201.28 lbs), with a 600 x 400 mm VESA wall-mount pattern.
How many styluses does the Avocor AVG-8560 support?
Avocor lists up to 20 touch points and 4 fine-tip styluses at the same time, with a palm rest and palm rejection.
Where is the Avocor AVG-8560 used?
It suits: boardrooms and executive meeting rooms; collaboration spaces that need precise inking; hybrid meetings with built-in audio pickup. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the Avocor AVG-8560 in India, and how do I get a quote?
Yes. Corporate AV supplies, installs and supports Avocor solutions across India, with a site survey, commissioning and after-sales support. Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity.
