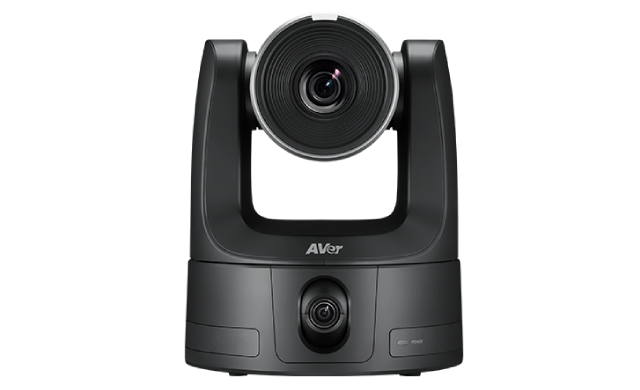

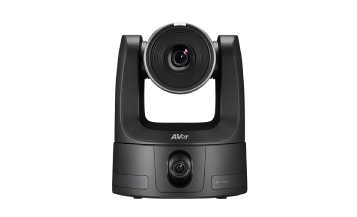

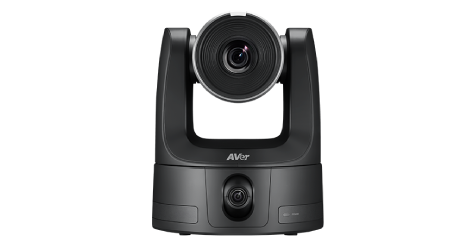

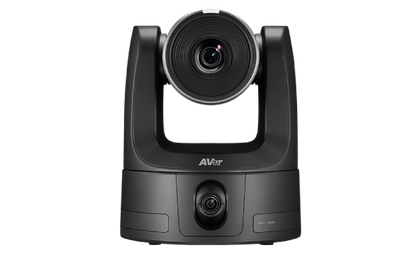

AVer TR535: Dual Lens AI Auto Tracking Camera
Model TR535
Request a Quote
Availability: Out of Stock
- Image Sensor: 1/2.8" 4K Sony Exmor CMOS
- Effective Picture Elements: 8 Megapixels
- Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
- S/N Ratio: ≥ 50 dB
Product Overview
Overview
The AVer TR535 is a Dual Lens Auto Tracking Camera. Enter the future of streaming excellence with AVer's TR535, featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups, ensuring complete coverage. Fueled by four advanced AI-driven tracking modes, the TR535 delivers unparalleled precision for broadcasting, streaming, and recording environments.
Corporate AV supplies, installs and supports the AVer TR535 across India. Request a quote for supply, installation and commissioning.
Key features
- AI Tracking Modes for Every Scenario
Why choose the TR535
it is a Dual Lens Auto Tracking Camera from AVer, supplied with Corporate AV's site survey, installation and support across India, so the TR535 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Image Sensor: 1/2.8" 4K Sony Exmor CMOS
Effective Picture Elements: 8 Megapixels
Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio: ≥ 50 dB
Use Cases
Ideal Applications
Large meeting rooms and boardrooms
Lecture halls, auditoriums and training rooms
Live streaming, broadcast and telehealth
Technical Details
Technical Specifications
PTZ Camera
Image Sensor
1/2.8" 4K Sony Exmor CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1600 (Center)
Shutter Speed
1/1 to 1/10,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
30X
Digital Zoom
12X
Total Zoom
360X
Viewing Angles
DFOV: 69.2° (Wide) to 2.8° (Tele); HFOV: 62.3° (Wide) to 2.5° (Tele); VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length
f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide); 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°; Tilt: +90° / -30°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec; Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec; Tilt: 200° / sec
Preset Positions
10 (IR); 256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8); RS-422 (RJ45); IP; USB
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP); PELCO-D & PELCO-P (RS-232 / RS-422); CGI (IP); USB; ONVIF
Image Processing
Noise Reduction (2D / 3D); Flip; Mirror; WDR; BLC
Power Frequencies
50 Hz, 60 Hz
Wide Angle Camera
Image Sensor
1/2.8" 4K Sony Low Lux CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/30
Focal Length
2.22 mm
White Balance
Auto
Exposure
Auto
Viewing Angles
DFOV: 113°; HFOV: 105°; VFOV: 71°
Pan / Tilt Angles
Tilt: +18° / -90°
AI Auto Tracking Functions
Tracking Modes
Presenter Mode; Zone Mode; Hybrid Mode; Segment Mode
Privacy Protection Mechanisms
Protection Mode
Sleep Mode
Audio
Channels
2ch Stereo
Codecs
AAC-LC (48 K)
Sample Rates
48 KHz
Interface
Video Outputs
3G-SDI, HDMI x 2, IP, USB
Audio Outputs
3G-SDI, HDMI x 2, IP, USB
Audio Inputs
MIC in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/5A
Power Consumption
29W
PoE
PoE++
Dimensions (W x H x D)
202.5 x 250.7 x 218.5 mm
Net Weight
3.6 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
Sustainability
Plastic Material: ABS; Sustainability Method: PCR-PC; Recycled Content %: 30%
IP Streaming
Resolution
4K 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Network Audio Compress Formats
AAC-LC (48 K)
Maximum Frame Rate
2160p 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 64 Mbps
Network Interface
10 / 100 / 1000 / 2500 Base-T
Multi-Stream Capability
NDI Mode: 10 / Dante AV-H Mode: 8; 4K (NDI Mode): RTSP (x2), HDMI (x2), USB (x2), NDI High Bandwidth (x1), & NDI HX2 (x2); 4K (Dante AV-H Mode): RTSP (x2), HDMI (x2), USB (x2), Dante
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
NDI High Bandwidth
Yes
NDI HX2
Yes
Dante AV-H
Yes
Camera Tracking Data Output
Supports Free-D Type D0 / D1
USB
Connector
USB 3.2 Gen 1
Video Formats
MJPEG, YUY2
Audio Format
PCM
Maximum Video Resolution
2160p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome, Microsoft Edge, Safari
Software Tools
IP Search and Configuration Tool
Support Windows 7 or later
Enterprise Management (PTZ Management)
Support Windows 10 or later
Control Panel
Supports iOS & iPadOS 9 or later
PTZ Link
Supports Windows 7 or later, macOS 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows 8 or later, macOS High Sierra v10.13 or later
CaptureShare
Supports Windows 7 or later, macOS 10.14 or later
Cloud Management
Supports Chrome & Microsoft Edge browsers
Warranty
Camera
5 Years
Accessories
1 Year
Specifications
Package Contents
Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4'-20L 6.5mm Screw (x2), Cable
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The TR535 From Corporate AV?
- Genuine AVer stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs AVer products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the AVer TR535?
The AVer TR535 is a Dual Lens Auto Tracking Camera. Enter the future of streaming excellence with AVer's TR535, featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups, ensuring complete coverage. Fueled by four advanced AI-driven tracking modes, the TR535 delivers unparalleled precision for broadcasting, streaming, and recording environments.
Who is the AVer TR535 best suited for?
The TR535 suits large meeting rooms and boardrooms, lecture halls, auditoriums and training rooms and live streaming, broadcast and telehealth. Corporate AV can advise whether it is the right fit for your room or classroom.
What are the key specifications of the AVer TR535?
AVer lists these key specifications for the TR535. Image Sensor: 1/2.8" 4K Sony Exmor CMOS. Effective Picture Elements: 8 Megapixels. Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps). S/N Ratio: ≥ 50 dB.
Can Corporate AV supply multiple AVer TR535 units for a rollout?
Yes. Corporate AV supplies and integrates the AVer TR535 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the AVer TR535 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
