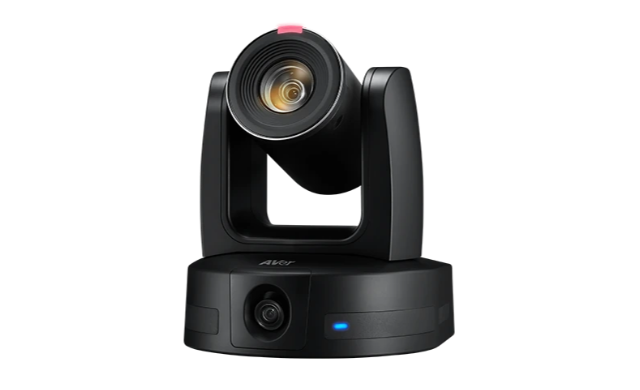

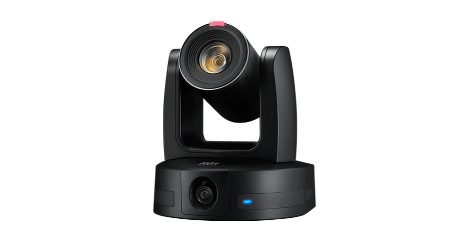

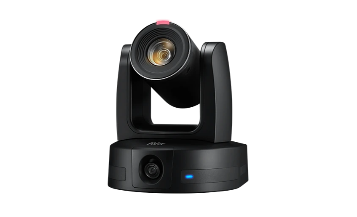

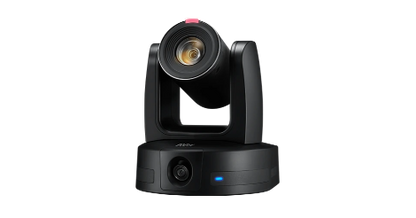

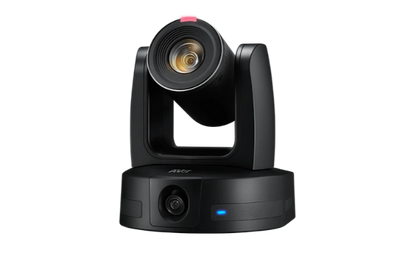

AVer TR322: Dual Lens AI Auto Tracking Camera
Model TR322
Request a Quote
Availability: Out of Stock
- Dual Lenses. One Focus.
- Front-Row Detail. Wherever You Are.
- Any Lighting. Balanced Imaging.
- Your Automated Director. Always On.: Presenter, Zone, and Hybrid tracking modes transform the TR322 into a self-directing production crew.
Product Overview
Overview
The AVer TR322 is a Dual Lens Auto Tracking Camera. Every space has a story, and the AVer TR322 makes sure it's told brilliantly. Presenters are always perfectly framed — no operator, no interruption, no second-guessing. A dedicated wide-angle lens continuously covers the entire space, directing the primary PTZ lens to the active presenter. Sony Exmor imaging renders every expression, gesture, and detail with stunning clarity under any lighting condition. With Presenter, Zone, and Hybrid tracking, the TR322 transforms any venue into a self-directing broadcast environment — engineered for corporate, government, worship, sports, and education.
Corporate AV supplies, installs and supports the AVer TR322 across India. Request a quote for supply, installation and commissioning.
Key features
- Dual Lenses. One Focus.
- Front-Row Detail. Wherever You Are.
- Any Lighting. Balanced Imaging.
- Your Automated Director. Always On.: Presenter, Zone, and Hybrid tracking modes transform the TR322 into a self-directing production crew.
- Plug In. Go Live.: NDI HX3, HDMI, USB, and IP streaming capabilities mean the TR322 instantly connects to virtually any production environment.
- One Camera. Infinite Applications.
- Control Everything. From Anywhere.
Why choose the TR322
it is a Dual Lens Auto Tracking Camera from AVer, supplied with Corporate AV's site survey, installation and support across India, so the TR322 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Dual Lenses. One Focus.
Front-Row Detail. Wherever You Are.
Any Lighting. Balanced Imaging.
Your Automated Director. Always On.: Presenter, Zone, and Hybrid tracking modes transform the TR322 into a self-directing production crew.
Plug In. Go Live.: NDI HX3, HDMI, USB, and IP streaming capabilities mean the TR322 instantly connects to virtually any production environment.
Use Cases
Ideal Applications
Large meeting rooms and boardrooms
Lecture halls, auditoriums and training rooms
Live streaming, broadcast and telehealth
Technical Details
Technical Specifications
Camera
Image Sensor
1/2.8" Sony Exmor CMOS
Total Picture Elements
8.59 Megapixels
Effective Picture Elements
8.45 Megapixels
Output Resolutions
4K/30**, 4K/29.97**, 4K/25**, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Line
4K**: 1200 (Center); 1080p: 900 (Center)
Shutter Speed
1/1 to 1/10,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
22X
Digital Zoom
12X
Total Zoom
264X
Viewing Angles
DFOV: 78.3° (Wide) to 3.27° (Tele); HFOV: 70.4° (Wide) to 2.86° (Tele); VFOV: 42.7° (Wide) to 1.61° (Tele)
Focal Length
f = 4.3 mm (Wide) to 94.6 mm (Tele)
Aperture (Iris)
F = 1.6 (Wide) to 4.2 (Tele)
Minimum Working Distance
0.01 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec, Tilt: 0.05° to 100° / sec
Preset Speed
Pan: 200° / sec, Tilt: 200° / sec
Preset Positions
10 (IR), 256 (RS-232 / RS-422 / IP)
Camera Control - Interface
RS-232 (DIN8), RS-422 (RJ45), IP, USB
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF
Image Processing
Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
Power Frequencies
50 Hz, 60 Hz
Wide Angle Camera
Image Sensor
1/2.8" CMOS
Effective Picture Elements
2 Megapixels
Output Resolutions
1080p/30
Focal Length
2.22 mm
White Balance
ATW
Exposure
Auto
Viewing Angles
DFOV: 113; HFOV: 105°; VFOV: 71°
Pan / Tilt Angles
Tilt: +10° / -10°
AI Technology
Auto Tracking Modes
Presenter Mode, Zone Mode, Hybrid Mode
AI Features
Multi-Presenter Detection, Multi-Presenter Tracking
Privacy Protection Mechanisms
Protection Mode
Sleep Mode
Audio
Channel
2ch Stereo
Codec
AAC-LC (48 K)
Sample Rates
48 KHz
Interface
Video Outputs
3G-SDI, HDMI, IP, USB
Audio Outputs
3G-SDI, HDMI, IP, USB
Audio Inputs
Mic in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/2A
Power Consumption
19W
PoE
PoE+ (IEEE802.3at)
Dimensions (W x H x D)
180.9 x 204.6 x 182.1 mm
Net Weight
2.1 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
IP Streaming
Resolution
Up to 4K 30fps**
Network Video Compress Formats
H.264, H.265, MJPEG
Network Audio Compress Formats
AAC-LC (48 K)
Maximum Frame Rate
Up to 4K 30fps**
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 120 Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability
Up to 4K 30fps**; Standard Mode, Zoom Mode, NDI Mode: 5 (RTSP, HDMI, USB, 3G-SDI***, & NDI); Teams Mode: 1 (USB)
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP, ONVIF
NDI HX3
Yes (Pre-installed)
NDI Embedded Bridge
Yes
Camera Tracking Data Output
Supports Free-D Type D0 / D1
USB
Connector
USB 3.2 Gen 1 Type-B
Video Format
MJPEG, YUY2
Audio Format
PCM
Maximum Video Resolution
Up to 4K**
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome, Microsoft Edge, Safari
Software Tools
Device Utility
Supports Windows 10 or later, macOS 11.6 or later
Enterprise Management
Supports Windows 10 or later
Room Management
Supports Windows 10 or later, macOS 11.6 or later
Cloud Management
Supports Chrome & Microsoft Edge browsers
Control Panel
Supports iOS & iPadOS 11 or later
OBS Plugin for PTZ Cameras
Supports Windows 10 or later, macOS 11.6 or later
CaptureShare
Supports Windows 10 or later, macOS 11.6 or later
Warranty
Camera
5 Years
Accessories
1 Year
Specifications
Package Contents
Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x4), M2 x 4 mm Screw (x3), M3 x 6 mm Screw (x3), 1/4""-20L 6.5mm Screw (x2), Cable
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
