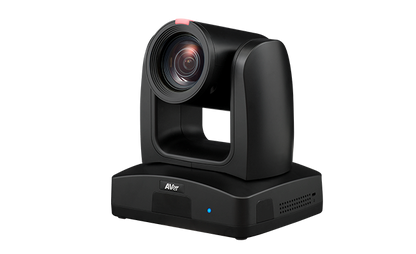

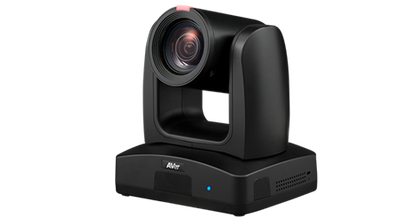

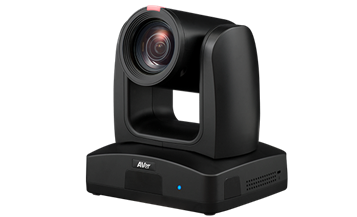

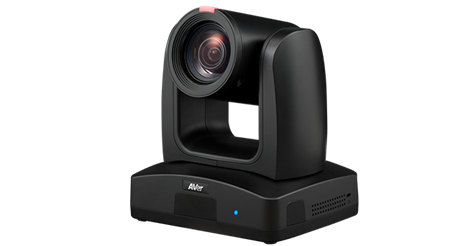

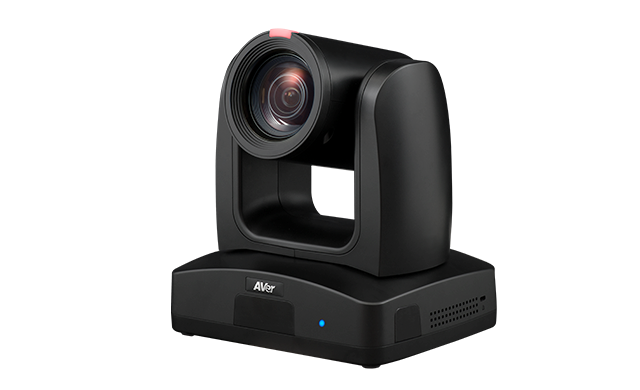

AVer TR315N: AI Auto Tracking NDI HX PTZ Camera
Model TR315N
Request a Quote
Availability: Out of Stock
- NDI HX3 Levels Up Streaming: Elevate your streaming experience with the TR315N's cutting-edge NDI HX3 technology!
- 12X Optical Zoom Magnifies Details: Experience the exceptional power of the TR315N camera's astounding 12X optical zoom.
- HDMI/USB/IP. 4K 60 FPS.: Leverage the TR315N's 4K 60 fps streaming potential through HDMI, USB, and IP outputs.
- Presenter Mode: Get unparalleled tracking performance with Presenter Mode.
Product Overview
Overview
The AVer TR315N is an AI Auto Tracking NDI|HX PTZ Camera. Equipped with NDI|HX3 capability, AVer's new TR315N AI Auto Tracking PTZ Camera extends powerful and dependable Pro AV prowess to users across the spectrum of industries. The TR315N showcases proprietary functions — including Presenter Mode, Zone Mode, and Hybrid Mode tracking — driven by advanced AI processing. Seamlessly blending a 12X Optical Zoom lens, 4K 60 fps resolution, and the finesse of hybrid auto tracking and smooth PTZ operations, it's already the quintessential choice for broadcasting, streaming, or recording.
Corporate AV supplies, installs and supports the AVer TR315N across India. Request a quote for supply, installation and commissioning.
Key features
- NDI HX3 Levels Up Streaming: Elevate your streaming experience with the TR315N's cutting-edge NDI HX3 technology!
- 12X Optical Zoom Magnifies Details: Experience the exceptional power of the TR315N camera's astounding 12X optical zoom.
- HDMI/USB/IP. 4K 60 FPS.: Leverage the TR315N's 4K 60 fps streaming potential through HDMI, USB, and IP outputs.
- Presenter Mode: Get unparalleled tracking performance with Presenter Mode.
- Zone Mode: Zone Mode elevates your ability to capture content across multiple displays.
- Hybrid Mode: Free your performers by enabling unrestricted movement with Hybrid Mode.
- AI Tracking Modes for Every Scenario
Why choose the TR315N
it is an AI Auto Tracking NDI|HX PTZ Camera from AVer, supplied with Corporate AV's site survey, installation and support across India, so the TR315N is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
NDI HX3 Levels Up Streaming: Elevate your streaming experience with the TR315N's cutting-edge NDI HX3 technology!
12X Optical Zoom Magnifies Details: Experience the exceptional power of the TR315N camera's astounding 12X optical zoom.
HDMI/USB/IP. 4K 60 FPS.: Leverage the TR315N's 4K 60 fps streaming potential through HDMI, USB, and IP outputs.
Presenter Mode: Get unparalleled tracking performance with Presenter Mode.
Zone Mode: Zone Mode elevates your ability to capture content across multiple displays.
Use Cases
Ideal Applications
Large meeting rooms and boardrooms
Lecture halls, auditoriums and training rooms
Live streaming, broadcast and telehealth
Technical Details
Technical Specifications
Camera
Image Sensor
1/2.8" 4K Sony Exmor CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1600 (Center)
Shutter Speed
1/1 to 1/32,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual
Optical Zoom
12X
Digital Zoom
12X
Viewing Angles
DFOV: 80.6° (Wide) to 7.7° (Tele); HFOV: 72.8° (Wide) to 6.7° (Tele); VFOV: 44.1° (Wide) to 3.8° (Tele)
Focal Length
f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)
F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance
0.3 m (Wide); 1.5 m (Tele)
Pan / Tilt Angles
Pan: ±170°; Tilt: +90° / -30°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec; Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec; Tilt: 200° / sec
Preset Positions
10 (IR); 256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8); RS-422 (RJ45); IP; USB
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP); PELCO-D & PELCO-P (RS-232 / RS-422); CGI (IP); USB; ONVIF
Image Processing
Noise Reduction (2D / 3D); Flip; Mirror; WDR; BLC
Power Frequencies
50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Modes
Presenter Mode; Zone Mode; Hybrid Mode
Privacy Protection Mechanisms
Protection Mode
Sleep Mode
AI Control Functions
Gesture Control
Yes
Audio
Channels
2ch Stereo
Codecs
AAC-LC (48K); PCM (8K)
Sample Rates
48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface
Video Outputs
3G-SDI, HDMI, IP, USB
Audio Outputs
3G-SDI, HDMI, IP, USB
Audio Inputs
MIC in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/5A
Power Consumption
19W
PoE
PoE+
Dimensions (W x H x D)
180.0 x 192.0 x 145.0 mm
Net Weight
2.0 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
IP Streaming
Resolution
2160p 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Network Audio Compress Formats
AAC-LC (48K), PCM (8K)
Maximum Frame Rate
2160p 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 32 Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability**
5 4K 60fps: RTSP, HDMI, USB & NDI HX 1080p 60fps: 3G-SDI
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
NDI |HX3
Yes
USB
Connector
USB 3.1
Video Formats
MJPEG, YUY2
Audio Format
PCM
Maximum Video Resolution
2160p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration Tool
Support Windows 7 or later
Enterprise Management (PTZ Management)
Supports Windows 10 or later
PTZ Control Panel
Supports iOS & iPadOS 11 or later
PTZ Link
Supports Windows 7 or later, macOS 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows 8 or later, macOS High Sierra v10.13 or later
CaptureShare
Supports Windows 7 or later, macOS 10.14 or later
Room Management (PTZApp 2)
Supports Windows 7 or later, macOS 11.6 or later
Cloud Management
Supports Windows 7 or later, macOS 10 or later
Warranty
Camera
5 Years
Accessories
1 Year
Specifications
Package Contents
Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Ties (x 4), M2 x 4 mm Screws (x 3), M3 x 6 mm Screws (x3), 1/4'-20L 6.5mm Screws (x2), Cable
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The TR315N From Corporate AV?
- Genuine AVer stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs AVer products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the AVer TR315N?
The AVer TR315N is an AI Auto Tracking NDI|HX PTZ Camera. Equipped with NDI|HX3 capability, AVer's new TR315N AI Auto Tracking PTZ Camera extends powerful and dependable Pro AV prowess to users across the spectrum of industries. The TR315N showcases proprietary functions — including Presenter Mode, Zone Mode, and Hybrid Mode tracking — driven by advanced AI processing. Seamlessly blending a 12X Optical Zoom lens, 4K 60 fps resolution, and the finesse of hybrid auto tracking and smooth PTZ operations, it's already the quintessential choice for broadcasting, streaming, or recording.
Who is the AVer TR315N best suited for?
The TR315N suits large meeting rooms and boardrooms, lecture halls, auditoriums and training rooms and live streaming, broadcast and telehealth. Corporate AV can advise whether it is the right fit for your room or classroom.
What are the key specifications of the AVer TR315N?
AVer lists these key specifications for the TR315N. Image Sensor: 1/2.8" 4K Sony Exmor CMOS. Effective Picture Elements: 8 Megapixels. Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps). S/N Ratio: ≥ 50 dB.
What are the main features of the AVer TR315N?
AVer highlights ndi hx3 levels up streaming; 12x optical zoom magnifies details; hdmi/usb/ip. 4k 60 fps.; presenter mode on the TR315N.
Can Corporate AV supply multiple AVer TR315N units for a rollout?
Yes. Corporate AV supplies and integrates the AVer TR315N in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the AVer TR315N in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
