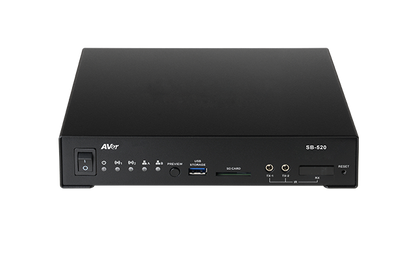

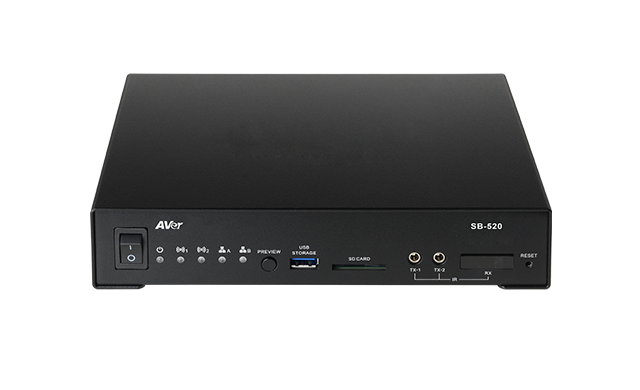

  • AVer SB-520 Professional Streaming Box - front view

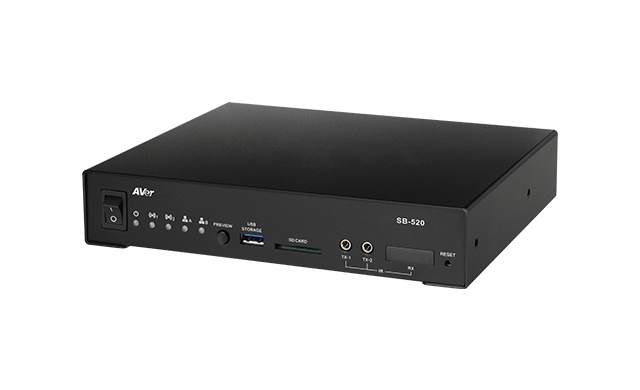

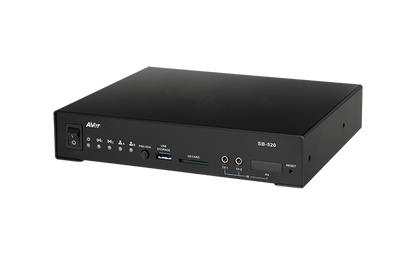

  • AVer SB-520 Professional Streaming Box - product view 2

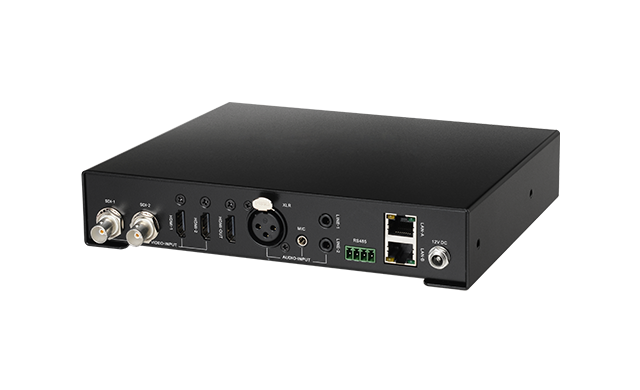

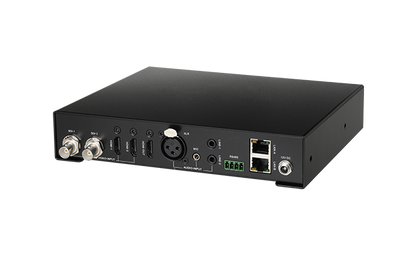

  • AVer SB-520 Professional Streaming Box - product view 3

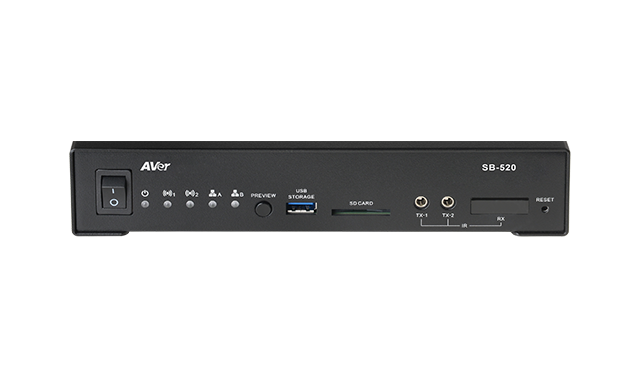

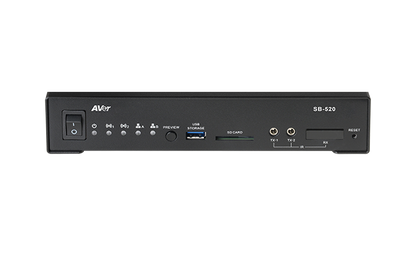

  • AVer SB-520 Professional Streaming Box - product view 4

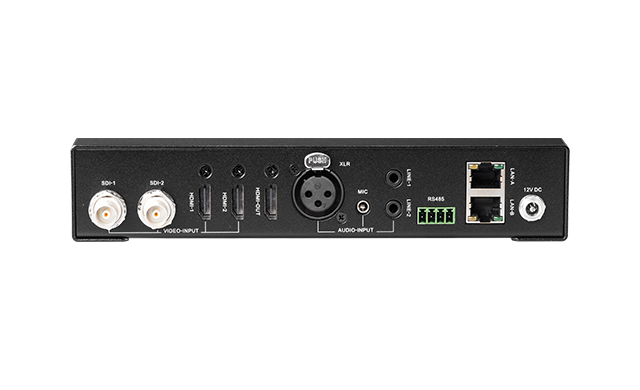

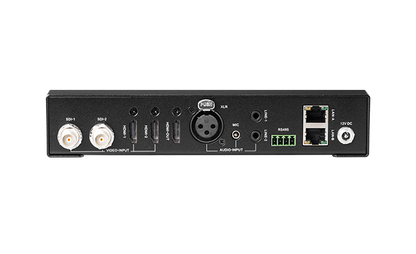

  • AVer SB-520 Professional Streaming Box - product view 5

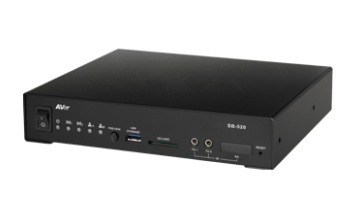

  • AVer SB-520 Professional Streaming Box - product view 6
1 6

AVer SB-520: Professional Streaming Box

Model SB-520

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized AVer Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Interfaces (Input): HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded)
  • Output Resolution: Full HD 1080p 60fps (Max.)
  • Preview Output: HDMI 1.4b
  • Interfaces: 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1
PTZ Camera Systems for Video Conferencing Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The AVer SB-520 is a Professional Streaming Box. AVer SB-520 features with powerful multi-function and compact design. Embedded with H.264 video codecs, the SB-520 allows one or two HDMI or 3G-SDI video sources up to Full HD 1080p resolution, and encodes two independent video streams of the same or various bit-rates for broadcasting or recording. Also, SB-520 equips with multiple input/output interfaces that highly work with Facebook Live, Wowza, CDNvideo, YouTube, Twitch, Ustream, and many more platforms. Combing with simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry's need of high efficiency.

Corporate AV supplies, installs and supports the AVer SB-520 across India. Request a quote for supply, installation and commissioning.

Key features

  • Hardware Appearance
Why choose the SB-520
it is a Professional Streaming Box from AVer, supplied with Corporate AV's site survey, installation and support across India, so the SB-520 is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

Interfaces (Input): HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded)

Output Resolution: Full HD 1080p 60fps (Max.)

Preview Output: HDMI 1.4b

Interfaces: 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1

Use Cases

Ideal Applications

Meeting rooms and boardrooms

Lecture halls, auditoriums and training rooms

Live streaming and production rooms

Technical Details

Technical Specifications

Video
Interfaces (Input) HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded)
Output Resolution Full HD 1080p 60fps (Max.)
Preview Output HDMI 1.4b
Audio
Interfaces 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1
Channels
Output 2
Streaming & Recording
Video Compression Formats H.264
Audio Compression Formats AAC
Bit-Rate Setting Up to 20Mb/s
Recording File Formats MP4, MOV, TS
Protocols TCP, UDP, RTMP, RTP, RTSP, RTMPS, HLS
Layouts PiP, PbP, Single, Customized layouts
Modes 2 to 2 Mode: 2 streams with independent audio/video input, encode setting and streaming protocol.; 1 to 2 Mode: Stream the same audio/video content to different target network with independent
Web UI
Browsers Chrome, IE, Firefox
General
Power Requirement Locking Power Supply 12V/5A
LEDs Power x 1, RJ45 x 2, Stream x 2
Buttons Preview, Reset
Connectivity RJ45 x 2, RS-485 x1
PoE Yes
Storage NAS, USB 3.0 & SD Card Slot for Local Storage
IR IR Receiver (for remote control), IR Blaster
API for Integration Yes
Dimensions (W x H x D) 179.2 x 39.8 x 210.5 mm
Net Weight 962 g (2.12 lbs)
Operating Conditions Temperature: 0°C to +50°C; Humidity: 0% to 80%
Storage Conditions Temperature: -40°C to +70°C; Humidity: 0% to 90%
Package Contents SB-520 Unit, Power Adapter, Power Cord, Remote Control, Base Rack Mount, Long Rack Mount, Short Rack Mounts (x 2), Screws (x 8), Quick Guide

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The SB-520 From Corporate AV?
  • Genuine AVer stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs AVer products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the AVer SB-520?
The AVer SB-520 is a Professional Streaming Box. AVer SB-520 features with powerful multi-function and compact design. Embedded with H.264 video codecs, the SB-520 allows one or two HDMI or 3G-SDI video sources up to Full HD 1080p resolution, and encodes two independent video streams of the same or various bit-rates for broadcasting or recording. Also, SB-520 equips with multiple input/output interfaces that highly work with Facebook Live, Wowza, CDNvideo, YouTube, Twitch, Ustream, and many more platforms. Combing with simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry's need of high efficiency.
Who is the AVer SB-520 best suited for?
The SB-520 suits meeting rooms and boardrooms, lecture halls, auditoriums and training rooms and live streaming and production rooms. Corporate AV can advise whether it is the right fit for your room or classroom.
What are the key specifications of the AVer SB-520?
AVer lists these key specifications for the SB-520. Interfaces (Input): HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded). Output Resolution: Full HD 1080p 60fps (Max.). Preview Output: HDMI 1.4b. Interfaces: 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1.
Can Corporate AV supply multiple AVer SB-520 units for a rollout?
Yes. Corporate AV supplies and integrates the AVer SB-520 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the AVer SB-520 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
