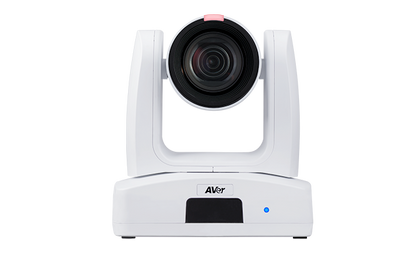

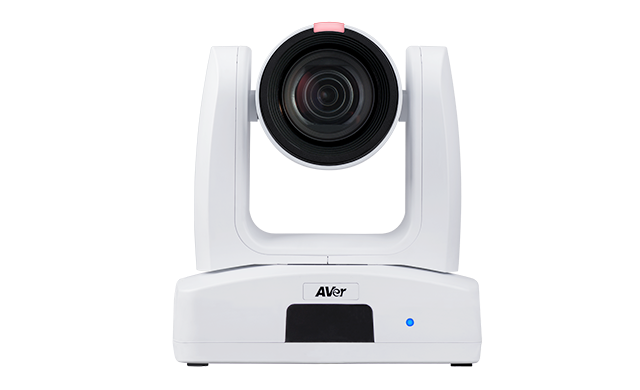

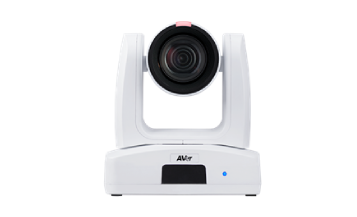

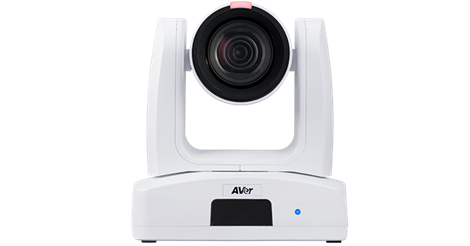

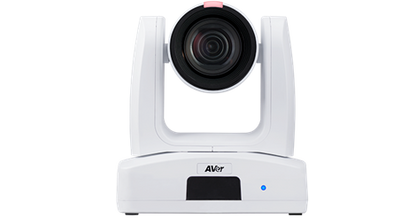

AVer PTZ231: Professional PTZ Camera
Model PTZ231
Request a Quote
Availability: Out of Stock
- Image Sensor: 1/2.8" 1080p Sony Exmor CMOS
- Effective Picture Elements: 2 Megapixels
- Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
- S/N Ratio: ≥ 50 dB
Product Overview
Overview
The AVer PTZ231 is a Professional PTZ Camera. AVer's PTZ231 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 30X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ231.
Corporate AV supplies, installs and supports the AVer PTZ231 across India. Request a quote for supply, installation and commissioning.
Why choose the PTZ231
it is a Professional PTZ Camera from AVer, supplied with Corporate AV's site survey, installation and support across India, so the PTZ231 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Image Sensor: 1/2.8" 1080p Sony Exmor CMOS
Effective Picture Elements: 2 Megapixels
Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio: ≥ 50 dB
Use Cases
Ideal Applications
Large meeting rooms and boardrooms
Lecture halls, auditoriums and training rooms
Live streaming, broadcast and telehealth
Technical Details
Technical Specifications
Camera
Image Sensor
1/2.8" 1080p Sony Exmor CMOS
Effective Picture Elements
2 Megapixels
Output Resolutions
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1000 (Center)
Shutter Speed
1/1 to 1/32,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
30X
Digital Zoom
12X
Total Zoom
360X
Viewing Angles
DFOV: 69.2° (Wide) to 2.8° (Tele); HFOV: 62.3° (Wide) to 2.5° (Tele); VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length
f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide); 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°; Tilt: +90° / -30°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec; Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec; Tilt: 200° / sec
Preset Positions
10 (IR); 256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8); RS-422 (RJ45); IP
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP); PELCO-D & PELCO-P (RS-232 / RS-422); CGI (IP); ONVIF
Image Processing
Noise Reduction (2D / 3D); Flip; Mirror
Power Frequencies
50 Hz, 60 Hz
AI Function
Mode
SmartShoot
Audio
Channels
2ch Stereo
Codecs
AAC-LC
Interface
Video Outputs
3G-SDI, HDMI, IP, USB
Audio Outputs
3G-SDI, HDMI, IP, USB
Audio Inputs
MIC in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/2A
Power Consumption
19W
PoE
PoE+
Dimensions (W x H x D)
180.0 x 192.0 x 145.0 mm
Net Weight
2.0 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
IP Streaming
Resolution
1080p 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Maximum Frame Rate
1080p 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 120 Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability**
5; 1080p 60fps: RTSP, HDMI, USB, NDI HX3 / Dante AV-H & 3G-SDI
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
AV over IP Protocols
NDI HX3 & Dante AV-H
Camera Tracking Data Output
Supports Free-D Type D0 / D1
USB
Connector
USB 3.1
Video Formats
MJPEG, YUY2
Maximum Video Resolution
1080p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome, Microsoft Edge, Safari
Software Tools
IP Search and Configuration Tool
Support Windows 7 or later
Enterprise Management (PTZ Management)
Support Windows 10 or later
Control Panel
Supports iOS & iPadOS 11 or later
PTZ Link
Supports Windows 7 or later, macOS 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows 8 or later, macOS High Sierra v10.13 or later
CaptureShare
Supports Windows 7 or later, macOS 10.14 or later
Room Management (PTZApp 2)
Supports Windows 7 or later, macOS 11.6 or later
Cloud Management
Supports Chrome & Microsoft Edge browsers
Warranty
Camera
5 Years
Accessories
1 Year
Specifications
Package Contents
Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4"-20 L=6.5 mm Screw (x2), Remote Control, M3
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PTZ231 From Corporate AV?
- Genuine AVer stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs AVer products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the AVer PTZ231?
The AVer PTZ231 is a Professional PTZ Camera. AVer's PTZ231 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 30X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ231.
Who is the AVer PTZ231 best suited for?
The PTZ231 suits large meeting rooms and boardrooms, lecture halls, auditoriums and training rooms and live streaming, broadcast and telehealth. Corporate AV can advise whether it is the right fit for your room or classroom.
What are the key specifications of the AVer PTZ231?
AVer lists these key specifications for the PTZ231. Image Sensor: 1/2.8" 1080p Sony Exmor CMOS. Effective Picture Elements: 2 Megapixels. Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps). S/N Ratio: ≥ 50 dB.
Can Corporate AV supply multiple AVer PTZ231 units for a rollout?
Yes. Corporate AV supplies and integrates the AVer PTZ231 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the AVer PTZ231 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
