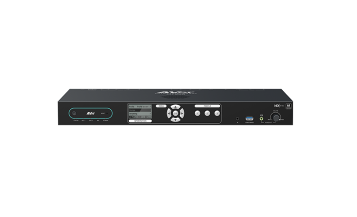

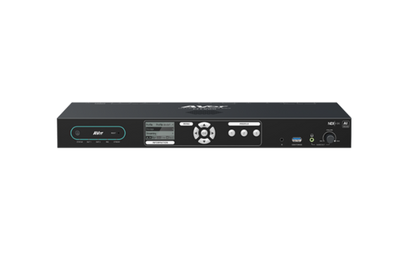

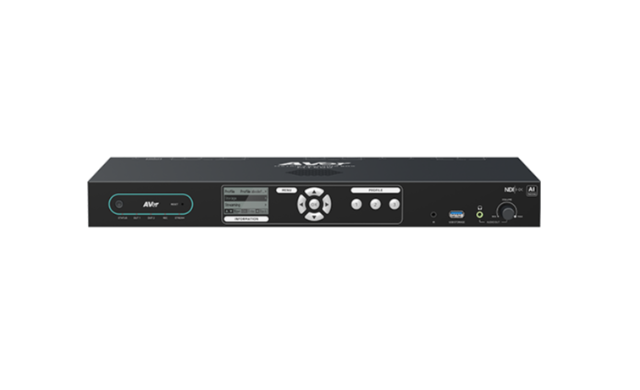

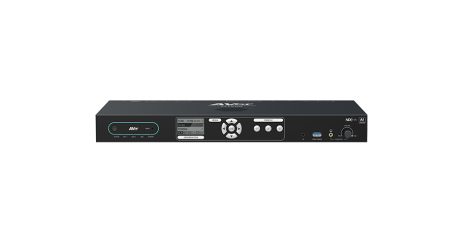

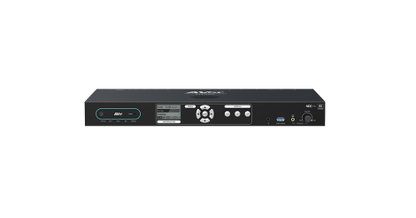

AVer MT500: Matrix Tracking Box
Model MT500
Request a Quote
Availability: Out of Stock
- One Box, Two Separate Video Feeds.: Dual independent outputs provide two separate video and audio streams via IP, HDMI, and USB.
- Multi-Camera Switching, Richer Views.
- PTZ Link Premium. Let the Talk Drive the Angles.
- Bring Dante and Local Audio Together.
Product Overview
Overview
The AVer MT500 is a Matrix Tracking Box. Designed for large lecture halls, council chambers, corporate boardrooms, and high-impact environments, the AVer MT500 4K Matrix Tracking Box delivers AI-powered multi-camera auto-switching and voice tracking. Dual independent 4K outputs simultaneously serve in-room displays and streaming/recording platforms. Native support for Dante Audio, Dante AV-H, and NDI simplifies complex AV-over-IP workflows, making the MT500 the ideal choice for hybrid classrooms, lecture capture, training rooms, and modern enterprise workspaces.
Corporate AV supplies, installs and supports the AVer MT500 across India. Request a quote for supply, installation and commissioning.
Key features
- One Box, Two Separate Video Feeds.: Dual independent outputs provide two separate video and audio streams via IP, HDMI, and USB.
- Multi-Camera Switching, Richer Views.
- PTZ Link Premium. Let the Talk Drive the Angles.
- Bring Dante and Local Audio Together.
- Practical, User-Centric Design.: The front panel shows real-time profile and output status at a glance.
- Smart Room Automation.: The MT500 integrates through GPIO and RS-422 with controllers, lights, screens, and more.
- Product Appearance
Why choose the MT500
it is a Matrix Tracking Box from AVer, supplied with Corporate AV's site survey, installation and support across India, so the MT500 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
One Box, Two Separate Video Feeds.: Dual independent outputs provide two separate video and audio streams via IP, HDMI, and USB.
Multi-Camera Switching, Richer Views.
PTZ Link Premium. Let the Talk Drive the Angles.
Bring Dante and Local Audio Together.
Practical, User-Centric Design.: The front panel shows real-time profile and output status at a glance.
Use Cases
Ideal Applications
Meeting rooms and boardrooms
Lecture halls, auditoriums and training rooms
Live streaming and production rooms
Technical Details
Technical Specifications
Video Inputs
Physical Input Connectors
USB 3.0 Type-A x 2, HDMI 2.0 x 3
IP Stream Inputs
Up to 25
Display Capabilities
IP/USB x 8 + HDMI x 3
AV-over-IP Protocols
RTSP, NDI HX2, NDI HX3, Dante AV-H (Requires a license sold separately)
Video Outputs
Physical Output Connectors
HDMI 2.0 x 2, USB 3.0 Type-B (UVC/UAC) x 2, IP x 2
AV-over-IP Protocols
RTSP, RTMP, HLS, NDI HX2
Dual Independent Outputs
Content 1: HDMI 1/USB 1/IP; Content 2: HDMI 2/USB 2/IP 2
Supported Resolutions & Codecs
Resolution
Up to 4K 60fps
Codecs
H.264, H.265, MJPEG
Audio
Analog Audio I/O
XLR Balanced in x 2, 3.5 mm Mic/Line in x 1, 3.5 mm out x 1
Dante Audio
Yes (Requires a license sold separately)
USB Audio Bypass
Bi-directional UAC
Audio Mixing
8CH Matrix Mixer
Layout Engine
Auto Layouts
6 (Single, Side-by-Side, Active Speaker, PiP, Customize, Advanced)
Manual Layouts
7 (Single, Side-by-Side, Main Speaker-3 Inputs, Main Speaker-4 Inputs, PiP, Quad View, Advanced)
I/O Interfaces
GPIO
6-Pin Configurable
RS-422
1
Ethernet
1
PoE++
1 (IEEE 802.3bt Class 5, 41.1V to 57V 1.5A)
Control & Management
Protocols
VISCA over IP, CGI
Management
Web UI
On-Device Controls
Via Buttons, LCM Screen
Recording & Storage
Local Recording
Direct to USB Storage Device
Network Recording
Direct to NAS
AI Features
FaceFocus
Yes
IntelliSwitch
Yes
InstaConfig
Yes
Software Tools
Device Utility
Supports Windows 10 or later, macOS 10.14 or later
Enterprise Management
Supports Windows 10 or later
Room Management
Supports Windows 7 or later, macOS 11.6 or later
Cloud Management
Supports Chrome & Microsoft Edge browsers
MT Control Panel
Supports Windows 7 or later, macOS 10.14 or later, Android 8.0 or later
PTZ Link Premium
Built-in for Voice Tracking
General
LCM Screen
Yes, 2-inch
Buttons
Menu, Profile, Power, Reset, Volume Knob
LED Indicators
Status, Output 1, Output 2, Record, Stream
Dimensions (W x H x D)
227.1 x 44.0 x 430.0 mm
Net Weight
2.48 (±0.1) kg
Power Requirement
AC 100 - 240V to DC 12V/7.5A
Power Consumption
23 W
Security
Kensington Slot
Operating Conditions
Temperature: 0 °C to +40 °C, Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C, Humidity: 20% to 95%
Installation Methods
Rack Mounted, Under the Table, Inside the Podium, Behind the Display
Warranty
MT500
5 Years
Accessories
1 Year
Package Contents
Package Contents
MT500, Power Adapter, Power Cord, Cable Fixing Plate, Cable Tie (x9), 3.0 x 5 mm Truss Head Screw (x10), M3 x 10 mm Screw (x4), Rack Mount Bracket (x2), USB 3.0 Type-A to Type-B Cable (x2),
Optional Accessories
3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2)
