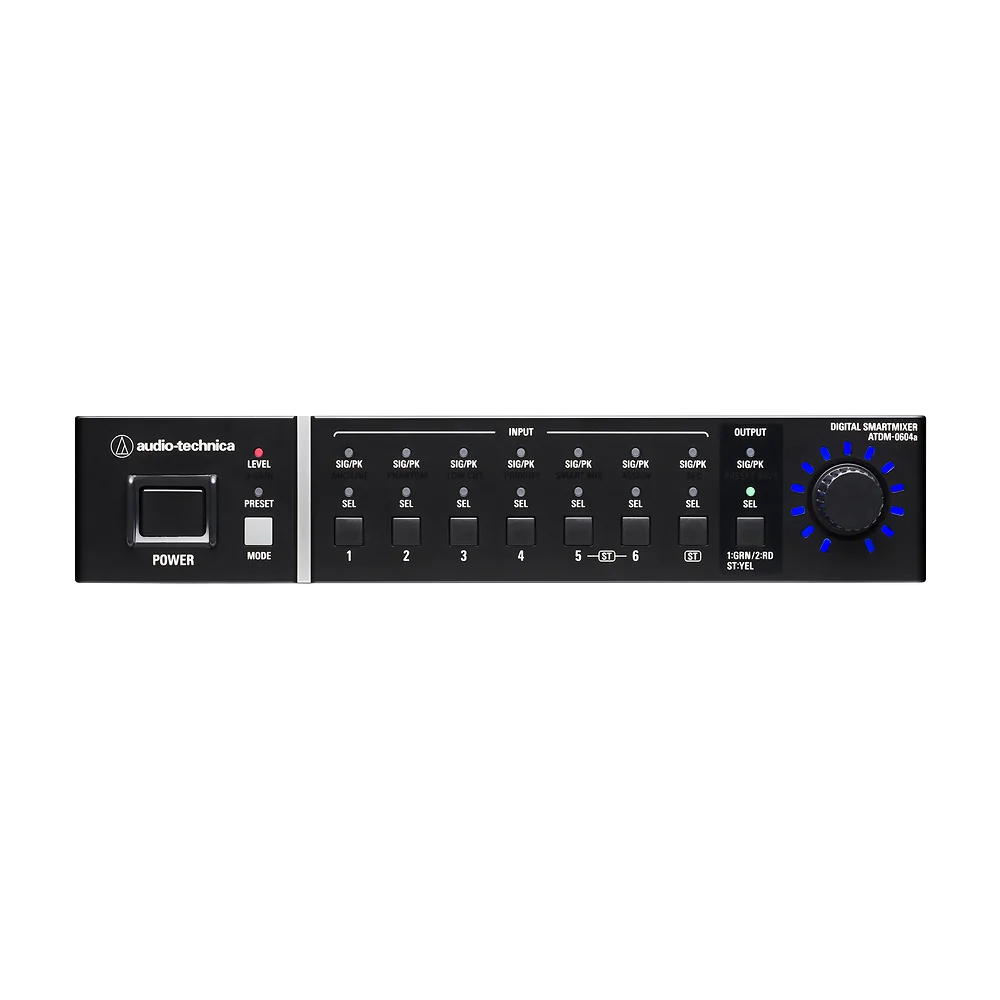

Audio-Technica ATDM-0604a: 6-in/4-out Digital Smart Mixer DSP
Model ATDM-0604a
Request a Quote
Availability: Out of Stock
- 6 mic/line inputs and 1 unbalanced stereo input
- 2 balanced outputs and 1 unbalanced stereo output
- USB audio input/output (1 stereo input, 1 stereo output)
- Remote LED control of ES954 hanging microphone arrays using the GPO terminal
Product Overview
Overview
The Audio-Technica ATDM-0604a is a 6-in/4-out digital smart mixer DSP. The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Corporate AV supplies, installs and supports the Audio-Technica ATDM-0604a across India. Request a quote for supply, installation and commissioning.
Key features
- 6 mic/line inputs and 1 unbalanced stereo input
- 2 balanced outputs and 1 unbalanced stereo output
- USB audio input/output (1 stereo input, 1 stereo output)
- Remote LED control of ES954 hanging microphone arrays using the GPO terminal
- SmartMixer with selectable gain sharing or gate mode
- High-performance echo canceler for each input channel
- Noise cancellation that can be assigned to any output channel
- Built-in 4-band EQ and compressor/de-esser for each input channel
Why choose the ATDM-0604a
It is a 6-in/4-out digital smart mixer DSP, a digital mixer built for installed rooms and streaming. Corporate AV adds a site survey, installation and support across India, so the ATDM-0604a is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
6 mic/line inputs and 1 unbalanced stereo input
2 balanced outputs and 1 unbalanced stereo output
USB audio input/output (1 stereo input, 1 stereo output)
Remote LED control of ES954 hanging microphone arrays using the GPO terminal
SmartMixer with selectable gain sharing or gate mode
Use Cases
Ideal Applications
Conference rooms and boardrooms
Houses of worship and halls
Installed sound systems
Livestreaming
Technical Details
Technical Specifications
Audio
Maximum Gain
64 dB
Frequency Characteristics
20 Hz to 20 kHz (MIC -16 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (MIC -60 dBu): +1.0 / -2.0 dB 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (LINE -40 dBu): +1.0
Dynamic Range
110 dB or higher, A-weighted/ST
S/N Ratio
90 dB or higher, A-weighted/ST
Headroom
20 dB or higher
Common-Mode Rejection Ratio
80 dB or higher, 1 kHz
Residual Noise
-86 dBu or less, A-weighted
Total Harmonic Distortion
0.03% or less, 1 kHz unity
Operating Humidity Range
25 to 85% (with no condensation)
PAD (Attenuation Level)
-24 dB
Level Indicator
SIGNAL/PEAK: 1 point (Red/Yellow/Green) Peak indicate (red)： -5 to 0 dB Peak hold time: 2 sec.
Remote Control
IP protocol: RJ-45 × 1 pc IP address：192.168.33.102 (factory default) Communication speed: 100 Mbps
Link I/O
Audio-Technica LINK：RJ-45 × 4 pcs Communication speed: 100 Mbps
USB Type B
Channel: Stereo input x 1 ch, stereo output x 1 ch (24-bit) Communication speed: High-speed (480 Mbps)
A/D Converter
Resolution: 24-bit Dynamic range: 115 dB
D/A Converter
Resolution: 24-bit Dynamic range: 115 dB
Connectivity
Input Referred Noise
-126 dBu or less, Rs = 150 ohm, DIN
Channel Separation
-80 dB or less, 1 kHz unity
Analog Input
MIC 1 to 6 max.: 0 dBu MIC 1 to 6 unity： -40 dBu LINE 1 to 4 max.: +10 dBV LINE 1 to 4 unity: -10 dBV LINE 5 to 6 max.: +24 dBu LINE 5 to 6 unity: +4 dBu / 0 dBV / -10 dBV /
Analog Output
UNBAL max.: +10 dBV / -13 dBV UNBAL unity: -10 dBV / -33 dBV BAL 1/L, 2/R max.: +24 dBu / +20 dBV / +10 dBV BAL 1/L, 2/R unity: +4 dBu / 0 dBV / -10 dBV
Network
IP protocol: RJ-45 × 1 pc
Physical and power
Phantom Power
+48V DC
Power Supply
100 to 240 V AC (50/60 Hz)
Power Consumption
17 W
Operating Temperature
0 to 40°C (32 to 104°F)
Dimensions
219.3 mm (8.6") ×346.3 mm (14") ×44 mm (1.7") (W×D×H), including protrusions
Weight
1.89 kg (4.2 lbs)
Finish
Front panel: Black with silver lines op/rear/sides: Black
I/O Connector
INPUT ST: Euroblock connectors (3-pin) INPUT MIC/LINE 1 to 6: Euroblock connectors (3-pin) OUTPUT UNBAL: Euroblock connectors (3-pin) OUTPUT BAL 1/L, 2/R: Euroblock connectors
Accessories Included
Euroblock connector × 11, Rack-mount (large, small), Rack-mount screw x 6, Power cable, Rubber foot x 4
Other specifications
Category
Audio Mixer, Audio-Technica
In The Box
What's Included
Euroblock connector × 11, Rack-mount (large, small), Rack-mount screw x 6, Power cable, Rubber foot x 4
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ATDM-0604a From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica ATDM-0604a?
The Audio-Technica ATDM-0604a is a 6-in/4-out digital smart mixer DSP. The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Who is the Audio-Technica ATDM-0604a best suited for?
The ATDM-0604a suits conference rooms and boardrooms, houses of worship and halls and installed sound systems. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Audio-Technica ATDM-0604a units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica ATDM-0604a in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica ATDM-0604a in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica ATDM-0604a?
Audio-Technica lists these included accessories: Euroblock connector × 11, Rack-mount (large, small), Rack-mount screw x 6, Power cable, Rubber foot x 4.
What power does the Audio-Technica ATDM-0604a need?
Audio-Technica specifies +48V DC for the ATDM-0604a.
What are the key specifications of the Audio-Technica ATDM-0604a?
Audio-Technica lists these key specifications for the ATDM-0604a. Maximum Gain: 64 dB. Dynamic Range: 110 dB or higher, A-weighted/ST. S/N Ratio: 90 dB or higher, A-weighted/ST. Headroom: 20 dB or higher.
