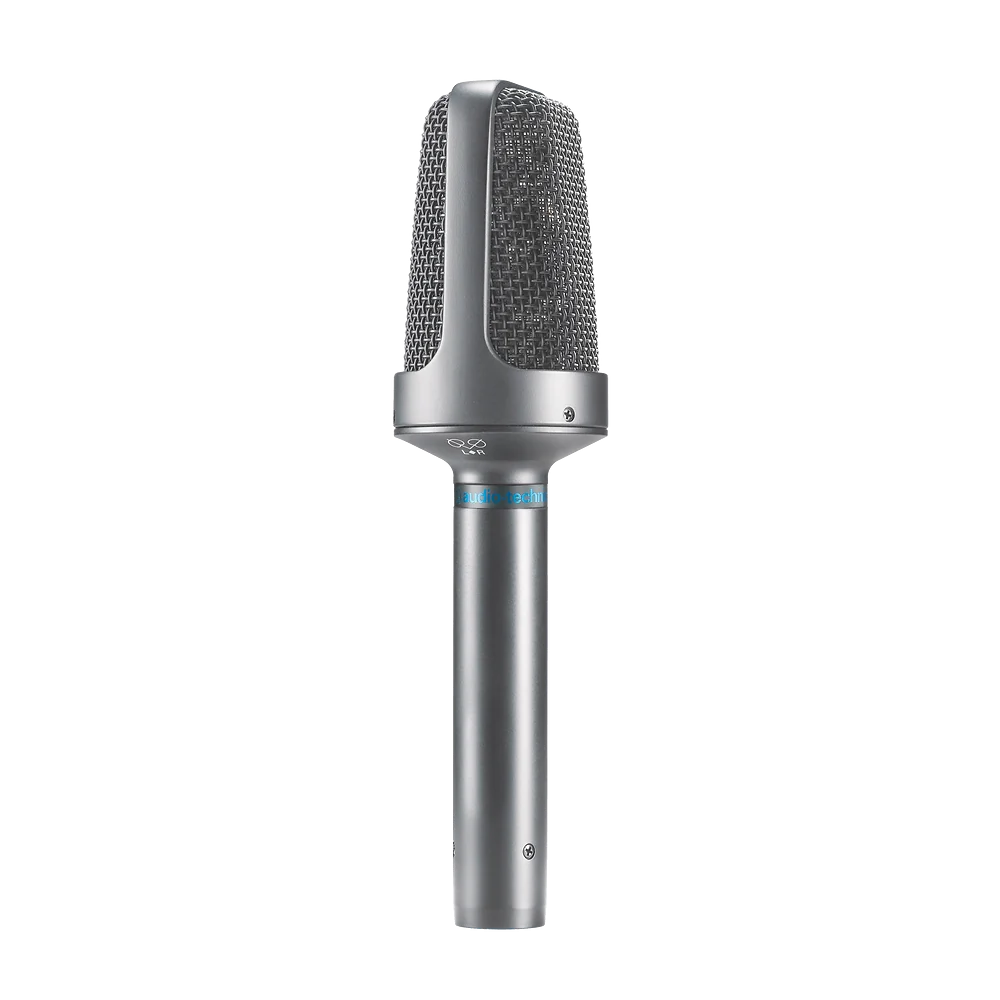

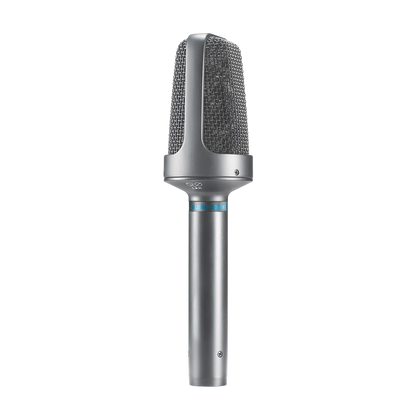

Audio-Technica AT8022: Condenser Studio Microphone
Model AT8022
Request a Quote
Availability: Out of Stock
- Innovative capsule configuration produces accurate stereo image in smaller housing
- Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording
- Ideal for use with handheld digital recording devices
- Operates on battery or phantom power—for use with pro or consumer equipment
Product Overview
Overview

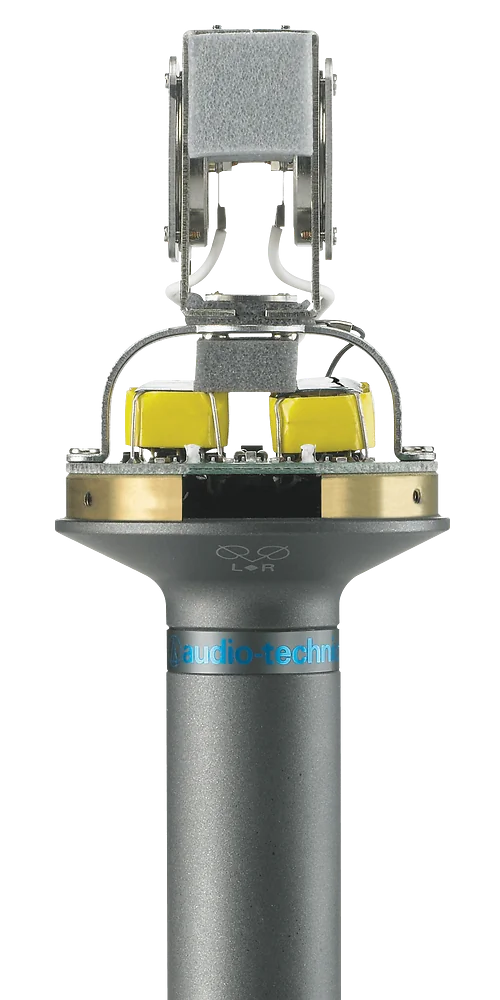

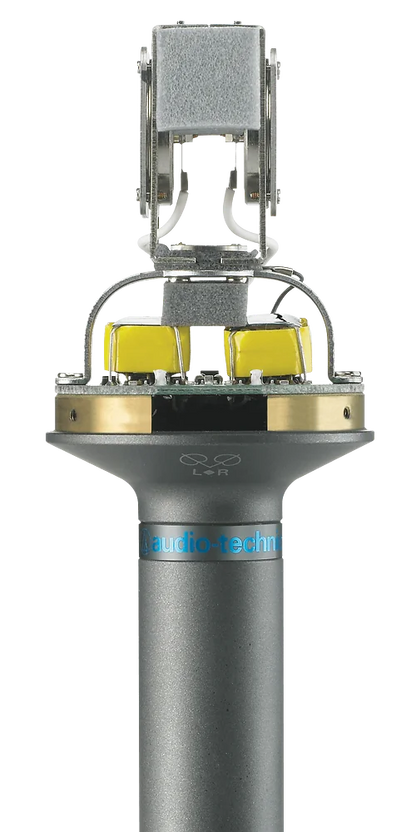

The Audio-Technica AT8022 is a condenser studio microphone. Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing.
Corporate AV supplies, installs and supports the Audio-Technica AT8022 across India. Request a quote for supply, installation and commissioning.
Key features
- Innovative capsule configuration produces accurate stereo image in smaller housing
- Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording
- Ideal for use with handheld digital recording devices
- Operates on battery or phantom power—for use with pro or consumer equipment
- Switchable low-frequency roll-off
- Includes two cables: one balanced (two 3-pin XLRM-type connectors at output)
Why choose the AT8022
It is a condenser studio microphone, a studio microphone built for recording and broadcast. Corporate AV adds a site survey, installation and support across India, so the AT8022 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Innovative capsule configuration produces accurate stereo image in smaller housing
Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording
Ideal for use with handheld digital recording devices
Operates on battery or phantom power—for use with pro or consumer equipment
Switchable low-frequency roll-off
Use Cases
Ideal Applications
Recording and podcast studios
Broadcast and voice-over
Houses of worship
Music rehearsal and production
Technical Details
Technical Specifications
Audio
Element
Fixed-charge back plate permanently polarized condenser
Polar Pattern
X/Y Stereo
Frequency Response
20-15,000 Hz
Low Frequency Roll Off
80 Hz, 18 dB/octave
Open Circuit Sensitivity
Phantom: -38 dB (12.5 mV) re 1V at 1 Pa Battery: -38 dB (12.5 mV) re 1V at 1 Pa
Dynamic Range
Phantom: 109 dB, 1 kHz at Max SPL Battery: 101 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio
75 dB, 1 kHz at 1 Pa
Battery Type
1.5V AA/UM3
Battery Current/Life
0.7 mA / 700 hours typical (alkaline)
Switches
Battery On/Off; Flat, roll-off
Audio-Technica Case Style
S12
Connectivity
Channel Balance
<2.5 dB
Maximum Input Sound Level
Phantom: 128 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
Physical and power
Phantom Power Requirements
11-52V DC, 2 mA typical (each channel)
Weight
247 g (8.7 oz)
Cable
Balanced: 2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output
Dimensions
186.0 mm (7.32") long, 47.6 mm (1.87") head diameter 21.0 mm (0.83") maximum body diameter
Output Connector
Integral 5-pin XLRM-type
Accessories Included
AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch
Other specifications
Category
Studio Microphone, Audio-Technica
In The Box
What's Included
AT8405a stand clamp for 5/8"-27 threaded stands
windscreen
soft protective pouch
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AT8022 From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica AT8022?
The Audio-Technica AT8022 is a condenser studio microphone. Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing.
Who is the Audio-Technica AT8022 best suited for?
The AT8022 suits recording and podcast studios, broadcast and voice-over and houses of worship. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Audio-Technica AT8022 units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica AT8022 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica AT8022 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica AT8022?
Audio-Technica lists these included accessories: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch.
What power does the Audio-Technica AT8022 need?
Audio-Technica specifies 11-52V DC, 2 mA typical (each channel) for the AT8022.
What is the polar pattern of the Audio-Technica AT8022?
Audio-Technica lists the AT8022 polar pattern as X/Y Stereo.
