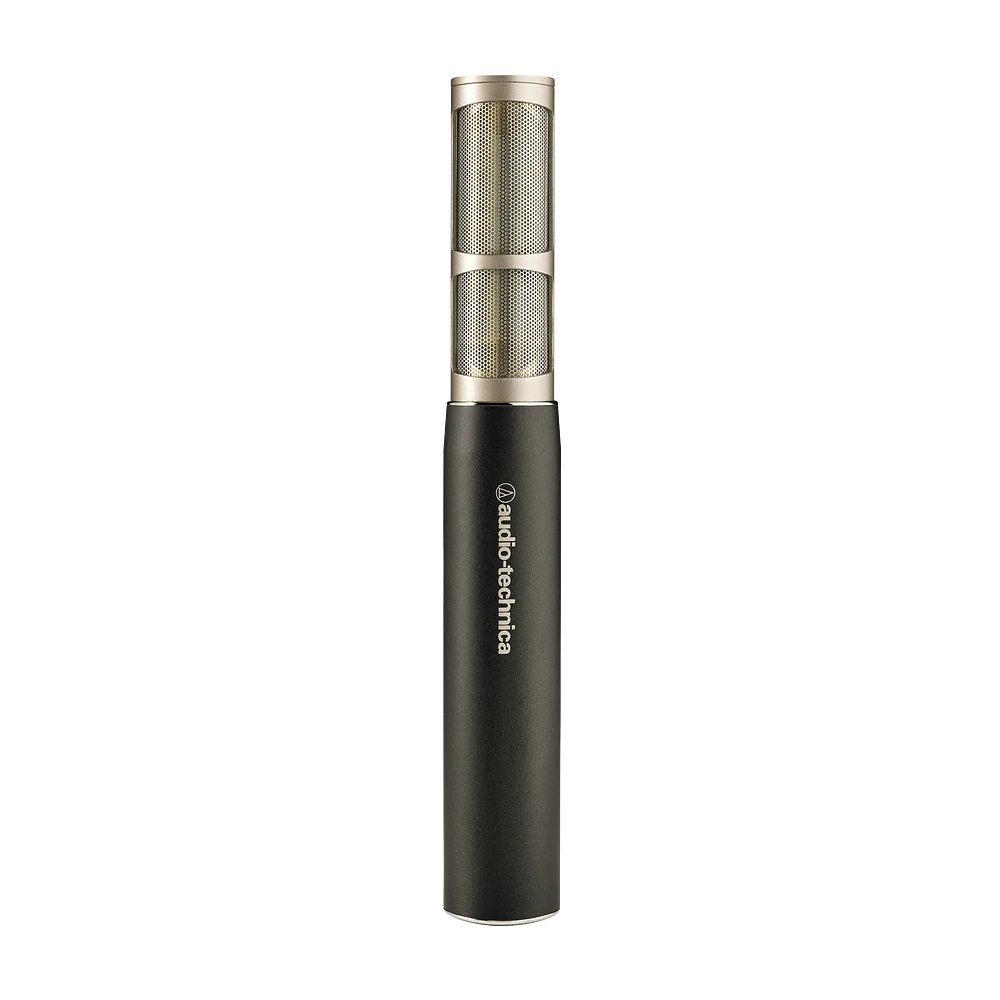

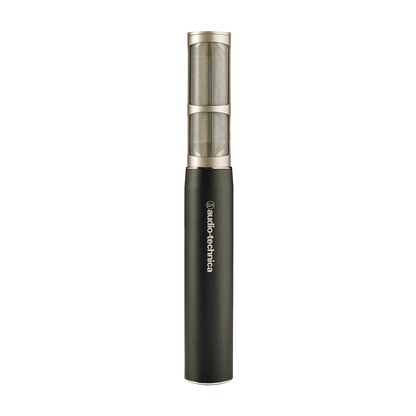

Audio-Technica AT5045: Condenser Large-Diaphragm Instrument Microphone

Model AT5045

Request a Quote
Availability: Out of Stock
  • Authorized Audio Technica Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Audio-Technica's premier studio condenser instrument microphone
  • Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings
  • Side-address, stick-design microphone
  • Discrete components carefully selected for optimized performance
Auditorium Audio System Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Audio-Technica AT5045 is a condenser large-diaphragm instrument microphone. Studio Instrument Microphone Available as a single mic or as a stereo pair, the AT5045 is Audio-Technica's premier condenser instrument microphone, offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body. In fact, despite the space limitations imposed by its housing, the AT5045 boasts Audio-Technica's largest single diaphragm.

Corporate AV supplies, installs and supports the Audio-Technica AT5045 across India. Request a quote for supply, installation and commissioning.

Key features

  • Audio-Technica's premier studio condenser instrument microphone
  • Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings
  • Side-address, stick-design microphone
  • Discrete components carefully selected for optimized performance
  • Transformer-coupled output is optimized to provide smooth sonic character
  • Exceptionally low noise with high-SPL capability
  • Hand built and inspected for 100% quality control
  • Advanced internal shock mounting decouples the capsule from the microphone body
Why choose the AT5045
It is a condenser large-diaphragm instrument microphone, an instrument microphone built for stage and studio use. Corporate AV adds a site survey, installation and support across India, so the AT5045 is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

Audio-Technica's premier studio condenser instrument microphone

Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings

Side-address, stick-design microphone

Discrete components carefully selected for optimized performance

Transformer-coupled output is optimized to provide smooth sonic character

Use Cases

Ideal Applications

Live sound and stage performance

Studio and rehearsal recording

Houses of worship

Event and broadcast audio

Technical Details

Technical Specifications

Audio
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20 – 20,000 Hz
Open Circuit Sensitivity –35 dB (17.7 mV) re 1V at 1 Pa
Noise 8 dB SPL
Dynamic Range 141 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 86 dB, 1 kHz at 1 Pa
Audio-Technica Case Style R11
Connectivity
Maximum Input Sound Level 149 dB SPL, 1 kHz at 1% T.H.D.
Physical and power
Phantom Power Requirements 48V DC, 1.4 mA typical
Weight 197 g (7.0 oz)
Dimensions 177.0 mm (6.97'') long, 25.0 mm (0.98'') maximum body diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case
Other specifications
Category Instrument Microphone, Audio-Technica
In The Box

What's Included

AT8481 isolation clamp for 5/8"-27 threaded stands
AT8165 windscreen
protective carrying case
Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The AT5045 From Corporate AV?
  • Genuine Audio Technica stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution

Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Audio-Technica AT5045?
The Audio-Technica AT5045 is a condenser large-diaphragm instrument microphone. Studio Instrument Microphone Available as a single mic or as a stereo pair, the AT5045 is Audio-Technica's premier condenser instrument microphone, offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body. In fact, despite the space limitations imposed by its housing, the AT5045 boasts Audio-Technica's largest single diaphragm.
Who is the Audio-Technica AT5045 best suited for?
The AT5045 suits live sound and stage performance, studio and rehearsal recording and houses of worship. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Audio-Technica AT5045 units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica AT5045 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica AT5045 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica AT5045?
Audio-Technica lists these included accessories: AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case.
What power does the Audio-Technica AT5045 need?
Audio-Technica specifies 48V DC, 1.4 mA typical for the AT5045.
What is the polar pattern of the Audio-Technica AT5045?
Audio-Technica lists the AT5045 polar pattern as Cardioid.
