Absen SA Series: Indoor Rental and Touring LED Video Wall

The Absen SA Series is an indoor LED video wall for rental, staging and touring, with 500 x 500 mm and 1000 x 500 mm magnesium die-cast panels in pixel pitches from 1.5 mm to 3.9 mm.

Absen calls it a hexagonal warrior: it combines a lightweight durable cabinet, strong image quality, flexible SA, SA-B cube and SA-C flexible panels, shared components and a fast locking system.

Corporate AV supplies, installs and supports the Absen SA Series across India. Request a quote for supply, installation and commissioning.

Key features

• 1,200 to 1,500 nits by model, IP40/IP21, CE, ETL, FCC, UKCA
• Pixel pitches P1.5 (COB), P1.9, P2.6 and P3.9
• 500 x 500 mm (5.5 kg) and 1000 x 500 mm (9.5 kg) magnesium die-cast panels
• 160° viewing angle and 7,680 Hz refresh rate
• SA-B cube panels and SA-C flexible panels combine with SA panels
• Fast locking and auto-magnetic cabinet for one-person setup
• Hanging up to 10 m and stacking up to 5 m

A family of panels that work together

The SA series covers flat walls, corners, cubes and curves. SA panels come in P1.9, P2.6 and P3.9 (P1.5 as the SA1.5 COB model). SA-B cube panels let you build L-shapes and five-sided cubes, and SA-C flexible panels bend from -30° to +30° in 1.25° steps, forming curves, S-shapes and cylinders from 1.91 m diameter. Panels of the same pitch share optoelectronic performance so mixed shapes stay visually uniform.

Image quality for stage and camera

The SA series has a 160° viewing angle and uniform brightness. Absen lists a 99.9% DCI-P3 colour gamut (P2.6, Brompton), 7,680 Hz refresh rate and 240 Hz frame rate (P2.6), and the SA1.5 COB model adds ultra-low reflectance (SCI-SCE below 0.4%) for on-camera performance.

Quick to rig and tour

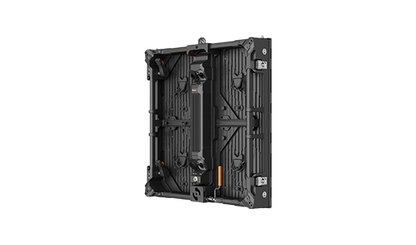

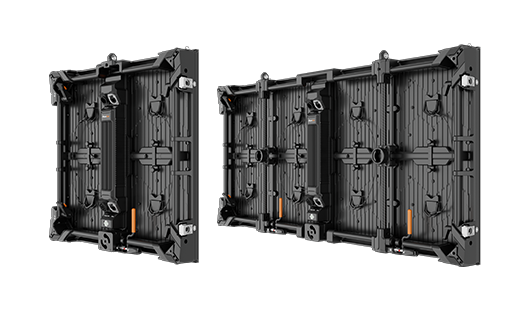

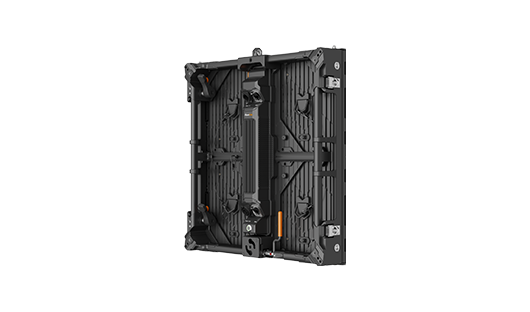

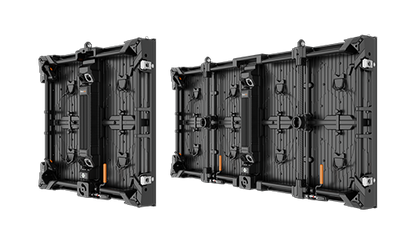

A die-casting magnesium cabinet with carbon-fibre tube reinforcement keeps the 1000 x 500 mm panel at 9.5 kg. The fast locking system and auto-magnetic cabinets allow one-person installation, hanging reaches 10 m and stacking 5 m, and dollies carry 10 panels of 1000 x 500 mm or 20 panels of 500 x 500 mm. Modules and power boxes swap in moments.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. For indoor stages and event backdrops, P2.6 and P3.9 suit audiences several metres away, while P1.5 and P1.9 suit close viewing, presenters on camera and virtual production.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the SA Series is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the SA Series covering supply, installation and commissioning.
