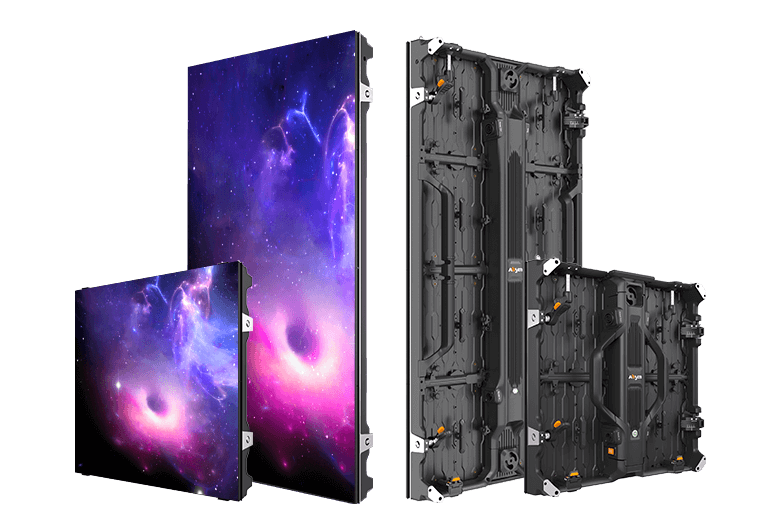

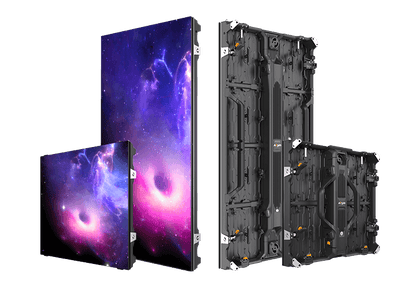

Absen PL2.5 Plus V2: 2.5 mm Indoor Rental LED Display

The Absen PL2.5 Plus V2 is an indoor rental LED display with a 2.5 mm pixel pitch from the Polaris V2 (PL V2) series, with 500 x 500 x 78 mm panels weighing 7.8 kg.

Absen's specification sheet lists 1,200 nits brightness, a 7,680 Hz refresh rate, a 7,000:1 contrast ratio and 140° viewing angles in both directions, and the 2.5 mm pitch suits viewers from about two and a half metres away.

Corporate AV supplies, installs and supports the Absen PL2.5 Plus V2 across India. Request a quote for supply, installation and commissioning.

Key features

• 2.5 mm pixel pitch on 500 x 500 x 78 mm panels at 7.8 kg
• 1,200 nits, 7,680 Hz refresh rate, 7,000:1 contrast
• 140° / 140° viewing angle and 6,500 K colour temperature
• Automatic edge protection on narrow-pitch panels (2.5 mm and below)
• Magnet-assisted vertical locks with auto-eject for one-person assembly
• Hanging and stacking with up to 20 panels rigged

Where the PL2.5 Plus V2 fits

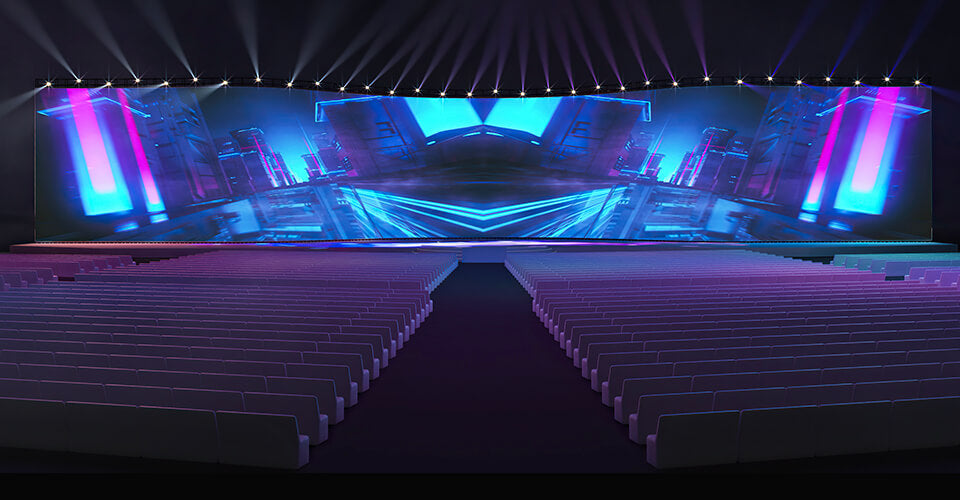

The Plus V2 models are the mainstream indoor members of the Polaris V2 platform, which uses 500 mm panel increments so screen sizes are easy to calculate. At 2.5 mm the image is dense enough for close-range indoor viewing, such as presenters on stage, exhibition stands and ballroom backdrops, while the standard 500 x 500 mm panel keeps handling simple.

Built into the PL V2 platform

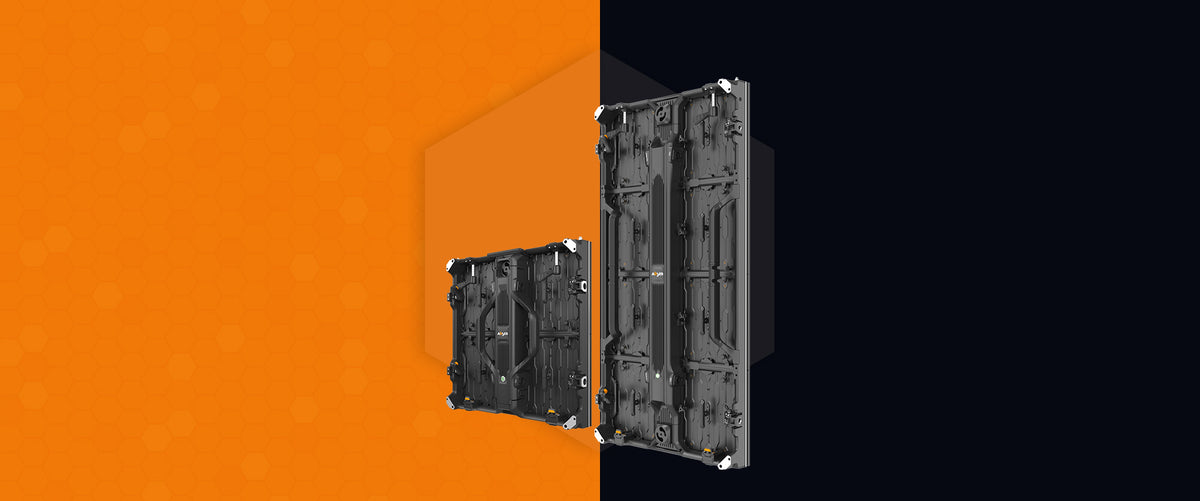

The PL V2 series supports HDR, grayscale up to 16 bit and a 7,680 Hz refresh rate. Narrow-pitch panels (2.5 mm and below) include automatic edge protection on each corner to reduce pixel damage, and the magnet-assisted vertical locks and auto-eject system allow quick assembly and disassembly by one person. Curves from -7.5° convex to +10° concave are supported, with hanging, stacking, front and rear installation, and modular front and rear maintenance.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. At 2.5 mm, viewers should be roughly 2.5 m or further from the screen, which suits event stages, exhibition stands and ballrooms.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the PL2.5 Plus V2 is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the PL2.5 Plus V2 covering supply, installation and commissioning.
