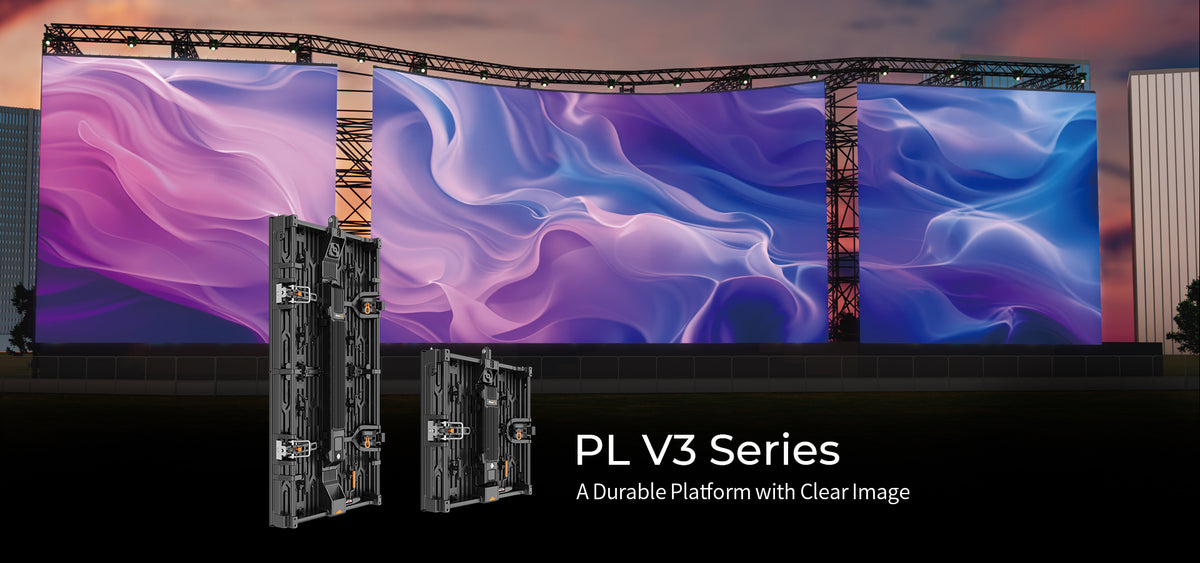

Absen PL V3 Series: Indoor and Outdoor Rental LED Display

The Absen PL V3 Series is a durable indoor and outdoor rental LED display, with 3.9 mm and 4.8 mm pixel pitches and 500 x 1000 mm and 500 x 500 mm magnesium die-cast panels.

Absen designed it as one screen for corporate events, festivals and touring: black-face LEDs and anti-reflective masks give deep blacks, and the PL3.9 Pro V3 switches between 5,000 nits outdoors and 1,500 nits indoors.

Corporate AV supplies, installs and supports the Absen PL V3 Series across India. Request a quote for supply, installation and commissioning.

Key features

• 5,000 nits, IP65/IP65, -20 to +50 °C, CE, FCC, ETL, RoHS, UKCA
• 3.9 mm and 4.8 mm pixel pitches
• 500 x 1000 mm (12 kg) and 500 x 500 mm (7 kg) magnesium die-cast panels
• 5,000 nits for outdoor use; 1,500 nits indoor on the PL3.9 Pro V3
• Triple-guard modules and automatic edge protection
• Fast vertical locking and horizontal adjustment from -7.5° to +10°
• Optional wind-bracing, triangle hanging bars and 14-in-1 dolly

One screen for every season and venue

The PL V3 series is engineered for summer festivals and winter corporate events alike. A unibody dual-layer magnesium die-cast cabinet keeps a 500 x 1000 mm panel to 12 kg and a 500 x 500 mm panel to 7 kg while resisting warping, and triple-guard modules with automatic edge protection defend against bumps, drops and transport impacts.

Image quality outdoors and indoors

True black-face LEDs and matte-black anti-reflective masks deliver deeper blacks, high contrast and near-zero reflection, with 5,000 nits for outdoor visibility. The PL3.9 Pro V3 is built for outdoor and ready for indoor: a 0.1 to 5,000 nit brightness range with a one-click switch between 5,000 nits outdoors and 1,500 nits indoors, and colour deviation under 500 K across grayscales.

Rigging, transport and creative shapes

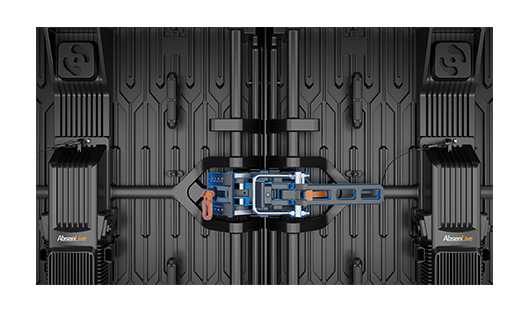

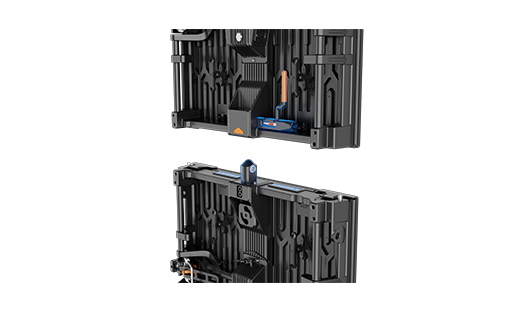

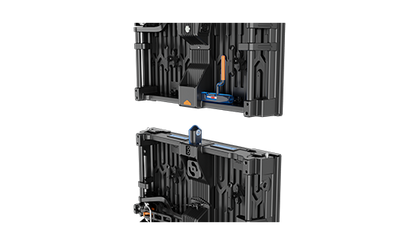

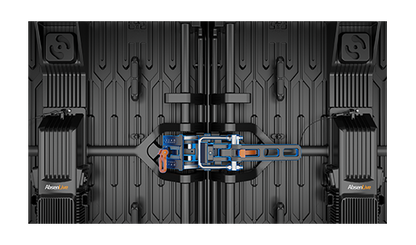

High-strength king pins and auto-magnetic cabinets give fast vertical locking, while horizontal locking adjusts from -7.5° to +10°. Optional integrated wind-bracing and reinforced triangle hanging bars support installations up to 20 m high and Beaufort force 8 winds (62 to 74 km/h). A 14-in-1 dolly, 5-in-1 and 10-in-1 flight cases, and corner panels for L-shapes and tetrahedral displays complete the system.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. At 3.9 mm and 4.8 mm, the PL V3 suits audiences from roughly four metres away, which fits concert, festival and event stages.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the PL V3 Series is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the PL V3 Series covering supply, installation and commissioning.
