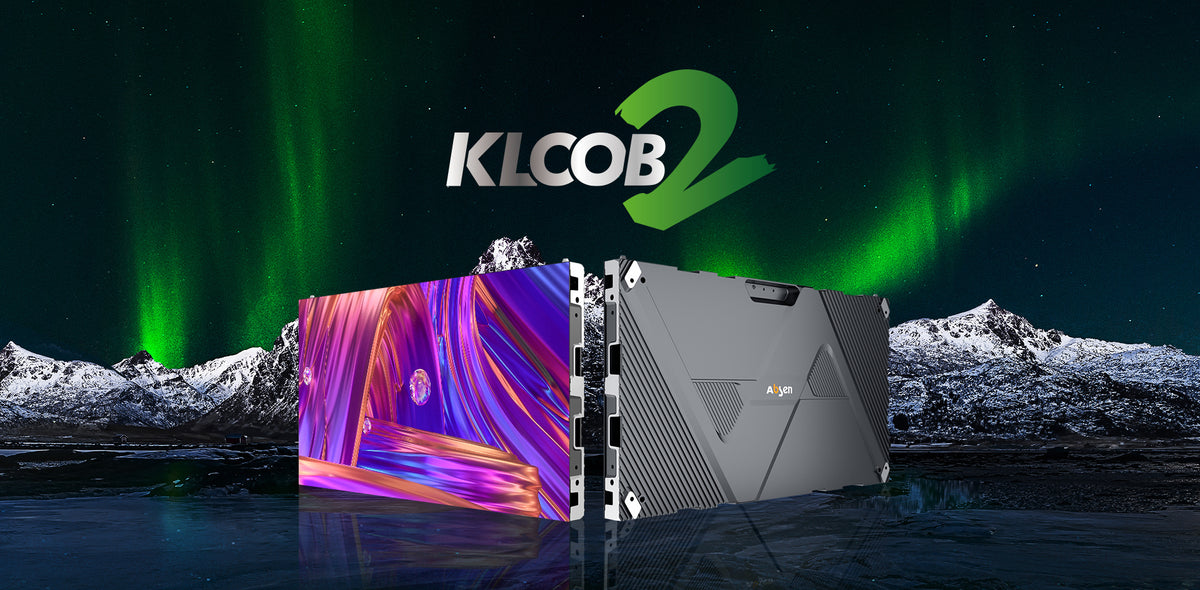

Absen KLCOB V2 Series: Professional Micro LED Display

The Absen KLCOB V2 Series is a professional Micro LED display with a black polymer coating for deep, uniform blacks, flip chip construction for strong impact protection and low heat, and 600 x 337.5 mm panels.

Absen lists pixel pitches from 0.78 mm to 1.87 mm for the KLCOB V2 and KLCOB Pro V2 range, which makes it a fit for rooms where viewers sit close and image quality matters.

Corporate AV supplies, installs and supports the Absen KLCOB V2 Series across India. Request a quote for supply, installation and commissioning.

Key features

• 800 nits (1,000 nits Pro V2), 15,000:1 contrast, IP40/IP21, CE, FCC, ETL
• Black polymer coating for deep, uniform blacks and low glare
• Flip chip and HBB common cathode technology run cool and efficiently
• 360° impact protection from flip chip construction
• Concave splicing with a minimum radius of 2.87 m and 90° splicing
• Stacking, wall-mounting, hanging and 90° splicing installation
• EMC Class B standard (optional)

Deep blacks and fine detail

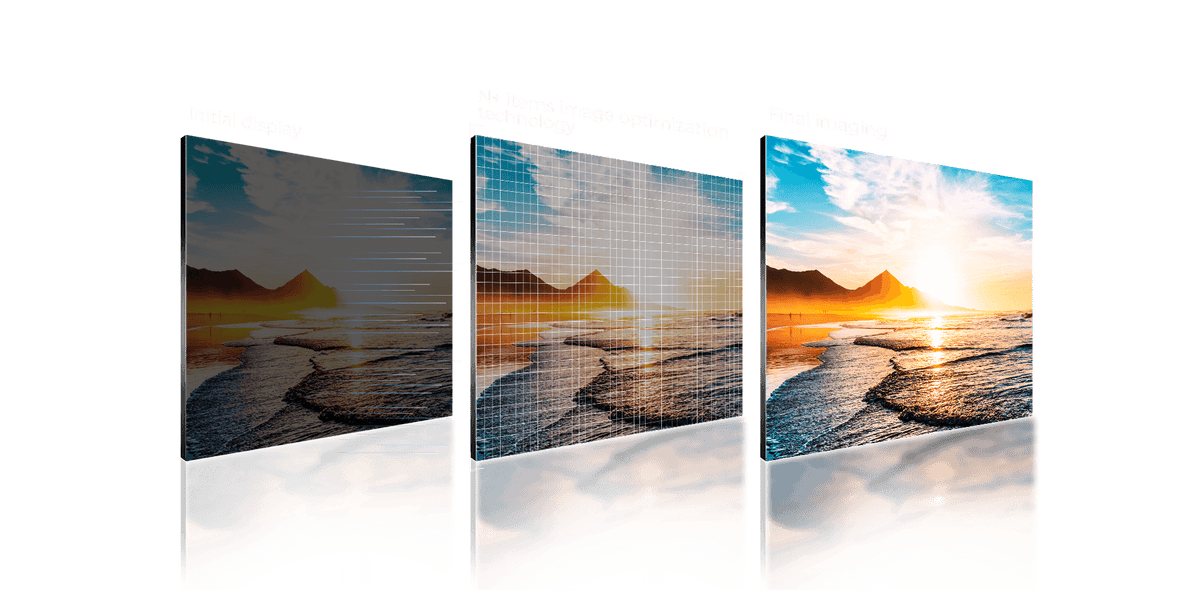

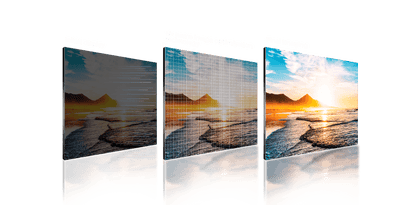

A unique black polymer coating gives the KLCOB V2 uniformly deep blacks, better flatness and a non-glaring, non-reflective surface, which lifts colour contrast and the overall viewing experience. Image optimisation technologies sharpen detail and colour for lifelike images.

Cool, efficient and tough

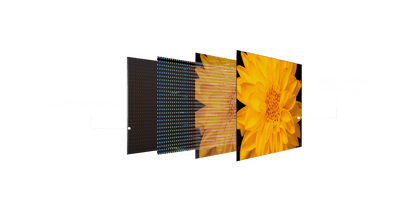

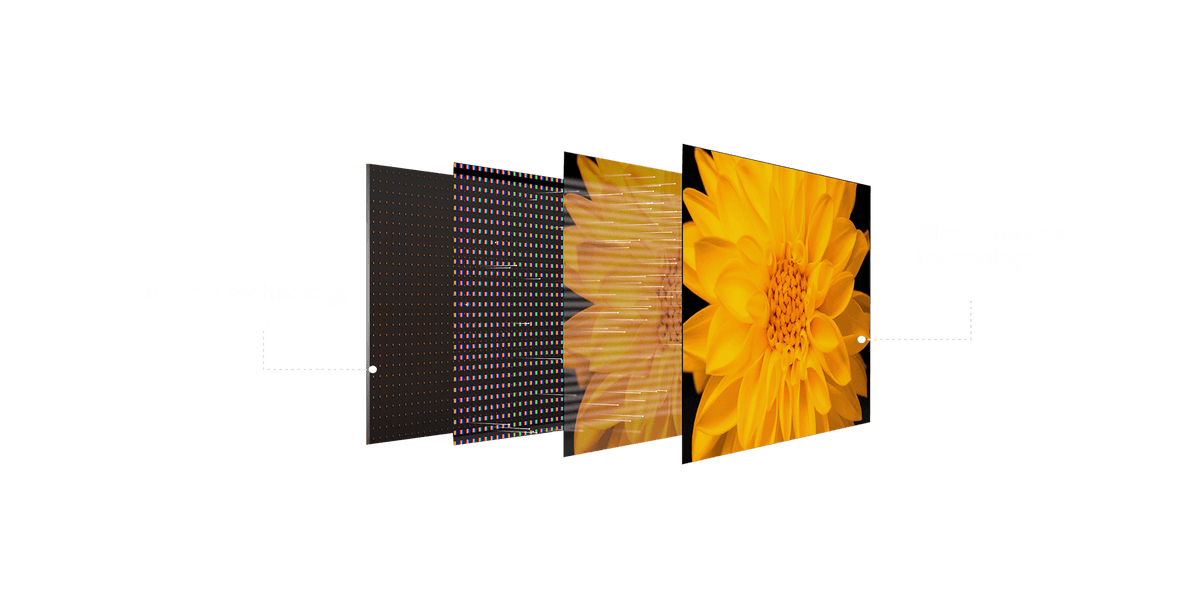

Flip chip and HBB common cathode technologies keep the display cool under load and reduce power use. Flip chip construction also provides 360° all-round protection against external impact. An EMC Class B standard is available as an option.

Shapes and installation options

Small 150 x 337.5 mm panels for splicing each support a maximum internal arc of 3° with a minimum radius of 2.87 m, so walls can be concave. The series installs by stacking, wall-mounting, hanging or precise 90° splicing for creative shapes.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. At sub-2 mm pitches such as 0.78 mm to 1.87 mm, viewers can sit very close, which is why this class of display is chosen for control rooms, boardrooms and showrooms.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the KLCOB V2 Series is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the KLCOB V2 Series covering supply, installation and commissioning.
