Absen JP8 Pro: Mesh Transparent Outdoor Touring LED Display

The Absen JP8 Pro is a mesh transparent outdoor LED display in the Jupiter Pro series, built for touring stages with 50% transparency, 5,000 nits brightness, 16-bit grayscale and a 7,680 Hz refresh rate.

Each 1000 x 1000 mm panel weighs only 20.5 kg, and the large panel size is designed to speed up stage setup where every minute counts.

Corporate AV supplies, installs and supports the Absen JP8 Pro across India. Request a quote for supply, installation and commissioning.

Key features

• 5,000 nits, IP65/IP54, -20 to +50 °C, CE, FCC, ETL, RoHS
• 50% transparency mesh design for large outdoor concert visuals
• 5,000 nits brightness, 16-bit grayscale, 7,680 Hz refresh rate
• 1000 x 1000 mm panels at 20.5 kg each
• Curving from -10° convex to +15° concave
• Hanging and stacking with integrated wind-bracing and dolly systems
• Tool-less module and power-box replacement

Transparency for large outdoor stages

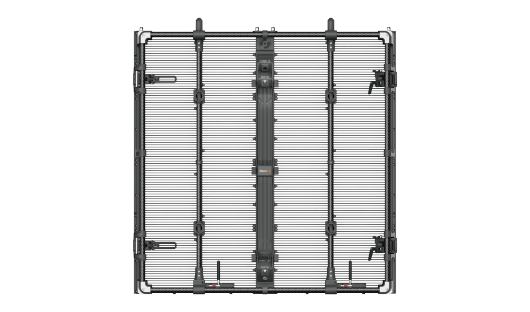

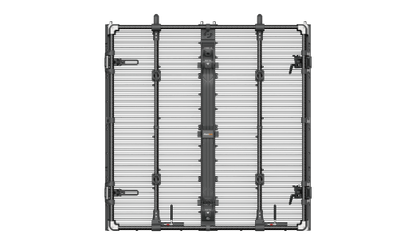

The JP8 Pro uses an open mesh design with a 50% transparency rate, so wind passes through and the audience can see stage elements and lighting behind the image. That makes it a fit for large-scale outdoor concerts and festival stages.

Fast to rig, fast to service

The JP Pro series locking system and integrated wind-bracing are designed for quick setup. Panels can be hung or stacked, and with wind-bracing systems and hanging bars the 1000 x 1000 mm panels withstand Beaufort force 8 winds (up to 74 km/h) at rigging heights of 24 m, according to Absen. The 6-in-1 and 8-in-1 dolly systems help move panels between venues.

Large modules and an integrated power box with quick-release toggle latches allow tool-less removal and replacement, which keeps maintenance quick during an event.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. Large-format outdoor stages are usually viewed from tens of metres, so a coarser pitch is common; the JP8 Pro has an 8.9 mm pitch.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the JP8 Pro is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the JP8 Pro covering supply, installation and commissioning.
