Absen JP5 Pro: True Black Touring LED Display

The Absen JP5 Pro is a true-black LED display in the Jupiter Pro touring series, using black LEDs to cut surface reflection and lift contrast to 8,500:1, with 5,000 nits brightness, 16-bit grayscale and a 7,680 Hz refresh rate.

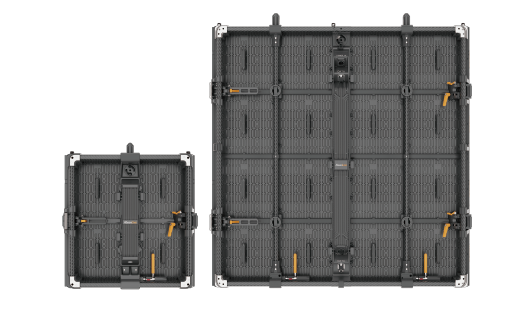

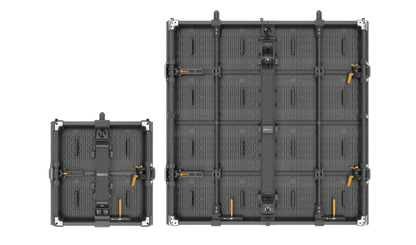

It comes in 500 x 500 mm and 1000 x 1000 mm solid panels weighing 9.5 kg and 29.5 kg, so a touring crew can mix panel sizes to build a wall quickly.

Corporate AV supplies, installs and supports the Absen JP5 Pro across India. Request a quote for supply, installation and commissioning.

Key features

• 5,000 nits, IP65/IP54, -20 to +50 °C, CE, FCC, ETL, RoHS, UKCA
• Black LEDs reduce reflection and deliver 8,500:1 contrast
• 5,000 nits brightness, 16-bit grayscale, 7,680 Hz refresh rate
• 500 x 500 mm (9.5 kg) and 1000 x 1000 mm (29.5 kg) solid panels
• Curving from -10° convex to +15° concave
• Hanging and stacking with integrated wind-bracing and dolly systems
• Tool-less module and power-box replacement

True black for strong contrast

The JP5 Pro uses a black LED that reduces light reflection from the panel surface. That improves contrast so image detail stays vivid, and Absen quotes a contrast ratio of 8,500:1. It is the solid-panel counterpart to the transparent JP8 Pro in the same series.

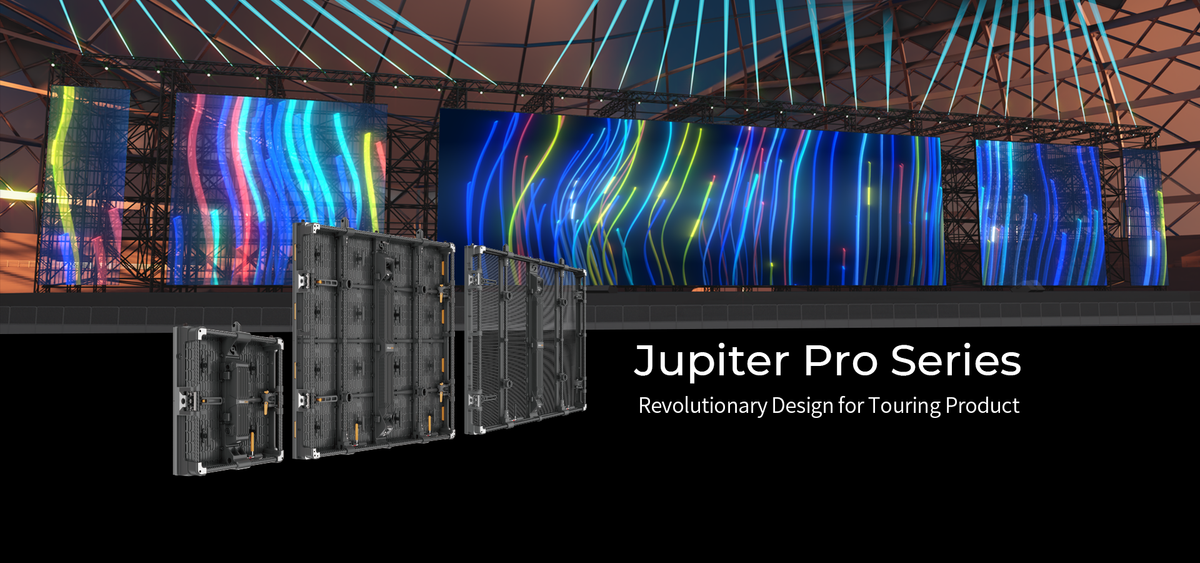

Built for the touring stage

The JP Pro series uses large panels, a precision locking system and an integrated power box to shorten setup and changeovers. Hanging and ground-supported stacking are both supported; with wind-bracing systems and hanging bars, 1000 x 1000 mm panels withstand Beaufort force 8 winds (up to 74 km/h) at rigging heights of 24 m, according to Absen. Angle adjustment gives curved walls from -10° convex to +15° concave.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. Touring and event walls are usually viewed from a distance, so pitch is chosen with the audience position; the JP5 Pro has a 5.2 mm pitch.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the JP5 Pro is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the JP5 Pro covering supply, installation and commissioning.
