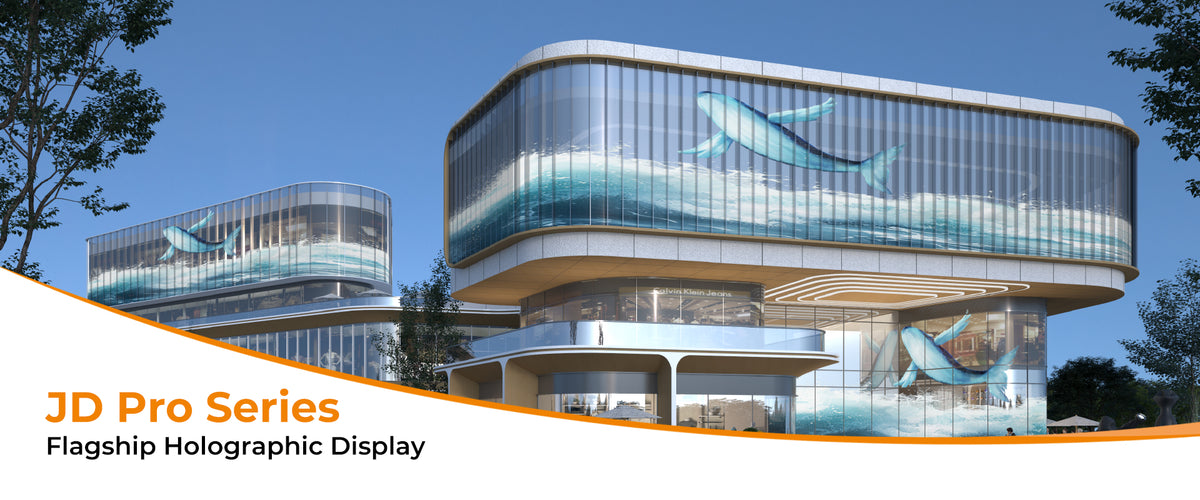

Absen JD Pro Series: Holographic Transparent LED Display

The Absen JD Pro Series is a holographic transparent LED display for building facades, with up to 95% visual transparency, so it nearly disappears into the glass when switched off and puts content centre stage when on.

At 5,000 nits it stays clear on semi-outdoor facades even in direct sunlight, and ultra-light cabinets from 6.6 kg/m² keep the load on the structure low, which suits ageing facades and glass curtain walls. Three pixel pitches (3.91, 6.25 and 10.4 mm) trade image density against transparency.

Corporate AV supplies, installs and supports the Absen JD Pro Series across India. Request a quote for supply, installation and commissioning.

Key features

• 5,000 nits, 16-bit grayscale, IP30, operating range -20 to +50 °C
• Up to 95% visual transparency: blends into the facade when off
• 5,000 nits brightness for semi-outdoor facades in direct sunlight
• Cabinets from 6.6 kg/m² to ease facade load
• 16-bit grayscale with static driving for true colour on screen and in camera
• Fixed or suspended installation, straight or curved tiling
• Front-access maintenance and rapid installation

Why choose a transparent LED screen

A transparent LED display lets daylight and the view through while still carrying bright content. That makes it a fit for glass facades, atriums and shop windows, where a solid LED wall would block light and views. The JD Pro Series is Absen's flagship holographic model for facades.

Three pixel pitches, one cabinet format

The series comes as the JD3.9 Pro (3.91 mm), JD6 Pro (6.25 mm) and JD10 Pro (10.4 mm). The finer pitch gives a denser image; the coarser pitches give higher transparency (visual transparency of 82%, 90% and 95% respectively). All use 1000 x 1000 mm and 1000 x 500 mm cabinets.

Built for facades and architectural spaces

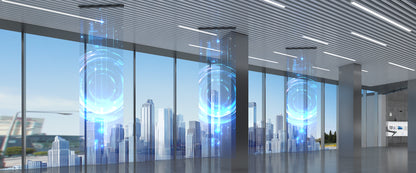

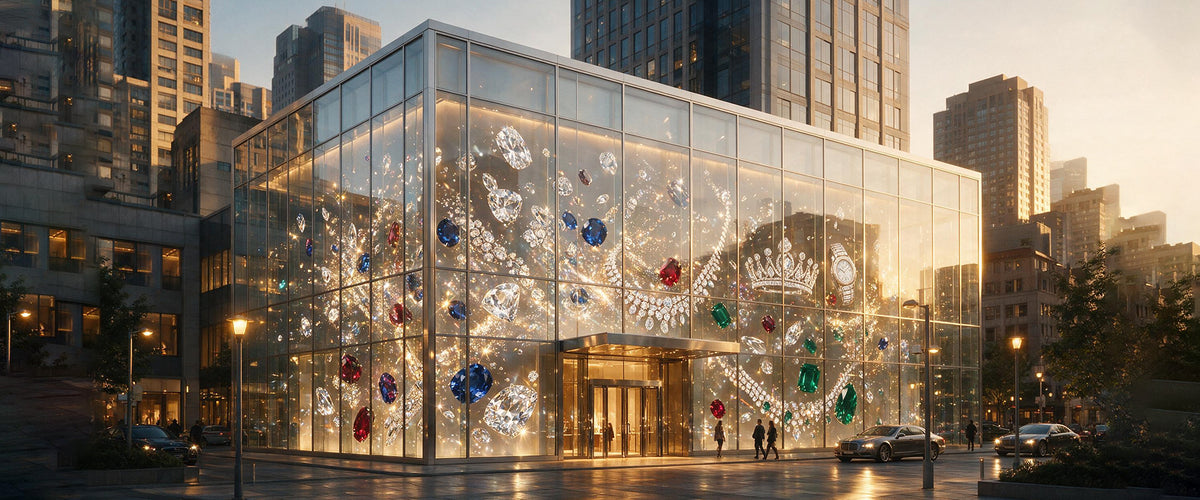

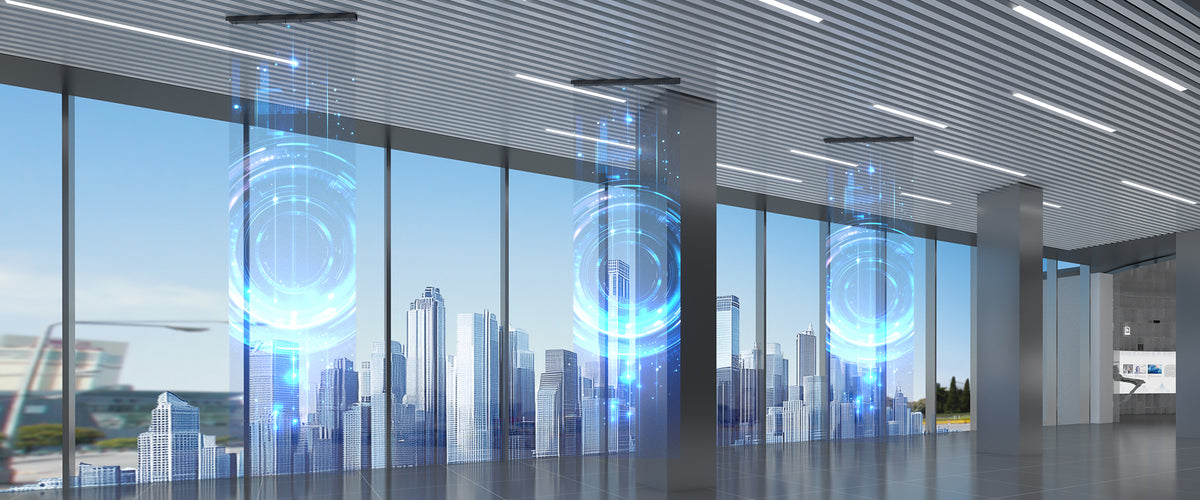

Free-form straight and curved tiling lets the screen follow unusual shapes. Fixed and suspended mounting adapts to existing facade structures without additional steelwork, and independent front maintenance keeps service simple. Typical uses named by Absen are building facades, mall atrium hoisting, retail windows and cultural tourism and exhibition displays.

How to choose the right size and pixel pitch

Pixel pitch is the distance between neighbouring LED pixels: a smaller pitch gives a sharper image that can be viewed from closer. As a common industry rule of thumb, the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers sitting about 2.5 m or further away. For transparent screens, pitch also sets how much of the view stays visible: the coarser the pitch, the higher the transparency.

Corporate AV checks pitch, wall size and aspect ratio against your seating, content and budget during the site survey, so the JD Pro Series is specified for how the room is actually used.

What Corporate AV delivers in India

• A site survey and viewing-distance study before any order
• Structure, power and cooling coordination with your civil and electrical teams
• Controllers, processors and signal chain matched to your sources and control system
• Installation, calibration and commissioning by our engineers
• Operator training and after-sales support across India

What to send for a quote

Share the wall location (indoor or outdoor), available width and height, typical viewing distance, content sources, mounting surface and target date. A Corporate AV consultant will come back with a proposal for the JD Pro Series covering supply, installation and commissioning.
